Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11

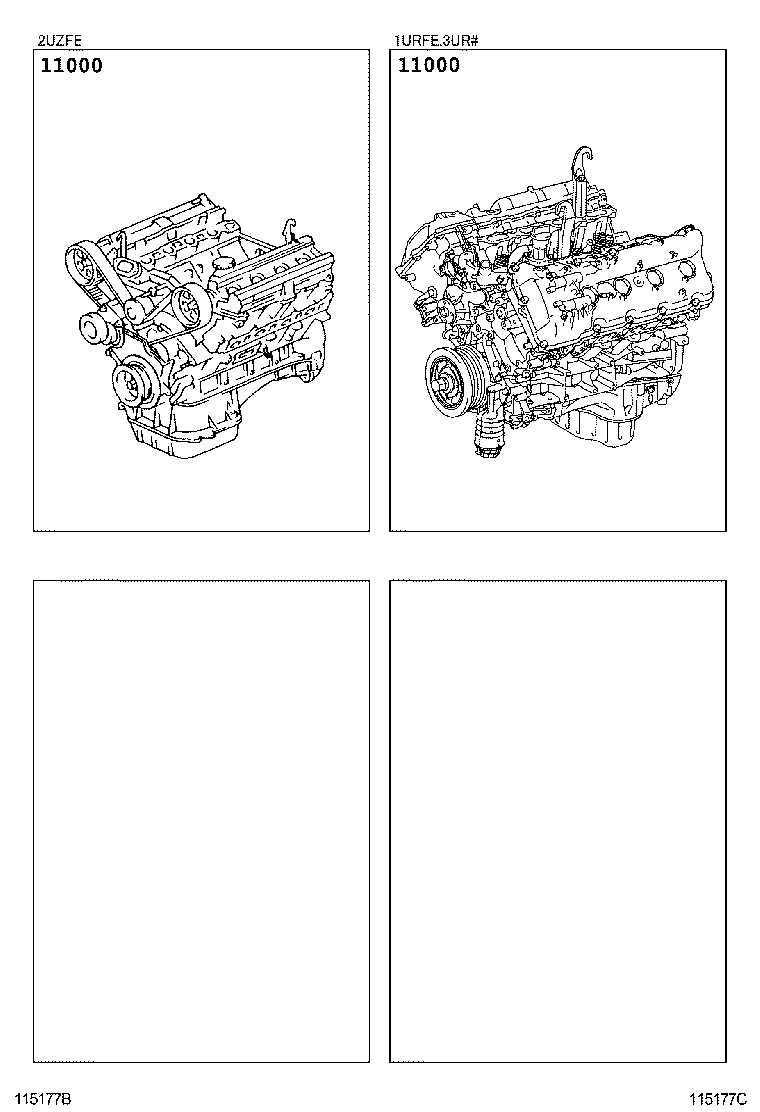

23 parts on this figure
Part number Description Fitment Price
11000 — Engine Assy, Partial
19000-0F030 Engine Assy, Partial
2007-11 → 2009-04 ended
2UZFE UCK6# —
19000-0S010 note Engine Assy, Partial
2007-11 → 2009-03 ended
3UR# USK6# —
19000-0S011 note Engine Assy, Partial
2009-03 → 2011-08 ended
3UR# USK6# —
19000-0S020 Engine Assy, Partial
2007-11 → 2009-03 ended
3UR# USK6# —
19000-0S021 Engine Assy, Partial
2009-03 → 2011-08 ended
3UR# USK6# —
19000-0S070 note Engine Assy, Partial
2009-04 → 2010-08 ended
1URFE UPK6# —
19000-0S070 Engine Assy, Partial
2010-08 → 2012-08 ended
1URFE UPK6# —
19000-0S080 Engine Assy, Partial
2009-04 → 2010-08 ended
1URFE UPK6# —
19000-0S080 note Engine Assy, Partial
2010-08 → 2012-08 ended
1URFE UPK60 —
19000-0S090 note Engine Assy, Partial
2011-08 → 2013-08 ended
3UR# USK6# —
19000-0S100 Engine Assy, Partial
2011-08 → 2013-08 ended
3UR# USK6# —
19000-0S120 Engine Assy, Partial
2013-08 → 2017-08 ended
3URFBE USK65 —
19000-0S120 note Engine Assy, Partial
2013-08 → 2017-08 ended
3URFE USK6# —
19000-0S130 Engine Assy, Partial
2013-08 → 2017-08 ended
3URFE USK6# —
19000-0S170 note Engine Assy, Partial
2014-08 → 2017-08 ended
3URFE USK60 —
19000-0S170 note Engine Assy, Partial
2014-08 → 2017-08 ended
3URFE USK65 —
19000-0S180 note Engine Assy, Partial
2014-08 → 2017-08 ended
3URFE USK65 —
19000-0S120 Engine Assy, Partial
2017-08 → 2017-09 ended
3URFBE USK65 —
19000-0S120 note Engine Assy, Partial
2017-08 → —
3URFE USK6# —
19000-0S130 Engine Assy, Partial
2017-08 → —
3URFE USK6# —
19000-0S170 note Engine Assy, Partial
2017-08 → —
3URFE USK60 —
19000-0S170 note Engine Assy, Partial
2017-08 → —
3URFE USK65 LIMD,PLAT —
19000-0S180 note Engine Assy, Partial
2017-08 → —
3URFE USK65 LIMD,PLAT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
