Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

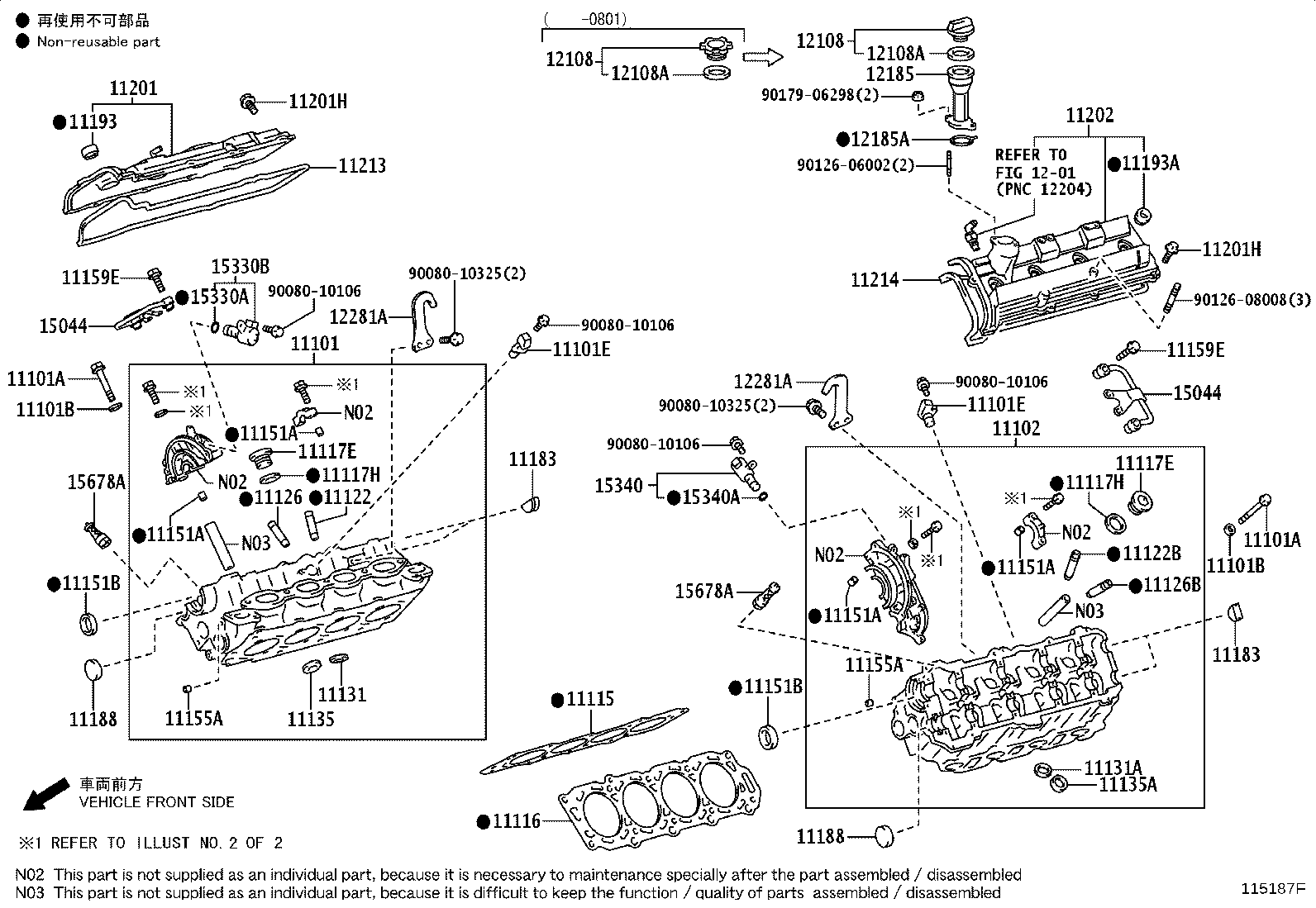

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-09220 |
Head Sub-assy, Cylinder
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11101-09270 note |
Head Sub-assy, Cylinder
2007-11 → 2011-09
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11101-09271 note |
Head Sub-assy, Cylinder
2011-09 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11101-09271 note |
Head Sub-assy, Cylinder
2011-09 → 2015-03
ended
|
3UR# USK6# | — | |
| 11101-09271 |
Head Sub-assy, Cylinder
2015-03 → 2016-07
ended
|
3UR# USK6# | — | |
| 11101-09650 |
Head Sub-assy, Cylinder
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11101-39645 note |
Head Sub-assy, Cylinder
2007-11 → 2011-09
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11101-39646 note |
Head Sub-assy, Cylinder
2011-09 → 2015-03
ended
|
3UR# USK6# | — | |
| 11101-39646 note |
Head Sub-assy, Cylinder
2011-09 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11101-09650 |
Head Sub-assy, Cylinder
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11101-09650 |
Head Sub-assy, Cylinder
2017-08 → —
|
3URFE USK6# | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02132 |
Bolt(FOR CYLINDER HEAD SET)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2017-08 → —
|
3URFE USK6# | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-08 → —
|
3URFE USK6# | — | |
| 11101E — Sensor, Cam Position | ||||
| 90919-A5002 |
Sensor, Cam Position
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11102 — Head, Cylinder, LH | ||||
| 11102-09110 |
Head, Cylinder, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11102-09150 note |
Head, Cylinder, LH
2007-11 → 2011-09
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11102-09151 note |
Head, Cylinder, LH
2011-09 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11102-09151 note |
Head, Cylinder, LH
2011-09 → 2015-03
ended
|
3UR# USK6# | — | |
| 11102-09151 |
Head, Cylinder, LH
2015-03 → 2016-07
ended
|
3UR# USK6# | — | |
| 11102-09190 |
Head, Cylinder, LH
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11102-39175 note |
Head, Cylinder, LH
2007-11 → 2011-09
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11102-39176 note |
Head, Cylinder, LH
2011-09 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11102-39176 note |
Head, Cylinder, LH
2011-09 → 2015-03
ended
|
3UR# USK6# | — | |
| 11102-09190 |
Head, Cylinder, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11102-09190 |
Head, Cylinder, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-38020 |
Gasket, Cylinder Head
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11115-38020 |
Gasket, Cylinder Head
2007-11 → 2017-05
ended
|
3UR# USK6# | — | |
| 11115-38021 |
Gasket, Cylinder Head
2017-06 → 2017-08
ended
|
3UR# USK6# | — | |
| 11115-50080 |
Gasket, Cylinder Head
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11115-38021 |
Gasket, Cylinder Head
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11115-38021 |
Gasket, Cylinder Head
2017-08 → —
|
3URFE USK6# | — | |
| 11116 — Gasket, Cylinder Head, NO.2 | ||||
| 11116-38010 |
Gasket, Cylinder Head, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11116-38010 |
Gasket, Cylinder Head, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11116-50070 |
Gasket, Cylinder Head, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11116-38010 |
Gasket, Cylinder Head, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11116-38010 |
Gasket, Cylinder Head, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-20004 |
Gasket(FOR WATER HOLE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90430-27005 |
Gasket(FOR WATER HOLE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2017-08 → —
|
3URFE USK6# | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-20020 note |
Bush, Intake Valve Guide
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2017-08 → —
|
3URFE USK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2017-08 → —
|
3URFE USK6# | — | |
| 11122B — Bush, Intake Valve Guide, NO.2 | ||||
| 11122-20020 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11123-20020 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
3URFE USK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
3URFE USK6# | — | |
| 11126B — Bush, Exhaust Valve Guide, NO.2 | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-0F010 note |
Seat, Intake Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve
2008-01 → 2016-07
ended
|
3UR# USK6# | — | |
| 11131-31040 note |
Seat, Intake Valve
2007-11 → 2008-12
ended
|
3UR# USK6# | — | |
| 11131-31050 note |
Seat, Intake Valve
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11131-31050 note |
Seat, Intake Valve
2008-12 → 2015-03
ended
|
3UR# USK6# | — | |
| 11132-0F010 note |
Seat, Intake Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve
2008-01 → 2017-08
ended
|
3UR# USK6# | — | |
| 11132-31040 note |
Seat, Intake Valve
2008-01 → 2008-11
ended
|
3UR# USK6# | — | |
| 11132-31040 note |
Seat, Intake Valve
2007-11 → 2008-01
ended
|
3URFE USK6# | — | |
| 11132-31050 note |
Seat, Intake Valve
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11132-31050 note |
Seat, Intake Valve
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11132-0P020 note |
Seat, Intake Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11132-31050 note |
Seat, Intake Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11132-31050 note |
Seat, Intake Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11131A — Seat, Intake Valve, NO.2 | ||||
| 11131-0F010 note |
Seat, Intake Valve, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve, NO.2
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve, NO.2
2008-01 → 2016-07
ended
|
3UR# USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve, NO.2
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11131-31040 note |
Seat, Intake Valve, NO.2
2007-11 → 2008-12
ended
|
3UR# USK6# | — | |
| 11131-31050 note |
Seat, Intake Valve, NO.2
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11131-31050 note |
Seat, Intake Valve, NO.2
2008-12 → 2015-03
ended
|
3UR# USK6# | — | |
| 11132-0F010 note |
Seat, Intake Valve, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve, NO.2
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve, NO.2
2008-01 → 2017-08
ended
|
3UR# USK6# | — | |
| 11132-31040 note |
Seat, Intake Valve, NO.2
2008-01 → 2008-11
ended
|
3UR# USK6# | — | |
| 11132-31040 note |
Seat, Intake Valve, NO.2
2007-11 → 2008-01
ended
|
3URFE USK6# | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 11131-0P020 note |
Seat, Intake Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11131-0P020 note |
Seat, Intake Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11132-0P020 note |
Seat, Intake Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11132-0P020 note |
Seat, Intake Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11132-31050 note |
Seat, Intake Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-0F020 note |
Seat, Exhaust Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve
2008-01 → 2016-07
ended
|
3UR# USK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11135-31060 note |
Seat, Exhaust Valve
2007-11 → 2008-12
ended
|
3UR# USK6# | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2008-12 → 2015-03
ended
|
3UR# USK6# | — | |
| 11136-0F020 note |
Seat, Exhaust Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve
2008-01 → 2017-08
ended
|
3UR# USK6# | — | |
| 11136-31060 note |
Seat, Exhaust Valve
2007-11 → 2008-01
ended
|
3URFE USK6# | — | |
| 11136-31060 note |
Seat, Exhaust Valve
2008-01 → 2008-11
ended
|
3UR# USK6# | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11135-0P020 note |
Seat, Exhaust Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2017-08 → —
|
3URFE USK6# | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11135A — Seat, Exhaust Valve, NO.2 | ||||
| 11135-0F020 note |
Seat, Exhaust Valve, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve, NO.2
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve, NO.2
2008-01 → 2016-07
ended
|
3UR# USK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve, NO.2
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11135-31060 note |
Seat, Exhaust Valve, NO.2
2007-11 → 2008-12
ended
|
3UR# USK6# | — | |
| 11135-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11135-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → 2015-03
ended
|
3UR# USK6# | — | |
| 11136-0F020 note |
Seat, Exhaust Valve, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve, NO.2
2008-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve, NO.2
2008-01 → 2017-08
ended
|
3UR# USK6# | — | |
| 11136-31060 note |
Seat, Exhaust Valve, NO.2
2008-01 → 2008-11
ended
|
3UR# USK6# | — | |
| 11136-31060 note |
Seat, Exhaust Valve, NO.2
2007-11 → 2008-01
ended
|
3URFE USK6# | — | |
| 11136-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11136-31080 note |
Seat, Exhaust Valve, NO.2
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 11135-0P020 note |
Seat, Exhaust Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11135-0P020 note |
Seat, Exhaust Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11136-0P020 note |
Seat, Exhaust Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11136-31080 note |
Seat, Exhaust Valve, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11136-31080 note |
Seat, Exhaust Valve, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-07 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90253-A0005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2007-11 → 2008-07
ended
|
2UZFE UCK6# | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2017-08 → —
|
3URFE USK6# | — | |
| 90253-11021 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11151B — Seal, Oil(FOR CAMSHAFT SETTING) | ||||
| 90311-A0004 |
Seal, Oil(FOR CAMSHAFT SETTING)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-09001 |
Pin, Ring W/Head
2008-07 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90253-A0003 |
Pin, Ring W/Head
2007-11 → 2008-07
ended
|
2UZFE UCK6# | — | |
| 11159E — Bolt(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90080-11581 |
Bolt(FOR CAMSHAFT OIL FEED PIPE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11183 — Plug, Semicircular | ||||
| 11183-50020 |
Plug, Semicircular
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11188 — Plug, Camshaft Housing | ||||
| 11188-50010 |
Plug, Camshaft Housing
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11193 — Gasket, Spark Plug Tube | ||||
| 11193-0A010 note |
Gasket, Spark Plug Tube
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 |
Gasket, Spark Plug Tube
2011-08 → 2011-10
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-50010 |
Gasket, Spark Plug Tube
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-70010 |
Gasket, Spark Plug Tube
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2017-08 → —
|
3URFE USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2017-08 → —
|
3URFE USK6# | — | |
| 11193A — Gasket, Spark Plug Tube, LH | ||||
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 |
Gasket, Spark Plug Tube, LH
2011-08 → 2011-10
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-50010 |
Gasket, Spark Plug Tube, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-70010 |
Gasket, Spark Plug Tube, LH
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0F020 |
Cover Sub-assy, Cylinder Head
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11201-0S010 note |
Cover Sub-assy, Cylinder Head
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11201-38040 |
Cover Sub-assy, Cylinder Head
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 11201-38070 note |
Cover Sub-assy, Cylinder Head
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2017-08 → —
|
3URFE USK6# | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90105-A0103 |
Bolt(FOR CYLINDER HEAD COVER)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90105-A0123 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90105-A0133 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 91551-80870 note |
Bolt(FOR CYLINDER HEAD COVER)
2007-11 → 2012-11
ended
|
3UR# USK6# | — | |
| 91551-80870 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 91551-80870 note |
Bolt(FOR CYLINDER HEAD COVER)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2007-11 → 2012-11
ended
|
3UR# USK6# | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2012-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90105-A0123 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90105-A0123 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → —
|
3URFE USK6# | — | |
| 90105-A0133 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90105-A0133 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → —
|
3URFE USK6# | — | |
| 91551-80870 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 91551-80870 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → —
|
3URFE USK6# | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-08 → —
|
3URFE USK6# | — | |
| 11202 — Cover Sub-assy, Cylinder Head, LH | ||||
| 11202-0F020 |
Cover Sub-assy, Cylinder Head, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11202-0S010 note |
Cover Sub-assy, Cylinder Head, LH
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11202-38011 |
Cover Sub-assy, Cylinder Head, LH
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 11202-38050 note |
Cover Sub-assy, Cylinder Head, LH
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0F010 |
Gasket, Cylinder Head Cover
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11213-38020 |
Gasket, Cylinder Head Cover
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2017-08 → —
|
3URFE USK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2017-08 → —
|
3URFE USK6# | — | |
| 11214 — Gasket, Cylinder Head Cover, NO.2 | ||||
| 11214-0F010 |
Gasket, Cylinder Head Cover, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11214-38010 |
Gasket, Cylinder Head Cover, NO.2
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0D011 |
Cap Sub-assy, Oil Filler
2007-11 → 2008-01
ended
|
2UZFE UCK6# | — | |
| 12180-0H031 note |
Cap Sub-assy, Oil Filler
2007-11 → 2010-10
ended
|
3UR# USK6# | — | |
| 12180-0H032 note |
Cap Sub-assy, Oil Filler
2010-10 → 2011-08
ended
|
3UR# USK6# | — | |
| 12180-0P020 note |
Cap Sub-assy, Oil Filler
2009-04 → 2011-01
ended
|
1URFE UPK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2011-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12180-38020 note |
Cap Sub-assy, Oil Filler
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 12180-38030 |
Cap Sub-assy, Oil Filler
2008-01 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2017-08 → —
|
3URFE USK6# | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2017-08 → —
|
3URFE USK6# | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90080-43032 |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2008-01
ended
|
2UZFE UCK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2008-01 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → —
|
3URFE USK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → —
|
3URFE USK6# | — | |
| 12185 — Housing, Oil Filler Cap | ||||
| 12185-0F010 |
Housing, Oil Filler Cap
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2017-08 → —
|
3URFE USK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12185A — Gasket, Oil Filler Cap Housing | ||||
| 12196-0F010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2017-08 → —
|
3URFE USK6# | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-0F010 |
Hanger, Engine, NO.1
2007-11 → 2008-05
ended
|
2UZFE UCK6# | — | |
| 12281-0F011 |
Hanger, Engine, NO.1
2008-05 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12281-38150 |
Hanger, Engine, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12281-38150 |
Hanger, Engine, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12281-38150 |
Hanger, Engine, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12281-38150 |
Hanger, Engine, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15044 — Pipe Sub-assy, Camshaft Oil Feed | ||||
| 15044-50020 |
Pipe Sub-assy, Camshaft Oil Feed
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14030 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330B — Valve Assy, Cam Timing Oil Control, RH | ||||
| 15330-0F010 |
Valve Assy, Cam Timing Oil Control, RH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, RH
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15340 — Valve Assy, Cam Timing Oil Control, LH | ||||
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, LH
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15340-0F010 |
Valve Assy, Cam Timing Oil Control, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15340A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14030 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 15678A — Filter, Oil Control Valve | ||||
| 15678-46020 |
Filter, Oil Control Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
