Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

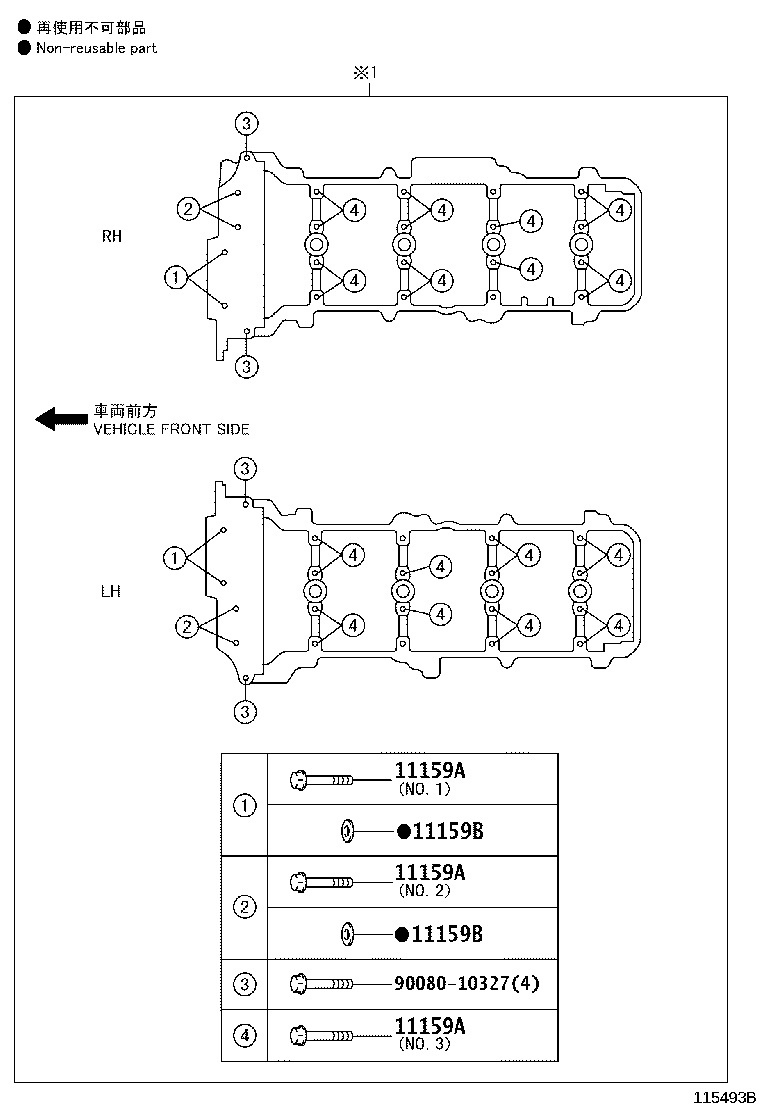

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90080-10305 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90080-10306 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11159B — Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
