Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

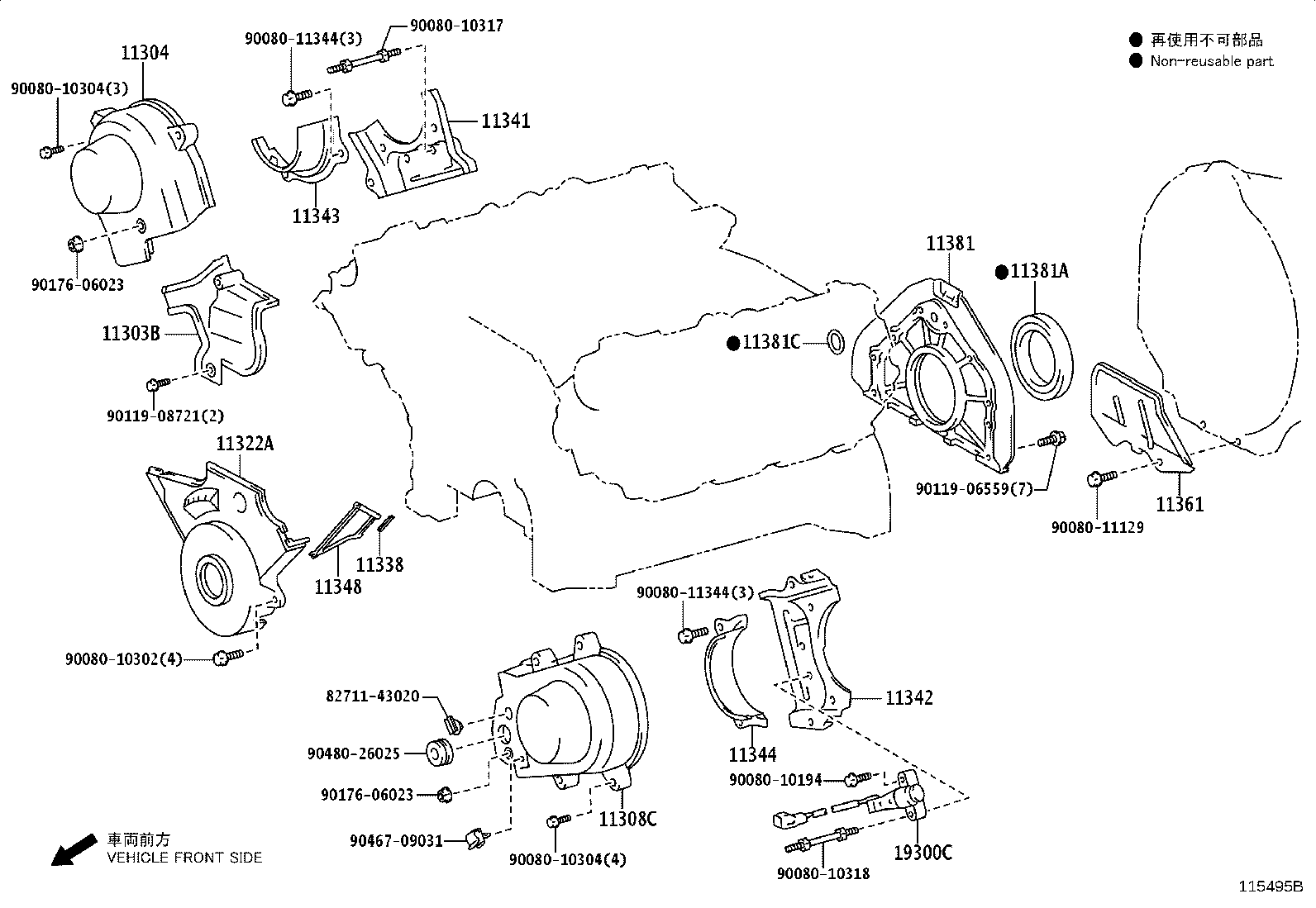

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11303B — Cover Sub-assy, Timing Belt, NO.2 | ||||
| 11303-AC010 |
Cover Sub-assy, Timing Belt, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11304 — Cover, Timing Chain OR Belt, NO.2 | ||||
| 11304-AC010 |
Cover, Timing Chain OR Belt, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11308C — Cover Sub-assy, Timing Belt, NO.3 LH | ||||
| 11308-AC010 |
Cover Sub-assy, Timing Belt, NO.3 LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11322A — Cover, Timing Belt, NO.1 | ||||
| 11302-AC010 |
Cover, Timing Belt, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11338 — Gasket, Timing Chain Cover, NO.2 | ||||
| 11338-AC010 |
Gasket, Timing Chain Cover, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11341 — Plate, Timing Belt, Rear RH | ||||
| 11341-50020 |
Plate, Timing Belt, Rear RH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11342 — Plate, Timing Belt, Rear LH | ||||
| 11342-50021 |
Plate, Timing Belt, Rear LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11343 — Plate, Timing Belt, Rear RH NO.2 | ||||
| 11343-50020 |
Plate, Timing Belt, Rear RH NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11344 — Plate, Timing Belt, Rear LH NO.2 | ||||
| 11344-50020 |
Plate, Timing Belt, Rear LH NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11348 — Spacer, Timing Gear Cover | ||||
| 11348-AC010 |
Spacer, Timing Gear Cover
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11361 — Cover, Flywheel Housing Under | ||||
| 11361-50030 |
Cover, Flywheel Housing Under
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-0S010 note |
Retainer, Engine Rear Oil Seal
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11381-38020 note |
Retainer, Engine Rear Oil Seal
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11381-38020 |
Retainer, Engine Rear Oil Seal
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11381-38020 |
Retainer, Engine Rear Oil Seal
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 11381-AC020 |
Retainer, Engine Rear Oil Seal
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11381-0S010 note |
Retainer, Engine Rear Oil Seal
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11381-0S010 note |
Retainer, Engine Rear Oil Seal
2017-08 → —
|
3URFE USK6# | — | |
| 11381-38020 note |
Retainer, Engine Rear Oil Seal
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11381-38020 note |
Retainer, Engine Rear Oil Seal
2017-08 → —
|
3URFE USK6# | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-95012 note |
Seal, Engine Rear Oil
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90311-95012 note |
Seal, Engine Rear Oil
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 90311-95012 |
Seal, Engine Rear Oil
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 90311-A0002 note |
Seal, Engine Rear Oil
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90311-A0002 |
Seal, Engine Rear Oil
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90311-A0002 note |
Seal, Engine Rear Oil
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 90311-95012 note |
Seal, Engine Rear Oil
2017-08 → 2018-10
ended
|
3UR# USK6# | — | |
| 90311-95013 note |
Seal, Engine Rear Oil
2018-11 → —
|
3URFE USK6# | — | |
| 90311-A0002 note |
Seal, Engine Rear Oil
2017-08 → —
|
3UR# USK6# | — | |
| 11381C — Ring, O(FOR OIL SEAL RETAINER) | ||||
| 96721-24025 |
Ring, O(FOR OIL SEAL RETAINER)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 19300C — Sensor Assy, Cam Position | ||||
| 19300-50011 |
Sensor Assy, Cam Position
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
