Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

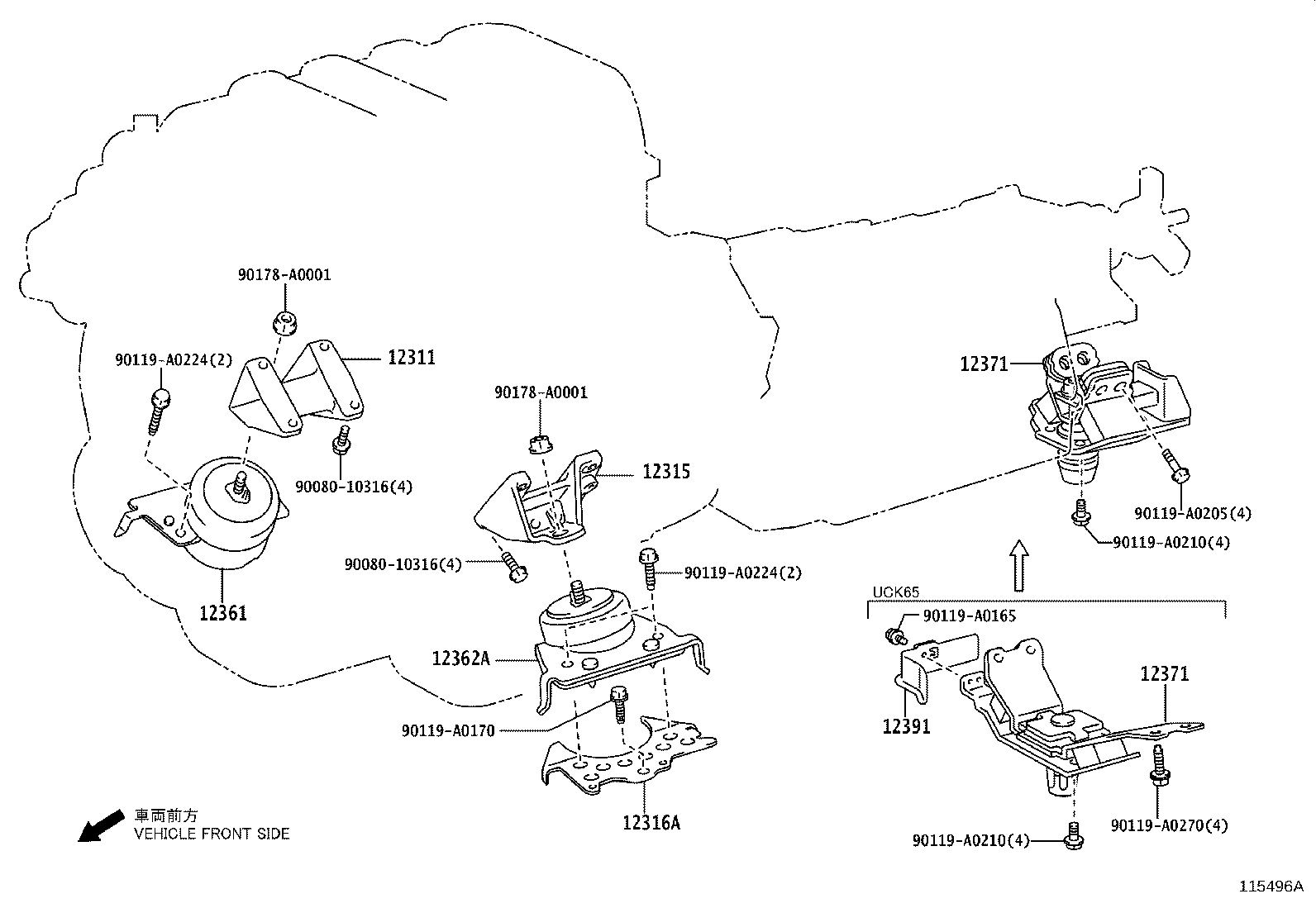

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-0F020 |
Bracket, Engine Mounting, Front NO.1 RH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12311-38030 |
Bracket, Engine Mounting, Front NO.1 RH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12311-38030 |
Bracket, Engine Mounting, Front NO.1 RH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12311-38030 |
Bracket, Engine Mounting, Front NO.1 RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12311-38030 |
Bracket, Engine Mounting, Front NO.1 RH
2017-08 → —
|
3URFE USK6# | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12315-0F020 |
Bracket, Engine Mounting, Front NO.1 LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12315-38020 |
Bracket, Engine Mounting, Front NO.1 LH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12315-38020 |
Bracket, Engine Mounting, Front NO.1 LH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12315-38020 |
Bracket, Engine Mounting, Front NO.1 LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12315-38020 |
Bracket, Engine Mounting, Front NO.1 LH
2017-08 → —
|
3URFE USK6# | — | |
| 12316A — Bracket, Engine Mounting, FR NO.2 LH | ||||
| 12316-0F010 |
Bracket, Engine Mounting, FR NO.2 LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12316-0S010 |
Bracket, Engine Mounting, FR NO.2 LH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12316-0S010 |
Bracket, Engine Mounting, FR NO.2 LH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12316-0S010 |
Bracket, Engine Mounting, FR NO.2 LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12316-0S010 |
Bracket, Engine Mounting, FR NO.2 LH
2017-08 → —
|
3URFE USK6# | — | |
| 12361 — Insulator, Engine Mounting, Front | ||||
| 12361-0F020 |
Insulator, Engine Mounting, Front
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12361-0S010 |
Insulator, Engine Mounting, Front
2007-11 → 2008-05
ended
|
3URFE USK6# | — | |
| 12361-0S020 |
Insulator, Engine Mounting, Front
2008-06 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12361-0S020 |
Insulator, Engine Mounting, Front
2008-06 → 2017-08
ended
|
3UR# USK6# | — | |
| 12361-0S020 |
Insulator, Engine Mounting, Front
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12361-0S020 |
Insulator, Engine Mounting, Front
2017-08 → —
|
3URFE USK6# | — | |
| 12362A — Insulator, Engine Mounting, Front LH | ||||
| 12362-0F010 |
Insulator, Engine Mounting, Front LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12362-0S010 |
Insulator, Engine Mounting, Front LH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12362-0S010 |
Insulator, Engine Mounting, Front LH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12362-0S010 |
Insulator, Engine Mounting, Front LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12362-0S010 |
Insulator, Engine Mounting, Front LH
2017-08 → —
|
3URFE USK6# | — | |
| 12371 — Insulator, Engine Mounting, Rear NO.1 | ||||
| 12371-0F060 |
Insulator, Engine Mounting, Rear NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK60 | — | |
| 12371-0F070 |
Insulator, Engine Mounting, Rear NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK65 | — | |
| 12371-0S010 |
Insulator, Engine Mounting, Rear NO.1
2007-11 → 2009-10
ended
|
3URFE USK60 | — | |
| 12371-0S020 |
Insulator, Engine Mounting, Rear NO.1
2007-11 → 2012-08
ended
|
1URFE UPK65 | — | |
| 12371-0S020 |
Insulator, Engine Mounting, Rear NO.1
2007-11 → 2017-08
ended
|
3UR# USK65 | — | |
| 12371-0S030 |
Insulator, Engine Mounting, Rear NO.1
2009-04 → 2012-08
ended
|
1URFE UPK60 | — | |
| 12371-0S040 |
Insulator, Engine Mounting, Rear NO.1
2009-10 → 2017-08
ended
|
3URFE USK60 | — | |
| 12371-0S020 |
Insulator, Engine Mounting, Rear NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12371-0S020 |
Insulator, Engine Mounting, Rear NO.1
2017-08 → —
|
3URFE USK65 | — | |
| 12371-0S040 |
Insulator, Engine Mounting, Rear NO.1
2017-08 → —
|
3URFE USK60 | — | |
| 12391 — Insulator, Engine Mounting Front, Heat, RH | ||||
| 12391-0F010 |
Insulator, Engine Mounting Front, Heat, RH
2007-11 → 2009-04
ended
|
2UZFE UCK65 | — | |
| 12391-0F010 |
Insulator, Engine Mounting Front, Heat, RH
2007-11 → 2009-08
ended
|
1URFE,3UR# UPK65,USK65 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
