Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

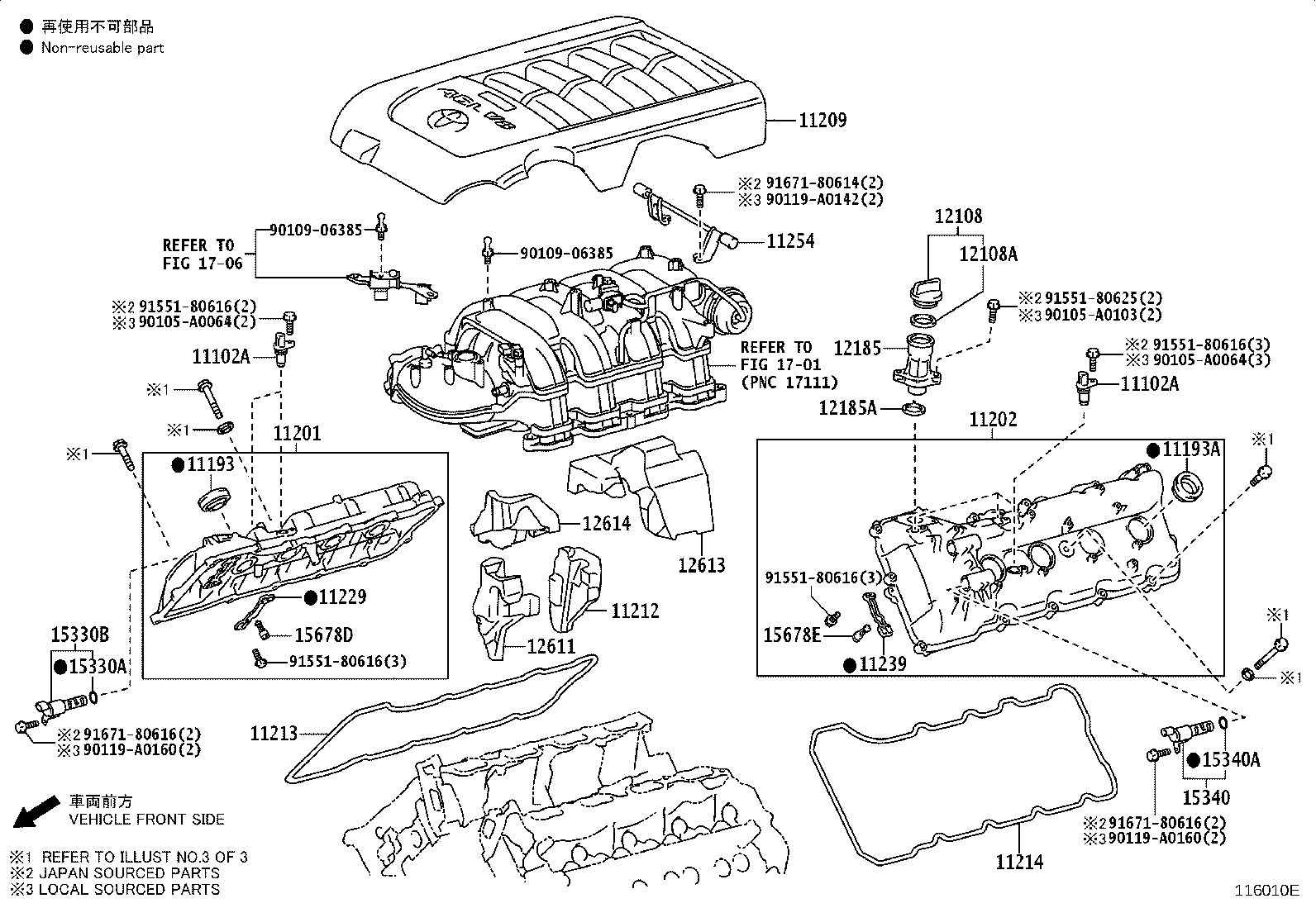

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11102A — Sensor, Camshaft Position | ||||
| 90919-05060 |
Sensor, Camshaft Position
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90919-05060 |
Sensor, Camshaft Position
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90919-05060 |
Sensor, Camshaft Position
2017-08 → —
|
3URFE USK6# | — | |
| 90919-05060 |
Sensor, Camshaft Position
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193 — Gasket, Spark Plug Tube | ||||
| 11193-0A010 |
Gasket, Spark Plug Tube
2011-08 → 2011-10
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-50010 |
Gasket, Spark Plug Tube
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11193-70010 |
Gasket, Spark Plug Tube
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2017-08 → —
|
3URFE USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube
2017-08 → —
|
3URFE USK6# | — | |
| 11193A — Gasket, Spark Plug Tube, LH | ||||
| 11193-0A010 |
Gasket, Spark Plug Tube, LH
2011-08 → 2011-10
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-50010 |
Gasket, Spark Plug Tube, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11193-70010 |
Gasket, Spark Plug Tube, LH
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2011-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11193-0A010 note |
Gasket, Spark Plug Tube, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11193-70010 note |
Gasket, Spark Plug Tube, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0F020 |
Cover Sub-assy, Cylinder Head
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11201-0S010 note |
Cover Sub-assy, Cylinder Head
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11201-38040 |
Cover Sub-assy, Cylinder Head
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 11201-38070 note |
Cover Sub-assy, Cylinder Head
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11201-0S011 |
Cover Sub-assy, Cylinder Head
2017-08 → —
|
3URFE USK6# | — | |
| 11202 — Cover Sub-assy, Cylinder Head, LH | ||||
| 11202-0F020 |
Cover Sub-assy, Cylinder Head, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11202-0S010 note |
Cover Sub-assy, Cylinder Head, LH
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11202-38011 |
Cover Sub-assy, Cylinder Head, LH
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 11202-38050 note |
Cover Sub-assy, Cylinder Head, LH
2009-04 → 2011-08
ended
|
1URFE UPK6# | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11202-0S011 |
Cover Sub-assy, Cylinder Head, LH
2017-08 → —
|
3URFE USK6# | — | |
| 11209 — Cover Sub-assy, V-bank | ||||
| 11209-0S010 |
Cover Sub-assy, V-bank
2007-11 → 2010-08
ended
|
3UR# USK6# | — | |
| 11209-0S011 |
Cover Sub-assy, V-bank
2010-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11209-0S020 |
Cover Sub-assy, V-bank
2009-04 → 2010-08
ended
|
1URFE UPK6# | — | |
| 11209-0S021 |
Cover Sub-assy, V-bank
2010-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11209-0S011 |
Cover Sub-assy, V-bank
2017-08 → —
|
3URFE USK6# | — | |
| 11209-0S011 |
Cover Sub-assy, V-bank
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11212 — Cover, Cylinder Head, NO.2 | ||||
| 12612-0S010 |
Cover, Cylinder Head, NO.2
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 12612-0S020 note |
Cover, Cylinder Head, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12612-0S030 |
Cover, Cylinder Head, NO.2
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12612-38020 note |
Cover, Cylinder Head, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12612-0S030 |
Cover, Cylinder Head, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12612-0S030 |
Cover, Cylinder Head, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0F010 |
Gasket, Cylinder Head Cover
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11213-38020 |
Gasket, Cylinder Head Cover
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11213-0S010 note |
Gasket, Cylinder Head Cover
2017-08 → —
|
3URFE USK6# | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11213-38020 note |
Gasket, Cylinder Head Cover
2017-08 → —
|
3URFE USK6# | — | |
| 11214 — Gasket, Cylinder Head Cover, NO.2 | ||||
| 11214-0F010 |
Gasket, Cylinder Head Cover, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11214-38010 |
Gasket, Cylinder Head Cover, NO.2
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11214-0S010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 11214-38010 note |
Gasket, Cylinder Head Cover, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11229 — Gasket, Cylinder Head Cover, NO.3 | ||||
| 11229-38010 |
Gasket, Cylinder Head Cover, NO.3
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11229-38010 |
Gasket, Cylinder Head Cover, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11229-38010 |
Gasket, Cylinder Head Cover, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11229-38010 |
Gasket, Cylinder Head Cover, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 11239 — Gasket, Clinder Head Coner, NO.4 | ||||
| 11229-38010 |
Gasket, Clinder Head Coner, NO.4
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11229-38010 |
Gasket, Clinder Head Coner, NO.4
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11229-38010 |
Gasket, Clinder Head Coner, NO.4
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11229-38010 |
Gasket, Clinder Head Coner, NO.4
2017-08 → —
|
3URFE USK6# | — | |
| 11254 — Bracket, V-bank Cover, NO.1 | ||||
| 11254-38010 |
Bracket, V-bank Cover, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 11254-38040 |
Bracket, V-bank Cover, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 11254-38010 |
Bracket, V-bank Cover, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 11254-38010 |
Bracket, V-bank Cover, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0D011 |
Cap Sub-assy, Oil Filler
2007-11 → 2008-01
ended
|
2UZFE UCK6# | — | |
| 12180-0H031 note |
Cap Sub-assy, Oil Filler
2007-11 → 2010-10
ended
|
3UR# USK6# | — | |
| 12180-0H032 note |
Cap Sub-assy, Oil Filler
2010-10 → 2011-08
ended
|
3UR# USK6# | — | |
| 12180-0P020 note |
Cap Sub-assy, Oil Filler
2009-04 → 2011-01
ended
|
1URFE UPK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2011-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12180-38020 note |
Cap Sub-assy, Oil Filler
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 12180-38030 |
Cap Sub-assy, Oil Filler
2008-01 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2017-08 → —
|
3URFE USK6# | — | |
| 12180-0P021 note |
Cap Sub-assy, Oil Filler
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12180-31010 note |
Cap Sub-assy, Oil Filler
2017-08 → —
|
3URFE USK6# | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90080-43032 |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2008-01
ended
|
2UZFE UCK6# | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2008-01 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90080-43025 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → —
|
3URFE USK6# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2017-08 → —
|
3URFE USK6# | — | |
| 12185 — Housing, Oil Filler Cap | ||||
| 12185-0F010 |
Housing, Oil Filler Cap
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12185-38011 |
Housing, Oil Filler Cap
2017-08 → —
|
3URFE USK6# | — | |
| 12185A — Gasket, Oil Filler Cap Housing | ||||
| 12196-0F010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12196-38010 |
Gasket, Oil Filler Cap Housing
2017-08 → —
|
3URFE USK6# | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-0S010 note |
Cover, Engine, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12611-0S020 note |
Cover, Engine, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12611-38010 note |
Cover, Engine, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12611-38030 note |
Cover, Engine, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12611-0S010 note |
Cover, Engine, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12611-0S010 note |
Cover, Engine, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12611-38010 note |
Cover, Engine, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12611-38010 note |
Cover, Engine, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12613 — Cover, Engine, NO.3 | ||||
| 12613-0S010 note |
Cover, Engine, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12613-0S020 note |
Cover, Engine, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12613-38010 note |
Cover, Engine, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12613-38030 note |
Cover, Engine, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12613-0S010 note |
Cover, Engine, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12613-0S010 note |
Cover, Engine, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 12613-38010 note |
Cover, Engine, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12613-38010 note |
Cover, Engine, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 12614 — Cover, Engine, NO.4 | ||||
| 12614-0S010 note |
Cover, Engine, NO.4
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12614-38010 note |
Cover, Engine, NO.4
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14030 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 15330B — Valve Assy, Cam Timing Oil Control, RH | ||||
| 15330-0F010 |
Valve Assy, Cam Timing Oil Control, RH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, RH
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, RH
2017-08 → —
|
3URFE USK6# | — | |
| 15340 — Valve Assy, Cam Timing Oil Control, LH | ||||
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15330-38010 |
Valve Assy, Cam Timing Oil Control, LH
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 15340-0F010 |
Valve Assy, Cam Timing Oil Control, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15330-0S010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → —
|
3URFE USK6# | — | |
| 15330-38010 note |
Valve Assy, Cam Timing Oil Control, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15340A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14030 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 90068-14030 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90099-14137 note |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2017-08 → —
|
3URFE USK6# | — | |
| 15678D — Filter, Oil Control Valve, RH | ||||
| 15678-46020 |
Filter, Oil Control Valve, RH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15678-46020 |
Filter, Oil Control Valve, RH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15678-46020 |
Filter, Oil Control Valve, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15678-46020 |
Filter, Oil Control Valve, RH
2017-08 → —
|
3URFE USK6# | — | |
| 15678E — Filter, Oil Control Valve, LH | ||||
| 15678-46020 |
Filter, Oil Control Valve, LH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15678-46020 |
Filter, Oil Control Valve, LH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15678-46020 |
Filter, Oil Control Valve, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15678-46020 |
Filter, Oil Control Valve, LH
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
