Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

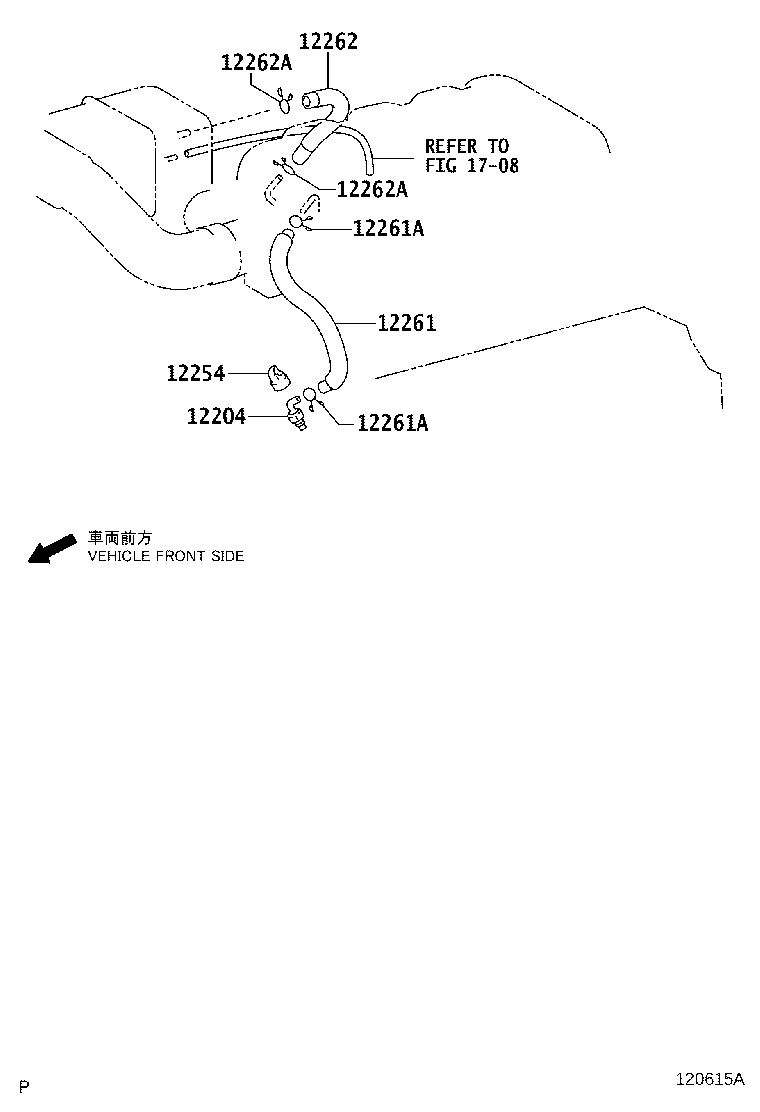

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-38010 note |
Valve Sub-assy, Ventilation
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 12204-38030 note |
Valve Sub-assy, Ventilation
2008-07 → 2011-08
ended
|
3UR# USK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12204-50030 |
Valve Sub-assy, Ventilation
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12254 — Cover, Ventilation Valve | ||||
| 12236-50010 |
Cover, Ventilation Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12261 — Hose, Ventilation | ||||
| 12261-38020 |
Hose, Ventilation
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 12261-38070 |
Hose, Ventilation
2008-07 → 2013-08
ended
|
3UR# USK6# | — | |
| 12261-38080 |
Hose, Ventilation
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12261-38120 |
Hose, Ventilation
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12261-50070 |
Hose, Ventilation
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12261-38120 |
Hose, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12261-38120 |
Hose, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12261A — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-15021 |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-0F030 |
Hose, Ventilation, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12262-0S020 |
Hose, Ventilation, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
