Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

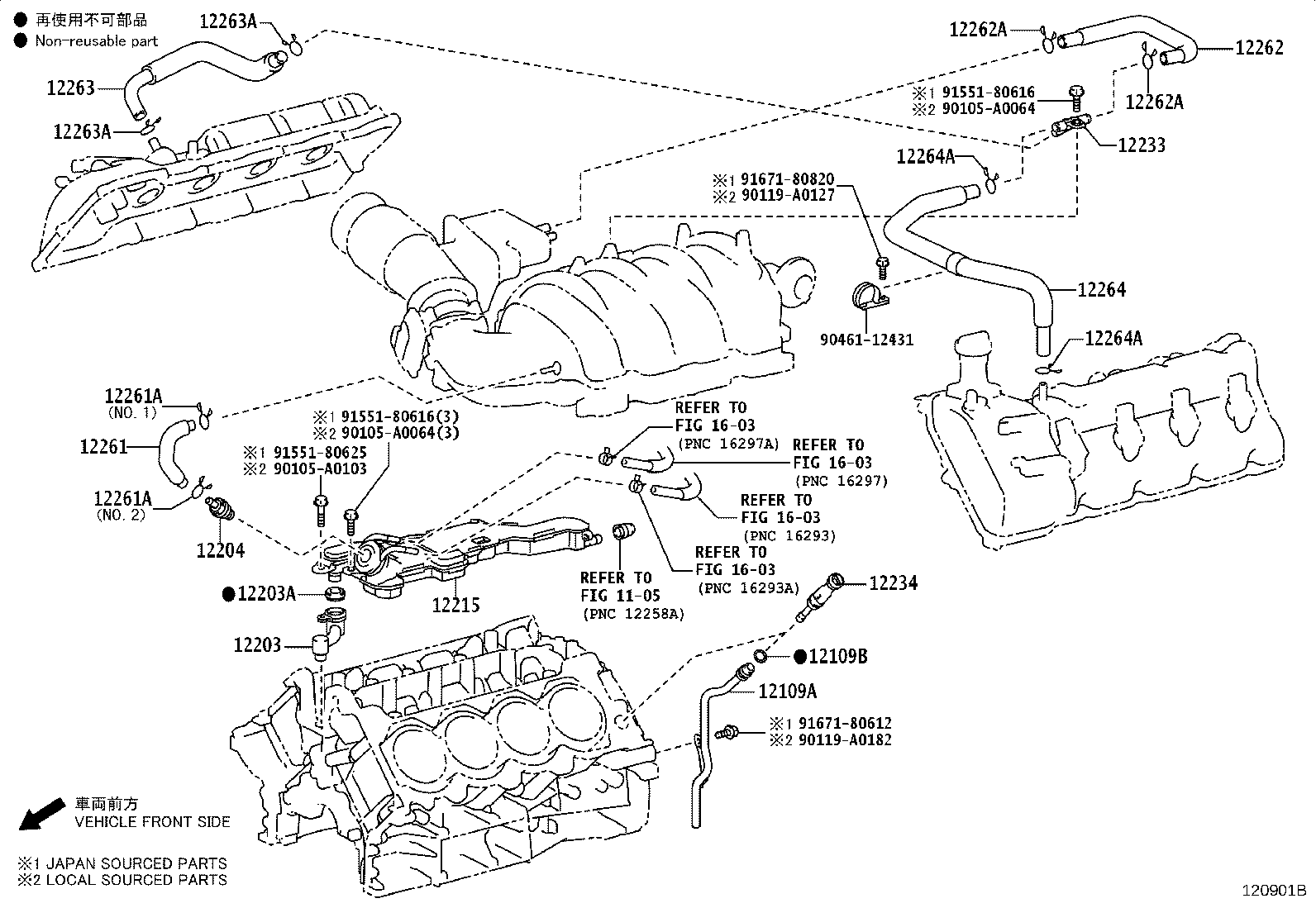

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12109A — Pipe Sub-assy, Oil Drain | ||||
| 12109-38020 |
Pipe Sub-assy, Oil Drain
2007-11 → 2010-01
ended
|
1URFE UPK6# | — | |
| 12109-38020 |
Pipe Sub-assy, Oil Drain
2007-11 → 2009-11
ended
|
3UR# USK6# | — | |
| 12109-38050 |
Pipe Sub-assy, Oil Drain
2009-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12109-38050 |
Pipe Sub-assy, Oil Drain
2010-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12109-38050 |
Pipe Sub-assy, Oil Drain
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12109-38050 |
Pipe Sub-assy, Oil Drain
2017-08 → —
|
3URFE USK6# | — | |
| 12109B — Ring, O(FOR OIL DRAIN PIPE) | ||||
| 90301-A0029 note |
Ring, O(FOR OIL DRAIN PIPE)
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-A0029 note |
Ring, O(FOR OIL DRAIN PIPE)
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 96723-19010 |
Ring, O(FOR OIL DRAIN PIPE)
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 96723-19010 note |
Ring, O(FOR OIL DRAIN PIPE)
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 96723-19010 note |
Ring, O(FOR OIL DRAIN PIPE)
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 90301-A0029 note |
Ring, O(FOR OIL DRAIN PIPE)
2017-08 → —
|
3URFE USK6# | — | |
| 90301-A0029 note |
Ring, O(FOR OIL DRAIN PIPE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 96723-19010 note |
Ring, O(FOR OIL DRAIN PIPE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 96723-19010 note |
Ring, O(FOR OIL DRAIN PIPE)
2017-08 → —
|
3URFE USK6# | — | |
| 12203 — Pipe Sub-assy, Ventilation | ||||
| 12203-0S010 note |
Pipe Sub-assy, Ventilation
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12203-0S010 note |
Pipe Sub-assy, Ventilation
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12203-38010 |
Pipe Sub-assy, Ventilation
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 12203-38010 note |
Pipe Sub-assy, Ventilation
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12203-38010 note |
Pipe Sub-assy, Ventilation
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12203-0S010 note |
Pipe Sub-assy, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12203-0S010 note |
Pipe Sub-assy, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12203-38010 note |
Pipe Sub-assy, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12203-38010 note |
Pipe Sub-assy, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12203A — Gasket(FOR VENTILATION PIPE) | ||||
| 12273-38020 |
Gasket(FOR VENTILATION PIPE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12273-38020 |
Gasket(FOR VENTILATION PIPE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12273-38020 |
Gasket(FOR VENTILATION PIPE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12273-38020 |
Gasket(FOR VENTILATION PIPE)
2017-08 → —
|
3URFE USK6# | — | |
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-38010 note |
Valve Sub-assy, Ventilation
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 12204-38030 note |
Valve Sub-assy, Ventilation
2008-07 → 2011-08
ended
|
3UR# USK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12204-50030 |
Valve Sub-assy, Ventilation
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12204-38030 |
Valve Sub-assy, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12215 — Separator, Case | ||||
| 12215-38010 |
Separator, Case
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 12215-38020 |
Separator, Case
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12215-38040 |
Separator, Case
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12215-38040 |
Separator, Case
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12215-38040 |
Separator, Case
2017-08 → —
|
3URFE USK6# | — | |
| 12233 — Connector, Ventilation NO.1 | ||||
| 12233-0S010 note |
Connector, Ventilation NO.1
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12233-0S010 note |
Connector, Ventilation NO.1
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12233-38010 |
Connector, Ventilation NO.1
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 12233-38010 note |
Connector, Ventilation NO.1
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12233-38010 note |
Connector, Ventilation NO.1
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12233-0S010 note |
Connector, Ventilation NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12233-0S010 note |
Connector, Ventilation NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12233-38010 note |
Connector, Ventilation NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12233-38010 note |
Connector, Ventilation NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 12234 — Connector, Ventilation NO.2 | ||||
| 12233-38020 |
Connector, Ventilation NO.2
2009-04 → 2010-01
ended
|
1URFE UPK6# | — | |
| 12233-38030 |
Connector, Ventilation NO.2
2007-11 → 2009-11
ended
|
3UR# USK6# | — | |
| 12233-38040 |
Connector, Ventilation NO.2
2010-01 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12233-38050 |
Connector, Ventilation NO.2
2009-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12233-38050 |
Connector, Ventilation NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 12233-38050 |
Connector, Ventilation NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12261 — Hose, Ventilation | ||||
| 12261-38020 |
Hose, Ventilation
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 12261-38070 |
Hose, Ventilation
2008-07 → 2013-08
ended
|
3UR# USK6# | — | |
| 12261-38080 |
Hose, Ventilation
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12261-38120 |
Hose, Ventilation
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12261-50070 |
Hose, Ventilation
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12261-38120 |
Hose, Ventilation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12261-38120 |
Hose, Ventilation
2017-08 → —
|
3URFE USK6# | — | |
| 12261A — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90467-14017 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-15021 |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-15006 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-16035 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-0F030 |
Hose, Ventilation, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12262-0S020 |
Hose, Ventilation, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12262-0S010 |
Hose, Ventilation, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE NO.2)
2017-08 → —
|
3URFE USK6# | — | |
| 12263 — Hose, Ventilation, NO.3 | ||||
| 12263-38010 |
Hose, Ventilation, NO.3
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 12263-38020 |
Hose, Ventilation, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12263-38040 |
Hose, Ventilation, NO.3
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 12263-38040 |
Hose, Ventilation, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12263-38040 |
Hose, Ventilation, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 12263A — Clip(FOR VENTILATION HOSE) | ||||
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
| 12264 — Hose, Ventilation, NO.4 | ||||
| 12262-38020 |
Hose, Ventilation, NO.4
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 12262-38070 |
Hose, Ventilation, NO.4
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 12262-38020 |
Hose, Ventilation, NO.4
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 12262-38020 |
Hose, Ventilation, NO.4
2017-08 → —
|
3URFE USK6# | — | |
| 12264A — Clip(FOR VENTILATION HOSE) | ||||
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90467-19003 |
Clip(FOR VENTILATION HOSE)
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
