Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

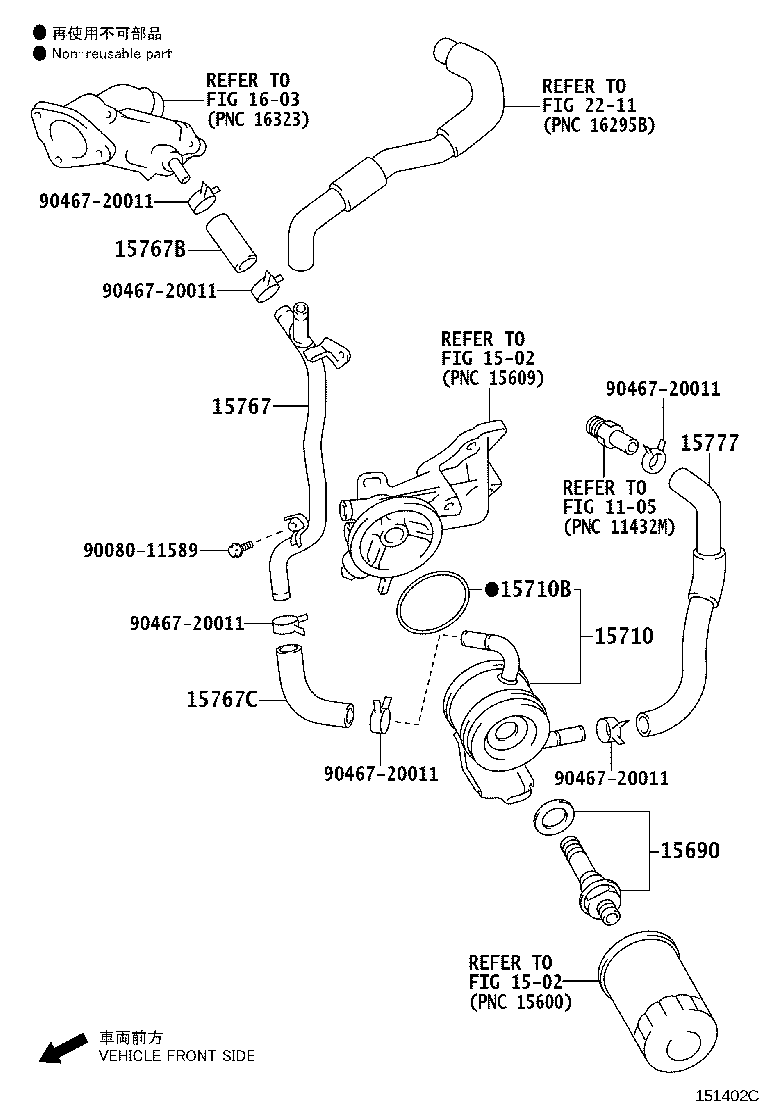

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15690 — Valve Assy, Oil Cooler Relief | ||||
| 15695-50010 |
Valve Assy, Oil Cooler Relief
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15710 — Cooler Assy, Oil | ||||
| 15710-0S010 note |
Cooler Assy, Oil
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15710-0S010 note |
Cooler Assy, Oil
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15710-0S010 note |
Cooler Assy, Oil
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15710-0S010 note |
Cooler Assy, Oil
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15710-38021 note |
Cooler Assy, Oil
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15710-38021 note |
Cooler Assy, Oil
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 15710-38021 |
Cooler Assy, Oil
2010-08 → 2011-08
ended
|
1URFE UPK6# | — | |
| 15710-38021 note |
Cooler Assy, Oil
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15710-38021 note |
Cooler Assy, Oil
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15710-38021 note |
Cooler Assy, Oil
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15710-38021 note |
Cooler Assy, Oil
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15710-50090 |
Cooler Assy, Oil
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15710-0S010 note |
Cooler Assy, Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15710-0S010 note |
Cooler Assy, Oil
2017-08 → —
|
3URFE USK6# | — | |
| 15710-38021 note |
Cooler Assy, Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15710-38021 note |
Cooler Assy, Oil
2017-08 → —
|
3URFE USK6# | — | |
| 15710B — Ring, O(FOR OIL COOLER) | ||||
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2010-08
ended
|
1URFE UPK6# | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2010-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2017-08
ended
|
3URFE USK6# | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2013-08
ended
|
3URFBE USK65 | — | |
| 90301-67004 |
Ring, O(FOR OIL COOLER)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2013-08
ended
|
3URFBE USK65 | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2010-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2017-08
ended
|
3URFE USK6# | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2009-03 → 2010-08
ended
|
1URFE UPK6# | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-21017 note |
Ring, O(FOR OIL COOLER)
2017-08 → —
|
3URFE USK6# | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-A0030 note |
Ring, O(FOR OIL COOLER)
2017-08 → —
|
3URFE USK6# | — | |
| 15767 — Pipe, Oil Cooler | ||||
| 15767-0F011 |
Pipe, Oil Cooler
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15767B — Hose, Water By-pass, NO.4 | ||||
| 16281-0F010 |
Hose, Water By-pass, NO.4
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15767C — Hose, Water By-pass, NO.5 | ||||
| 16282-0F010 |
Hose, Water By-pass, NO.5
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15777 — Hose, Oil Cooler | ||||
| 15777-50100 |
Hose, Oil Cooler
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
