Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

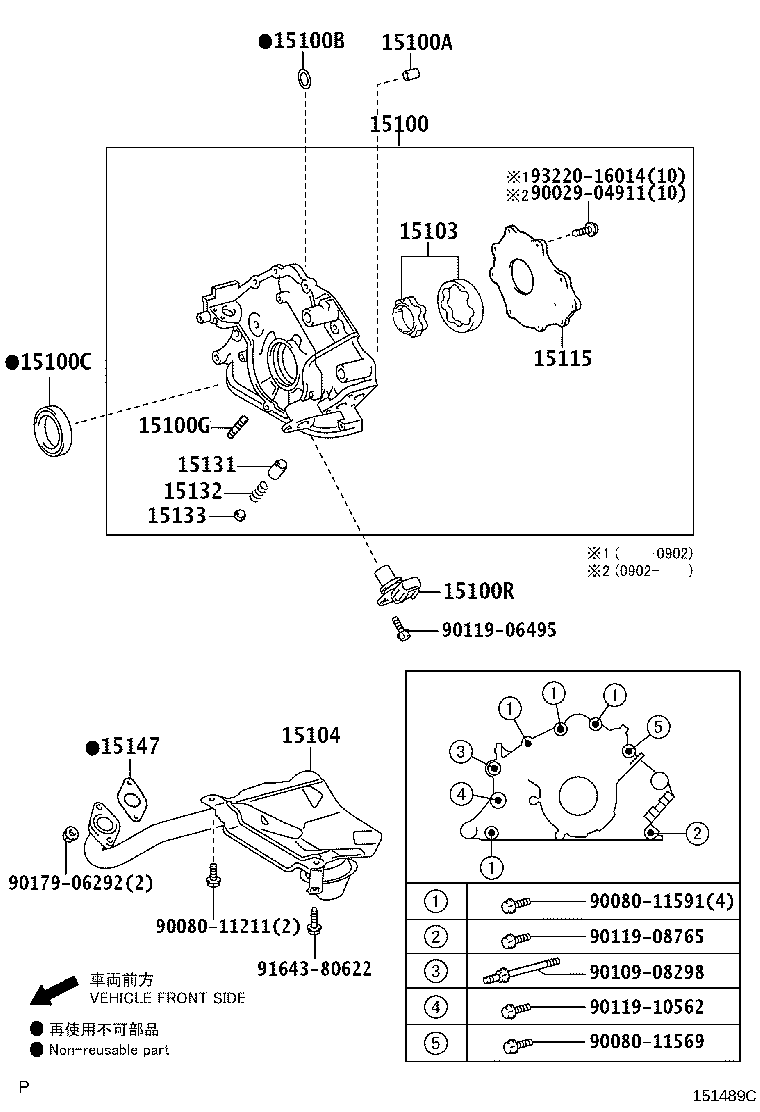

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-0F020 |
Pump Assy, Oil
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15100A — Pin, Ring(FOR OIL PUMP SET) | ||||
| 90253-13017 |
Pin, Ring(FOR OIL PUMP SET)
2008-07 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90253-A0008 |
Pin, Ring(FOR OIL PUMP SET)
2007-11 → 2008-07
ended
|
2UZFE UCK6# | — | |
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 96721-24025 |
Ring, O(FOR OIL PUMP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15100C — Seal(FOR OIL PUMP) | ||||
| 90311-A0001 |
Seal(FOR OIL PUMP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15100G — Bolt,Stud(FOR OIL PUMP) | ||||
| 16193-15010 |
Bolt,Stud(FOR OIL PUMP)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15100R — Sensor, Crank Position | ||||
| 90919-A5001 |
Sensor, Crank Position
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15103 — Gear Set, Oil Pump | ||||
| 15103-0F020 |
Gear Set, Oil Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-0S010 |
Strainer Sub-assy, Oil
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15104-50230 |
Strainer Sub-assy, Oil
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2017-08 → —
|
3URFE USK6# | — | |
| 15115 — Cover, Oil Pump | ||||
| 15115-0F010 |
Cover, Oil Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-0A040 |
Valve, Oil Pump Relief
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2017-08 → —
|
3URFE USK6# | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-0A020 |
Spring, Oil Pump Relief Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-17010 |
Plug, Oil Pump Relief Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-50011 |
Gasket, Oil Strainer
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
