Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

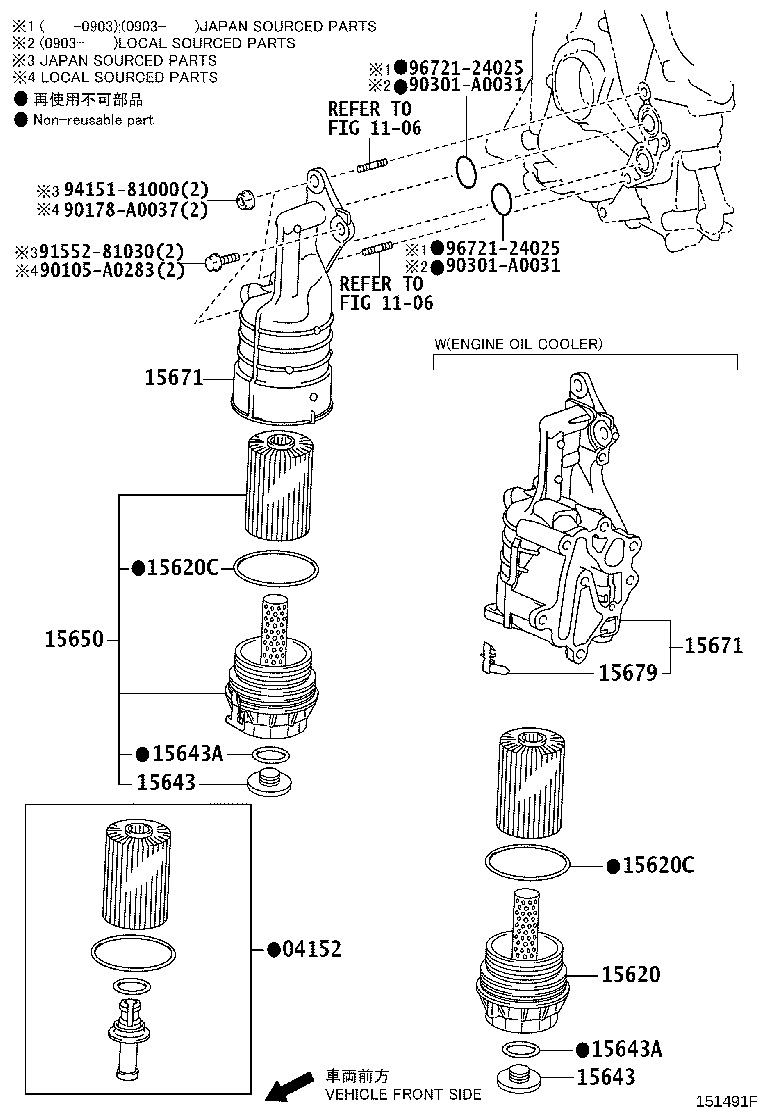

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-38020 |
Element Kit, Oil Filter
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 04152-38020 |
Element Kit, Oil Filter
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 04152-38020 |
Element Kit, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 04152-38020 |
Element Kit, Oil Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-0S010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15620-38010 |
Cap Assy, Oil Filter
2010-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15620-0S010 note |
Cap Assy, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15620-38010 note |
Cap Assy, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2017-08 → —
|
3URFE USK6# | — | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-31050 |
Plug, Oil Filter Drain
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2017-08 → —
|
3URFE USK6# | — | |
| 15643A — Ring, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2017-08 → —
|
3URFE USK6# | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-0S010 note |
Cap Assy, Oil Filter W/Elememt
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15650-38010 |
Cap Assy, Oil Filter W/Elememt
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2010-08 → 2012-08
ended
|
1URFE UPK60 | — | |
| 15650-38010 |
Cap Assy, Oil Filter W/Elememt
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15650-0S010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → —
|
3URFE USK6# | — | |
| 15650-38010 note |
Cap Assy, Oil Filter W/Elememt
2017-08 → —
|
3URFE USK6# | — | |
| 15671 — Bracket, Oil Filter | ||||
| 15670-0S010 note |
Bracket, Oil Filter
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15670-38010 note |
Bracket, Oil Filter
2007-11 → 2008-11
ended
|
3UR# USK6# | — | |
| 15670-38011 |
Bracket, Oil Filter
2010-08 → 2011-08
ended
|
1URFE UPK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2011-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2008-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15671-38010 |
Bracket, Oil Filter
2007-11 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15671-38010 |
Bracket, Oil Filter
2007-11 → 2017-08
ended
|
3URFE USK6# | — | |
| 15671-38010 |
Bracket, Oil Filter
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15671-38010 note |
Bracket, Oil Filter
2010-08 → 2012-08
ended
|
1URFE UPK60 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15670-0S010 note |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 15670-38011 note |
Bracket, Oil Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15670-38011 note |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 15671-38010 |
Bracket, Oil Filter
2017-08 → —
|
3URFE USK6# | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2010-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-11 → 2013-08
ended
|
3URFBE USK65 | — | |
| 15679-37010 note |
Clip, Oil Filter Bracket
2007-11 → 2015-08
ended
|
3URFE USK6# | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2013-08 → 2015-08
ended
|
3URFBE USK65 | — | |
| 15679-37011 |
Clip, Oil Filter Bracket
2015-09 → 2017-08
ended
|
3URFBE USK65 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-09 → 2017-08
ended
|
3URFE USK6# | — | |
| 15679-37011 |
Clip, Oil Filter Bracket
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
