Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

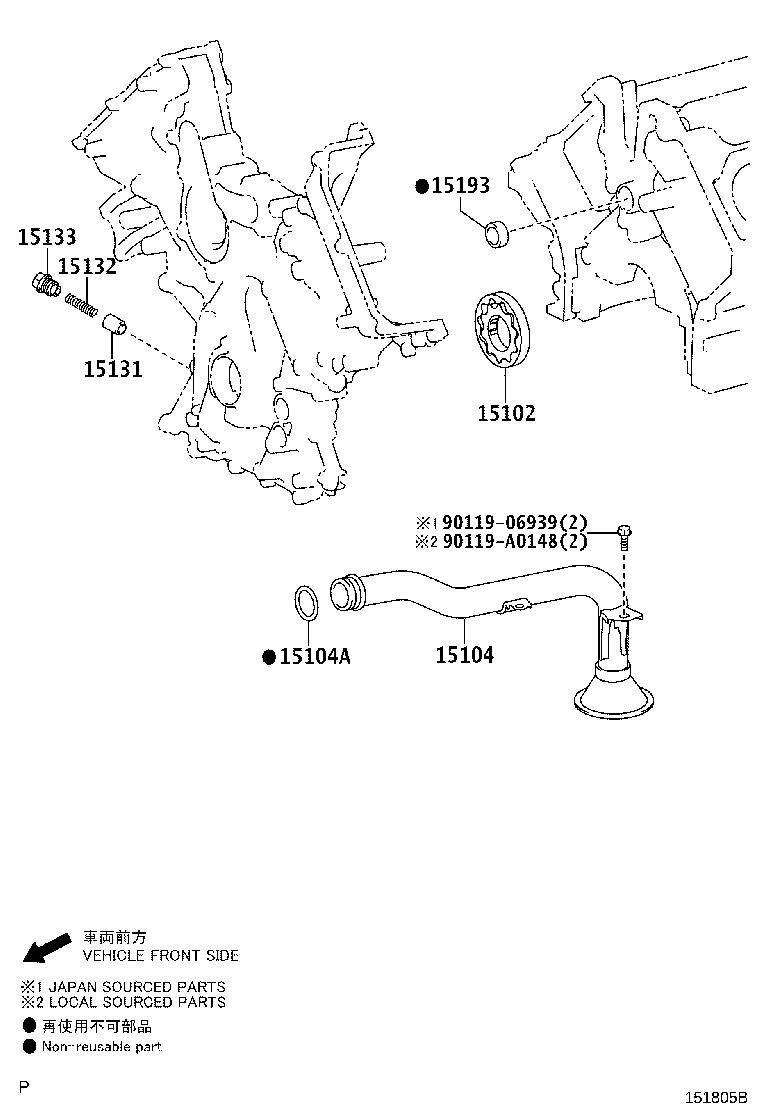

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15102 — Rotor Set, Oil Pump | ||||
| 15103-0S010 note |
Rotor Set, Oil Pump
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15103-0S010 note |
Rotor Set, Oil Pump
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15103-38060 note |
Rotor Set, Oil Pump
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15103-38060 note |
Rotor Set, Oil Pump
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15103-0S010 note |
Rotor Set, Oil Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15103-0S010 note |
Rotor Set, Oil Pump
2017-08 → —
|
3URFE USK6# | — | |
| 15103-38060 note |
Rotor Set, Oil Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15103-38060 note |
Rotor Set, Oil Pump
2017-08 → —
|
3URFE USK6# | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-0S010 |
Strainer Sub-assy, Oil
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15104-50230 |
Strainer Sub-assy, Oil
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15104-0S010 |
Strainer Sub-assy, Oil
2017-08 → —
|
3URFE USK6# | — | |
| 15104A — Ring, O(FOR OIL STRAINER) | ||||
| 90301-A0032 note |
Ring, O(FOR OIL STRAINER)
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-A0032 note |
Ring, O(FOR OIL STRAINER)
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 96721-24031 note |
Ring, O(FOR OIL STRAINER)
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 96721-24031 |
Ring, O(FOR OIL STRAINER)
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 96721-24031 note |
Ring, O(FOR OIL STRAINER)
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 90301-A0032 note |
Ring, O(FOR OIL STRAINER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-A0032 note |
Ring, O(FOR OIL STRAINER)
2017-08 → —
|
3URFE USK6# | — | |
| 96721-24031 note |
Ring, O(FOR OIL STRAINER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 96721-24031 note |
Ring, O(FOR OIL STRAINER)
2017-08 → —
|
3URFE USK6# | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-0A040 |
Valve, Oil Pump Relief
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15131-38070 |
Valve, Oil Pump Relief
2017-08 → —
|
3URFE USK6# | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-0A020 |
Spring, Oil Pump Relief Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15132-0S010 note |
Spring, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15132-38070 note |
Spring, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-17010 |
Plug, Oil Pump Relief Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15133-38070 |
Plug, Oil Pump Relief Valve
2017-08 → —
|
3URFE USK6# | — | |
| 15193 — Gasket, Oil Pump | ||||
| 15193-0S010 note |
Gasket, Oil Pump
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15193-0S010 note |
Gasket, Oil Pump
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 15193-38010 |
Gasket, Oil Pump
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 15193-38010 note |
Gasket, Oil Pump
2009-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 15193-38010 note |
Gasket, Oil Pump
2009-03 → 2017-08
ended
|
3UR# USK6# | — | |
| 15193-0S010 note |
Gasket, Oil Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15193-0S010 note |
Gasket, Oil Pump
2017-08 → —
|
3URFE USK6# | — | |
| 15193-38010 note |
Gasket, Oil Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 15193-38010 note |
Gasket, Oil Pump
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
