Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

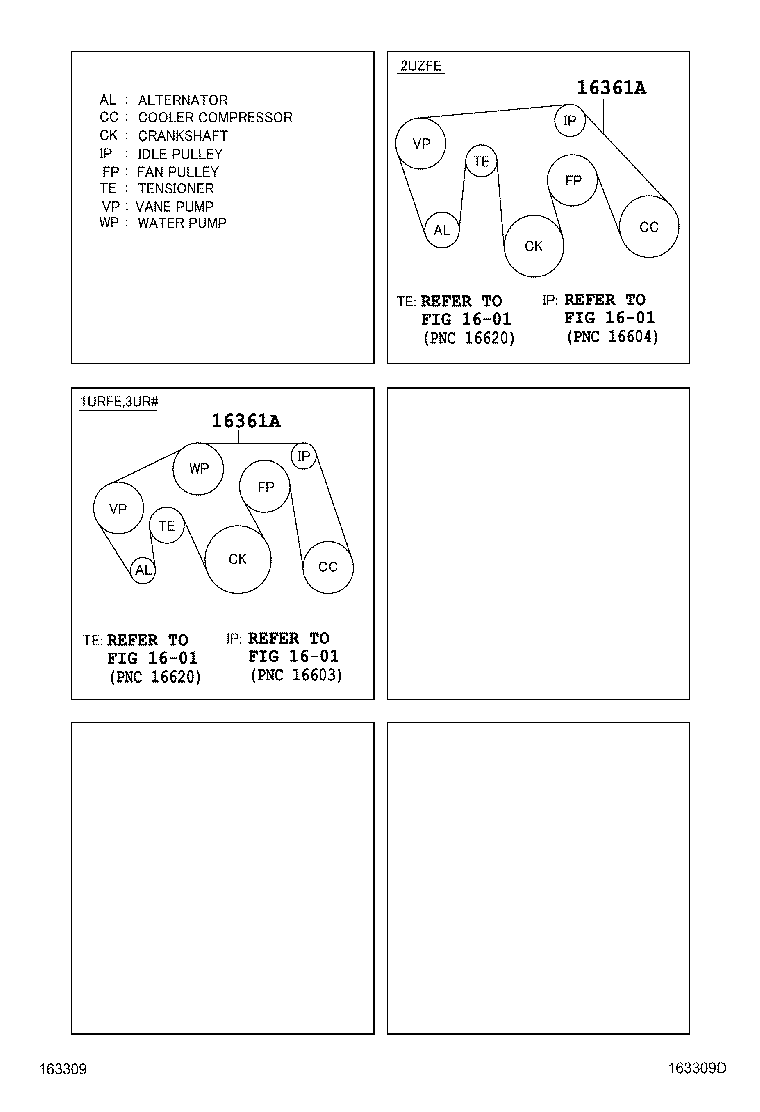

| 16361A — Belt, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02464 note |
Belt, V(FOR FAN & ALTERNATOR)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90916-02680 note |
Belt, V(FOR FAN & ALTERNATOR)
2008-08 → 2017-07
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 90916-02759 note |
Belt, V(FOR FAN & ALTERNATOR)
2017-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90916-A2013 note |
Belt, V(FOR FAN & ALTERNATOR)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90916-A2014 |
Belt, V(FOR FAN & ALTERNATOR)
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 90916-A2023 note |
Belt, V(FOR FAN & ALTERNATOR)
2011-08 → 2017-06
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 90916-A2033 note |
Belt, V(FOR FAN & ALTERNATOR)
2017-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90916-02759 note |
Belt, V(FOR FAN & ALTERNATOR)
2017-08 → —
|
3UR# USK6# | — | |
| 90916-A2033 note |
Belt, V(FOR FAN & ALTERNATOR)
2017-08 → —
|
3UR# USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
