Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

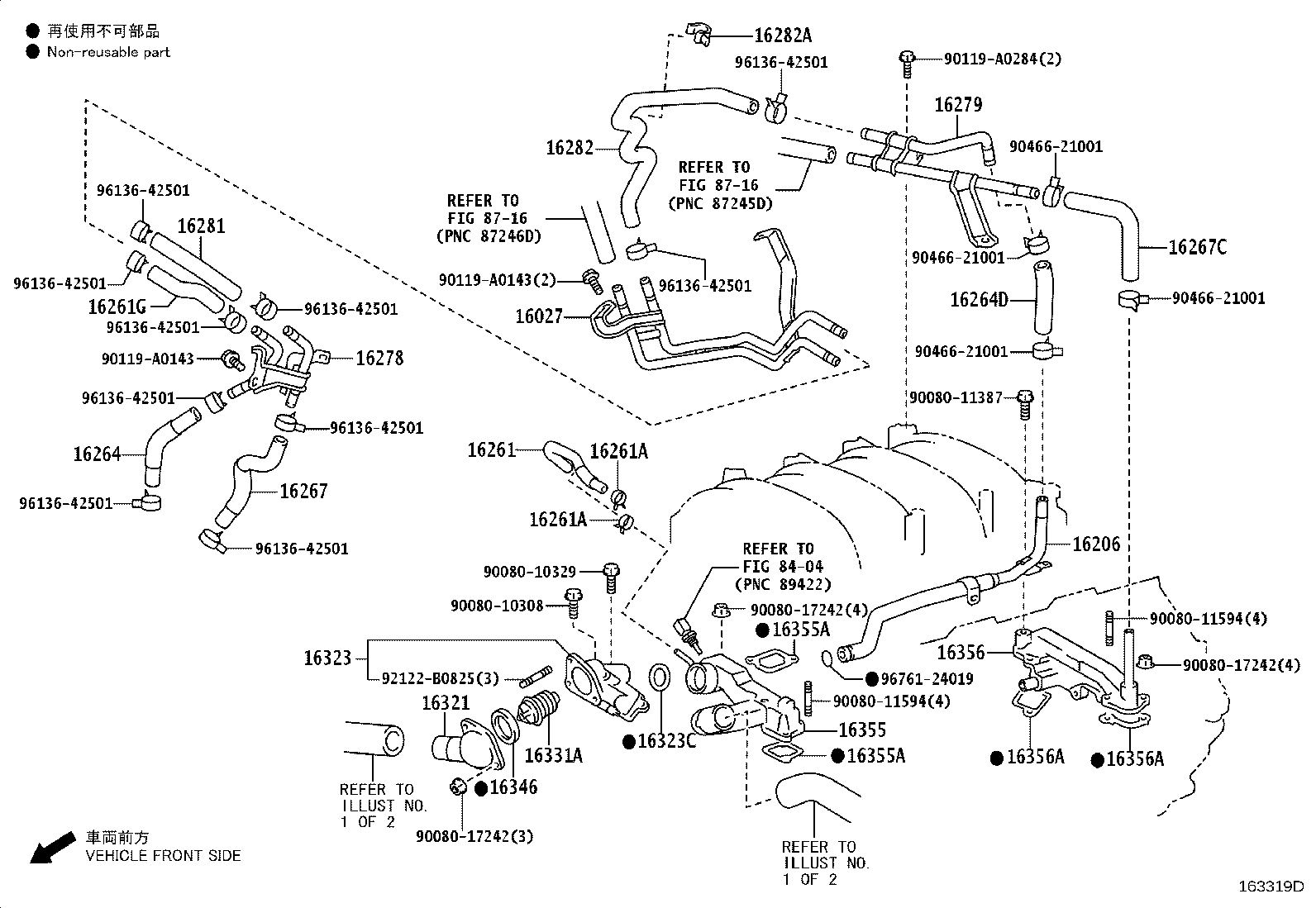

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16027 — Pipe Sub-assy, Turbo Water, NO.1 | ||||
| 16268-0F010 |
Pipe Sub-assy, Turbo Water, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16206 — Pipe Sub-assy, Water By-pass | ||||
| 16206-0F010 note |
Pipe Sub-assy, Water By-pass
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16206-0S010 |
Pipe Sub-assy, Water By-pass
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 16206-0S011 |
Pipe Sub-assy, Water By-pass
2011-08 → 2015-07
ended
|
3UR# USK6# | — | |
| 16206-0S020 note |
Pipe Sub-assy, Water By-pass
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16206-0S030 note |
Pipe Sub-assy, Water By-pass
2016-02 → 2017-08
ended
|
3UR# USK6# | — | |
| 16206-38070 note |
Pipe Sub-assy, Water By-pass
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16206-38091 |
Pipe Sub-assy, Water By-pass
2015-08 → 2016-02
ended
|
3UR# USK6# | — | |
| 16206-38091 note |
Pipe Sub-assy, Water By-pass
2016-02 → 2017-08
ended
|
3UR# USK6# | — | |
| 16206-50170 note |
Pipe Sub-assy, Water By-pass
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16206-0S030 note |
Pipe Sub-assy, Water By-pass
2017-08 → —
|
3UR# USK6# | — | |
| 16206-38091 note |
Pipe Sub-assy, Water By-pass
2017-08 → —
|
3UR# USK6# | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-50140 |
Hose, Water By-pass
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16299-38010 |
Hose, Water By-pass
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-0F010 |
Hose, Water By-pass, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16261-0S030 note |
Hose, Water By-pass, NO.1
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16261-0S030 note |
Hose, Water By-pass, NO.1
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2013-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16261-38020 |
Hose, Water By-pass, NO.1
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2010-08 → 2012-08
ended
|
1URFE UPK60 | — | |
| 16261-38020 |
Hose, Water By-pass, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2007-11 → 2010-08
ended
|
1URFE UPK6# | — | |
| 16261-0S030 note |
Hose, Water By-pass, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16261-0S030 note |
Hose, Water By-pass, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 16261-0S030 note |
Hose, Water By-pass, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 16261-38020 note |
Hose, Water By-pass, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0F021 |
Hose, Water By-pass, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16264-0S011 |
Hose, Water By-pass, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16264-0S020 |
Hose, Water By-pass, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16264-0S011 |
Hose, Water By-pass, NO.2
2017-08 → —
|
3UR# USK6# | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-0F010 |
Hose, Water By-pass, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16264-0S030 note |
Hose, Water By-pass, NO.2
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16264-38040 |
Hose, Water By-pass, NO.2
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 16264-38040 note |
Hose, Water By-pass, NO.2
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16264-38080 |
Hose, Water By-pass, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16264-0S030 note |
Hose, Water By-pass, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16264-0S030 note |
Hose, Water By-pass, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 16264-38040 note |
Hose, Water By-pass, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 16264-38040 note |
Hose, Water By-pass, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0F021 |
Hose, Water By-pass, NO.3
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16267-0S011 |
Hose, Water By-pass, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16267-0S020 |
Hose, Water By-pass, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16267-0S011 |
Hose, Water By-pass, NO.3
2017-08 → —
|
3UR# USK6# | — | |
| 16267C — Hose, Water By-pass, NO.4 | ||||
| 16267-0F010 |
Hose, Water By-pass, NO.4
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16281-38010 |
Hose, Water By-pass, NO.4
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16281-38010 |
Hose, Water By-pass, NO.4
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 16281-38080 |
Hose, Water By-pass, NO.4
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16281-38080 |
Hose, Water By-pass, NO.4
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16281-38080 |
Hose, Water By-pass, NO.4
2017-08 → —
|
3URFE USK6# | — | |
| 16278 — Pipe, Water By-pass, NO.2 | ||||
| 16278-0F020 |
Pipe, Water By-pass, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16278-0S010 |
Pipe, Water By-pass, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16278-0S020 |
Pipe, Water By-pass, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16278-0S010 |
Pipe, Water By-pass, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16278-0S010 |
Pipe, Water By-pass, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 16279 — Pipe, Water By-pass, NO.3 | ||||
| 16278-0F010 |
Pipe, Water By-pass, NO.3
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16279-38040 |
Pipe, Water By-pass, NO.3
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16279-38040 |
Pipe, Water By-pass, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16279-38040 |
Pipe, Water By-pass, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0F020 |
Hose, Water By-pass, NO.4
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16281-0S010 |
Hose, Water By-pass, NO.4
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16281-0S020 |
Hose, Water By-pass, NO.4
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16281-0S010 |
Hose, Water By-pass, NO.4
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16281-0S010 |
Hose, Water By-pass, NO.4
2017-08 → —
|
3URFE USK6# | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-0F021 |
Hose, Water By-pass, NO.5
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16282-0S011 |
Hose, Water By-pass, NO.5
2007-11 → 2011-07
ended
|
3UR# USK6# | — | |
| 16282-0S020 |
Hose, Water By-pass, NO.5
2011-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 16282-0S020 |
Hose, Water By-pass, NO.5
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16282-0S020 |
Hose, Water By-pass, NO.5
2017-08 → —
|
3URFE USK6# | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-A0023 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2011-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90929-01440 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2007-11 → 2011-03
ended
|
3UR# USK6# | — | |
| 90466-A0023 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90466-A0023 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2017-08 → —
|
3URFE USK6# | — | |
| 16321 — Inlet, Water | ||||
| 16321-0F010 |
Inlet, Water
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16323 — Housing, Water Inlet | ||||
| 16032-0F010 |
Housing, Water Inlet
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16323-0S010 note |
Housing, Water Inlet
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 16323-0S010 note |
Housing, Water Inlet
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16323-0S010 note |
Housing, Water Inlet
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 16323-0S020 note |
Housing, Water Inlet
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16323-0S020 note |
Housing, Water Inlet
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 16323-38010 note |
Housing, Water Inlet
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16323-38010 |
Housing, Water Inlet
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 16323-38010 note |
Housing, Water Inlet
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 16323-38020 note |
Housing, Water Inlet
2011-08 → 2013-08
ended
|
3URFBE USK65 | — | |
| 16323-38020 note |
Housing, Water Inlet
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 16323-38020 note |
Housing, Water Inlet
2011-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 16323-38020 note |
Housing, Water Inlet
2013-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 16323-38050 |
Housing, Water Inlet
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16323-0S010 note |
Housing, Water Inlet
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16323-0S010 note |
Housing, Water Inlet
2017-08 → —
|
3URFE USK6# | — | |
| 16323-0S020 note |
Housing, Water Inlet
2017-08 → —
|
3URFE USK6# | — | |
| 16323-38010 note |
Housing, Water Inlet
2017-08 → —
|
3URFE USK6# | — | |
| 16323-38020 note |
Housing, Water Inlet
2017-08 → —
|
3URFE USK6# | — | |
| 16323-38020 note |
Housing, Water Inlet
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16323C — Ring, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
Ring, O(FOR WATER INLET HOUSING)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16331A — Thermostat | ||||
| 90916-03138 note |
Thermostat
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16346 — Gasket, Thermostat | ||||
| 16346-50010 |
Gasket, Thermostat
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16355 — Joint, Water By-pass, Front | ||||
| 16355-0F020 note |
Joint, Water By-pass, Front
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16355-38010 |
Joint, Water By-pass, Front
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 16355-38040 |
Joint, Water By-pass, Front
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16355-38060 |
Joint, Water By-pass, Front
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 16355-50110 note |
Joint, Water By-pass, Front
2008-09 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16355-38060 |
Joint, Water By-pass, Front
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16355-38060 |
Joint, Water By-pass, Front
2017-08 → —
|
3URFE USK6# | — | |
| 16355A — Gasket(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
Gasket(FOR WATER BY-PASS JOINT FRONT)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16356 — Joint, Water By-pass, Rear | ||||
| 16356-50140 |
Joint, Water By-pass, Rear
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16356A — Gasket(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
Gasket(WATER BY-PASS JOINT, REAR)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
