Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

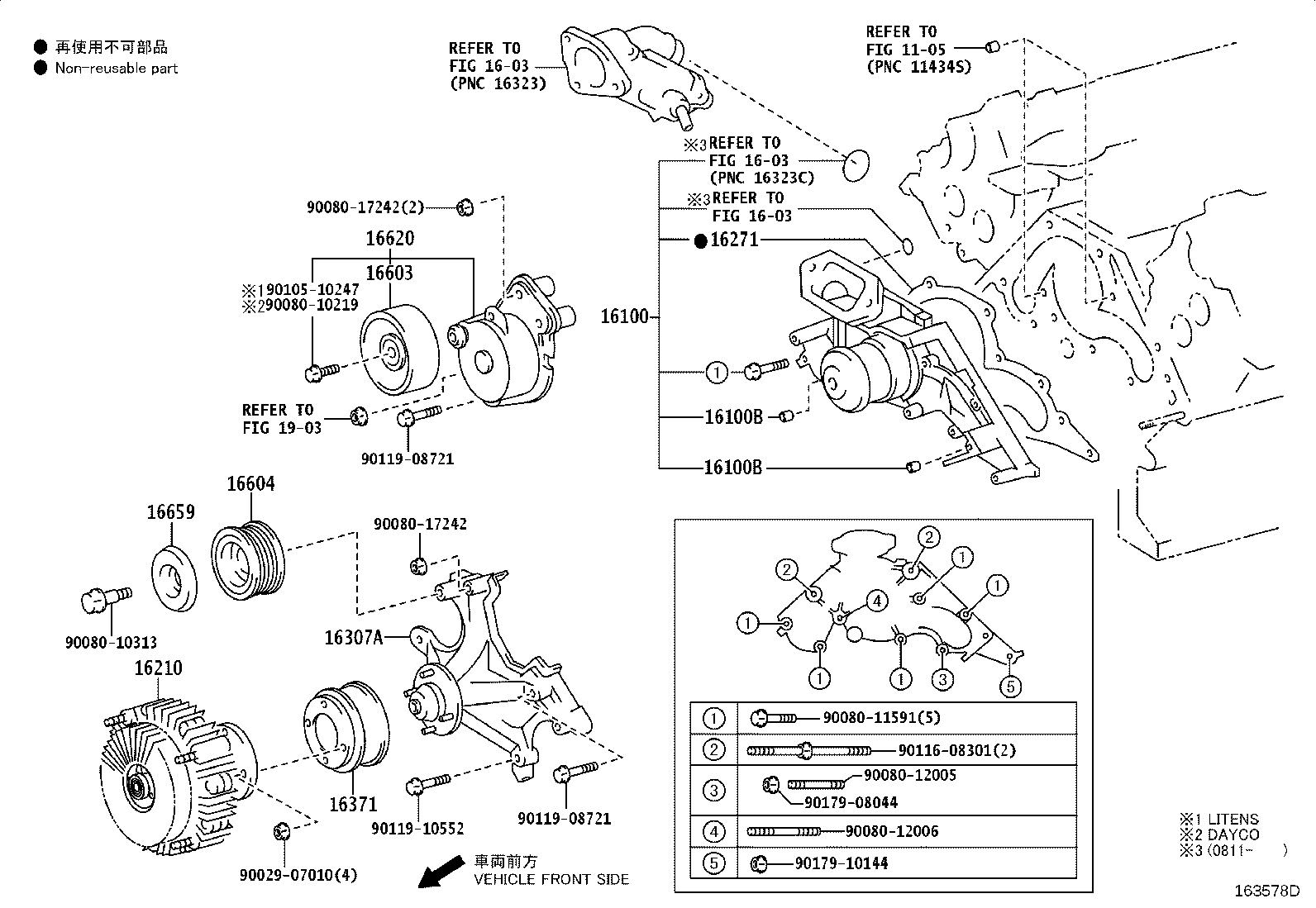

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09200 |
Pump Assy, Engine Water
2007-11 → 2008-11
ended
|
2UZFE UCK6# | — | |
| 16100-09201 |
Pump Assy, Engine Water
2008-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16100-09490 note |
Pump Assy, Engine Water
2007-11 → 2010-04
ended
|
3UR# USK6# | — | |
| 16100-09491 note |
Pump Assy, Engine Water
2010-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 16100-09525 note |
Pump Assy, Engine Water
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16100-39495 note |
Pump Assy, Engine Water
2007-11 → 2010-04
ended
|
3UR# USK6# | — | |
| 16100-39496 note |
Pump Assy, Engine Water
2010-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 16100-39555 note |
Pump Assy, Engine Water
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16100-09491 note |
Pump Assy, Engine Water
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16100-09491 note |
Pump Assy, Engine Water
2017-08 → —
|
3URFE USK6# | — | |
| 16100-39496 note |
Pump Assy, Engine Water
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16100-39496 note |
Pump Assy, Engine Water
2017-08 → —
|
3URFE USK6# | — | |
| 16100B — Pin, Ring(FOR WATER PUMP SET) | ||||
| 90253-11021 |
Pin, Ring(FOR WATER PUMP SET)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16210 — Coupling Assy, Fluid | ||||
| 16210-38070 |
Coupling Assy, Fluid
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16210-38070 |
Coupling Assy, Fluid
2007-11 → 2014-10
ended
|
3UR# USK6# | — | |
| 16210-38071 |
Coupling Assy, Fluid
2014-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16210-50101 |
Coupling Assy, Fluid
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16210-38071 |
Coupling Assy, Fluid
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16210-38071 |
Coupling Assy, Fluid
2017-08 → —
|
3URFE USK6# | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-0F010 |
Gasket, Water Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16271-0S010 note |
Gasket, Water Pump
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16271-38020 |
Gasket, Water Pump
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16271-38030 note |
Gasket, Water Pump
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16271-38020 |
Gasket, Water Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16271-38020 |
Gasket, Water Pump
2017-08 → —
|
3URFE USK6# | — | |
| 16307A — Bracket Sub-assy, Fan | ||||
| 16307-0F010 |
Bracket Sub-assy, Fan
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16371 — Pulley, Fan | ||||
| 16371-0F010 |
Pulley, Fan
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16371-38010 |
Pulley, Fan
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16371-38010 |
Pulley, Fan
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 16371-38010 |
Pulley, Fan
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 16371-38010 |
Pulley, Fan
2017-08 → —
|
3URFE USK6# | — | |
| 16603 — Pulley Sub-assy, Idler, NO.1 | ||||
| 16603-0W010 note |
Pulley Sub-assy, Idler, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16603-0W030 note |
Pulley Sub-assy, Idler, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16603-38010 |
Pulley Sub-assy, Idler, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 16603-38010 |
Pulley Sub-assy, Idler, NO.1
2007-11 → 2012-12
ended
|
3UR# USK6# | — | |
| 16603-38011 |
Pulley Sub-assy, Idler, NO.1
2012-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 16603-38011 |
Pulley Sub-assy, Idler, NO.1
2017-08 → 2019-01
ended
|
3UR# USK6# | — | |
| 16603-38012 |
Pulley Sub-assy, Idler, NO.1
2019-02 → —
|
3URFE USK6# | — | |
| 16604 — Pulley Sub-assy, Idler, NO.2 | ||||
| 16604-0F010 |
Pulley Sub-assy, Idler, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0S010 |
Tensioner Assy, V-ribbed Belt
2007-11 → 2012-09
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 16620-0S011 |
Tensioner Assy, V-ribbed Belt
2012-09 → 2017-06
ended
|
3UR# USK6# | — | |
| 16620-0S012 |
Tensioner Assy, V-ribbed Belt
2017-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 16620-0W101 |
Tensioner Assy, V-ribbed Belt
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 16620-0S012 |
Tensioner Assy, V-ribbed Belt
2017-08 → —
|
3UR# USK6# | — | |
| 16659 — Plate, Idler Pulley Cover, NO.2 | ||||
| 16659-50022 |
Plate, Idler Pulley Cover, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
