Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

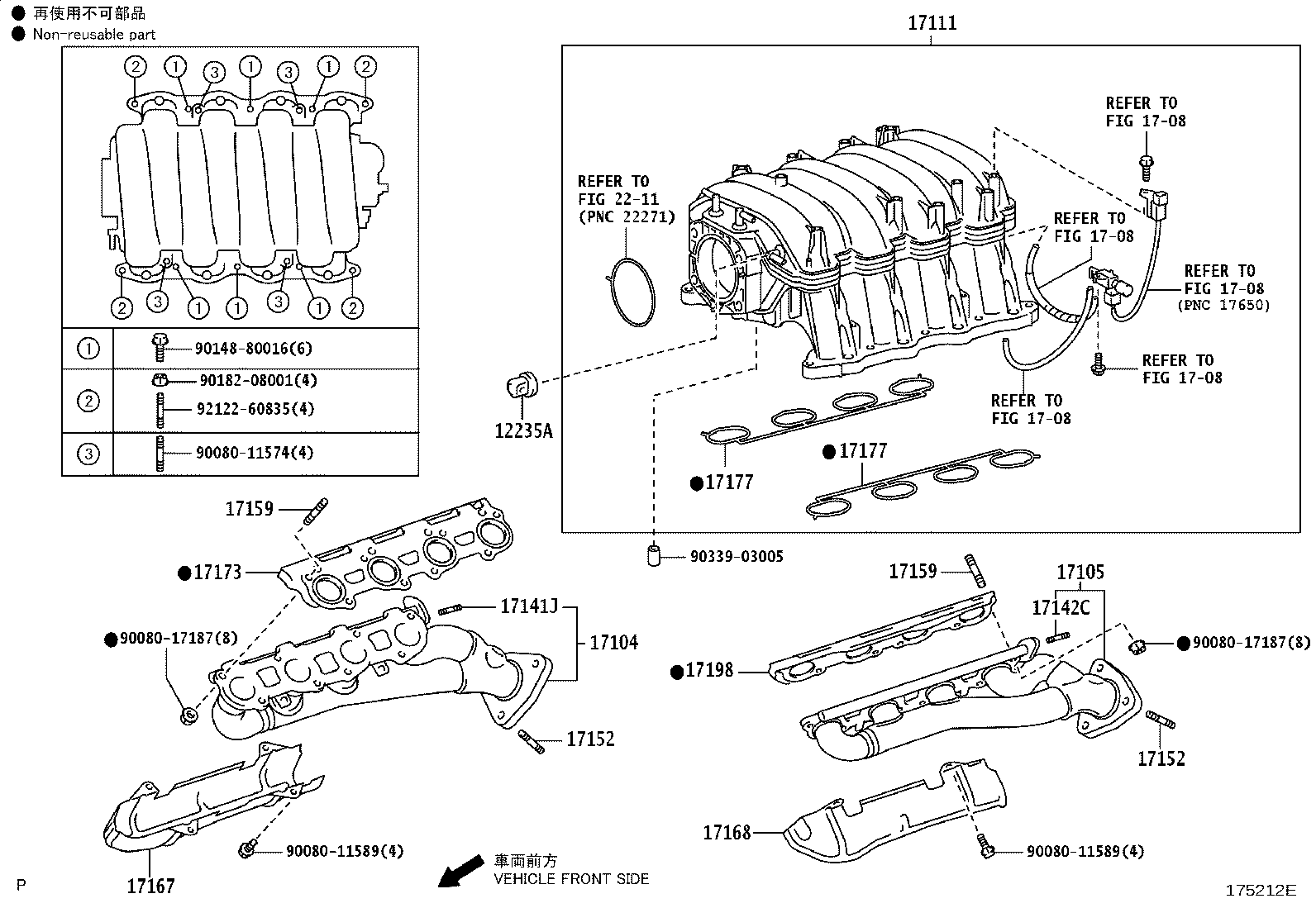

Exploded illustration 175212E 17111 — MANIFOLD, INTAKE (9 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (1 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (7 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (7 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (9 parts) 17104 — MANIFOLD SUB-ASSY, EXHAUST, RH (5 parts) 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (1 parts) 17198 — GASKET, EXHAUST MANIFOLD, NO.2 (1 parts) 17105 — MANIFOLD SUB-ASSY, EXHAUST, LH (5 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (1 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (9 parts) 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (1 parts) 17142C — BOLT, STUD(FOR EXHAUST MANIFOLD, LH) (9 parts) 17141J — BOLT, STUD(FOR EXHAUST MANIFOLD, RH) (8 parts) 9014880016 — not listed in this catalogue 9212260835 — not listed in this catalogue 9018208001 — not listed in this catalogue 9008011589 — not listed in this catalogue 9008011574 — not listed in this catalogue 9008011589 — not listed in this catalogue 9008017187 — not listed in this catalogue 9008017187 — not listed in this catalogue 2211 — not listed in this catalogue 9033903005 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 12235A — CAP, VENTILATION (1 parts)
175212E · 16 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
12235A — Cap, Ventilation
12235-50020 Cap, Ventilation
2007-11 → 2009-04 ended
2UZFE UCK6# —
17104 — Manifold Sub-assy, Exhaust, RH
17104-38010 Manifold Sub-assy, Exhaust, RH
2007-11 → 2009-03 ended
3UR# USK6# —
17104-38011 Manifold Sub-assy, Exhaust, RH
2009-04 → 2017-08 ended
3UR# USK6# —
17104-50220 Manifold Sub-assy, Exhaust, RH
2007-11 → 2009-04 ended
2UZFE UCK6# —
17104-38011 Manifold Sub-assy, Exhaust, RH
2017-08 → 2017-09 ended
3URFBE USK65 —
17104-38011 Manifold Sub-assy, Exhaust, RH
2017-08 → —
3URFE USK6# —
17105 — Manifold Sub-assy, Exhaust, LH
17105-38010 Manifold Sub-assy, Exhaust, LH
2007-11 → 2009-03 ended
3UR# USK6# —
17105-38011 Manifold Sub-assy, Exhaust, LH
2009-04 → 2017-08 ended
3UR# USK6# —
17105-50210 Manifold Sub-assy, Exhaust, LH
2007-11 → 2009-04 ended
2UZFE UCK6# —
17105-38011 Manifold Sub-assy, Exhaust, LH
2017-08 → 2017-09 ended
3URFBE USK65 —
17105-38011 Manifold Sub-assy, Exhaust, LH
2017-08 → —
3URFE USK6# —
17111 — Manifold, Intake
17120-0S010 Manifold, Intake
2007-11 → 2008-07 ended
3URFE USK6# —
17120-0S011 Manifold, Intake
2008-07 → 2016-02 ended
3URFE USK6# —
17120-0S012 Manifold, Intake
2016-03 → 2017-08 ended
3URFE USK6# —
17120-0S020 Manifold, Intake
2008-08 → 2016-03 ended
3URFBE USK65 —
17120-0S021 Manifold, Intake
2016-04 → 2017-08 ended
3URFBE USK65 —
17120-0S030 Manifold, Intake
2009-04 → 2012-08 ended
1URFE UPK6# —
17120-50020 Manifold, Intake
2007-11 → 2009-04 ended
2UZFE UCK6# —
17120-0S012 Manifold, Intake
2017-08 → —
3URFE USK6# —
17120-0S021 Manifold, Intake
2017-08 → 2017-09 ended
3URFBE USK65 —
17141J — Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
90126-06029 Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90126-10033 Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
3URFE USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
3URFE USK6# —
17142C — Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
90126-06029 Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90126-08053 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
3URFE USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
3URFE USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09 ended
3URFBE USK65 —
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90126-A0011 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
2007-11 → 2009-04 ended
2UZFE UCK6# —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90080-12008 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-11 → 2009-04 ended
2UZFE UCK6# —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08 ended
3UR# USK6# —
17167-38060 Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2013-08 ended
3UR# USK6# —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08 ended
3UR# USK6# —
17167-38140 Insulator, Exhaust Manifold Heat, NO.1
2009-04 → 2012-08 ended
1URFE UPK6# —
17167-50200 Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
3URFE USK6# —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
3URFE USK6# —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08 ended
3UR# USK6# —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08 ended
3UR# USK6# —
17168-38070 Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2013-08 ended
3UR# USK6# —
17168-38150 Insulator, Exhaust Manifold Heat, NO.2
2009-04 → 2012-08 ended
1URFE UPK6# —
17168-50190 Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
3URFE USK6# —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
3URFE USK6# —
17173 — Gasket, Exhaust Manifold TO Head
17173-38020 Gasket, Exhaust Manifold TO Head
2007-11 → 2012-08 ended
1URFE UPK6# —
17173-38020 Gasket, Exhaust Manifold TO Head
2007-11 → 2017-08 ended
3UR# USK6# —
17173-50030 Gasket, Exhaust Manifold TO Head
2007-11 → 2009-04 ended
2UZFE UCK6# —
17173-38020 Gasket, Exhaust Manifold TO Head
2017-08 → 2017-09 ended
3URFBE USK65 —
17173-38020 Gasket, Exhaust Manifold TO Head
2017-08 → —
3URFE USK6# —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-0S010 Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2008-11 ended
3URFE USK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2017-08 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2012-08 ended
1URFE UPK6# —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2017-08 ended
3URFE USK6# —
17171-50030 Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2017-08 → —
3URFE USK6# —
17198 — Gasket, Exhaust Manifold, NO.2
17198-50010 Gasket, Exhaust Manifold, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
