Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

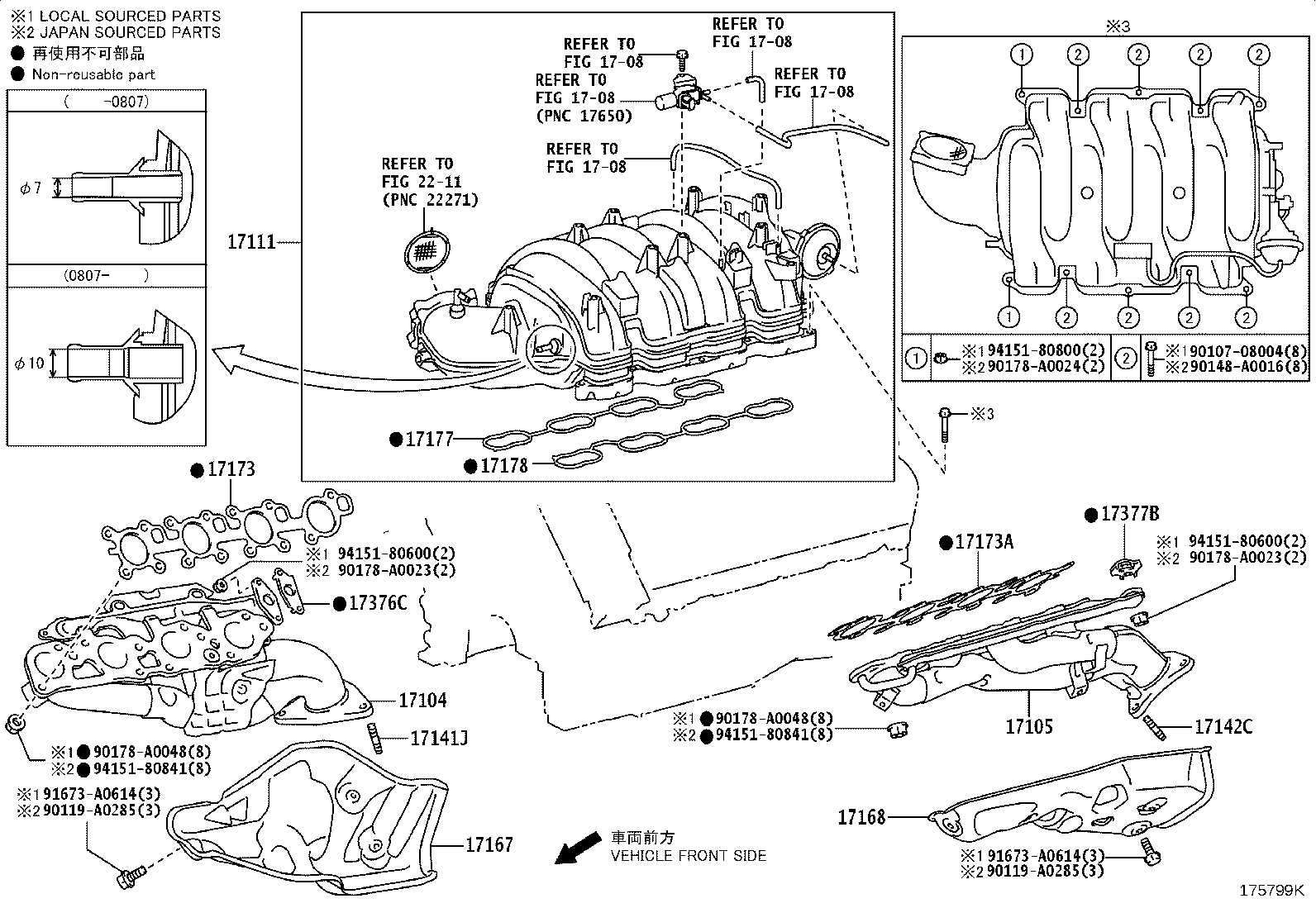

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17104 — Manifold Sub-assy, Exhaust, RH | ||||
| 17104-38010 |
Manifold Sub-assy, Exhaust, RH
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 17104-38011 |
Manifold Sub-assy, Exhaust, RH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 17104-50220 |
Manifold Sub-assy, Exhaust, RH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17104-38011 |
Manifold Sub-assy, Exhaust, RH
2017-08 → —
|
3URFE USK6# | — | |
| 17104-38011 |
Manifold Sub-assy, Exhaust, RH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17105 — Manifold Sub-assy, Exhaust, LH | ||||
| 17105-38010 |
Manifold Sub-assy, Exhaust, LH
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 17105-38011 |
Manifold Sub-assy, Exhaust, LH
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 17105-50210 |
Manifold Sub-assy, Exhaust, LH
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17105-38011 |
Manifold Sub-assy, Exhaust, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17105-38011 |
Manifold Sub-assy, Exhaust, LH
2017-08 → —
|
3URFE USK6# | — | |
| 17111 — Manifold, Intake | ||||
| 17120-0S010 |
Manifold, Intake
2007-11 → 2008-07
ended
|
3URFE USK6# | — | |
| 17120-0S011 |
Manifold, Intake
2008-07 → 2016-02
ended
|
3URFE USK6# | — | |
| 17120-0S012 |
Manifold, Intake
2016-03 → 2017-08
ended
|
3URFE USK6# | — | |
| 17120-0S020 |
Manifold, Intake
2008-08 → 2016-03
ended
|
3URFBE USK65 | — | |
| 17120-0S021 |
Manifold, Intake
2016-04 → 2017-08
ended
|
3URFBE USK65 | — | |
| 17120-0S030 |
Manifold, Intake
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17120-50020 |
Manifold, Intake
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17120-0S012 |
Manifold, Intake
2017-08 → —
|
3URFE USK6# | — | |
| 17120-0S021 |
Manifold, Intake
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17141J — Bolt, Stud(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-06029 |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90126-10033 |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
|
3URFE USK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
|
3URFE USK6# | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17142C — Bolt, Stud(FOR EXHAUST MANIFOLD, LH) | ||||
| 90126-06029 |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90126-08053 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90126-10033 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
|
3URFE USK6# | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90126-A0011 note |
Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
|
3URFE USK6# | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-0S010 note |
Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17167-38060 |
Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 17167-38060 note |
Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17167-38140 |
Insulator, Exhaust Manifold Heat, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17167-50200 |
Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17167-0S010 note |
Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17167-0S010 note |
Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17167-38060 note |
Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17167-38060 note |
Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-0S010 note |
Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17168-38070 note |
Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17168-38070 |
Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 17168-38150 |
Insulator, Exhaust Manifold Heat, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17168-50190 |
Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17168-0S010 note |
Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17168-0S010 note |
Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 17168-38070 note |
Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17168-38070 note |
Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-38020 |
Gasket, Exhaust Manifold TO Head
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17173-50030 |
Gasket, Exhaust Manifold TO Head
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head
2017-08 → —
|
3URFE USK6# | — | |
| 17173A — Gasket, Exhaust Manifold TO Head, LH | ||||
| 17173-38020 |
Gasket, Exhaust Manifold TO Head, LH
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head, LH
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17173-38020 |
Gasket, Exhaust Manifold TO Head, LH
2017-08 → —
|
3URFE USK6# | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17171-0S010 |
Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2008-11
ended
|
3URFE USK6# | — | |
| 17171-0S020 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2017-08
ended
|
3URFE USK6# | — | |
| 17171-50030 |
Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17171-0S020 |
Gasket, Intake Manifold TO Head, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17178 — Gasket, Intake Manifold TO Head, NO.2 | ||||
| 17171-0S010 |
Gasket, Intake Manifold TO Head, NO.2
2007-11 → 2008-11
ended
|
3URFE USK6# | — | |
| 17171-0S020 |
Gasket, Intake Manifold TO Head, NO.2
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.2
2008-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.2
2008-11 → 2017-08
ended
|
3URFE USK6# | — | |
| 17171-0S020 |
Gasket, Intake Manifold TO Head, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17171-0S030 |
Gasket, Intake Manifold TO Head, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 17376C — Gasket, Air Tube | ||||
| 17377-0S010 note |
Gasket, Air Tube
2010-05 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17377-0S010 note |
Gasket, Air Tube
2010-05 → 2017-08
ended
|
3UR# USK6# | — | |
| 17377-38010 |
Gasket, Air Tube
2007-11 → 2010-05
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17377-38010 note |
Gasket, Air Tube
2010-05 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17377-38010 note |
Gasket, Air Tube
2010-05 → 2017-08
ended
|
3UR# USK6# | — | |
| 17377-0S010 note |
Gasket, Air Tube
2017-08 → —
|
3URFE USK6# | — | |
| 17377-0S010 note |
Gasket, Air Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17377-38010 note |
Gasket, Air Tube
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17377-38010 note |
Gasket, Air Tube
2017-08 → —
|
3URFE USK6# | — | |
| 17377B — Gasket, Air Tube, NO.2 | ||||
| 17377-0S010 note |
Gasket, Air Tube, NO.2
2010-05 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17377-0S010 note |
Gasket, Air Tube, NO.2
2010-05 → 2017-08
ended
|
3UR# USK6# | — | |
| 17377-38010 |
Gasket, Air Tube, NO.2
2007-11 → 2010-05
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17377-38010 note |
Gasket, Air Tube, NO.2
2010-05 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17377-38010 note |
Gasket, Air Tube, NO.2
2010-05 → 2017-08
ended
|
3UR# USK6# | — | |
| 17377-0S010 note |
Gasket, Air Tube, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17377-0S010 note |
Gasket, Air Tube, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 17377-38010 note |
Gasket, Air Tube, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17377-38010 note |
Gasket, Air Tube, NO.2
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
