Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

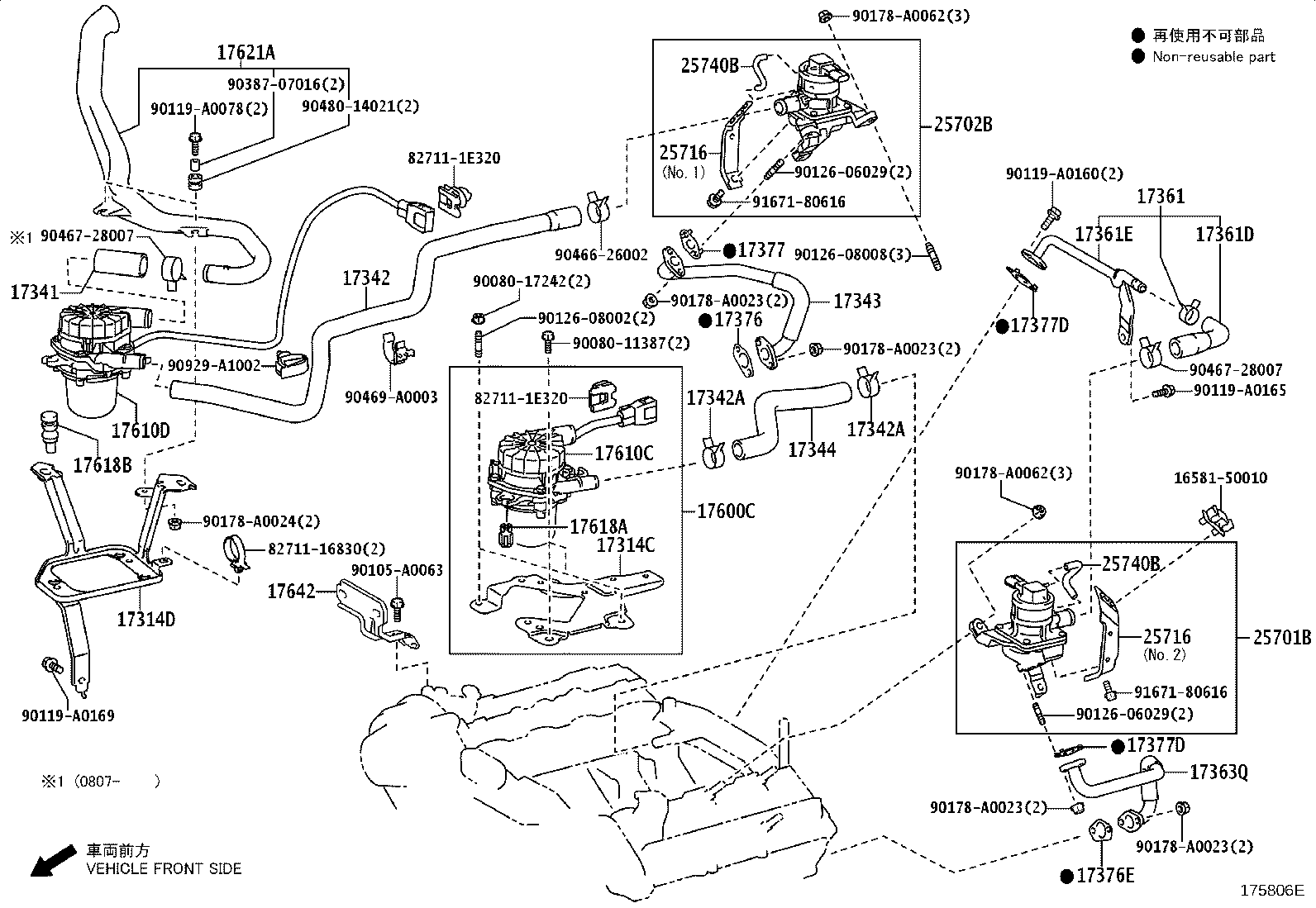

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17314C — Bracket, Air Pump | ||||
| 17314-0F010 |
Bracket, Air Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17314-0S010 |
Bracket, Air Pump
2007-11 → 2011-09
ended
|
3UR# USK6# | — | |
| 17314-0S010 |
Bracket, Air Pump
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17314-0S020 |
Bracket, Air Pump
2011-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 17314-0S020 |
Bracket, Air Pump
2017-08 → —
|
3URFE USK6# | — | |
| 17314-0S020 |
Bracket, Air Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17314D — Bracket, Air Pump, NO.1 | ||||
| 17314-0F020 |
Bracket, Air Pump, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17341 — Hose, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-0S010 |
Hose, NO.1(FOR AIR INJECTION SYSTEM)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17341-0S010 |
Hose, NO.1(FOR AIR INJECTION SYSTEM)
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17341-0S010 |
Hose, NO.1(FOR AIR INJECTION SYSTEM)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17341-0S010 |
Hose, NO.1(FOR AIR INJECTION SYSTEM)
2017-08 → —
|
3URFE USK6# | — | |
| 17342 — Hose, NO.2(FOR AIR INJECTION SYSTEM) | ||||
| 17342-0F020 |
Hose, NO.2(FOR AIR INJECTION SYSTEM)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17342-0S010 |
Hose, NO.2(FOR AIR INJECTION SYSTEM)
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17342-0S010 |
Hose, NO.2(FOR AIR INJECTION SYSTEM)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17342-0S010 |
Hose, NO.2(FOR AIR INJECTION SYSTEM)
2017-08 → —
|
3URFE USK6# | — | |
| 17342A — Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) | ||||
| 96136-42901 |
Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17343 — Hose, NO.3(FOR AIR INJECTION SYSTEM) | ||||
| 17343-0S010 |
Hose, NO.3(FOR AIR INJECTION SYSTEM)
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17362-50030 |
Hose, NO.3(FOR AIR INJECTION SYSTEM)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17343-0S010 |
Hose, NO.3(FOR AIR INJECTION SYSTEM)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17343-0S010 |
Hose, NO.3(FOR AIR INJECTION SYSTEM)
2017-08 → —
|
3URFE USK6# | — | |
| 17344 — Hose, NO.4(FOR AIR INJECTION SYSTEM) | ||||
| 17341-38050 |
Hose, NO.4(FOR AIR INJECTION SYSTEM)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17341-38050 |
Hose, NO.4(FOR AIR INJECTION SYSTEM)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17341-50190 |
Hose, NO.4(FOR AIR INJECTION SYSTEM)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17341-38050 |
Hose, NO.4(FOR AIR INJECTION SYSTEM)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17341-38050 |
Hose, NO.4(FOR AIR INJECTION SYSTEM)
2017-08 → —
|
3URFE USK6# | — | |
| 17361 — Tube, Air | ||||
| 17360-50060 |
Tube, Air
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17361-38010 |
Tube, Air
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17361D — Hose, NO.2(FOR AIR TUBE) | ||||
| 17342-38070 |
Hose, NO.2(FOR AIR TUBE)
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17342-50200 |
Hose, NO.2(FOR AIR TUBE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17361E — Hose, NO.3(FOR AIR TUBE) | ||||
| 17361-50040 |
Hose, NO.3(FOR AIR TUBE)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17363Q — Tube, Air, NO.3 | ||||
| 17363-0S010 note |
Tube, Air, NO.3
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17363-38010 note |
Tube, Air, NO.3
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17363-38010 |
Tube, Air, NO.3
2007-11 → 2011-08
ended
|
3UR# USK6# | — | |
| 17363-38020 |
Tube, Air, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17363-50030 |
Tube, Air, NO.3
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17363-0S010 note |
Tube, Air, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17363-0S010 note |
Tube, Air, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 17363-38010 note |
Tube, Air, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17363-38010 note |
Tube, Air, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 17376 — Gasket, Air Tube, NO.1 | ||||
| 17376-38020 |
Gasket, Air Tube, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17376-38030 |
Gasket, Air Tube, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17376-50010 |
Gasket, Air Tube, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17376-38020 |
Gasket, Air Tube, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17376-38020 |
Gasket, Air Tube, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17376E — Gasket, Air Tube, NO.3 | ||||
| 17376-50010 |
Gasket, Air Tube, NO.3
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17377 — Gasket, Air Tube, NO.2 | ||||
| 17377-50010 |
Gasket, Air Tube, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17377D — Gasket, Air Tube, NO.5 | ||||
| 17377-50010 |
Gasket, Air Tube, NO.5
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17600C — Pump Assy, Air | ||||
| 17600-0F010 |
Pump Assy, Air
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17610C — Pump Assy, Air | ||||
| 17610-0C010 |
Pump Assy, Air
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17610-0S010 |
Pump Assy, Air
2007-11 → 2011-09
ended
|
3UR# USK6# | — | |
| 17610-0S010 |
Pump Assy, Air
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17610-0S030 |
Pump Assy, Air
2011-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 17610-0S030 |
Pump Assy, Air
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17610-0S030 |
Pump Assy, Air
2017-08 → —
|
3URFE USK6# | — | |
| 17610D — Pump Assy, Air, NO.1 | ||||
| 17610-0S010 |
Pump Assy, Air, NO.1
2007-11 → 2011-09
ended
|
3UR# USK6# | — | |
| 17610-0S010 |
Pump Assy, Air, NO.1
2007-11 → 2012-08
ended
|
1URFE,2UZFE UCK6#,UPK6# | — | |
| 17610-0S030 |
Pump Assy, Air, NO.1
2011-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 17610-0S030 |
Pump Assy, Air, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17610-0S030 |
Pump Assy, Air, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17618A — Insulator, Air Pump | ||||
| 17618-0C010 |
Insulator, Air Pump
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17618-0F010 |
Insulator, Air Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17618-0C010 |
Insulator, Air Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17618-0C010 |
Insulator, Air Pump
2017-08 → —
|
3URFE USK6# | — | |
| 17618B — Insulator, Air Pump, NO.1 | ||||
| 17618-0C010 |
Insulator, Air Pump, NO.1
2007-11 → 2017-08
ended
|
1URFE,2UZFE,3UR# UCK6#,UPK6#,USK6# | — | |
| 17618-0C010 |
Insulator, Air Pump, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17618-0C010 |
Insulator, Air Pump, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17621A — Inlet, Air Pump | ||||
| 17621-0F010 |
Inlet, Air Pump
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17621-0S011 |
Inlet, Air Pump
2007-11 → 2011-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17621-0S012 |
Inlet, Air Pump
2011-09 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17621-0S020 |
Inlet, Air Pump
2013-01 → 2017-08
ended
|
3UR# USK6# | — | |
| 17621-38030 |
Inlet, Air Pump
2011-09 → 2012-12
ended
|
3UR# USK6# | — | |
| 17621-0S020 |
Inlet, Air Pump
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17621-0S020 |
Inlet, Air Pump
2017-08 → —
|
3URFE USK6# | — | |
| 17642 — Bracket, Air Pump Wire | ||||
| 17642-0F010 |
Bracket, Air Pump Wire
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17642-0S010 |
Bracket, Air Pump Wire
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17642-0S010 |
Bracket, Air Pump Wire
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17642-0S010 |
Bracket, Air Pump Wire
2017-08 → —
|
3URFE USK6# | — | |
| 25701B — Valve Set, Emission Control, NO.1 | ||||
| 25702-38050 |
Valve Set, Emission Control, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 25710-50030 |
Valve Set, Emission Control, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 25702B — Valve Set, Emission Control, NO.2 | ||||
| 25701-38100 |
Valve Set, Emission Control, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 25710-50040 |
Valve Set, Emission Control, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 25716 — Bracket, Air Switching Valve | ||||
| 23211-50010 note |
Bracket, Air Switching Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23881-50020 note |
Bracket, Air Switching Valve
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 25740B — Hose(FOR AIR CONTROL VALVE ASSY) | ||||
| 25719-50060 |
Hose(FOR AIR CONTROL VALVE ASSY)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
