Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

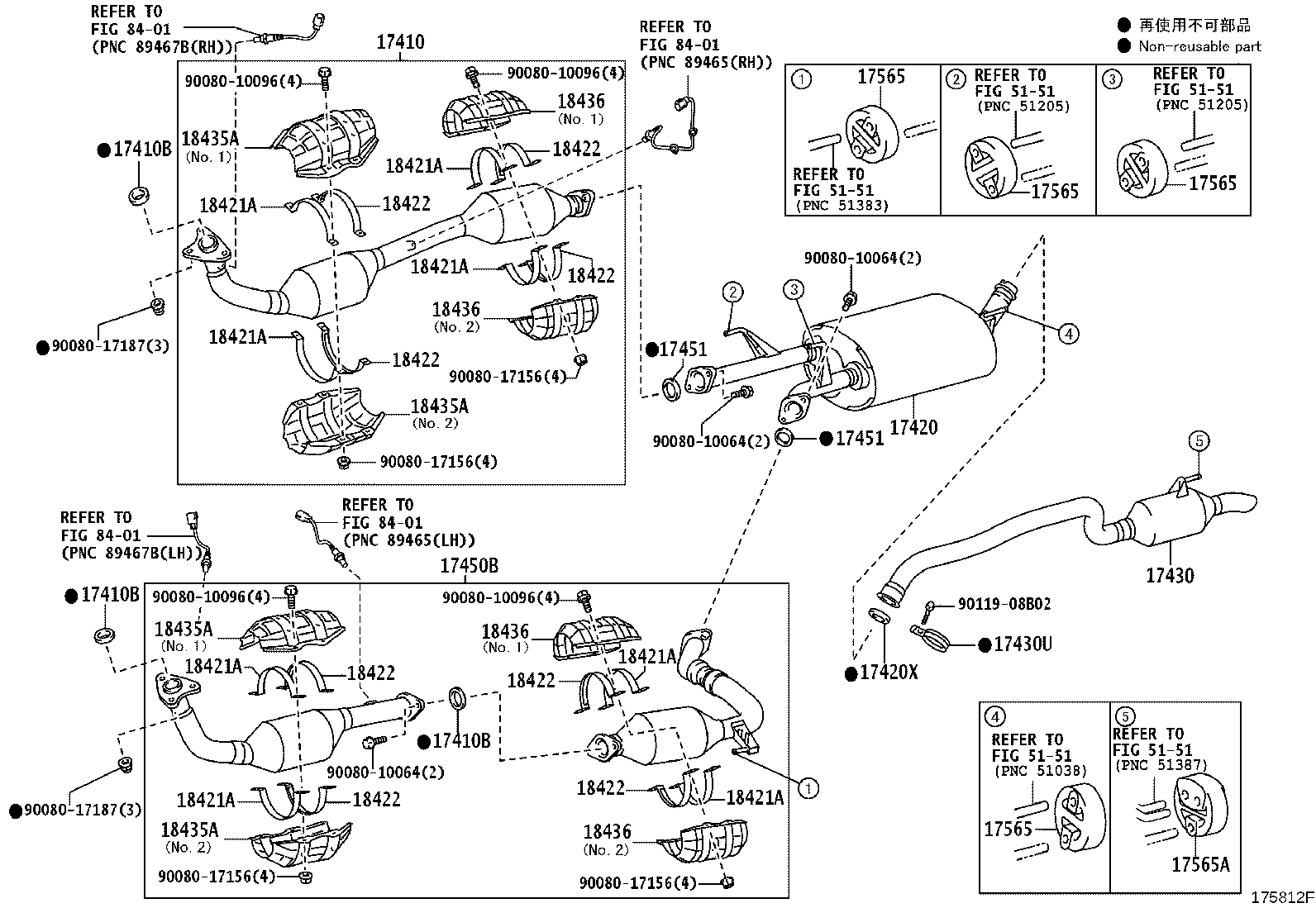

Exploded illustration 175812F 5151 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (5 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (10 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (10 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (10 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (10 parts) 9008010096 — not listed in this catalogue 9008010096 — not listed in this catalogue 9008017156 — not listed in this catalogue 9008017156 — not listed in this catalogue 9008010064 — not listed in this catalogue 9008010064 — not listed in this catalogue 9011908B02 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (5 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (5 parts) 17430U — CLAMP NO.1, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (6 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (10 parts) 18436 — PROTECTOR, MONOLITHIC CONVERTER, NO.1 (10 parts) 9008017156 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (10 parts) 18435A — PROTECTOR, MONOLITHIC CONVERTER (10 parts) 9008010096 — not listed in this catalogue 9008017156 — not listed in this catalogue 9008017187 — not listed in this catalogue 9008017187 — not listed in this catalogue 9008010064 — not listed in this catalogue 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18421A — STAY, CONVERTER PROTECTOR, LH (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 17410B — GASKET, EXHAUST PIPE (5 parts) 18422 — STAY, CONVERTER PROTECTOR, NO.2 (5 parts) 17450B — PIPE ASSY, EXHAUST, FRONT NO.2 (8 parts) 17451 — GASKET, EXHAUST PIPE (1 parts) 17451 — GASKET, EXHAUST PIPE (1 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (6 parts) 17410B — GASKET, EXHAUST PIPE (5 parts) 9008010096 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 5151 — not listed in this catalogue 5151 — not listed in this catalogue 5151 — not listed in this catalogue 17565 — SUPPORT, EXHAUST PIPE, NO.5 (6 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (6 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (6 parts) 5151 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts)
175812F · 40 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-0F090 Pipe Assy, Exhaust, Front
2007-11 → 2009-04 ended
2UZFE UCK6# —
17410-0S010 Pipe Assy, Exhaust, Front
2007-11 → 2009-05 ended
3UR# USK6# —
17410-0S011 Pipe Assy, Exhaust, Front
2009-06 → 2011-07 ended
3UR# USK6# —
17410-0S020 Pipe Assy, Exhaust, Front
2009-04 → 2012-08 ended
1URFE UPK6# —
17410-0S070 Pipe Assy, Exhaust, Front
2011-07 → 2017-08 ended
3UR# USK6# —
17410-0S100 Pipe Assy, Exhaust, Front
2017-08 → —
3UR# USK6# —
17410B — Gasket, Exhaust Pipe
90917-A6002 Gasket, Exhaust Pipe
2007-11 → 2009-04 ended
2UZFE UCK6# —
90917-A6002 Gasket, Exhaust Pipe
2007-11 → 2012-08 ended
1URFE UPK6# —
90917-A6002 Gasket, Exhaust Pipe
2007-11 → 2017-08 ended
3UR# USK6# —
90917-A6002 Gasket, Exhaust Pipe
2017-08 → 2017-09 ended
3URFBE USK65 —
90917-A6002 Gasket, Exhaust Pipe
2017-08 → —
3URFE USK6# —
17420 — Pipe Assy, Exhaust, Center
17420-0F060 Pipe Assy, Exhaust, Center
2007-11 → 2009-04 ended
2UZFE UCK6# —
17420-0S040 Pipe Assy, Exhaust, Center
2007-11 → 2017-08 ended
3UR# USK6# —
17420-0S040 Pipe Assy, Exhaust, Center
2007-11 → 2012-08 ended
1URFE UPK6# —
17420-0S040 Pipe Assy, Exhaust, Center
2017-08 → 2017-09 ended
3URFBE USK65 —
17420-0S040 Pipe Assy, Exhaust, Center
2017-08 → —
3URFE USK6# —
17420X — Gasket, Exhaust Pipe, Center
90917-06085 Gasket, Exhaust Pipe, Center
2007-11 → 2009-04 ended
2UZFE UCK6# —
90917-06093 Gasket, Exhaust Pipe, Center
2007-11 → 2012-08 ended
1URFE UPK6# —
90917-06093 Gasket, Exhaust Pipe, Center
2007-11 → 2017-08 ended
3UR# USK6# —
90917-06093 Gasket, Exhaust Pipe, Center
2017-08 → 2017-09 ended
3URFBE USK65 —
90917-06093 Gasket, Exhaust Pipe, Center
2017-08 → —
3URFE USK6# —
17430 — Pipe Assy, Exhaust, Tail
17430-0F020 Pipe Assy, Exhaust, Tail
2007-11 → 2009-04 ended
2UZFE UCK6# —
17430-0S020 Pipe Assy, Exhaust, Tail
2007-11 → 2010-08 ended
1URFE,3UR# UPK6#,USK6# —
17430-0S021 Pipe Assy, Exhaust, Tail
2010-09 → 2012-08 ended
1URFE UPK6# —
17430-0S021 Pipe Assy, Exhaust, Tail
2010-09 → 2017-08 ended
3UR# USK6# —
17430-0S021 Pipe Assy, Exhaust, Tail
2017-08 → 2017-09 ended
3URFBE USK65 —
17430-0S021 Pipe Assy, Exhaust, Tail
2017-08 → —
3URFE USK6# —
17430U — Clamp NO.1, Exhaust Tailpipe (FOR REAR)
90080-46263 Clamp NO.1, Exhaust Tailpipe (FOR REAR)
2007-11 → 2009-04 ended
2UZFE UCK6# —
17450B — Pipe Assy, Exhaust, Front NO.2
17450-0F120 Pipe Assy, Exhaust, Front NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
17450-0S010 Pipe Assy, Exhaust, Front NO.2
2007-11 → 2009-05 ended
3UR# USK6# —
17450-0S011 Pipe Assy, Exhaust, Front NO.2
2009-06 → 2011-07 ended
3UR# USK6# —
17450-0S040 Pipe Assy, Exhaust, Front NO.2
2009-04 → 2012-08 ended
1URFE UPK6# —
17450-0S140 Pipe Assy, Exhaust, Front NO.2
2011-07 → 2013-08 ended
3UR# USK6# —
17450-0S210 Pipe Assy, Exhaust, Front NO.2
2013-08 → 2017-08 ended
3UR# USK6# —
17450-0S230 Pipe Assy, Exhaust, Front NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17450-0S230 Pipe Assy, Exhaust, Front NO.2
2017-08 → —
3URFE USK6# —
17451 — Gasket, Exhaust Pipe
90080-43036 Gasket, Exhaust Pipe
2007-11 → 2009-04 ended
2UZFE UCK6# —
17565 — Support, Exhaust Pipe, NO.5
17565-0S010 Support, Exhaust Pipe, NO.5
2007-11 → 2009-04 ended
2UZFE UCK6# —
17565-0S010 Support, Exhaust Pipe, NO.5
2007-11 → 2011-03 ended
1URFE,3UR# UPK6#,USK6# —
17565-0S011 Support, Exhaust Pipe, NO.5
2011-04 → 2012-08 ended
1URFE UPK6# —
17565-0S011 Support, Exhaust Pipe, NO.5
2011-04 → 2017-08 ended
3UR# USK6# —
17565-0S011 Support, Exhaust Pipe, NO.5
2017-08 → 2017-09 ended
3URFBE USK65 —
17565-0S011 Support, Exhaust Pipe, NO.5
2017-08 → —
3URFE USK6# —
17565A — Support, Exhaust Pipe, NO.4
17565-0S020 Support, Exhaust Pipe, NO.4
2007-11 → 2009-04 ended
2UZFE UCK6# —
17565-0S020 Support, Exhaust Pipe, NO.4
2007-11 → 2011-03 ended
1URFE,3UR# UPK6#,USK6# —
17565-0S021 Support, Exhaust Pipe, NO.4
2011-04 → 2012-08 ended
1URFE UPK6# —
17565-0S021 Support, Exhaust Pipe, NO.4
2011-04 → 2017-08 ended
3UR# USK6# —
17565-0S021 Support, Exhaust Pipe, NO.4
2017-08 → 2017-09 ended
3URFBE USK65 —
17565-0S021 Support, Exhaust Pipe, NO.4
2017-08 → —
3URFE USK6# —
18421A — Stay, Converter Protector, LH
18421-0S020 Stay, Converter Protector, LH
2007-11 → 2012-08 ended
1URFE UPK6# —
18421-0S020 Stay, Converter Protector, LH
2007-11 → 2017-08 ended
3UR# USK6# —
18421-0S020 Stay, Converter Protector, LH
2007-11 → 2009-04 ended
2UZFE UCK6# —
18421-0S020 Stay, Converter Protector, LH
2017-08 → 2017-09 ended
3URFBE USK65 —
18421-0S020 Stay, Converter Protector, LH
2017-08 → —
3URFE USK6# —
18422 — Stay, Converter Protector, NO.2
18422-0S010 Stay, Converter Protector, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
18422-0S010 Stay, Converter Protector, NO.2
2007-11 → 2012-08 ended
1URFE UPK6# —
18422-0S010 Stay, Converter Protector, NO.2
2007-11 → 2017-08 ended
3UR# USK6# —
18422-0S010 Stay, Converter Protector, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
18422-0S010 Stay, Converter Protector, NO.2
2017-08 → —
3URFE USK6# —
18435A — Protector, Monolithic Converter
18435-0S010 note Protector, Monolithic Converter
2007-11 → 2009-04 ended
2UZFE UCK6# —
18435-0S010 note Protector, Monolithic Converter
2007-11 → 2017-08 ended
3UR# USK6# —
18435-0S010 note Protector, Monolithic Converter
2007-11 → 2012-08 ended
1URFE UPK6# —
18445-0S010 note Protector, Monolithic Converter
2007-11 → 2012-08 ended
1URFE UPK6# —
18445-0S010 note Protector, Monolithic Converter
2007-11 → 2009-04 ended
2UZFE UCK6# —
18445-0S010 note Protector, Monolithic Converter
2007-11 → 2017-08 ended
3UR# USK6# —
18435-0S010 note Protector, Monolithic Converter
2017-08 → 2017-09 ended
3URFBE USK65 —
18435-0S010 note Protector, Monolithic Converter
2017-08 → —
3URFE USK6# —
18445-0S010 note Protector, Monolithic Converter
2017-08 → 2017-09 ended
3URFBE USK65 —
18445-0S010 note Protector, Monolithic Converter
2017-08 → —
3URFE USK6# —
18436 — Protector, Monolithic Converter, NO.1
18435-0F060 note Protector, Monolithic Converter, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
18435-0S020 note Protector, Monolithic Converter, NO.1
2007-11 → 2012-08 ended
1URFE UPK6# —
18435-0S020 note Protector, Monolithic Converter, NO.1
2007-11 → 2017-08 ended
3UR# USK6# —
18445-0F040 note Protector, Monolithic Converter, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
18445-0S020 note Protector, Monolithic Converter, NO.1
2007-11 → 2012-08 ended
1URFE UPK6# —
18445-0S020 note Protector, Monolithic Converter, NO.1
2007-11 → 2017-08 ended
3UR# USK6# —
18435-0S020 note Protector, Monolithic Converter, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
18435-0S020 note Protector, Monolithic Converter, NO.1
2017-08 → —
3URFE USK6# —
18445-0S020 note Protector, Monolithic Converter, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
18445-0S020 note Protector, Monolithic Converter, NO.1
2017-08 → —
3URFE USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
