Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

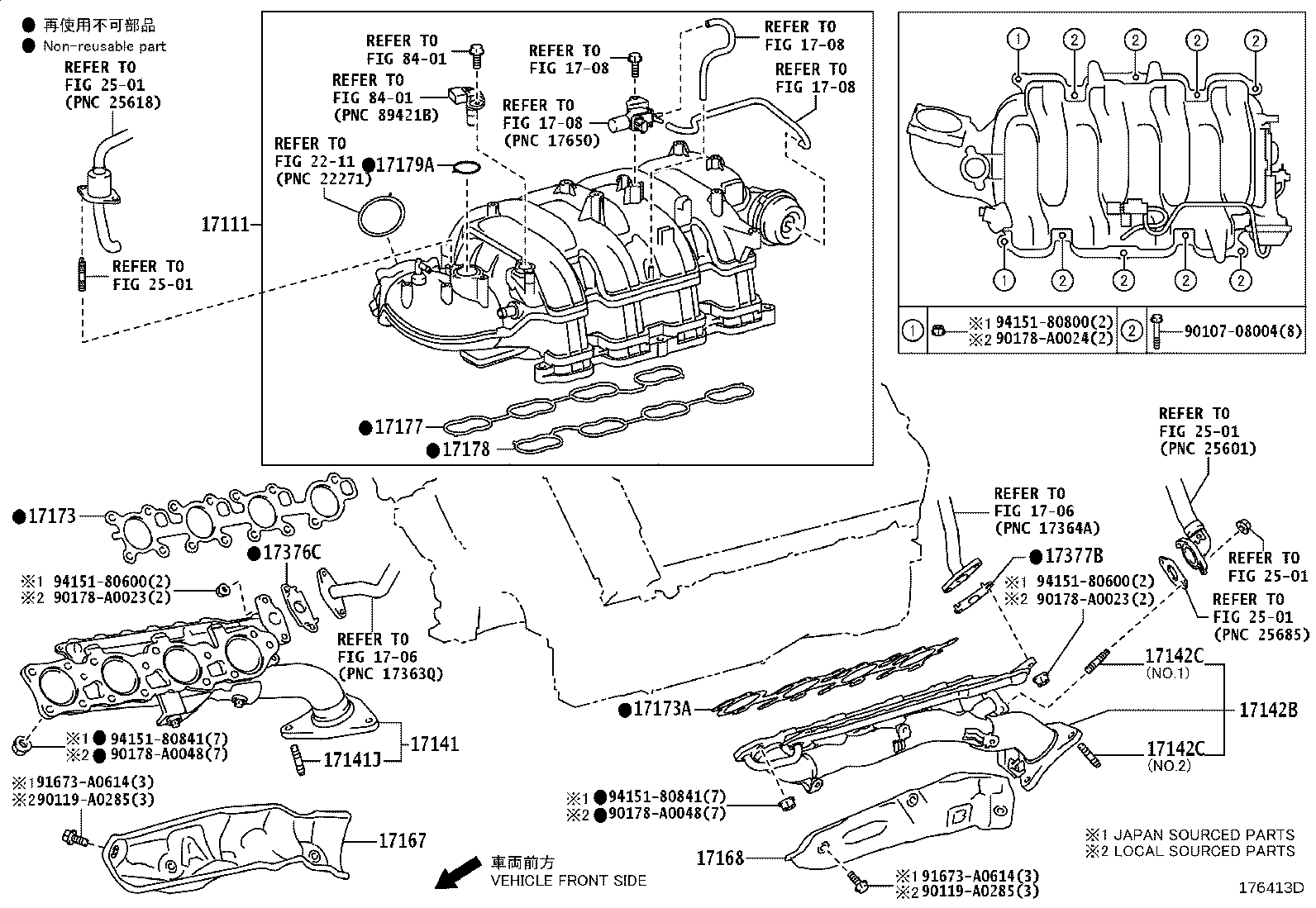

Exploded illustration 176413D 17142C — BOLT, STUD(FOR EXHAUST MANIFOLD, LH) (9 parts) 17142C — BOLT, STUD(FOR EXHAUST MANIFOLD, LH) (9 parts) 2501 — not listed in this catalogue 2501 — not listed in this catalogue 2501 — not listed in this catalogue 2501 — not listed in this catalogue 2501 — not listed in this catalogue 17141 — MANIFOLD, EXHAUST (1 parts) 17142B — MANIFOLD, EXHAUST, LH (1 parts) 17178 — GASKET, INTAKE MANIFOLD TO HEAD, NO.2 (6 parts) 1706 — not listed in this catalogue 1706 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (9 parts) 17141J — BOLT, STUD(FOR EXHAUST MANIFOLD, RH) (8 parts) 17377B — GASKET, AIR TUBE, NO.2 (9 parts) 17376C — GASKET, AIR TUBE (9 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (9 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17173A — GASKET, EXHAUST MANIFOLD TO HEAD, LH (4 parts) 9415180841 — not listed in this catalogue 90178A0048 — not listed in this catalogue 9415180841 — not listed in this catalogue 90178A0048 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178A0023 — not listed in this catalogue 1708 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (9 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (7 parts) 17179A — GASKET, INTAKE MANIFOLD, NO.2 (1 parts) 91673A0614 — not listed in this catalogue 91673A0614 — not listed in this catalogue 9010708004 — not listed in this catalogue 9415180800 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 90119A0285 — not listed in this catalogue 90119A0285 — not listed in this catalogue 90178A0024 — not listed in this catalogue
176413D · 15 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17120-0S010 Manifold, Intake
2007-11 → 2008-07 ended
3URFE USK6# —
17120-0S011 Manifold, Intake
2008-07 → 2016-02 ended
3URFE USK6# —
17120-0S012 Manifold, Intake
2016-03 → 2017-08 ended
3URFE USK6# —
17120-0S020 Manifold, Intake
2008-08 → 2016-03 ended
3URFBE USK65 —
17120-0S021 Manifold, Intake
2016-04 → 2017-08 ended
3URFBE USK65 —
17120-0S030 Manifold, Intake
2009-04 → 2012-08 ended
1URFE UPK6# —
17120-50020 Manifold, Intake
2007-11 → 2009-04 ended
2UZFE UCK6# —
17120-0S012 Manifold, Intake
2017-08 → —
3URFE USK6# —
17120-0S021 Manifold, Intake
2017-08 → 2017-09 ended
3URFBE USK65 —
17141 — Manifold, Exhaust
17140-38040 Manifold, Exhaust
2009-04 → 2012-08 ended
1URFE UPK6# —
17141J — Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
90126-06029 Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90126-10033 Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
3URFE USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
2017-08 → —
3URFE USK6# —
17142B — Manifold, Exhaust, LH
17150-38040 Manifold, Exhaust, LH
2009-04 → 2012-08 ended
1URFE UPK6# —
17142C — Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
90126-06029 Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90126-08053 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2009-04 → 2012-08 ended
1URFE UPK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2007-11 → 2017-08 ended
3UR# USK6# —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-10033 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
3URFE USK6# —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → 2017-09 ended
3URFBE USK65 —
90126-A0011 note Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
2017-08 → —
3URFE USK6# —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08 ended
3UR# USK6# —
17167-38060 Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2013-08 ended
3UR# USK6# —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2013-08 → 2017-08 ended
3UR# USK6# —
17167-38140 Insulator, Exhaust Manifold Heat, NO.1
2009-04 → 2012-08 ended
1URFE UPK6# —
17167-50200 Insulator, Exhaust Manifold Heat, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17167-0S010 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
3URFE USK6# —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17167-38060 note Insulator, Exhaust Manifold Heat, NO.1
2017-08 → —
3URFE USK6# —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08 ended
3UR# USK6# —
17168-38070 Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2013-08 ended
3UR# USK6# —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2013-08 → 2017-08 ended
3UR# USK6# —
17168-38150 Insulator, Exhaust Manifold Heat, NO.2
2009-04 → 2012-08 ended
1URFE UPK6# —
17168-50190 Insulator, Exhaust Manifold Heat, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17168-0S010 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
3URFE USK6# —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17168-38070 note Insulator, Exhaust Manifold Heat, NO.2
2017-08 → —
3URFE USK6# —
17173 — Gasket, Exhaust Manifold TO Head
17173-38020 Gasket, Exhaust Manifold TO Head
2007-11 → 2012-08 ended
1URFE UPK6# —
17173-38020 Gasket, Exhaust Manifold TO Head
2007-11 → 2017-08 ended
3UR# USK6# —
17173-50030 Gasket, Exhaust Manifold TO Head
2007-11 → 2009-04 ended
2UZFE UCK6# —
17173-38020 Gasket, Exhaust Manifold TO Head
2017-08 → —
3URFE USK6# —
17173-38020 Gasket, Exhaust Manifold TO Head
2017-08 → 2017-09 ended
3URFBE USK65 —
17173A — Gasket, Exhaust Manifold TO Head, LH
17173-38020 Gasket, Exhaust Manifold TO Head, LH
2007-11 → 2012-08 ended
1URFE UPK6# —
17173-38020 Gasket, Exhaust Manifold TO Head, LH
2007-11 → 2017-08 ended
3UR# USK6# —
17173-38020 Gasket, Exhaust Manifold TO Head, LH
2017-08 → 2017-09 ended
3URFBE USK65 —
17173-38020 Gasket, Exhaust Manifold TO Head, LH
2017-08 → —
3URFE USK6# —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-0S010 Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2008-11 ended
3URFE USK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2017-08 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2012-08 ended
1URFE UPK6# —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2017-08 ended
3URFE USK6# —
17171-50030 Gasket, Intake Manifold TO Head, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.1
2017-08 → 2017-09 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.1
2017-08 → —
3URFE USK6# —
17178 — Gasket, Intake Manifold TO Head, NO.2
17171-0S010 Gasket, Intake Manifold TO Head, NO.2
2007-11 → 2008-11 ended
3URFE USK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.2
2008-08 → 2017-08 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.2
2008-11 → 2012-08 ended
1URFE UPK6# —
17171-0S030 Gasket, Intake Manifold TO Head, NO.2
2008-11 → 2017-08 ended
3URFE USK6# —
17171-0S020 Gasket, Intake Manifold TO Head, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17171-0S030 Gasket, Intake Manifold TO Head, NO.2
2017-08 → —
3URFE USK6# —
17179A — Gasket, Intake Manifold, NO.2
17179-0S010 Gasket, Intake Manifold, NO.2
2009-04 → 2012-08 ended
1URFE UPK6# —
17376C — Gasket, Air Tube
17377-0S010 note Gasket, Air Tube
2010-05 → 2012-08 ended
1URFE UPK6# —
17377-0S010 note Gasket, Air Tube
2010-05 → 2017-08 ended
3UR# USK6# —
17377-38010 Gasket, Air Tube
2007-11 → 2010-05 ended
1URFE,3UR# UPK6#,USK6# —
17377-38010 note Gasket, Air Tube
2010-05 → 2012-08 ended
1URFE UPK6# —
17377-38010 note Gasket, Air Tube
2010-05 → 2017-08 ended
3UR# USK6# —
17377-0S010 note Gasket, Air Tube
2017-08 → 2017-09 ended
3URFBE USK65 —
17377-0S010 note Gasket, Air Tube
2017-08 → —
3URFE USK6# —
17377-38010 note Gasket, Air Tube
2017-08 → —
3URFE USK6# —
17377-38010 note Gasket, Air Tube
2017-08 → 2017-09 ended
3URFBE USK65 —
17377B — Gasket, Air Tube, NO.2
17377-0S010 note Gasket, Air Tube, NO.2
2010-05 → 2012-08 ended
1URFE UPK6# —
17377-0S010 note Gasket, Air Tube, NO.2
2010-05 → 2017-08 ended
3UR# USK6# —
17377-38010 Gasket, Air Tube, NO.2
2007-11 → 2010-05 ended
1URFE,3UR# UPK6#,USK6# —
17377-38010 note Gasket, Air Tube, NO.2
2010-05 → 2012-08 ended
1URFE UPK6# —
17377-38010 note Gasket, Air Tube, NO.2
2010-05 → 2017-08 ended
3UR# USK6# —
17377-0S010 note Gasket, Air Tube, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17377-0S010 note Gasket, Air Tube, NO.2
2017-08 → —
3URFE USK6# —
17377-38010 note Gasket, Air Tube, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
17377-38010 note Gasket, Air Tube, NO.2
2017-08 → —
3URFE USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
