Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

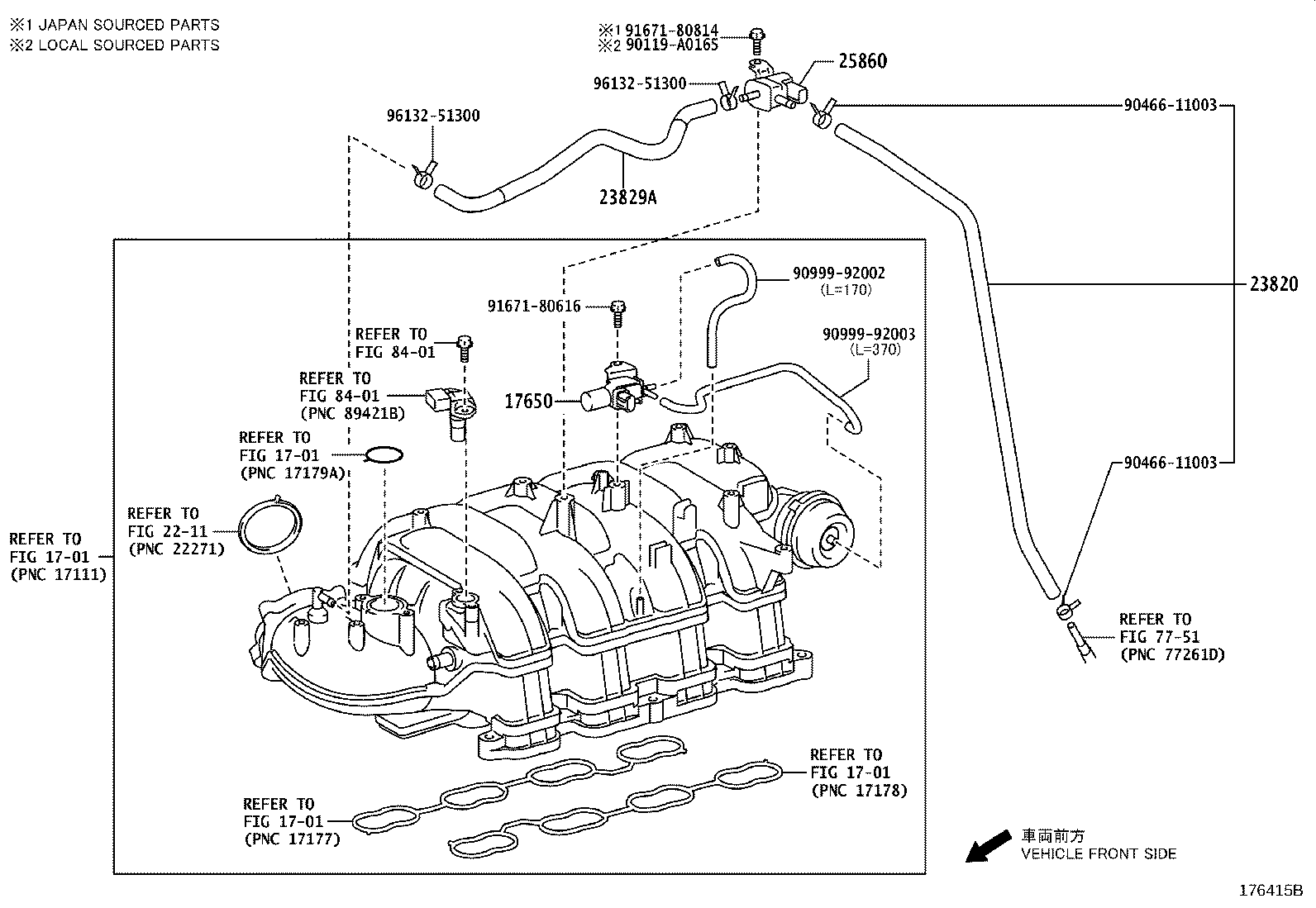

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17650 — Valve Assy, Vacuum Switching | ||||
| 25860-0S010 |
Valve Assy, Vacuum Switching
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 25860-0S010 |
Valve Assy, Vacuum Switching
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 25860-50170 |
Valve Assy, Vacuum Switching
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 25860-0S010 |
Valve Assy, Vacuum Switching
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 25860-0S010 |
Valve Assy, Vacuum Switching
2017-08 → —
|
3URFE USK6# | — | |
| 23820 — Hose Assy, Fuel Vapor Feed | ||||
| 23820-0F030 |
Hose Assy, Fuel Vapor Feed
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23820-0S010 |
Hose Assy, Fuel Vapor Feed
2007-11 → 2011-09
ended
|
3UR# USK6# | — | |
| 23820-0S020 |
Hose Assy, Fuel Vapor Feed
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23820-0S030 |
Hose Assy, Fuel Vapor Feed
2011-09 → 2016-09
ended
|
3UR# USK6# | — | |
| 23820-0S060 |
Hose Assy, Fuel Vapor Feed
2016-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 23820-0S060 |
Hose Assy, Fuel Vapor Feed
2017-08 → —
|
3UR# USK6# | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23829-0S010 note |
Hose, Fuel Vapor Feed
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 23829-38010 note |
Hose, Fuel Vapor Feed
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 23829-38010 |
Hose, Fuel Vapor Feed
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 23829-38060 |
Hose, Fuel Vapor Feed
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23829-50161 |
Hose, Fuel Vapor Feed
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23829-0S010 note |
Hose, Fuel Vapor Feed
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23829-0S010 note |
Hose, Fuel Vapor Feed
2017-08 → —
|
3URFE USK6# | — | |
| 23829-38010 note |
Hose, Fuel Vapor Feed
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23829-38010 note |
Hose, Fuel Vapor Feed
2017-08 → —
|
3URFE USK6# | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-0S020 note |
Valve Assy, Vacuum Switching, NO.1
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 25860-0S020 note |
Valve Assy, Vacuum Switching, NO.1
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 25860-31060 |
Valve Assy, Vacuum Switching, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 25860-31060 note |
Valve Assy, Vacuum Switching, NO.1
2008-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 25860-31060 note |
Valve Assy, Vacuum Switching, NO.1
2008-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 25860-31060 |
Valve Assy, Vacuum Switching, NO.1
2007-11 → 2008-12
ended
|
3UR# USK6# | — | |
| 25860-0S020 note |
Valve Assy, Vacuum Switching, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 25860-0S020 note |
Valve Assy, Vacuum Switching, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 25860-31060 note |
Valve Assy, Vacuum Switching, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 25860-31060 note |
Valve Assy, Vacuum Switching, NO.1
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
