Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

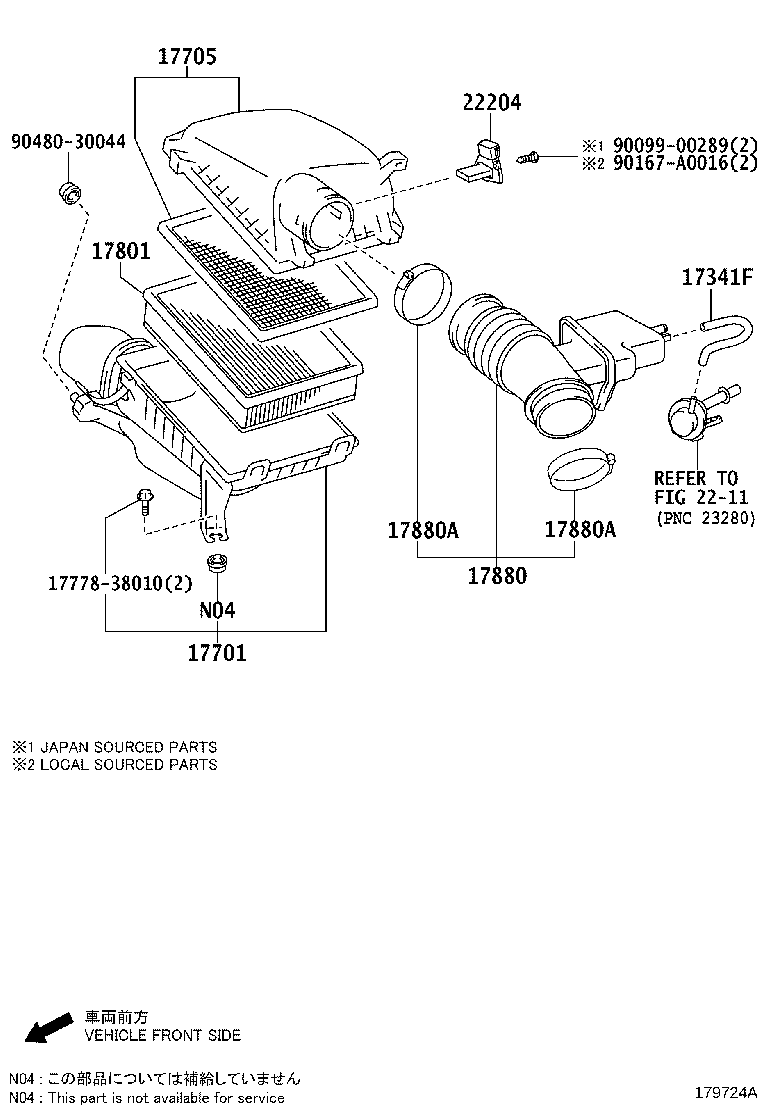

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17341F — Hose, Air, NO.1 | ||||
| 17341-38060 |
Hose, Air, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17341-38060 |
Hose, Air, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17341-38060 |
Hose, Air, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 17341-38060 |
Hose, Air, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17701 — Case Sub-assy, Air Cleaner | ||||
| 17701-0S010 |
Case Sub-assy, Air Cleaner
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17701-0S010 |
Case Sub-assy, Air Cleaner
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17701-0S010 |
Case Sub-assy, Air Cleaner
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 17701-0S010 note |
Case Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3URFE USK60 | — | |
| 17701-0S010 note |
Case Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3URFE USK65 | — | |
| 17701-0S030 |
Case Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17701-0S010 note |
Case Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK60 | — | |
| 17701-0S010 note |
Case Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK65 LIMD,PLAT | — | |
| 17701-0S030 |
Case Sub-assy, Air Cleaner
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17701-0S030 |
Case Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK6# | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-0S010 |
Cap Sub-assy, Air Cleaner
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17705-0S010 note |
Cap Sub-assy, Air Cleaner
2009-08 → 2009-11
ended
|
1URFE,3URFE UPK60,USK60 | — | |
| 17705-0S010 |
Cap Sub-assy, Air Cleaner
2007-11 → 2009-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17705-0S020 |
Cap Sub-assy, Air Cleaner
2009-08 → 2010-02
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 17705-0S021 |
Cap Sub-assy, Air Cleaner
2010-03 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17705-0S021 |
Cap Sub-assy, Air Cleaner
2010-03 → 2013-08
ended
|
3UR# USK6# | — | |
| 17705-0S030 |
Cap Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 17735-0S010 note |
Cap Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3URFE USK60 | — | |
| 17735-0S010 note |
Cap Sub-assy, Air Cleaner
2013-08 → 2017-08
ended
|
3URFE USK65 | — | |
| 17705-0S030 |
Cap Sub-assy, Air Cleaner
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17705-0S030 |
Cap Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK6# | — | |
| 17735-0S010 note |
Cap Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK65 LIMD,PLAT | — | |
| 17735-0S010 note |
Cap Sub-assy, Air Cleaner
2017-08 → —
|
3URFE USK60 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-0P100 |
Element Sub-assy, Air Cleaner Filter
2015-05 → 2017-08
ended
|
3UR# USK6# | — | |
| 17801-0S010 |
Element Sub-assy, Air Cleaner Filter
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17801-0S010 |
Element Sub-assy, Air Cleaner Filter
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17801-0S010 |
Element Sub-assy, Air Cleaner Filter
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 17801-0S010 note |
Element Sub-assy, Air Cleaner Filter
2013-08 → 2017-08
ended
|
3URFE USK60 | — | |
| 17801-0S010 note |
Element Sub-assy, Air Cleaner Filter
2013-08 → 2017-08
ended
|
3URFE USK65 | — | |
| 17801-0S020 |
Element Sub-assy, Air Cleaner Filter
2013-08 → 2015-04
ended
|
3UR# USK6# | — | |
| 17801-0P100 |
Element Sub-assy, Air Cleaner Filter
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17801-0P100 |
Element Sub-assy, Air Cleaner Filter
2017-08 → —
|
3URFE USK6# | — | |
| 17801-0S010 note |
Element Sub-assy, Air Cleaner Filter
2017-08 → —
|
3URFE USK60 | — | |
| 17801-0S010 note |
Element Sub-assy, Air Cleaner Filter
2017-08 → —
|
3URFE USK65 LIMD,PLAT | — | |
| 17880 — Hose Assy, Air Cleaner | ||||
| 17880-0F020 |
Hose Assy, Air Cleaner
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 17880-0S010 |
Hose Assy, Air Cleaner
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 17880-0S010 |
Hose Assy, Air Cleaner
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 17880-0S010 |
Hose Assy, Air Cleaner
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 17880-0S010 |
Hose Assy, Air Cleaner
2017-08 → —
|
3URFE USK6# | — | |
| 17880A — Clamp, Hose | ||||
| 90460-A0001 |
Clamp, Hose
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90460-A0001 |
Clamp, Hose
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90460-A0001 |
Clamp, Hose
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90460-A0001 |
Clamp, Hose
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90460-A0001 |
Clamp, Hose
2017-08 → —
|
3URFE USK6# | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-0F030 |
Meter Sub-assy, Intake Air Flow
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 22204-0F030 |
Meter Sub-assy, Intake Air Flow
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 22204-0F030 |
Meter Sub-assy, Intake Air Flow
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 22204-0F030 |
Meter Sub-assy, Intake Air Flow
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 22204-0F030 |
Meter Sub-assy, Intake Air Flow
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
