Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

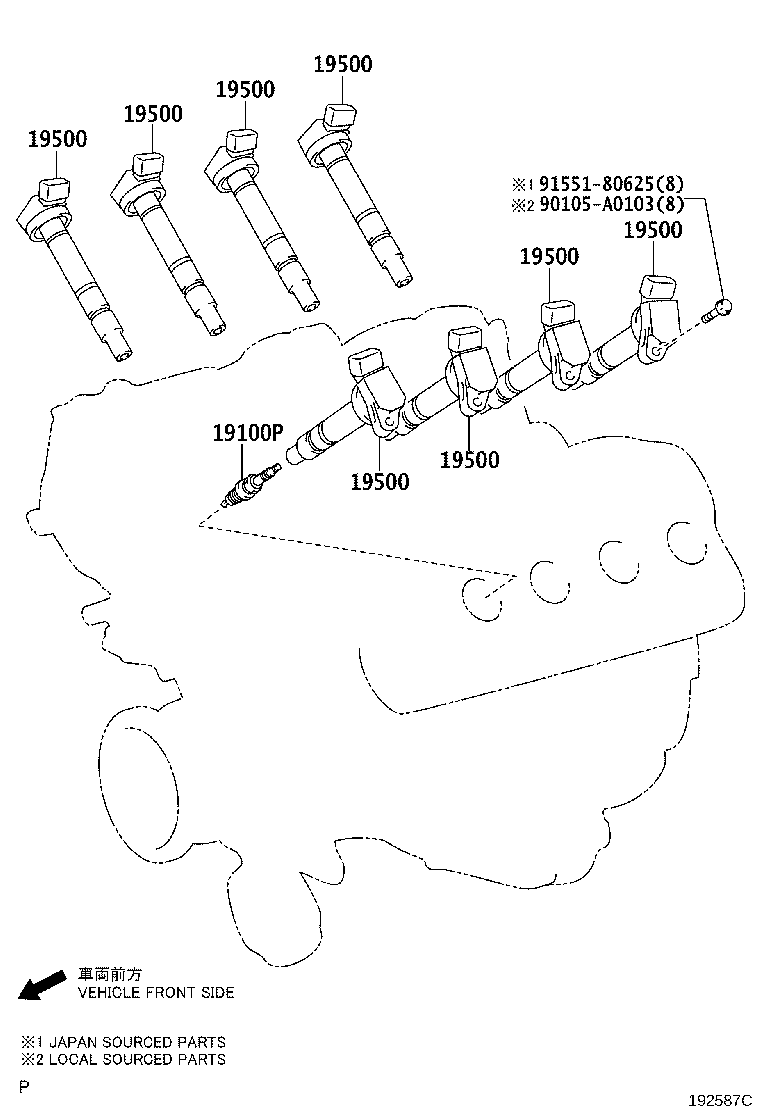

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90080-91180 note |
Plug, Spark
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90919-01191 note |
Plug, Spark
2009-02 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90919-01191 note |
Plug, Spark
2009-02 → 2017-08
ended
|
3UR# USK6# | — | |
| 90919-01191 note |
Plug, Spark
2007-11 → 2009-02
ended
|
3UR# USK6# | — | |
| 90919-A1002 note |
Plug, Spark
2009-02 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90919-A1002 note |
Plug, Spark
2009-02 → 2017-08
ended
|
3UR# USK6# | — | |
| 90919-01191 note |
Plug, Spark
2017-08 → —
|
3URFE USK6# | — | |
| 90919-01191 note |
Plug, Spark
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90919-A1002 note |
Plug, Spark
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90919-A1002 note |
Plug, Spark
2017-08 → —
|
3URFE USK6# | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90080-19027 |
Coil Assy, Ignition
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90919-02250 note |
Coil Assy, Ignition
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 90919-A2003 note |
Coil Assy, Ignition
2007-11 → 2009-04
ended
|
3UR# USK6# | — | |
| 90919-A2005 |
Coil Assy, Ignition
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90919-A2005 |
Coil Assy, Ignition
2009-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90919-A2005 |
Coil Assy, Ignition
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90919-A2005 |
Coil Assy, Ignition
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
