Exploded illustration 222213F 9017606023 — not listed in this catalogue 9008011589 — not listed in this catalogue 9008011589 — not listed in this catalogue 9008017191 — not listed in this catalogue 9008011455 — not listed in this catalogue 9008011589 — not listed in this catalogue 9213280645 — not listed in this catalogue 9008011211 — not listed in this catalogue 9008011211 — not listed in this catalogue 22030 — BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR (5 parts) 16295B — HOSE, WATER BY-PASS, NO.7 (1 parts) 16295C — CLIP(FOR WATER BY-PASS HOSE NO.7) (1 parts) 16295C — CLIP(FOR WATER BY-PASS HOSE NO.7) (1 parts) 23801P — PIPE SUB-ASSY, FUEL, NO.1 (8 parts) 22207 — COVER SUB-ASSY, THROTTLE BODY (1 parts) 22271 — GASKET, THROTTLE BODY (6 parts) 22277 — BRACKET, THROTTLE BODY COVER (2 parts) 22277 — BRACKET, THROTTLE BODY COVER (2 parts) 23807 — PIPE SUB-ASSY, FUEL DELIVERY (11 parts) 9008011589 — not listed in this catalogue 23280 — REGULATOR ASSY, FUEL PRESSURE (9 parts) 23803B — PIPE SUB-ASSY, FUEL, NO.3 (1 parts) 9613551300 — not listed in this catalogue 23271F — HOSE, FUEL (1 parts) 9613551300 — not listed in this catalogue 23808 — PIPE SUB-ASSY, FUEL DELIVERY, NO.2 (9 parts) 23801H — GASKET(FOR FUEL PIPE) (2 parts) 23801H — GASKET(FOR FUEL PIPE) (2 parts) 9040112023 — not listed in this catalogue 23801P — PIPE SUB-ASSY, FUEL, NO.1 (8 parts) 23801H — GASKET(FOR FUEL PIPE) (2 parts) 23801H — GASKET(FOR FUEL PIPE) (2 parts) 23291 — INSULATOR, INJECTOR VIBRATION (8 parts) 23270B — GASKET(FOR PULSATION DAMPER HOSE) (1 parts) 23232 — GASKET(FOR FUEL PUMP HOSE) (1 parts) 23270 — DAMPER ASSY, FUEL PRESSURE PULSATION (4 parts) 23250B — RING, O(FOR FUEL INJECTOR) (9 parts) 23250 — INJECTOR ASSY, FUEL (13 parts) 9622110708 — not listed in this catalogue 23841B — CLAMP, FUEL PIPE, NO.1(FOR EFI) (6 parts) 23802B — PIPE SUB-ASSY, FUEL, NO.2 (1 parts) 9017908175 — not listed in this catalogue 1708 — not listed in this catalogue 1503 — not listed in this catalogue 7751 — not listed in this catalogue 7751 — not listed in this catalogue 23807R — PLUG, FUEL DELIVARY PIPE (1 parts) 23807R — PLUG, FUEL DELIVARY PIPE (1 parts) 23280E — RING, O(FOR FUEL PRESSURE REGULATOR) (1 parts)

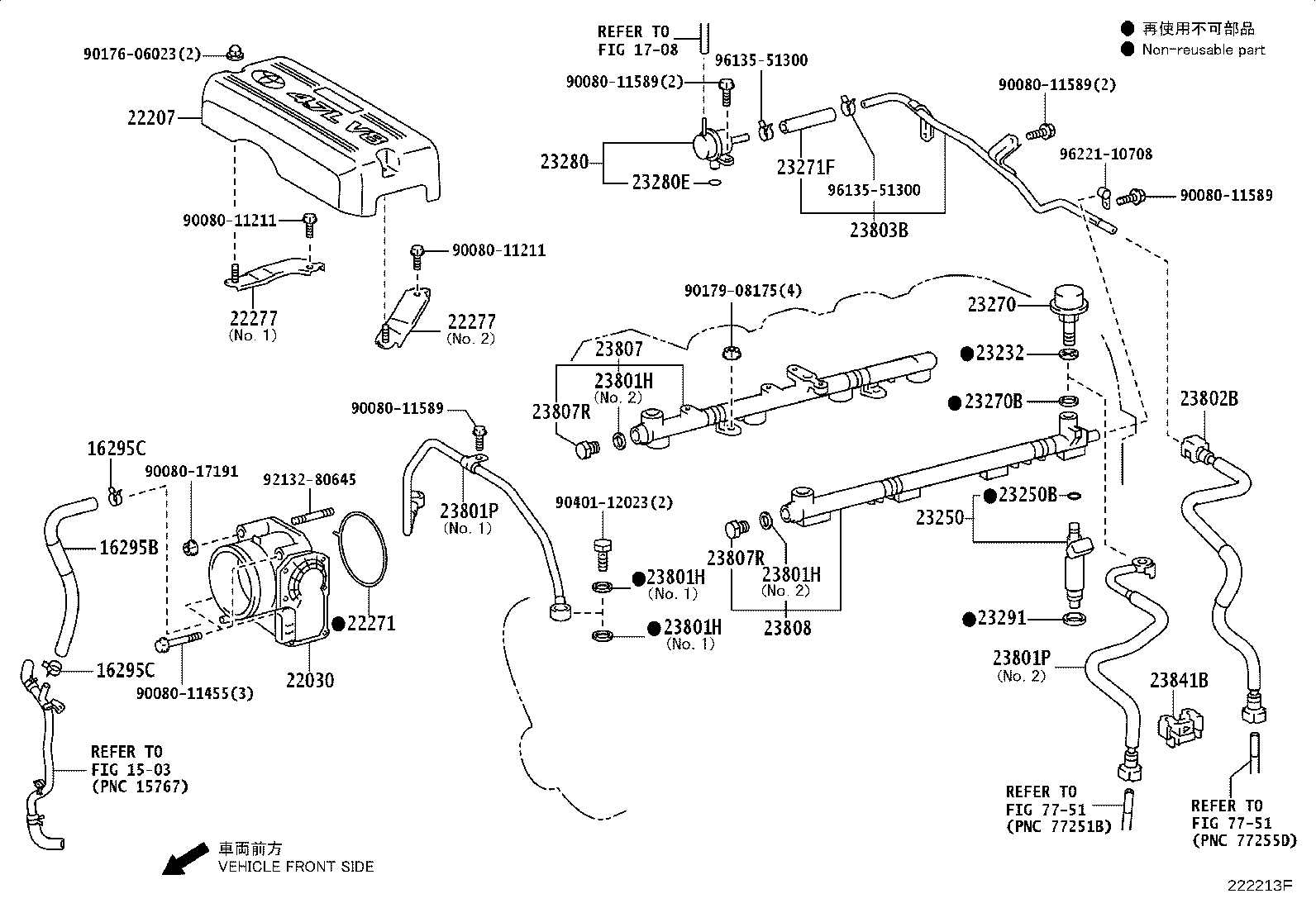

222213F · 30 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
16295B — Hose, Water By-pass, NO.7
16295-50110 Hose, Water By-pass, NO.7
2007-11 → 2009-04 ended
2UZFE UCK6# —
16295C — Clip(FOR WATER BY-PASS HOSE NO.7)
90467-13054 Clip(FOR WATER BY-PASS HOSE NO.7)
2007-11 → 2009-04 ended
2UZFE UCK6# —
22030 — Body Assy, Throttle W/Throttle Position Sensor
22030-0F010 Body Assy, Throttle W/Throttle Position Sensor
2007-11 → 2009-04 ended
2UZFE UCK6# —
22030-0S010 Body Assy, Throttle W/Throttle Position Sensor
2007-11 → 2017-08 ended
3UR# USK6# —
22030-0S021 Body Assy, Throttle W/Throttle Position Sensor
2009-04 → 2012-08 ended
1URFE UPK6# —
22030-0S010 Body Assy, Throttle W/Throttle Position Sensor
2017-08 → 2017-09 ended
3URFBE USK65 —
22030-0S010 Body Assy, Throttle W/Throttle Position Sensor
2017-08 → —
3URFE USK6# —
22207 — Cover Sub-assy, Throttle Body
22266-50070 Cover Sub-assy, Throttle Body
2007-11 → 2009-04 ended
2UZFE UCK6# —
22271 — Gasket, Throttle Body
22271-0S010 Gasket, Throttle Body
2007-11 → 2017-08 ended
3URFE USK6# —
22271-0S020 Gasket, Throttle Body
2008-08 → 2017-08 ended
3URFBE USK65 —
22271-50050 Gasket, Throttle Body
2007-11 → 2012-08 ended
1URFE UPK6# —
22271-50050 Gasket, Throttle Body
2007-11 → 2009-04 ended
2UZFE UCK6# —
22271-0S010 Gasket, Throttle Body
2017-08 → —
3URFE USK6# —
22271-0S020 Gasket, Throttle Body
2017-08 → 2017-09 ended
3URFBE USK65 —
22277 — Bracket, Throttle Body Cover
22277-50061 note Bracket, Throttle Body Cover
2007-11 → 2009-04 ended
2UZFE UCK6# —
22277-50070 note Bracket, Throttle Body Cover
2007-11 → 2009-04 ended
2UZFE UCK6# —
23232 — Gasket(FOR FUEL PUMP HOSE)
23232-41081 Gasket(FOR FUEL PUMP HOSE)
2007-11 → 2009-04 ended
2UZFE UCK6# —
23250 — Injector Assy, Fuel
23209-09150 note Injector Assy, Fuel
2007-11 → 2008-06 ended
3URFE USK6# —
23209-09151 note Injector Assy, Fuel
2008-06 → 2017-08 ended
3UR# USK6# —
23209-09151 note Injector Assy, Fuel
2008-06 → 2012-08 ended
1URFE UPK6# —
23209-0F020 Injector Assy, Fuel
2007-11 → 2009-04 ended
2UZFE UCK6# —
23209-39165 note Injector Assy, Fuel
2008-08 → 2017-08 ended
3URFE USK6# —
23209-39165 note Injector Assy, Fuel
2007-11 → 2008-06 ended
3URFE USK6# —
23209-39165 note Injector Assy, Fuel
2007-11 → 2012-08 ended
1URFE UPK6# —
23209-39185 note Injector Assy, Fuel
2008-06 → 2008-08 ended
3URFE USK6# —
23209-39185 note Injector Assy, Fuel
2008-06 → 2017-08 ended
3URFBE USK65 —
23209-09151 note Injector Assy, Fuel
2017-08 → 2017-09 ended
3URFBE USK65 —
23209-09151 note Injector Assy, Fuel
2017-08 → —
3URFE USK6# —
23209-39165 note Injector Assy, Fuel
2017-08 → —
3URFE USK6# —
23209-39185 note Injector Assy, Fuel
2017-08 → 2017-09 ended
3URFBE USK65 —
23250B — Ring, O(FOR FUEL INJECTOR)
90301-07037 Ring, O(FOR FUEL INJECTOR)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90301-07037 note Ring, O(FOR FUEL INJECTOR)
2007-11 → 2012-08 ended
1URFE UPK6# —
90301-07037 note Ring, O(FOR FUEL INJECTOR)
2007-11 → 2017-08 ended
3UR# USK6# —
90301-A0036 note Ring, O(FOR FUEL INJECTOR)
2012-04 → 2012-08 ended
1URFE UPK6# —
90301-A0036 note Ring, O(FOR FUEL INJECTOR)
2012-04 → 2017-08 ended
3UR# USK6# —
90301-07037 note Ring, O(FOR FUEL INJECTOR)
2017-08 → 2017-09 ended
3URFBE USK65 —
90301-07037 note Ring, O(FOR FUEL INJECTOR)
2017-08 → —
3URFE USK6# —
90301-A0036 note Ring, O(FOR FUEL INJECTOR)
2017-08 → 2017-09 ended
3URFBE USK65 —
90301-A0036 note Ring, O(FOR FUEL INJECTOR)
2017-08 → —
3URFE USK6# —
23270 — Damper Assy, Fuel Pressure Pulsation
23270-38020 Damper Assy, Fuel Pressure Pulsation
2008-08 → 2012-03 ended
3URFBE USK65 —
23270-38021 Damper Assy, Fuel Pressure Pulsation
2012-03 → 2017-08 ended
3URFBE USK65 —
23270-50010 Damper Assy, Fuel Pressure Pulsation
2007-11 → 2009-04 ended
2UZFE UCK6# —
23270-38021 Damper Assy, Fuel Pressure Pulsation
2017-08 → 2017-09 ended
3URFBE USK65 —
23270B — Gasket(FOR PULSATION DAMPER HOSE)
90430-12026 Gasket(FOR PULSATION DAMPER HOSE)
2007-11 → 2009-04 ended
2UZFE UCK6# —
23271F — Hose, Fuel
95337-08009 Hose, Fuel
2007-11 → 2009-04 ended
2UZFE UCK6# —
23280 — Regulator Assy, Fuel Pressure
23280-38010 Regulator Assy, Fuel Pressure
2007-11 → 2011-08 ended
3URFE USK6# —
23280-38040 Regulator Assy, Fuel Pressure
2008-08 → 2012-03 ended
3URFBE USK65 —
23280-38041 Regulator Assy, Fuel Pressure
2012-03 → 2017-08 ended
3URFBE USK65 —
23280-38050 Regulator Assy, Fuel Pressure
2009-04 → 2012-08 ended
1URFE UPK6# —
23280-38090 Regulator Assy, Fuel Pressure
2011-08 → 2012-06 ended
3URFE USK6# —
23280-38091 Regulator Assy, Fuel Pressure
2012-06 → 2017-08 ended
3URFE USK6# —
23280-50050 Regulator Assy, Fuel Pressure
2007-11 → 2009-04 ended
2UZFE UCK6# —
23280-38041 Regulator Assy, Fuel Pressure
2017-08 → 2017-09 ended
3URFBE USK65 —
23280-38091 Regulator Assy, Fuel Pressure
2017-08 → —
3URFE USK6# —
23280E — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-07037 Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-11 → 2009-04 ended
2UZFE UCK6# —
23291 — Insulator, Injector Vibration
23291-23010 Insulator, Injector Vibration
2007-11 → 2008-06 ended
3URFE USK6# —
23291-23010 Insulator, Injector Vibration
2007-11 → 2012-08 ended
1URFE UPK6# —
23291-23010 Insulator, Injector Vibration
2008-08 → 2017-08 ended
3URFE USK6# —
23291-28020 Insulator, Injector Vibration
2008-06 → 2008-08 ended
3URFE USK6# —
23291-28020 Insulator, Injector Vibration
2008-06 → 2017-08 ended
3URFBE USK65 —
23291-41010 Insulator, Injector Vibration
2007-11 → 2009-04 ended
2UZFE UCK6# —
23291-23010 Insulator, Injector Vibration
2017-08 → —
3URFE USK6# —
23291-28020 Insulator, Injector Vibration
2017-08 → 2017-09 ended
3URFBE USK65 —
23801H — Gasket(FOR FUEL PIPE)
90430-12026 note Gasket(FOR FUEL PIPE)
2007-11 → 2009-04 ended
2UZFE UCK6# —
90430-14008 note Gasket(FOR FUEL PIPE)
2007-11 → 2009-04 ended
2UZFE UCK6# —
23801P — Pipe Sub-assy, Fuel, NO.1
23271-0F010 note Pipe Sub-assy, Fuel, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
23271-0S011 Pipe Sub-assy, Fuel, NO.1
2007-11 → 2011-09 ended
3UR# USK6# —
23271-0S020 Pipe Sub-assy, Fuel, NO.1
2009-04 → 2012-08 ended
1URFE UPK6# —
23271-0S030 note Pipe Sub-assy, Fuel, NO.1
2011-09 → 2013-08 ended
3UR# USK6# —
23801-50071 note Pipe Sub-assy, Fuel, NO.1
2007-11 → 2009-04 ended
2UZFE UCK6# —
23901-0S020 note Pipe Sub-assy, Fuel, NO.1
2013-08 → 2016-09 ended
3UR# USK6# —
23901-0S050 Pipe Sub-assy, Fuel, NO.1
2016-09 → 2017-08 ended
3UR# USK6# —
23901-0S050 Pipe Sub-assy, Fuel, NO.1
2017-08 → —
3UR# USK6# —
23802B — Pipe Sub-assy, Fuel, NO.2
23273-0F020 Pipe Sub-assy, Fuel, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
23803B — Pipe Sub-assy, Fuel, NO.3
23803-50130 Pipe Sub-assy, Fuel, NO.3
2007-11 → 2009-04 ended
2UZFE UCK6# —
23807 — Pipe Sub-assy, Fuel Delivery
23807-0F020 Pipe Sub-assy, Fuel Delivery
2007-11 → 2009-04 ended
2UZFE UCK6# —
23814-38030 Pipe Sub-assy, Fuel Delivery
2007-11 → 2009-03 ended
3URFE USK6# —
23814-38031 Pipe Sub-assy, Fuel Delivery
2009-03 → 2011-08 ended
3URFE USK6# —
23814-38120 Pipe Sub-assy, Fuel Delivery
2008-08 → 2009-03 ended
3URFBE USK65 —
23814-38121 Pipe Sub-assy, Fuel Delivery
2009-03 → 2011-08 ended
3URFBE USK65 —
23814-38122 Pipe Sub-assy, Fuel Delivery
2011-08 → 2017-08 ended
3URFBE USK65 —
23814-38130 Pipe Sub-assy, Fuel Delivery
2011-08 → 2012-05 ended
3URFE USK6# —
23814-38130 Pipe Sub-assy, Fuel Delivery
2009-04 → 2012-08 ended
1URFE UPK6# —
23814-38131 Pipe Sub-assy, Fuel Delivery
2012-05 → 2017-08 ended
3URFE USK6# —
23814-38122 Pipe Sub-assy, Fuel Delivery
2017-08 → 2017-09 ended
3URFBE USK65 —
23814-38131 Pipe Sub-assy, Fuel Delivery
2017-08 → —
3URFE USK6# —
23807R — Plug, Fuel Delivary Pipe
90341-14032 Plug, Fuel Delivary Pipe
2007-11 → 2009-04 ended
2UZFE UCK6# —
23808 — Pipe Sub-assy, Fuel Delivery, NO.2
23808-0F020 Pipe Sub-assy, Fuel Delivery, NO.2
2007-11 → 2009-04 ended
2UZFE UCK6# —
23808-38020 Pipe Sub-assy, Fuel Delivery, NO.2
2011-08 → 2012-05 ended
3URFE USK6# —
23808-38020 Pipe Sub-assy, Fuel Delivery, NO.2
2009-04 → 2012-08 ended
1URFE UPK6# —
23808-38021 Pipe Sub-assy, Fuel Delivery, NO.2
2012-05 → 2017-08 ended
3URFE USK6# —
23815-38010 Pipe Sub-assy, Fuel Delivery, NO.2
2007-11 → 2011-08 ended
3URFE USK6# —
23815-38070 Pipe Sub-assy, Fuel Delivery, NO.2
2008-08 → 2011-08 ended
3URFBE USK65 —
23815-38071 Pipe Sub-assy, Fuel Delivery, NO.2
2011-08 → 2017-08 ended
3URFBE USK65 —
23808-38021 Pipe Sub-assy, Fuel Delivery, NO.2
2017-08 → —
3URFE USK6# —
23815-38071 Pipe Sub-assy, Fuel Delivery, NO.2
2017-08 → 2017-09 ended
3URFBE USK65 —
23841B — Clamp, Fuel Pipe, NO.1(FOR EFI)
23841-0F010 Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2009-04 ended
2UZFE UCK6# —
23841-0F010 Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2012-08 ended
1URFE UPK6# —
23841-0F010 note Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2013-08 ended
3UR# USK6# —
23841-0S010 note Clamp, Fuel Pipe, NO.1(FOR EFI)
2013-08 → 2016-09 ended
3UR# USK6# —
23841-0S020 Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-09 → 2017-08 ended
3UR# USK6# —
23841-0S020 Clamp, Fuel Pipe, NO.1(FOR EFI)
2017-08 → —
3UR# USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
