Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

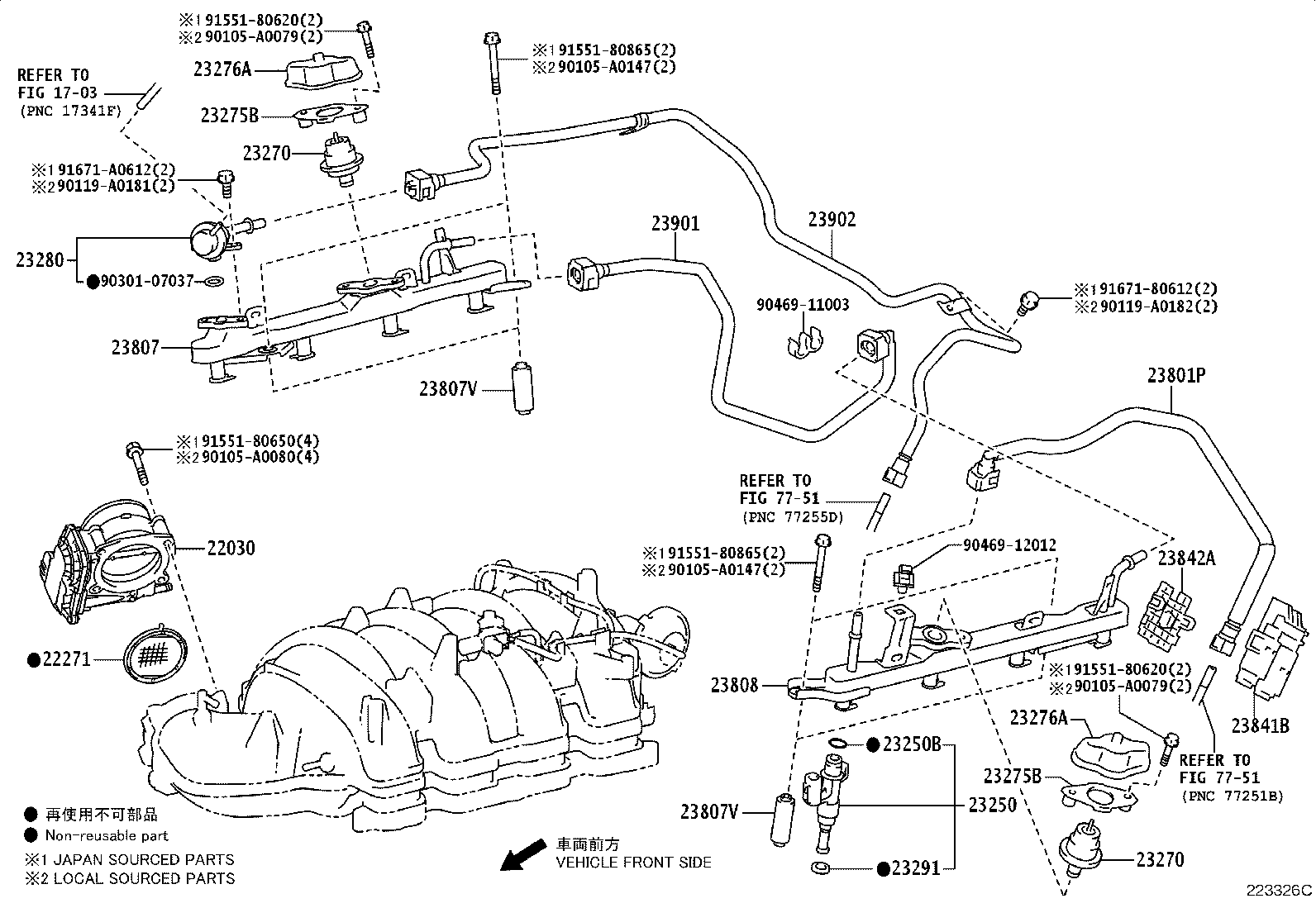

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-0F010 |
Body Assy, Throttle W/Throttle Position Sensor
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 22030-0S010 |
Body Assy, Throttle W/Throttle Position Sensor
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 22030-0S021 |
Body Assy, Throttle W/Throttle Position Sensor
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 22030-0S010 |
Body Assy, Throttle W/Throttle Position Sensor
2017-08 → —
|
3URFE USK6# | — | |
| 22030-0S010 |
Body Assy, Throttle W/Throttle Position Sensor
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-0S010 |
Gasket, Throttle Body
2007-11 → 2017-08
ended
|
3URFE USK6# | — | |
| 22271-0S020 |
Gasket, Throttle Body
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 22271-50050 |
Gasket, Throttle Body
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 22271-50050 |
Gasket, Throttle Body
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 22271-0S010 |
Gasket, Throttle Body
2017-08 → —
|
3URFE USK6# | — | |
| 22271-0S020 |
Gasket, Throttle Body
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-09150 note |
Injector Assy, Fuel
2007-11 → 2008-06
ended
|
3URFE USK6# | — | |
| 23209-09151 note |
Injector Assy, Fuel
2008-06 → 2017-08
ended
|
3UR# USK6# | — | |
| 23209-09151 note |
Injector Assy, Fuel
2008-06 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23209-0F020 |
Injector Assy, Fuel
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23209-39165 note |
Injector Assy, Fuel
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23209-39165 note |
Injector Assy, Fuel
2007-11 → 2008-06
ended
|
3URFE USK6# | — | |
| 23209-39165 note |
Injector Assy, Fuel
2008-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 23209-39185 note |
Injector Assy, Fuel
2008-06 → 2008-08
ended
|
3URFE USK6# | — | |
| 23209-39185 note |
Injector Assy, Fuel
2008-06 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23209-09151 note |
Injector Assy, Fuel
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23209-09151 note |
Injector Assy, Fuel
2017-08 → —
|
3URFE USK6# | — | |
| 23209-39165 note |
Injector Assy, Fuel
2017-08 → —
|
3URFE USK6# | — | |
| 23209-39185 note |
Injector Assy, Fuel
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90301-A0036 note |
Ring, O(FOR FUEL INJECTOR)
2012-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90301-A0036 note |
Ring, O(FOR FUEL INJECTOR)
2012-04 → 2017-08
ended
|
3UR# USK6# | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2017-08 → —
|
3URFE USK6# | — | |
| 90301-A0036 note |
Ring, O(FOR FUEL INJECTOR)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90301-A0036 note |
Ring, O(FOR FUEL INJECTOR)
2017-08 → —
|
3URFE USK6# | — | |
| 23270 — Damper Assy, Fuel Pressure Pulsation | ||||
| 23270-38020 |
Damper Assy, Fuel Pressure Pulsation
2008-08 → 2012-03
ended
|
3URFBE USK65 | — | |
| 23270-38021 |
Damper Assy, Fuel Pressure Pulsation
2012-03 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23270-50010 |
Damper Assy, Fuel Pressure Pulsation
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23270-38021 |
Damper Assy, Fuel Pressure Pulsation
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23275B — Cover, Fuel Pressure Pulsation Damper | ||||
| 23275-38010 |
Cover, Fuel Pressure Pulsation Damper
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23275-38010 |
Cover, Fuel Pressure Pulsation Damper
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23276A — Cap, Fuel Pressure Pulsation Damper | ||||
| 23276-38010 |
Cap, Fuel Pressure Pulsation Damper
2008-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23276-38010 |
Cap, Fuel Pressure Pulsation Damper
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23280 — Regulator Assy, Fuel Pressure | ||||
| 23280-38010 |
Regulator Assy, Fuel Pressure
2007-11 → 2011-08
ended
|
3URFE USK6# | — | |
| 23280-38040 |
Regulator Assy, Fuel Pressure
2008-08 → 2012-03
ended
|
3URFBE USK65 | — | |
| 23280-38041 |
Regulator Assy, Fuel Pressure
2012-03 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23280-38050 |
Regulator Assy, Fuel Pressure
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23280-38090 |
Regulator Assy, Fuel Pressure
2011-08 → 2012-06
ended
|
3URFE USK6# | — | |
| 23280-38091 |
Regulator Assy, Fuel Pressure
2012-06 → 2017-08
ended
|
3URFE USK6# | — | |
| 23280-50050 |
Regulator Assy, Fuel Pressure
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23280-38041 |
Regulator Assy, Fuel Pressure
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23280-38091 |
Regulator Assy, Fuel Pressure
2017-08 → —
|
3URFE USK6# | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-23010 |
Insulator, Injector Vibration
2007-11 → 2008-06
ended
|
3URFE USK6# | — | |
| 23291-23010 |
Insulator, Injector Vibration
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23291-23010 |
Insulator, Injector Vibration
2008-08 → 2017-08
ended
|
3URFE USK6# | — | |
| 23291-28020 |
Insulator, Injector Vibration
2008-06 → 2008-08
ended
|
3URFE USK6# | — | |
| 23291-28020 |
Insulator, Injector Vibration
2008-06 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23291-41010 |
Insulator, Injector Vibration
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23291-23010 |
Insulator, Injector Vibration
2017-08 → —
|
3URFE USK6# | — | |
| 23291-28020 |
Insulator, Injector Vibration
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23801P — Pipe Sub-assy, Fuel, NO.1 | ||||
| 23271-0F010 note |
Pipe Sub-assy, Fuel, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23271-0S011 |
Pipe Sub-assy, Fuel, NO.1
2007-11 → 2011-09
ended
|
3UR# USK6# | — | |
| 23271-0S020 |
Pipe Sub-assy, Fuel, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23271-0S030 note |
Pipe Sub-assy, Fuel, NO.1
2011-09 → 2013-08
ended
|
3UR# USK6# | — | |
| 23801-50071 note |
Pipe Sub-assy, Fuel, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23901-0S020 note |
Pipe Sub-assy, Fuel, NO.1
2013-08 → 2016-09
ended
|
3UR# USK6# | — | |
| 23901-0S050 |
Pipe Sub-assy, Fuel, NO.1
2016-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 23901-0S050 |
Pipe Sub-assy, Fuel, NO.1
2017-08 → —
|
3UR# USK6# | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23807-0F020 |
Pipe Sub-assy, Fuel Delivery
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23814-38030 |
Pipe Sub-assy, Fuel Delivery
2007-11 → 2009-03
ended
|
3URFE USK6# | — | |
| 23814-38031 |
Pipe Sub-assy, Fuel Delivery
2009-03 → 2011-08
ended
|
3URFE USK6# | — | |
| 23814-38120 |
Pipe Sub-assy, Fuel Delivery
2008-08 → 2009-03
ended
|
3URFBE USK65 | — | |
| 23814-38121 |
Pipe Sub-assy, Fuel Delivery
2009-03 → 2011-08
ended
|
3URFBE USK65 | — | |
| 23814-38122 |
Pipe Sub-assy, Fuel Delivery
2011-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23814-38130 |
Pipe Sub-assy, Fuel Delivery
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23814-38130 |
Pipe Sub-assy, Fuel Delivery
2011-08 → 2012-05
ended
|
3URFE USK6# | — | |
| 23814-38131 |
Pipe Sub-assy, Fuel Delivery
2012-05 → 2017-08
ended
|
3URFE USK6# | — | |
| 23814-38122 |
Pipe Sub-assy, Fuel Delivery
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23814-38131 |
Pipe Sub-assy, Fuel Delivery
2017-08 → —
|
3URFE USK6# | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-38020 |
Spacer, NO.1(FOR DELIVERY PIPE)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23891-38020 |
Spacer, NO.1(FOR DELIVERY PIPE)
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 23891-38020 |
Spacer, NO.1(FOR DELIVERY PIPE)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23891-38020 |
Spacer, NO.1(FOR DELIVERY PIPE)
2017-08 → —
|
3URFE USK6# | — | |
| 23808 — Pipe Sub-assy, Fuel Delivery, NO.2 | ||||
| 23808-0F020 |
Pipe Sub-assy, Fuel Delivery, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23808-38020 |
Pipe Sub-assy, Fuel Delivery, NO.2
2011-08 → 2012-05
ended
|
3URFE USK6# | — | |
| 23808-38020 |
Pipe Sub-assy, Fuel Delivery, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23808-38021 |
Pipe Sub-assy, Fuel Delivery, NO.2
2012-05 → 2017-08
ended
|
3URFE USK6# | — | |
| 23815-38010 |
Pipe Sub-assy, Fuel Delivery, NO.2
2007-11 → 2011-08
ended
|
3URFE USK6# | — | |
| 23815-38070 |
Pipe Sub-assy, Fuel Delivery, NO.2
2008-08 → 2011-08
ended
|
3URFBE USK65 | — | |
| 23815-38071 |
Pipe Sub-assy, Fuel Delivery, NO.2
2011-08 → 2017-08
ended
|
3URFBE USK65 | — | |
| 23808-38021 |
Pipe Sub-assy, Fuel Delivery, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 23815-38071 |
Pipe Sub-assy, Fuel Delivery, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-0F010 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 23841-0F010 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23841-0F010 note |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 23841-0S010 note |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2013-08 → 2016-09
ended
|
3UR# USK6# | — | |
| 23841-0S020 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 23841-0S020 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2017-08 → —
|
3UR# USK6# | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23842-0S010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2016-09 → 2017-08
ended
|
3UR# USK6# | — | |
| 23842-28010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2009-03 → 2011-08
ended
|
3UR# USK6# | — | |
| 23842-0S010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23842-0S010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-08 → —
|
3URFE USK6# | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-0S010 |
Tube Sub-assy, Fuel
2011-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 23901-38010 |
Tube Sub-assy, Fuel
2007-11 → 2009-03
ended
|
3UR# USK6# | — | |
| 23901-38011 |
Tube Sub-assy, Fuel
2009-03 → 2011-08
ended
|
3UR# USK6# | — | |
| 23901-38040 |
Tube Sub-assy, Fuel
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23901-0S010 |
Tube Sub-assy, Fuel
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 23901-0S010 |
Tube Sub-assy, Fuel
2017-08 → —
|
3URFE USK6# | — | |
| 23902 — Tube Sub-assy, Fuel | ||||
| 23902-0S010 note |
Tube Sub-assy, Fuel
2011-08 → 2014-08
ended
|
3UR# USK6# | — | |
| 23902-0S011 |
Tube Sub-assy, Fuel
2014-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 23902-38020 |
Tube Sub-assy, Fuel
2007-11 → 2009-03
ended
|
3URFE USK6# | — | |
| 23902-38021 |
Tube Sub-assy, Fuel
2009-03 → 2011-08
ended
|
3URFE USK6# | — | |
| 23902-38030 |
Tube Sub-assy, Fuel
2008-08 → 2009-03
ended
|
3URFBE USK65 | — | |
| 23902-38031 |
Tube Sub-assy, Fuel
2009-03 → 2011-08
ended
|
3URFBE USK65 | — | |
| 23902-38031 note |
Tube Sub-assy, Fuel
2011-08 → 2014-08
ended
|
3UR# USK6# | — | |
| 23902-38040 |
Tube Sub-assy, Fuel
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 23902-0S011 |
Tube Sub-assy, Fuel
2017-08 → —
|
3UR# USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
