Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

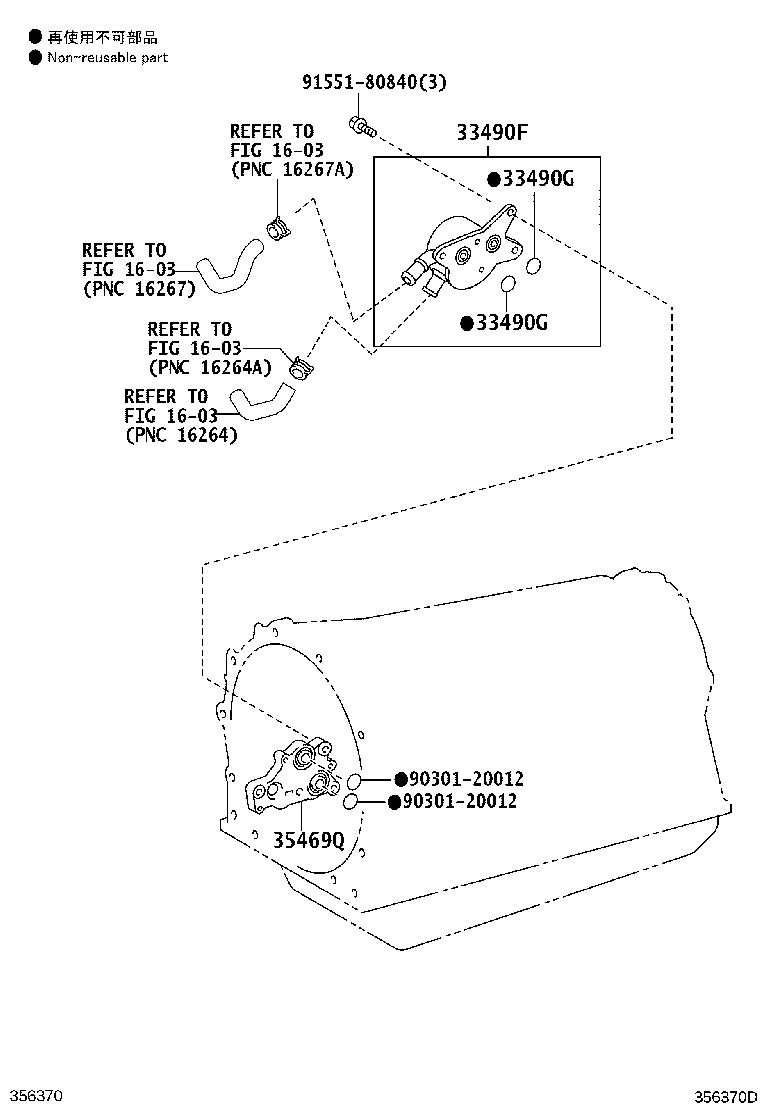

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33490F — Cooler Assy, Transmission Oil | ||||
| 33490-34010 |
Cooler Assy, Transmission Oil
2007-11 → 2017-08
ended
|
USK6# | — | |
| 33490-34020 |
Cooler Assy, Transmission Oil
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 33493-34030 |
Cooler Assy, Transmission Oil
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 33490-34010 |
Cooler Assy, Transmission Oil
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33490-34010 |
Cooler Assy, Transmission Oil
2017-08 → —
|
USK6# HTWC | — | |
| 33490G — Ring, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90301-20012 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2017-08 → —
|
USK6# HTWC | — | |
| 35469Q — Spacer (FOR TRANSMISSION OIL COOLER) | ||||
| 35469-34010 |
Spacer (FOR TRANSMISSION OIL COOLER)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 35469-34020 |
Spacer (FOR TRANSMISSION OIL COOLER)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 35469-34040 |
Spacer (FOR TRANSMISSION OIL COOLER)
2009-04 → 2012-08
ended
|
UPK6# | — | |
| 35469-34010 |
Spacer (FOR TRANSMISSION OIL COOLER)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 35469-34010 |
Spacer (FOR TRANSMISSION OIL COOLER)
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
