Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

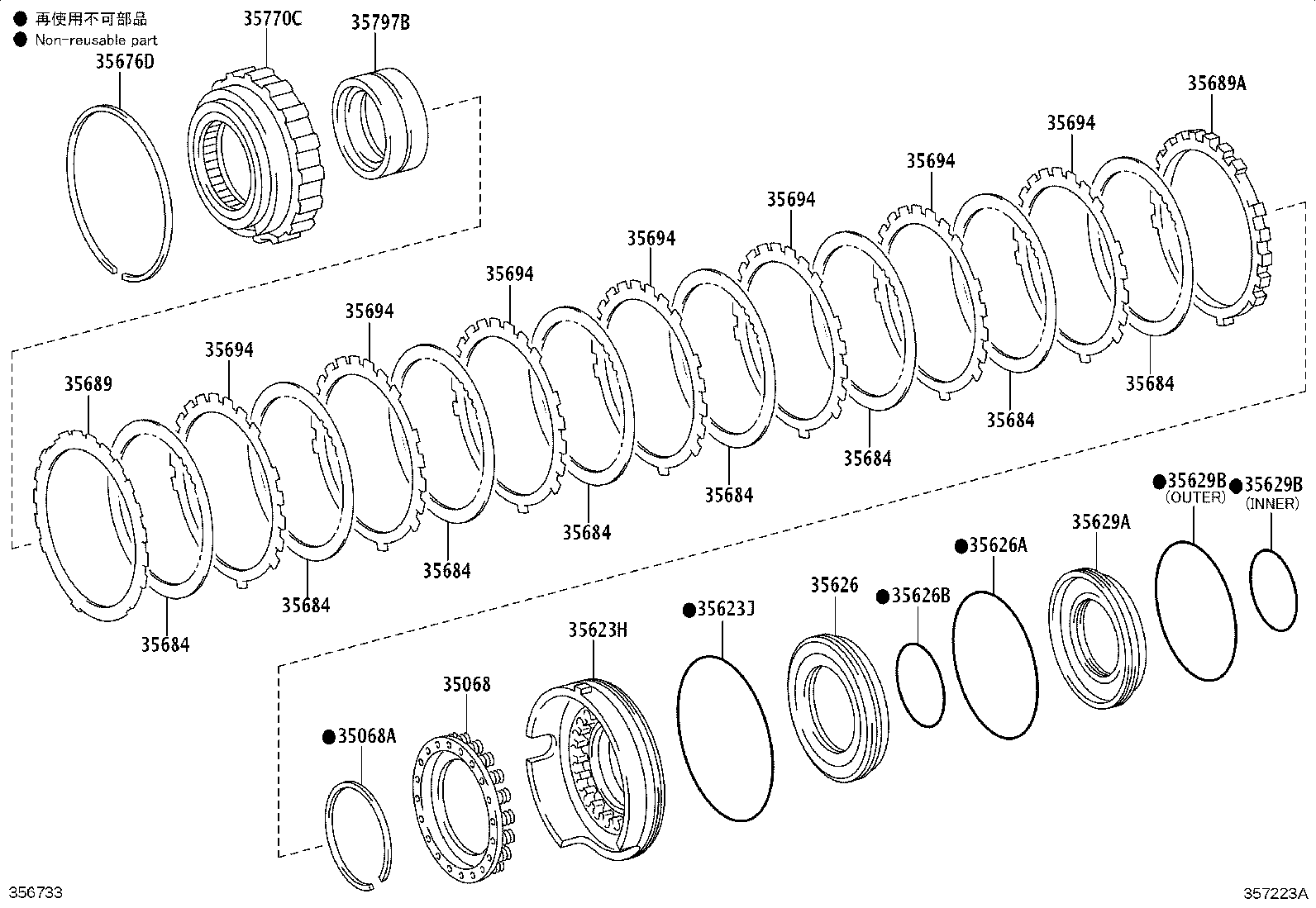

Exploded illustration 357223A 35770C — CLUTCH ASSY, 1WAY NO.3 (5 parts) 35797B — RACE, 1 WAY CLUTCH, INNER (5 parts) 35689 — FLANGE, BRAKE, NO.4 (37 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35694 — PLATE, BRAKE, NO.4 (5 parts) 35689A — FLANGE, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35684 — DISC, BRAKE, NO.4 (5 parts) 35068A — RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING) (6 parts) 35068 — SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN (5 parts) 35623H — PISTON, 1ST & REVERSE BRAKE (5 parts) 35623J — RING, O (FOR 1ST & REVERSE BRAKE) (5 parts) 35626 — SLEEVE, BRAKE REACTION (2 parts) 35626A — RING (FOR BRAKE REACTION SLEEVE OUTER) (2 parts) 35626B — RING (FOR BRAKE REACTION SLEEVE INNER) (2 parts) 35629B — RING, O (FOR BRAKE PISTON NO.4) (4 parts) 35629B — RING, O (FOR BRAKE PISTON NO.4) (4 parts) 35629A — PISTON, BRAKE, NO.4 (2 parts) 35676D — RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) (5 parts)
357223A · 30 callouts Full size ↗
100 parts on this figure
Part number Description Fitment Price
35068 — Spring Sub-assy, 1ST & Reverse Brake Return
35068-0C010 Spring Sub-assy, 1ST & Reverse Brake Return
2007-11 → 2012-08 ended
UPK6# —
35068-0C010 Spring Sub-assy, 1ST & Reverse Brake Return
2007-11 → 2009-04 ended
UCK6# —
35068-0C020 Spring Sub-assy, 1ST & Reverse Brake Return
2007-11 → 2017-08 ended
USK6# —
35068-0C020 Spring Sub-assy, 1ST & Reverse Brake Return
2017-08 → 2017-09 ended
USK65 HTWCF —
35068-0C020 Spring Sub-assy, 1ST & Reverse Brake Return
2017-08 → —
USK6# HTWC —
35068A — Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
90520-61001 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2007-11 → 2009-04 ended
UCK6# —
90520-61001 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2007-11 → 2012-08 ended
UPK6# —
90520-61001 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2007-11 → 2013-07 ended
USK6# —
90520-A0025 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2013-07 → 2017-08 ended
USK6# —
90520-61001 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2020-06 → —
USK6# —
90520-A0025 Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2017-08 → 2020-05 ended
USK6# —
35623H — Piston, 1ST & Reverse Brake
35623-34010 Piston, 1ST & Reverse Brake
2007-11 → 2017-08 ended
USK6# —
35623-60060 Piston, 1ST & Reverse Brake
2007-11 → 2009-04 ended
UCK6# —
35623-60060 Piston, 1ST & Reverse Brake
2007-11 → 2012-08 ended
UPK6# —
35623-34010 Piston, 1ST & Reverse Brake
2017-08 → —
USK6# HTWC —
35623-34010 Piston, 1ST & Reverse Brake
2017-08 → 2017-09 ended
USK65 HTWCF —
35623J — Ring, O (FOR 1ST & REVERSE BRAKE)
90301-67006 Ring, O (FOR 1ST & REVERSE BRAKE)
2007-11 → 2017-08 ended
USK6# —
90301-99087 Ring, O (FOR 1ST & REVERSE BRAKE)
2007-11 → 2009-04 ended
UCK6# —
90301-99087 Ring, O (FOR 1ST & REVERSE BRAKE)
2007-11 → 2012-08 ended
UPK6# —
90301-67006 Ring, O (FOR 1ST & REVERSE BRAKE)
2017-08 → 2017-09 ended
USK65 HTWCF —
90301-67006 Ring, O (FOR 1ST & REVERSE BRAKE)
2017-08 → —
USK6# HTWC —
35626 — Sleeve, Brake Reaction
35626-60010 Sleeve, Brake Reaction
2007-11 → 2009-04 ended
UCK6# —
35626-60010 Sleeve, Brake Reaction
2007-11 → 2012-08 ended
UPK6# —
35626A — Ring (FOR BRAKE REACTION SLEEVE OUTER)
90301-99143 Ring (FOR BRAKE REACTION SLEEVE OUTER)
2007-11 → 2009-04 ended
UCK6# —
90301-99143 Ring (FOR BRAKE REACTION SLEEVE OUTER)
2007-11 → 2012-08 ended
UPK6# —
35626B — Ring (FOR BRAKE REACTION SLEEVE INNER)
90301-79003 Ring (FOR BRAKE REACTION SLEEVE INNER)
2007-11 → 2009-04 ended
UCK6# —
90301-79003 Ring (FOR BRAKE REACTION SLEEVE INNER)
2007-11 → 2012-08 ended
UPK6# —
35629A — Piston, Brake, NO.4
35629-60010 Piston, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35629-60010 Piston, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35629B — Ring, O (FOR BRAKE PISTON NO.4)
90301-67006 note Ring, O (FOR BRAKE PISTON NO.4)
2007-11 → 2009-04 ended
UCK6# —
90301-67006 note Ring, O (FOR BRAKE PISTON NO.4)
2007-11 → 2012-08 ended
UPK6# —
90301-99151 note Ring, O (FOR BRAKE PISTON NO.4)
2007-11 → 2012-08 ended
UPK6# —
90301-99151 note Ring, O (FOR BRAKE PISTON NO.4)
2007-11 → 2009-04 ended
UCK6# —
35676D — Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99130 Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2007-11 → 2017-08 ended
USK6# —
90521-99131 Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2007-11 → 2009-04 ended
UCK6# —
90521-99131 Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2007-11 → 2012-08 ended
UPK6# —
90521-99130 Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2017-08 → 2017-09 ended
USK65 HTWCF —
90521-99130 Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE)
2017-08 → —
USK6# HTWC —
35684 — Disc, Brake, NO.4
35684-0C010 Disc, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35684-0C030 Disc, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35684-0C040 Disc, Brake, NO.4
2009-04 → 2012-08 ended
UPK6# —
35684-0C030 Disc, Brake, NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
35684-0C030 Disc, Brake, NO.4
2017-08 → —
USK6# HTWC —
35689 — Flange, Brake, NO.4
35689-0C010 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C010 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C020 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C020 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C030 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C030 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C040 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C040 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C050 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C050 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C060 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C060 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C070 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C070 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C080 note Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C080 note Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-0C110 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C120 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C130 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C140 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C150 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C160 note Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-0C110 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-0C120 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-0C130 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-0C140 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-0C150 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-0C160 note Flange, Brake, NO.4
2017-08 → 2020-05 ended
USK6# —
35689-60260 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60380 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60390 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60400 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60410 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60420 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60430 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60440 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689-60450 note Flange, Brake, NO.4
2020-06 → —
USK6# —
35689A — Flange, Brake, NO.4
35689-0C100 Flange, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35689-60090 Flange, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35689-60090 Flange, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35689-0C100 Flange, Brake, NO.4
2017-08 → 2019-03 ended
USK6# —
35689-0C180 Flange, Brake, NO.4
2019-04 → —
USK6# —
35694 — Plate, Brake, NO.4
35694-0C010 Plate, Brake, NO.4
2007-11 → 2009-04 ended
UCK6# —
35694-0C010 Plate, Brake, NO.4
2007-11 → 2012-08 ended
UPK6# —
35694-0C020 Plate, Brake, NO.4
2007-11 → 2017-08 ended
USK6# —
35694-0C020 Plate, Brake, NO.4
2017-08 → 2017-09 ended
USK65 HTWCF —
35694-0C020 Plate, Brake, NO.4
2017-08 → —
USK6# HTWC —
35770C — Clutch Assy, 1Way NO.3
35770-0C010 Clutch Assy, 1Way NO.3
2007-11 → 2009-04 ended
UCK6# —
35770-0C010 Clutch Assy, 1Way NO.3
2007-11 → 2012-08 ended
UPK6# —
35770-0C030 Clutch Assy, 1Way NO.3
2007-11 → 2017-08 ended
USK6# —
35770-0C030 Clutch Assy, 1Way NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
35770-0C030 Clutch Assy, 1Way NO.3
2017-08 → —
USK6# HTWC —
35797B — Race, 1 Way Clutch, Inner
35797-34030 Race, 1 Way Clutch, Inner
2007-11 → 2017-08 ended
USK6# —
35797-60020 Race, 1 Way Clutch, Inner
2007-11 → 2009-04 ended
UCK6# —
35797-60020 Race, 1 Way Clutch, Inner
2007-11 → 2012-08 ended
UPK6# —
35797-34030 Race, 1 Way Clutch, Inner
2017-08 → 2017-09 ended
USK65 HTWCF —
35797-34030 Race, 1 Way Clutch, Inner
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
