Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

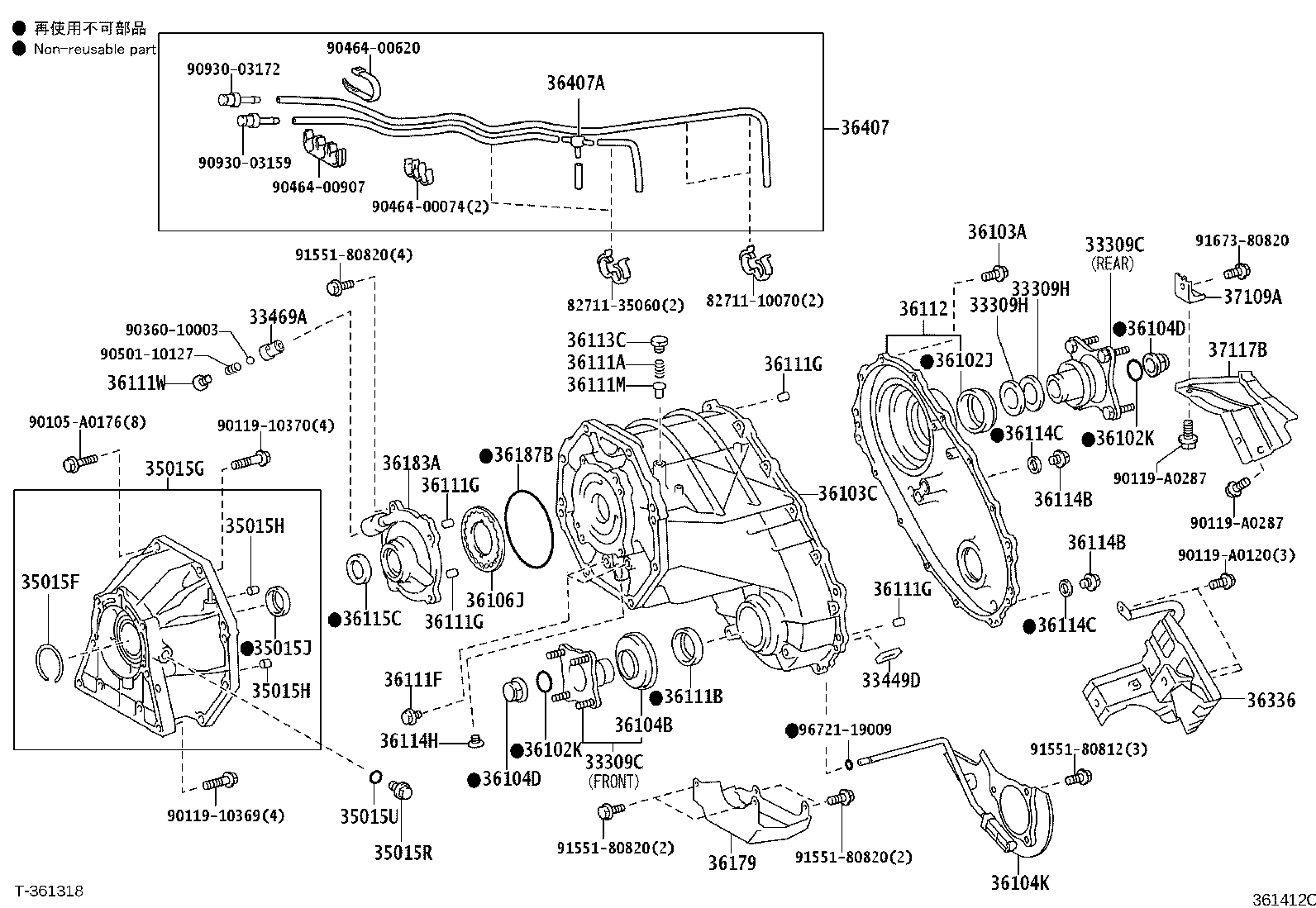

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33309C — Flange Sub-assy, Output Shaft Companion | ||||
| 33309-34010 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 33309-34010 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 33309-34010 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2017-08
ended
|
USK65 | — | |
| 33309-34020 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 33309-34020 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2017-08
ended
|
USK65 | — | |
| 33309-34020 note |
Flange Sub-assy, Output Shaft Companion
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 33309-34010 note |
Flange Sub-assy, Output Shaft Companion
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33309-34010 note |
Flange Sub-assy, Output Shaft Companion
2017-08 → —
|
USK65 HTWC | — | |
| 33309-34020 note |
Flange Sub-assy, Output Shaft Companion
2017-08 → —
|
USK65 HTWC | — | |
| 33309-34020 note |
Flange Sub-assy, Output Shaft Companion
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33309H — Washer, Transfer Output Shaft | ||||
| 36275-34010 note |
Washer, Transfer Output Shaft
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36275-34010 note |
Washer, Transfer Output Shaft
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36275-34010 note |
Washer, Transfer Output Shaft
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36275-34010 note |
Washer, Transfer Output Shaft
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36275-34010 note |
Washer, Transfer Output Shaft
2017-08 → —
|
USK65 HTWC | — | |
| 33449D — Magnet (FOR TRANSFER CASE) | ||||
| 33449-60010 |
Magnet (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 33449-60010 |
Magnet (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 33449-60010 |
Magnet (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 33449-60010 |
Magnet (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33449-60010 |
Magnet (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 33469A — Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33469-60020 |
Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 33469-60020 |
Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 33469-60020 |
Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 33469-60020 |
Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33469-60020 |
Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2017-08 → —
|
USK65 HTWC | — | |
| 35015F — Ring, Hole Snap(FOR TRANSFER ADAPTER) | ||||
| 90520-A0045 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2014-03 → 2017-08
ended
|
USK65 | — | |
| 90521-80004 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2007-11 → 2014-02
ended
|
USK65 | — | |
| 90521-80004 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90521-80004 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90520-A0045 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90520-A0045 |
Ring, Hole Snap(FOR TRANSFER ADAPTER)
2017-08 → —
|
USK65 HTWC | — | |
| 35015G — Adapter, Transfer, Rear | ||||
| 35015-0C030 |
Adapter, Transfer, Rear
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 35015-0C040 |
Adapter, Transfer, Rear
2007-11 → 2017-08
ended
|
USK65 | — | |
| 35015-0C050 |
Adapter, Transfer, Rear
2009-04 → 2012-08
ended
|
UPK65 | — | |
| 35015-0C040 |
Adapter, Transfer, Rear
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 35015-0C040 |
Adapter, Transfer, Rear
2017-08 → —
|
USK65 HTWC | — | |
| 35015H — Pin, Ring(FOR TRANSFER CASE) | ||||
| 90250-11003 |
Pin, Ring(FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90250-11003 |
Pin, Ring(FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90250-11003 |
Pin, Ring(FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90250-11003 |
Pin, Ring(FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90250-11003 |
Pin, Ring(FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 35015J — Seal, Oil(FOR TRANSFER CASE ADAPTER REAR) | ||||
| 90311-51008 |
Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90311-51008 |
Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90311-51008 |
Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90311-51008 |
Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90311-51008 |
Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2017-08 → —
|
USK65 HTWC | — | |
| 35015R — Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18059 |
Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-18059 |
Plug, W/Head Straight Screw(FOR TRANSMISSION CASE ADAPTER)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 35015U — Ring, O(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36102J — Seal, Type T Oil (FOR TRANSFER COVER) | ||||
| 90311-50040 |
Seal, Type T Oil (FOR TRANSFER COVER)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90311-50040 |
Seal, Type T Oil (FOR TRANSFER COVER)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90311-50040 |
Seal, Type T Oil (FOR TRANSFER COVER)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90311-50040 |
Seal, Type T Oil (FOR TRANSFER COVER)
2017-08 → 2021-02
ended
|
USK65 | — | |
| 90311-50065 |
Seal, Type T Oil (FOR TRANSFER COVER)
2021-03 → —
|
USK65 | — | |
| 36102K — Ring, O | ||||
| 90301-31003 |
Ring, O
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90301-31003 |
Ring, O
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90301-31003 |
Ring, O
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90301-31003 |
Ring, O
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90301-31003 |
Ring, O
2017-08 → —
|
USK65 HTWC | — | |
| 36103A — Bolt (FOR TRANSFER CASE) | ||||
| 91551-00845 note |
Bolt (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 91551-00845 note |
Bolt (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 91551-00845 note |
Bolt (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 91551-00845 note |
Bolt (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 91551-00845 note |
Bolt (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36103C — Case, Transfer, Front | ||||
| 36103-34030 |
Case, Transfer, Front
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36103-34030 |
Case, Transfer, Front
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36103-34030 |
Case, Transfer, Front
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36103-34030 |
Case, Transfer, Front
2017-08 → 2019-05
ended
|
USK65 | — | |
| 36103-34031 |
Case, Transfer, Front
2019-05 → —
|
USK65 | — | |
| 36104B — Deflector, Dust (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-34020 |
Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 33325-34020 |
Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 33325-34020 |
Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 33325-34020 |
Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 33325-34020 |
Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2017-08 → —
|
USK65 HTWC | — | |
| 36104D — Nut (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-24011 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90179-24011 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90179-24011 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90179-24011 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90179-24011 |
Nut (FOR TRANSFER OUTPUT SHAFT)
2017-08 → —
|
USK65 HTWC | — | |
| 36104K — Separator Sub-assy, Transfer Oil | ||||
| 36104-34030 |
Separator Sub-assy, Transfer Oil
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36104-34030 |
Separator Sub-assy, Transfer Oil
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36104-34030 |
Separator Sub-assy, Transfer Oil
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36104-34030 |
Separator Sub-assy, Transfer Oil
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36104-34030 |
Separator Sub-assy, Transfer Oil
2017-08 → —
|
USK65 HTWC | — | |
| 36106J — Rotor, Transfer Oil Pump | ||||
| 36106-34010 |
Rotor, Transfer Oil Pump
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36106-34010 |
Rotor, Transfer Oil Pump
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36106-34010 |
Rotor, Transfer Oil Pump
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36106-34010 |
Rotor, Transfer Oil Pump
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36106-34010 |
Rotor, Transfer Oil Pump
2017-08 → —
|
USK65 HTWC | — | |
| 36111A — Spring, Compression (FOR TRANSFER CASE) | ||||
| 90501-20091 |
Spring, Compression (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90501-20091 |
Spring, Compression (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90501-20091 |
Spring, Compression (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90501-20091 |
Spring, Compression (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 90501-20091 |
Spring, Compression (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36111B — Seal, Oil (FOR TRANSFER CASE) | ||||
| 90311-50039 |
Seal, Oil (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90311-50039 |
Seal, Oil (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90311-50039 |
Seal, Oil (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90311-50039 |
Seal, Oil (FOR TRANSFER CASE)
2017-08 → —
|
USK65 | — | |
| 36111F — Plug (FOR TRANSFER CASE) | ||||
| 90341-24006 |
Plug (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-24006 |
Plug (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90341-24006 |
Plug (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90341-24006 |
Plug (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90341-24006 |
Plug (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36111G — Pin, Straight (FOR TRANSFER CASE) | ||||
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90250-10214 note |
Pin, Straight (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36111M — Pin, Slotted Spring (FOR TRANSFER CASE) | ||||
| 90241-07003 |
Pin, Slotted Spring (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90241-07003 |
Pin, Slotted Spring (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90241-07003 |
Pin, Slotted Spring (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90241-07003 |
Pin, Slotted Spring (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90241-07003 |
Pin, Slotted Spring (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36111W — Plug, Tight NO.2(FOR TRANSFER CASE) | ||||
| 90341-18039 |
Plug, Tight NO.2(FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-18039 |
Plug, Tight NO.2(FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90341-18039 |
Plug, Tight NO.2(FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90341-18039 |
Plug, Tight NO.2(FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 90341-18039 |
Plug, Tight NO.2(FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36112 — Case, Transfer, Rear | ||||
| 36104-34041 |
Case, Transfer, Rear
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36104-34041 |
Case, Transfer, Rear
2007-11 → 2010-10
ended
|
UPK65,USK65 | — | |
| 36104-34042 |
Case, Transfer, Rear
2010-10 → 2012-05
ended
|
UPK65,USK65 | — | |
| 36104-34043 |
Case, Transfer, Rear
2012-05 → 2012-08
ended
|
UPK65 | — | |
| 36104-34043 |
Case, Transfer, Rear
2012-05 → 2017-08
ended
|
USK65 | — | |
| 36104-34043 |
Case, Transfer, Rear
2017-08 → 2019-05
ended
|
USK65 | — | |
| 36104-34044 |
Case, Transfer, Rear
2019-05 → —
|
USK65 | — | |
| 36113C — Plug (FOR TRANSFER CASE) | ||||
| 90341-14012 |
Plug (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-14012 |
Plug (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90341-14012 |
Plug (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90341-14012 |
Plug (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 90341-14012 |
Plug (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36114B — Plug, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
Plug, NO.1 (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-18006 |
Plug, NO.1 (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90341-18006 |
Plug, NO.1 (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90341-18006 |
Plug, NO.1 (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90341-18006 |
Plug, NO.1 (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36114C — Gasket, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
Gasket, NO.1 (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90430-18008 |
Gasket, NO.1 (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90430-18008 |
Gasket, NO.1 (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90430-18008 |
Gasket, NO.1 (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90430-18008 |
Gasket, NO.1 (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36114H — Plug, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-14008 |
Plug, NO.2 (FOR TRANSFER CASE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90341-14008 |
Plug, NO.2 (FOR TRANSFER CASE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90341-14008 |
Plug, NO.2 (FOR TRANSFER CASE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90341-14008 |
Plug, NO.2 (FOR TRANSFER CASE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90341-14008 |
Plug, NO.2 (FOR TRANSFER CASE)
2017-08 → —
|
USK65 HTWC | — | |
| 36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-51009 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90311-51009 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90311-51009 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90311-51009 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90311-51009 |
Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2017-08 → —
|
USK65 HTWC | — | |
| 36179 — Protector, Transfer Case Lower | ||||
| 36179-34010 |
Protector, Transfer Case Lower
2007-11 → 2012-04
ended
|
UCK65,UPK65,USK65 | — | |
| 36179-34011 |
Protector, Transfer Case Lower
2012-05 → 2017-08
ended
|
UPK65,USK65 | — | |
| 36179-34011 |
Protector, Transfer Case Lower
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36179-34011 |
Protector, Transfer Case Lower
2017-08 → —
|
USK65 HTWC | — | |
| 36183A — Plate, Transfer Oil Pump | ||||
| 36183-34011 |
Plate, Transfer Oil Pump
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36183-34011 |
Plate, Transfer Oil Pump
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36183-34011 |
Plate, Transfer Oil Pump
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36183-34011 |
Plate, Transfer Oil Pump
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36183-34011 |
Plate, Transfer Oil Pump
2017-08 → —
|
USK65 HTWC | — | |
| 36187B — Ring, O (FOR TRANSFER OIL STRAINER) | ||||
| 96721-31130 |
Ring, O (FOR TRANSFER OIL STRAINER)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 96721-31130 |
Ring, O (FOR TRANSFER OIL STRAINER)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 96721-31130 |
Ring, O (FOR TRANSFER OIL STRAINER)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 96721-31130 |
Ring, O (FOR TRANSFER OIL STRAINER)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 96721-31130 |
Ring, O (FOR TRANSFER OIL STRAINER)
2017-08 → —
|
USK65 HTWC | — | |
| 36336 — Insulator, Transfer Heat | ||||
| 36336-0C010 |
Insulator, Transfer Heat
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36336-0C010 |
Insulator, Transfer Heat
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36336-0C010 |
Insulator, Transfer Heat
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 36336-0C010 |
Insulator, Transfer Heat
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36336-0C010 |
Insulator, Transfer Heat
2017-08 → —
|
USK65 HTWC | — | |
| 36407 — Hose Sub-assy, Transfer Breather | ||||
| 36407-34040 |
Hose Sub-assy, Transfer Breather
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 36407-34050 |
Hose Sub-assy, Transfer Breather
2007-11 → 2017-08
ended
|
USK65 | — | |
| 36407-34070 |
Hose Sub-assy, Transfer Breather
2009-04 → 2012-08
ended
|
UPK65 | — | |
| 36407-34050 |
Hose Sub-assy, Transfer Breather
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 36407-34050 |
Hose Sub-assy, Transfer Breather
2017-08 → —
|
USK65 HTWC | — | |
| 36407A — Way, 3(FOR TRANSFER BREATHER HOSE) | ||||
| 90413-04001 |
Way, 3(FOR TRANSFER BREATHER HOSE)
2007-11 → 2017-08
ended
|
USK65 | — | |
| 90413-04001 |
Way, 3(FOR TRANSFER BREATHER HOSE)
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 90413-04001 |
Way, 3(FOR TRANSFER BREATHER HOSE)
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 90413-04001 |
Way, 3(FOR TRANSFER BREATHER HOSE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90413-04001 |
Way, 3(FOR TRANSFER BREATHER HOSE)
2017-08 → —
|
USK65 HTWC | — | |
| 37109A — Bracket Sub-assy, Propeller Shaft Heat Insulator | ||||
| 37109-34010 |
Bracket Sub-assy, Propeller Shaft Heat Insulator
2007-11 → 2017-08
ended
|
UCK65,UPK65,USK65 | — | |
| 37109-34010 |
Bracket Sub-assy, Propeller Shaft Heat Insulator
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 37109-34010 |
Bracket Sub-assy, Propeller Shaft Heat Insulator
2017-08 → —
|
USK65 HTWC | — | |
| 37117B — Insulator, Propeller Shaft Heat | ||||
| 37117-0C030 |
Insulator, Propeller Shaft Heat
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 37117-0C030 |
Insulator, Propeller Shaft Heat
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 37117-0C030 |
Insulator, Propeller Shaft Heat
2007-11 → 2017-08
ended
|
USK65 | — | |
| 37117-0C030 |
Insulator, Propeller Shaft Heat
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 37117-0C030 |
Insulator, Propeller Shaft Heat
2017-08 → —
|
USK65 HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
