Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

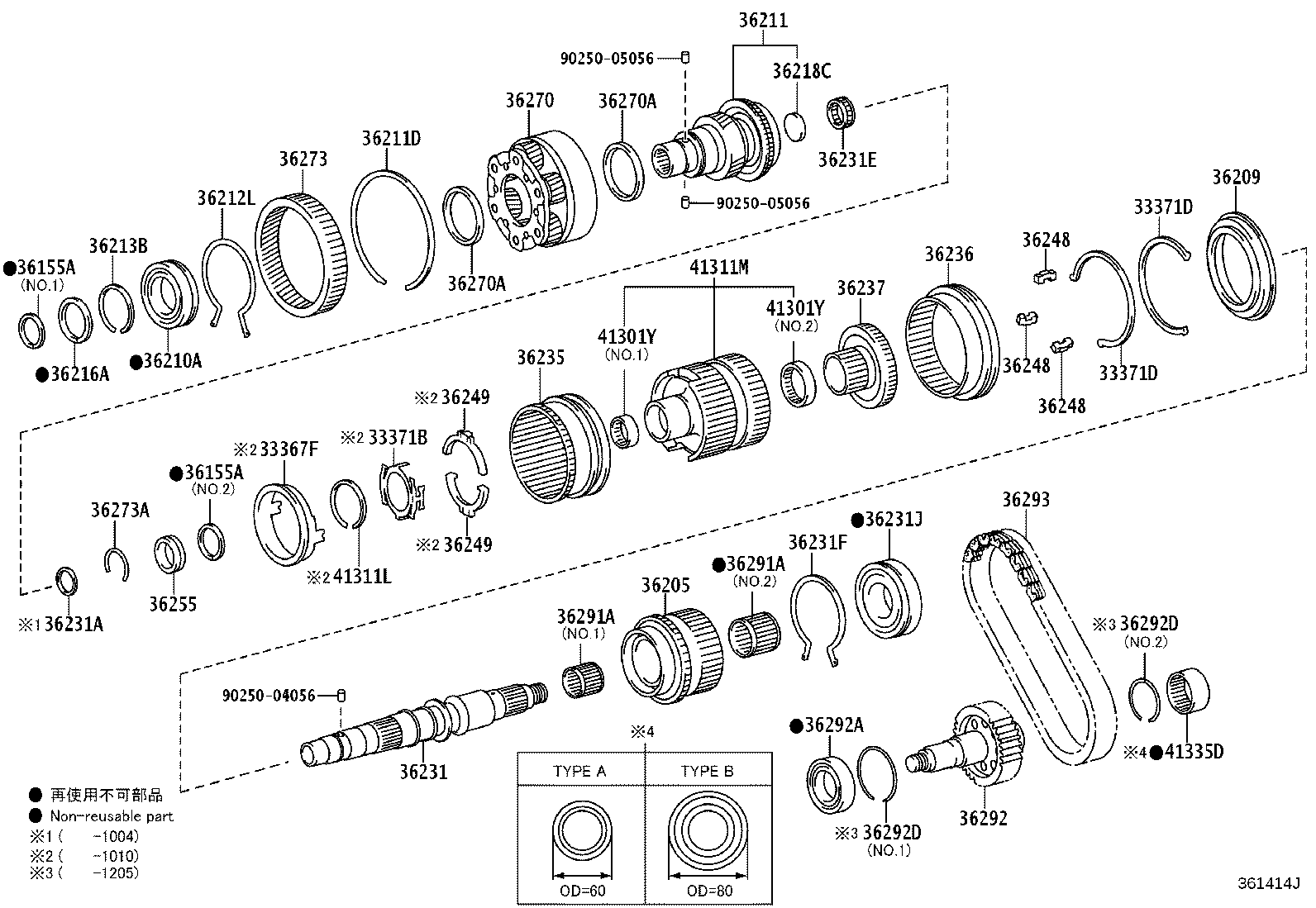

Exploded illustration 361414J 9025004056 — not listed in this catalogue 9025005056 — not listed in this catalogue 9025005056 — not listed in this catalogue 36209 — RING SET, TRANSFER SYNCHRONIZER (5 parts) 36155A — RING, TRANSFER OIL SEAL (10 parts) 36155A — RING, TRANSFER OIL SEAL (10 parts) 36216A — RING, TRANSFER INPUT SHAFT SEAL, NO.1 (5 parts) 36205 — SPROCKET SUB-ASSY, TRANSFER DRIVE (5 parts) 36255 — SPACER, TRANSFER OUTPUT SHAFT, NO.1 (6 parts) 36231A — SPACER (FOR TRANSFER OUTPUT SHAFT) (2 parts) 36292A — BEARING (FOR TRANSFER DRIVEN SPROCKET) (6 parts) 36292D — RING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET) (4 parts) 36292D — RING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET) (4 parts) 36292 — SPROCKET, TRANSFER DRIVEN (7 parts) 36231J — BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) (5 parts) 36210A — BEARING (FOR TRANSFER INPUT SHAFT) (5 parts) 36231E — BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) (5 parts) 36236 — SLEEVE, FRONT DRIVE CLUTCH (5 parts) 36291A — BEARING (FOR TRANSFER DRIVE SPROCKET) (9 parts) 36291A — BEARING (FOR TRANSFER DRIVE SPROCKET) (9 parts) 41335D — BEARING (FOR SIDE GEAR SHAFT HOLDER) (6 parts) 36273A — RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) (6 parts) 36249 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 (2 parts) 36249 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 (2 parts) 33371B — SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) (2 parts) 36293 — CHAIN, TRANSFER FRONT DRIVE (5 parts) 36212L — RING, SHAFT SNAP (5 parts) 41311L — RING, SHAFT SNAP(FOR CENTER DIFFERENTIAL CASE) (2 parts) 33367F — RING, SYNCHRONIZER, NO.1 (2 parts) 36231F — RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) (5 parts) 33371D — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) (5 parts) 33371D — SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) (5 parts) 36248 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 (5 parts) 36248 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 (5 parts) 36248 — KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 (5 parts) 36231 — SHAFT, TRANSFER OUTPUT, REAR (7 parts) 36213B — RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) (35 parts) 36211 — SHAFT, TRANSFER INPUT (7 parts) 36218C — PLUG, TRANSFER INPUT SHAFT (5 parts) 36270A — BEARING (FOR TRANSFER LOW PLANETARY GEAR) (5 parts) 36270A — BEARING (FOR TRANSFER LOW PLANETARY GEAR) (5 parts) 36270 — GEAR ASSY, TRANSFER LOW PLANETARY (6 parts) 36273 — GEAR, TRANSFER LOW PLANETARY RING (5 parts) 36211D — RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT) (5 parts) 36235 — SLEEVE, TRANSFER HIGH & LOW CLUTCH (7 parts) 36237 — HUB, TRANSFER CLUTCH (5 parts) 41301Y — BEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE) (10 parts) 41301Y — BEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE) (10 parts) 41311M — CASE, CENTER DIFFERENTIAL (8 parts)
361414J · 46 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
229 parts on this figure
Part number Description Fitment Price
33367F — Ring, Synchronizer, NO.1
33367-34010 Ring, Synchronizer, NO.1
2007-11 → 2010-10 ended
UPK65,USK65 —
33367-34010 Ring, Synchronizer, NO.1
2007-11 → 2009-04 ended
UCK65 —
33371B — Spring, Synchromesh Shifting Key (FOR TRANSFER)
33371-34030 Spring, Synchromesh Shifting Key (FOR TRANSFER)
2007-11 → 2010-10 ended
UPK65,USK65 —
33371-34030 Spring, Synchromesh Shifting Key (FOR TRANSFER)
2007-11 → 2009-04 ended
UCK65 —
33371D — Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
33371-34020 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2007-11 → 2012-08 ended
UPK65 —
33371-34020 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2007-11 → 2009-04 ended
UCK65 —
33371-34020 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2007-11 → 2017-08 ended
USK65 —
33371-34020 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2017-08 → 2017-09 ended
USK65 HTWCF —
33371-34020 Spring, Synchromesh Shifting Key, NO.1 (FOR TRANSFER)
2017-08 → —
USK65 HTWC —
36155A — Ring, Transfer Oil Seal
36155-34010 note Ring, Transfer Oil Seal
2007-11 → 2009-04 ended
UCK65 —
36155-34010 note Ring, Transfer Oil Seal
2007-11 → 2012-08 ended
UPK65 —
36155-34010 note Ring, Transfer Oil Seal
2007-11 → 2017-08 ended
USK65 —
36155-34030 note Ring, Transfer Oil Seal
2007-11 → 2009-04 ended
UCK65 —
36155-34030 note Ring, Transfer Oil Seal
2007-11 → 2012-08 ended
UPK65 —
36155-34030 note Ring, Transfer Oil Seal
2007-11 → 2017-08 ended
USK65 —
36155-34010 note Ring, Transfer Oil Seal
2017-08 → —
USK65 HTWC —
36155-34010 note Ring, Transfer Oil Seal
2017-08 → 2017-09 ended
USK65 HTWCF —
36155-34030 note Ring, Transfer Oil Seal
2017-08 → 2017-09 ended
USK65 HTWCF —
36155-34030 note Ring, Transfer Oil Seal
2017-08 → —
USK65 HTWC —
36205 — Sprocket Sub-assy, Transfer Drive
36205-34040 Sprocket Sub-assy, Transfer Drive
2007-11 → 2009-04 ended
UCK65 —
36205-34040 Sprocket Sub-assy, Transfer Drive
2007-11 → 2012-08 ended
UPK65 —
36205-34040 Sprocket Sub-assy, Transfer Drive
2007-11 → 2017-08 ended
USK65 —
36205-34040 Sprocket Sub-assy, Transfer Drive
2017-08 → 2017-09 ended
USK65 HTWCF —
36205-34040 Sprocket Sub-assy, Transfer Drive
2017-08 → —
USK65 HTWC —
36209 — Ring Set, Transfer Synchronizer
36209-34011 Ring Set, Transfer Synchronizer
2007-11 → 2009-04 ended
UCK65 —
36209-34011 Ring Set, Transfer Synchronizer
2007-11 → 2012-08 ended
UPK65 —
36209-34011 Ring Set, Transfer Synchronizer
2007-11 → 2017-08 ended
USK65 —
36209-34011 Ring Set, Transfer Synchronizer
2017-08 → —
USK65 HTWC —
36209-34011 Ring Set, Transfer Synchronizer
2017-08 → 2017-09 ended
USK65 HTWCF —
36210A — Bearing (FOR TRANSFER INPUT SHAFT)
90363-68001 Bearing (FOR TRANSFER INPUT SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90363-68001 Bearing (FOR TRANSFER INPUT SHAFT)
2007-11 → 2012-08 ended
UPK65 —
90363-68001 Bearing (FOR TRANSFER INPUT SHAFT)
2007-11 → 2017-08 ended
USK65 —
90363-68001 Bearing (FOR TRANSFER INPUT SHAFT)
2017-08 → 2017-09 ended
USK65 HTWCF —
90363-68001 Bearing (FOR TRANSFER INPUT SHAFT)
2017-08 → —
USK65 HTWC —
36211 — Shaft, Transfer Input
36201-34030 Shaft, Transfer Input
2007-11 → 2009-04 ended
UCK65 —
36201-34030 Shaft, Transfer Input
2007-11 → 2010-10 ended
UPK65 —
36201-34031 Shaft, Transfer Input
2010-10 → 2012-08 ended
UPK65 —
36201-34040 Shaft, Transfer Input
2007-11 → 2010-10 ended
USK65 —
36201-34050 Shaft, Transfer Input
2010-10 → 2017-08 ended
USK65 —
36201-34050 Shaft, Transfer Input
2017-08 → —
USK65 HTWC —
36201-34050 Shaft, Transfer Input
2017-08 → 2017-09 ended
USK65 HTWCF —
36211D — Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
90520-99128 note Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90520-99128 note Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
2007-11 → 2012-08 ended
UPK65 —
90520-99128 note Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
2007-11 → 2017-08 ended
USK65 —
90520-99128 note Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-99128 note Ring, Hole Snap (FOR TRANSFER INPUT SHAFT)
2017-08 → —
USK65 HTWC —
36212L — Ring, Shaft Snap
90520-99123 note Ring, Shaft Snap
2007-11 → 2009-04 ended
UCK65 —
90520-99123 note Ring, Shaft Snap
2007-11 → 2012-08 ended
UPK65 —
90520-99123 note Ring, Shaft Snap
2007-11 → 2017-08 ended
USK65 —
90520-99123 note Ring, Shaft Snap
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-99123 note Ring, Shaft Snap
2017-08 → —
USK65 HTWC —
36213B — Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
90520-64005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2017-08 ended
USK65 —
90520-64011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2009-04 ended
UCK65 —
90520-64011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2007-11 → 2012-08 ended
UPK65 —
90520-64005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64005 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64006 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64007 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64008 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64009 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90520-64010 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → —
USK65 HTWC —
90520-64011 note Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
2017-08 → 2017-09 ended
USK65 HTWCF —
36216A — Ring, Transfer Input Shaft Seal, NO.1
36216-34010 Ring, Transfer Input Shaft Seal, NO.1
2007-11 → 2009-04 ended
UCK65 —
36216-34010 Ring, Transfer Input Shaft Seal, NO.1
2007-11 → 2012-08 ended
UPK65 —
36216-34010 Ring, Transfer Input Shaft Seal, NO.1
2007-11 → 2017-08 ended
USK65 —
36216-34010 Ring, Transfer Input Shaft Seal, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
36216-34010 Ring, Transfer Input Shaft Seal, NO.1
2017-08 → —
USK65 HTWC —
36218C — Plug, Transfer Input Shaft
36218-34010 Plug, Transfer Input Shaft
2007-11 → 2009-04 ended
UCK65 —
36218-34010 Plug, Transfer Input Shaft
2007-11 → 2012-08 ended
UPK65 —
36218-34010 Plug, Transfer Input Shaft
2007-11 → 2017-08 ended
USK65 —
36218-34010 Plug, Transfer Input Shaft
2017-08 → 2017-09 ended
USK65 HTWCF —
36218-34010 Plug, Transfer Input Shaft
2017-08 → —
USK65 HTWC —
36231 — Shaft, Transfer Output, Rear
36231-34020 Shaft, Transfer Output, Rear
2007-11 → 2010-04 ended
UPK65,USK65 —
36231-34020 Shaft, Transfer Output, Rear
2007-11 → 2009-04 ended
UCK65 —
36231-34021 Shaft, Transfer Output, Rear
2010-04 → 2012-08 ended
UPK65 —
36231-34021 Shaft, Transfer Output, Rear
2010-04 → 2016-05 ended
USK65 —
36231-34022 Shaft, Transfer Output, Rear
2016-05 → 2017-08 ended
USK65 —
36231-34022 Shaft, Transfer Output, Rear
2017-08 → 2017-09 ended
USK65 HTWCF —
36231-34022 Shaft, Transfer Output, Rear
2017-08 → —
USK65 HTWC —
36231A — Spacer (FOR TRANSFER OUTPUT SHAFT)
90560-32009 note Spacer (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90560-32009 note Spacer (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2010-04 ended
UPK65,USK65 —
36231E — Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
90364-32025 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2007-11 → 2009-04 ended
UCK65 —
90364-32025 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2007-11 → 2017-08 ended
USK65 —
90364-32025 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2007-11 → 2012-08 ended
UPK65 —
90364-32025 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2017-08 → 2017-09 ended
USK65 HTWCF —
90364-32025 Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
2017-08 → —
USK65 HTWC —
36231F — Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
90520-99126 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90520-99126 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2012-08 ended
UPK65 —
90520-99126 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2007-11 → 2017-08 ended
USK65 —
90520-99126 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2017-08 → —
USK65 HTWC —
90520-99126 note Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
2017-08 → 2017-09 ended
USK65 HTWCF —
36231J — Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
90363-41004 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2007-11 → 2009-04 ended
UCK65 —
90363-41004 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2007-11 → 2017-08 ended
USK65 —
90363-41004 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2007-11 → 2012-08 ended
UPK65 —
90363-41004 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2017-08 → 2017-09 ended
USK65 HTWCF —
90363-41004 Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR)
2017-08 → —
USK65 HTWC —
36235 — Sleeve, Transfer High & Low Clutch
36235-34020 Sleeve, Transfer High & Low Clutch
2007-11 → 2009-04 ended
UCK65 —
36235-34020 Sleeve, Transfer High & Low Clutch
2007-11 → 2010-10 ended
UPK65,USK65 —
36235-34030 Sleeve, Transfer High & Low Clutch
2010-10 → 2012-08 ended
UPK65 —
36235-34030 Sleeve, Transfer High & Low Clutch
2010-10 → 2015-07 ended
USK65 —
36235-34031 Sleeve, Transfer High & Low Clutch
2015-07 → 2017-08 ended
USK65 —
36235-34031 Sleeve, Transfer High & Low Clutch
2017-08 → 2017-09 ended
USK65 HTWCF —
36235-34031 Sleeve, Transfer High & Low Clutch
2017-08 → —
USK65 HTWC —
36236 — Sleeve, Front Drive Clutch
36236-34020 Sleeve, Front Drive Clutch
2007-11 → 2009-04 ended
UCK65 —
36236-34020 Sleeve, Front Drive Clutch
2007-11 → 2012-08 ended
UPK65 —
36236-34020 Sleeve, Front Drive Clutch
2007-11 → 2017-08 ended
USK65 —
36236-34020 Sleeve, Front Drive Clutch
2017-08 → 2017-09 ended
USK65 HTWCF —
36236-34020 Sleeve, Front Drive Clutch
2017-08 → —
USK65 HTWC —
36237 — Hub, Transfer Clutch
36203-34010 Hub, Transfer Clutch
2007-11 → 2009-04 ended
UCK65 —
36203-34010 Hub, Transfer Clutch
2007-11 → 2017-08 ended
USK65 —
36203-34010 Hub, Transfer Clutch
2007-11 → 2012-08 ended
UPK65 —
36203-34010 Hub, Transfer Clutch
2017-08 → 2017-09 ended
USK65 HTWCF —
36203-34010 Hub, Transfer Clutch
2017-08 → —
USK65 HTWC —
36248 — Key, Synchromesh Shifting, Transfer Drive, NO.1
36248-34010 Key, Synchromesh Shifting, Transfer Drive, NO.1
2007-11 → 2009-04 ended
UCK65 —
36248-34010 Key, Synchromesh Shifting, Transfer Drive, NO.1
2007-11 → 2012-08 ended
UPK65 —
36248-34010 Key, Synchromesh Shifting, Transfer Drive, NO.1
2007-11 → 2017-08 ended
USK65 —
36248-34010 Key, Synchromesh Shifting, Transfer Drive, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
36248-34010 Key, Synchromesh Shifting, Transfer Drive, NO.1
2017-08 → —
USK65 HTWC —
36249 — Key, Synchromesh Shifting, Transfer Drive, NO.2
36249-34020 Key, Synchromesh Shifting, Transfer Drive, NO.2
2007-11 → 2009-04 ended
UCK65 —
36249-34020 Key, Synchromesh Shifting, Transfer Drive, NO.2
2007-11 → 2010-10 ended
UPK65,USK65 —
36255 — Spacer, Transfer Output Shaft, NO.1
36255-34020 Spacer, Transfer Output Shaft, NO.1
2007-11 → 2009-04 ended
UCK65 —
36255-34020 Spacer, Transfer Output Shaft, NO.1
2007-11 → 2010-04 ended
UPK65,USK65 —
36255-34021 Spacer, Transfer Output Shaft, NO.1
2010-04 → 2012-08 ended
UPK65 —
36255-34021 Spacer, Transfer Output Shaft, NO.1
2010-04 → 2017-08 ended
USK65 —
36255-34021 Spacer, Transfer Output Shaft, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
36255-34021 Spacer, Transfer Output Shaft, NO.1
2017-08 → —
USK65 HTWC —
36270 — Gear Assy, Transfer Low Planetary
36270-34020 Gear Assy, Transfer Low Planetary
2007-11 → 2009-04 ended
UCK65 —
36270-34020 Gear Assy, Transfer Low Planetary
2007-11 → 2010-10 ended
UPK65,USK65 —
36270-34030 Gear Assy, Transfer Low Planetary
2010-10 → 2012-08 ended
UPK65 —
36270-34030 Gear Assy, Transfer Low Planetary
2010-10 → 2017-08 ended
USK65 —
36270-34030 Gear Assy, Transfer Low Planetary
2017-08 → 2017-09 ended
USK65 HTWCF —
36270-34030 Gear Assy, Transfer Low Planetary
2017-08 → —
USK65 HTWC —
36270A — Bearing (FOR TRANSFER LOW PLANETARY GEAR)
90374-73001 Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2007-11 → 2017-08 ended
USK65 —
90374-73001 Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2007-11 → 2012-08 ended
UPK65 —
90374-73001 Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2007-11 → 2009-04 ended
UCK65 —
90374-73001 Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2017-08 → 2017-09 ended
USK65 HTWCF —
90374-73001 Bearing (FOR TRANSFER LOW PLANETARY GEAR)
2017-08 → —
USK65 HTWC —
36273 — Gear, Transfer Low Planetary Ring
36273-34010 Gear, Transfer Low Planetary Ring
2007-11 → 2009-04 ended
UCK65 —
36273-34010 Gear, Transfer Low Planetary Ring
2007-11 → 2012-08 ended
UPK65 —
36273-34010 Gear, Transfer Low Planetary Ring
2007-11 → 2017-08 ended
USK65 —
36273-34010 Gear, Transfer Low Planetary Ring
2017-08 → 2017-09 ended
USK65 HTWCF —
36273-34010 Gear, Transfer Low Planetary Ring
2017-08 → —
USK65 HTWC —
36273A — Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
90520-32016 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2007-11 → 2009-04 ended
UCK65 —
90520-32016 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2007-11 → 2010-04 ended
UPK65,USK65 —
90520-34033 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2010-04 → 2012-08 ended
UPK65 —
90520-34033 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2010-04 → 2017-08 ended
USK65 —
90520-34033 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2017-08 → —
USK65 HTWC —
90520-34033 Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR)
2017-08 → 2017-09 ended
USK65 HTWCF —
36291A — Bearing (FOR TRANSFER DRIVE SPROCKET)
90364-42005 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2009-04 ended
UCK65 —
90364-42005 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2017-08 ended
USK65 —
90364-42005 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2012-08 ended
UPK65 —
90364-49003 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2012-08 ended
UPK65 —
90364-49003 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2009-04 ended
UCK65 —
90364-49003 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2007-11 → 2017-08 ended
USK65 —
90364-42005 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2017-08 → 2021-02 ended
USK65 —
90364-42009 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2021-03 → —
USK65 —
90364-49003 note Bearing (FOR TRANSFER DRIVE SPROCKET)
2017-08 → —
USK65 —
36292 — Sprocket, Transfer Driven
36292-34010 note Sprocket, Transfer Driven
2007-11 → 2009-04 ended
UCK65 —
36292-34010 note Sprocket, Transfer Driven
2007-11 → 2012-05 ended
UPK65,USK65 —
36292-34011 note Sprocket, Transfer Driven
2012-05 → 2012-08 ended
UPK65 —
36292-34011 note Sprocket, Transfer Driven
2012-05 → 2016-05 ended
USK65 —
36292-34012 Sprocket, Transfer Driven
2016-05 → 2017-08 ended
USK65 —
36292-34012 Sprocket, Transfer Driven
2017-08 → 2017-09 ended
USK65 HTWCF —
36292-34012 Sprocket, Transfer Driven
2017-08 → —
USK65 HTWC —
36292A — Bearing (FOR TRANSFER DRIVEN SPROCKET)
90363-40044 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2007-11 → 2008-12 ended
UCK65,USK65 —
90363-40083 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2008-12 → 2009-04 ended
UCK65 —
90363-40083 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2008-12 → 2012-08 ended
UPK65 —
90363-40083 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2008-12 → 2017-08 ended
USK65 —
90363-40083 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2017-08 → 2021-02 ended
USK65 —
90363-40097 Bearing (FOR TRANSFER DRIVEN SPROCKET)
2021-03 → —
USK65 —
36292D — Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET)
90520-56005 note Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET)
2007-11 → 2009-04 ended
UCK65 —
90520-56005 note Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET)
2007-11 → 2012-05 ended
UPK65,USK65 —
90521-84003 note Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET)
2007-11 → 2009-04 ended
UCK65 —
90521-84003 note Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET)
2007-11 → 2012-05 ended
UPK65,USK65 —
36293 — Chain, Transfer Front Drive
36293-34010 Chain, Transfer Front Drive
2007-11 → 2017-08 ended
USK65 —
36293-34010 Chain, Transfer Front Drive
2007-11 → 2009-04 ended
UCK65 —
36293-34010 Chain, Transfer Front Drive
2007-11 → 2012-08 ended
UPK65 —
36293-34010 Chain, Transfer Front Drive
2017-08 → 2017-09 ended
USK65 HTWCF —
36293-34010 Chain, Transfer Front Drive
2017-08 → —
USK65 HTWC —
41301Y — Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
90364-38023 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2009-04 ended
UCK65 —
90364-38023 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2012-08 ended
UPK65 —
90364-38023 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2017-08 ended
USK65 —
90364-60001 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2009-04 ended
UCK65 —
90364-60001 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2012-08 ended
UPK65 —
90364-60001 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2007-11 → 2017-08 ended
USK65 —
90364-38023 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2017-08 → 2018-03 ended
USK65 —
90364-38026 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2018-03 → —
USK65 —
90364-60001 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2017-08 → 2018-03 ended
USK65 —
90364-60002 note Bearing, Needle Roller(FOR DIFFERENTIAL CASE)
2018-03 → —
USK65 —
41311L — Ring, Shaft Snap(FOR CENTER DIFFERENTIAL CASE)
90520-55002 note Ring, Shaft Snap(FOR CENTER DIFFERENTIAL CASE)
2007-11 → 2010-10 ended
UPK65,USK65 —
90520-55002 note Ring, Shaft Snap(FOR CENTER DIFFERENTIAL CASE)
2007-11 → 2009-04 ended
UCK65 —
41311M — Case, Center Differential
41301-34040 Case, Center Differential
2010-10 → 2012-08 ended
UPK65 —
41301-34040 Case, Center Differential
2010-10 → 2014-08 ended
USK65 —
41301-34041 Case, Center Differential
2014-08 → 2016-08 ended
USK65 —
41301-34042 Case, Center Differential
2016-09 → 2017-08 ended
USK65 —
41301-34070 Case, Center Differential
2007-11 → 2009-04 ended
UCK65 —
41301-34070 Case, Center Differential
2007-11 → 2010-10 ended
UPK65,USK65 —
41301-34042 Case, Center Differential
2017-08 → 2018-03 ended
USK65 —
41301-34043 Case, Center Differential
2018-03 → —
USK65 —
41335D — Bearing (FOR SIDE GEAR SHAFT HOLDER)
90363-40088 note Bearing (FOR SIDE GEAR SHAFT HOLDER)
2012-05 → 2012-08 ended
UPK65 —
90363-40088 note Bearing (FOR SIDE GEAR SHAFT HOLDER)
2012-05 → 2017-08 ended
USK65 —
90365-40005 note Bearing (FOR SIDE GEAR SHAFT HOLDER)
2007-11 → 2009-04 ended
UCK65 —
90365-40005 note Bearing (FOR SIDE GEAR SHAFT HOLDER)
2007-11 → 2012-05 ended
UPK65,USK65 —
90363-40088 Bearing (FOR SIDE GEAR SHAFT HOLDER)
2017-08 → 2017-09 ended
USK65 HTWCF —
90363-40088 Bearing (FOR SIDE GEAR SHAFT HOLDER)
2017-08 → —
USK65 HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
