Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

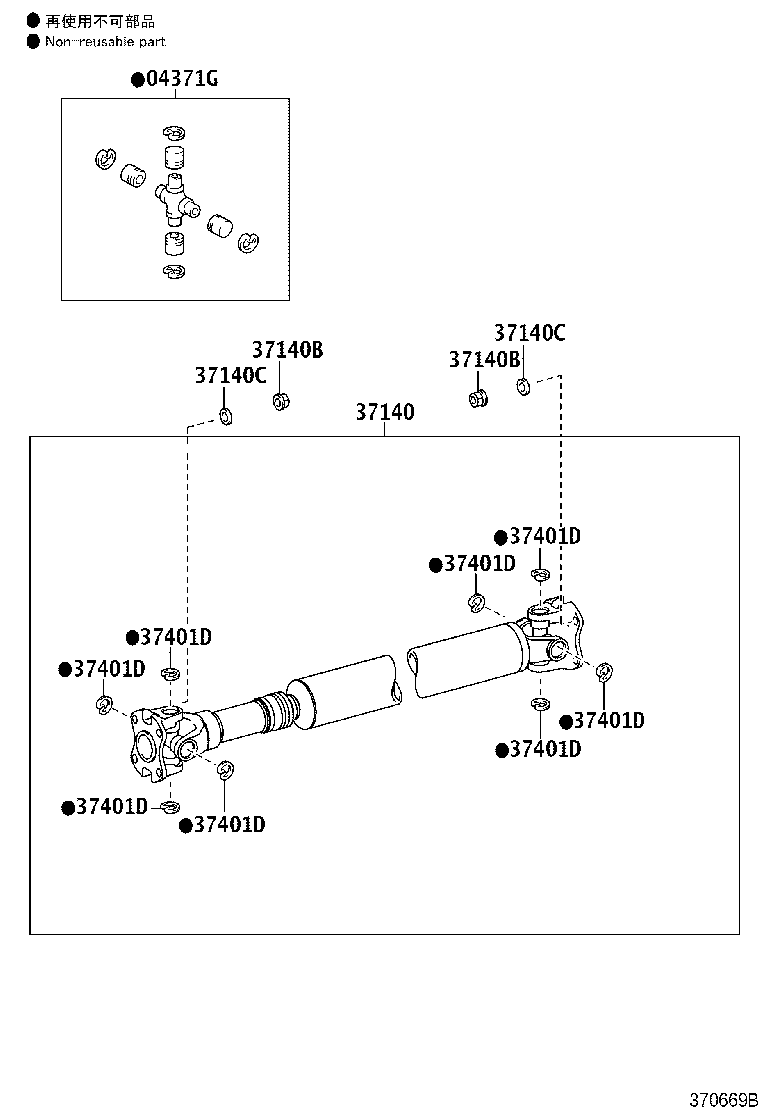

Exploded illustration 370669B 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 37401D — RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING) (31 parts) 04371G — SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT (5 parts) 37140B — NUT (F0R FRONT PROPELLER SHAFT) (5 parts) 37140C — WASHER (F0R FRONT PROPELLER SHAFT) (5 parts) 37140C — WASHER (F0R FRONT PROPELLER SHAFT) (5 parts) 37140B — NUT (F0R FRONT PROPELLER SHAFT) (5 parts) 37140 — SHAFT ASSY, PROPELLER, FRONT (7 parts)
370669B · 14 callouts Full size ↗
53 parts on this figure
Part number Description Fitment Price
04371G — Spider Kit, Front Propeller Shaft Universal Joint
04375-0C020 Spider Kit, Front Propeller Shaft Universal Joint
2007-11 → 2010-06 ended
UCK65,UPK65,USK65 —
04375-0C040 Spider Kit, Front Propeller Shaft Universal Joint
2010-06 → 2011-07 ended
UPK65,USK65 —
04375-0C041 Spider Kit, Front Propeller Shaft Universal Joint
2011-07 → 2017-08 ended
UPK65,USK65 —
04375-0C042 Spider Kit, Front Propeller Shaft Universal Joint
2017-08 → 2017-09 ended
USK65 HTWCF —
04375-0C042 Spider Kit, Front Propeller Shaft Universal Joint
2017-08 → —
USK65 HTWC —
37140 — Shaft Assy, Propeller, Front
37140-0C100 Shaft Assy, Propeller, Front
2007-11 → 2009-04 ended
UCK65 —
37140-0C110 Shaft Assy, Propeller, Front
2007-11 → 2010-05 ended
UPK65,USK65 —
37140-0C111 Shaft Assy, Propeller, Front
2010-06 → 2012-08 ended
UPK65 —
37140-0C111 Shaft Assy, Propeller, Front
2010-06 → 2017-03 ended
USK65 —
37140-0C112 Shaft Assy, Propeller, Front
2017-04 → 2017-08 ended
USK65 —
37140-0C112 Shaft Assy, Propeller, Front
2017-08 → 2017-09 ended
USK65 HTWCF —
37140-0C112 Shaft Assy, Propeller, Front
2017-08 → —
USK65 HTWC —
37140B — Nut (F0R FRONT PROPELLER SHAFT)
90178-A0045 Nut (F0R FRONT PROPELLER SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90178-A0045 Nut (F0R FRONT PROPELLER SHAFT)
2007-11 → 2012-08 ended
UPK65 —
90178-A0045 Nut (F0R FRONT PROPELLER SHAFT)
2007-11 → 2017-08 ended
USK65 —
90178-A0045 Nut (F0R FRONT PROPELLER SHAFT)
2017-08 → 2017-09 ended
USK65 HTWCF —
90178-A0045 Nut (F0R FRONT PROPELLER SHAFT)
2017-08 → —
USK65 HTWC —
37140C — Washer (F0R FRONT PROPELLER SHAFT)
90201-11013 Washer (F0R FRONT PROPELLER SHAFT)
2007-11 → 2012-08 ended
UPK65 —
90201-11013 Washer (F0R FRONT PROPELLER SHAFT)
2007-11 → 2017-08 ended
USK65 —
90201-11013 Washer (F0R FRONT PROPELLER SHAFT)
2007-11 → 2009-04 ended
UCK65 —
90201-11013 Washer (F0R FRONT PROPELLER SHAFT)
2017-08 → 2017-09 ended
USK65 HTWCF —
90201-11013 Washer (F0R FRONT PROPELLER SHAFT)
2017-08 → —
USK65 HTWC —
37401D — Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
90080-52038 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-08 ended
USK65 —
90080-52038 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52038 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52039 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52039 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52039 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-08 ended
USK65 —
90080-52040 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52040 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52040 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-08 ended
USK65 —
90080-52041 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52041 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-08 ended
USK65 —
90080-52041 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52042 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-08 ended
USK65 —
90080-52042 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52042 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52043 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52043 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52043 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-04 ended
USK65 —
90080-52044 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2017-04 ended
USK65 —
90080-52044 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2012-08 ended
UPK65 —
90080-52044 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2007-11 → 2009-04 ended
UCK65 —
90080-52038 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → 2017-09 ended
USK65 HTWCF —
90080-52038 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → —
USK65 HTWC —
90080-52039 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → 2017-09 ended
USK65 HTWCF —
90080-52039 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → —
USK65 HTWC —
90080-52040 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → 2017-09 ended
USK65 HTWCF —
90080-52040 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → —
USK65 HTWC —
90080-52041 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → 2017-09 ended
USK65 HTWCF —
90080-52041 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → —
USK65 HTWC —
90080-52042 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → 2017-09 ended
USK65 HTWCF —
90080-52042 note Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
2017-08 → —
USK65 HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
