Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

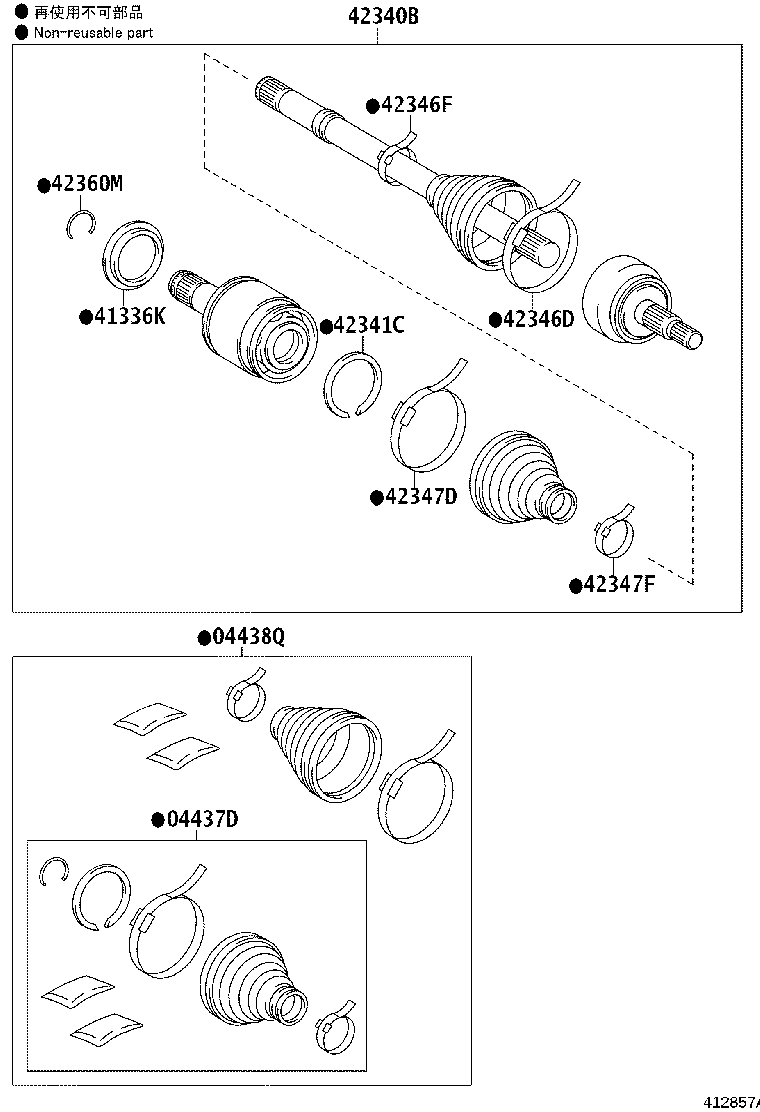

Exploded illustration 412857A 42360M — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) (4 parts) 42340B — SHAFT ASSY, REAR DRIVE, LH (6 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (4 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (4 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (4 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (4 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (4 parts) 41336K — COVER, REAR DRIVE SHAFT DUST, LH (4 parts) 04438Q — BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH (4 parts) 04437D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH (4 parts)
412857A · 10 callouts Full size ↗
42 parts on this figure
Part number Description Fitment Price
04437D — Boot Kit, Rear Drive Shaft Inboard Joint, LH
04439-0C010 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2007-11 → 2012-08 ended
UPK6# —
04439-0C010 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2007-11 → 2009-04 ended
UCK6# —
04439-0C010 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2007-11 → 2017-08 ended
USK6# —
04439-0C010 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2017-08 → —
USK6# —
04438Q — Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
04429-0C010 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2007-11 → 2009-04 ended
UCK6# —
04429-0C010 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2007-11 → 2012-08 ended
UPK6# —
04429-0C010 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2007-11 → 2017-08 ended
USK6# —
04429-0C010 Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
2017-08 → —
USK6# —
41336K — Cover, Rear Drive Shaft Dust, LH
41336-0C010 Cover, Rear Drive Shaft Dust, LH
2007-11 → 2009-04 ended
UCK6# —
41336-0C010 Cover, Rear Drive Shaft Dust, LH
2007-11 → 2012-08 ended
UPK6# —
41336-0C010 Cover, Rear Drive Shaft Dust, LH
2007-11 → 2017-08 ended
USK6# —
41336-0C010 Cover, Rear Drive Shaft Dust, LH
2017-08 → —
USK6# —
42340B — Shaft Assy, Rear Drive, LH
42340-0C010 Shaft Assy, Rear Drive, LH
2007-11 → 2009-04 ended
UCK6# —
42340-0C010 Shaft Assy, Rear Drive, LH
2007-11 → 2017-08 ended
USK6# —
42340-0C010 Shaft Assy, Rear Drive, LH
2007-11 → 2012-08 ended
UPK6# —
42340-0C010 Shaft Assy, Rear Drive, LH
2017-08 → 2019-08 ended
USK6# —
42340-0C010 note Shaft Assy, Rear Drive, LH
2019-08 → 2020-01 ended
USK65 LIMD,PLAT —
42340-0C020 Shaft Assy, Rear Drive, LH
2019-08 → —
USK6# —
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
43425-0C020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2007-11 → 2009-04 ended
UCK6# —
43425-0C020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2007-11 → 2012-08 ended
UPK6# —
43425-0C020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2007-11 → 2017-08 ended
USK6# —
43425-0C020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2017-08 → —
USK6# —
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0C070 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2012-08 ended
UPK6# —
42345-0C070 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2017-08 ended
USK6# —
42345-0C070 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2009-04 ended
UCK6# —
42345-0C070 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2017-08 → —
USK6# —
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-0C100 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2009-04 ended
UCK6# —
42345-0C100 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2012-08 ended
UPK6# —
42345-0C100 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-11 → 2017-08 ended
USK6# —
42345-0C100 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2017-08 → —
USK6# —
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-0C090 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2007-11 → 2017-08 ended
USK6# —
42345-0C090 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2007-11 → 2012-08 ended
UPK6# —
42345-0C090 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2007-11 → 2009-04 ended
UCK6# —
42345-0C090 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2017-08 → —
USK6# —
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-0C100 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2007-11 → 2009-04 ended
UCK6# —
42345-0C100 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2007-11 → 2012-08 ended
UPK6# —
42345-0C100 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2007-11 → 2017-08 ended
USK6# —
42345-0C100 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2017-08 → —
USK6# —
42360M — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
43425-0C050 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2007-11 → 2009-04 ended
UCK6# —
43425-0C050 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2007-11 → 2012-08 ended
UPK6# —
43425-0C050 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2007-11 → 2017-08 ended
USK6# —
43425-0C050 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2017-08 → —
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
