Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

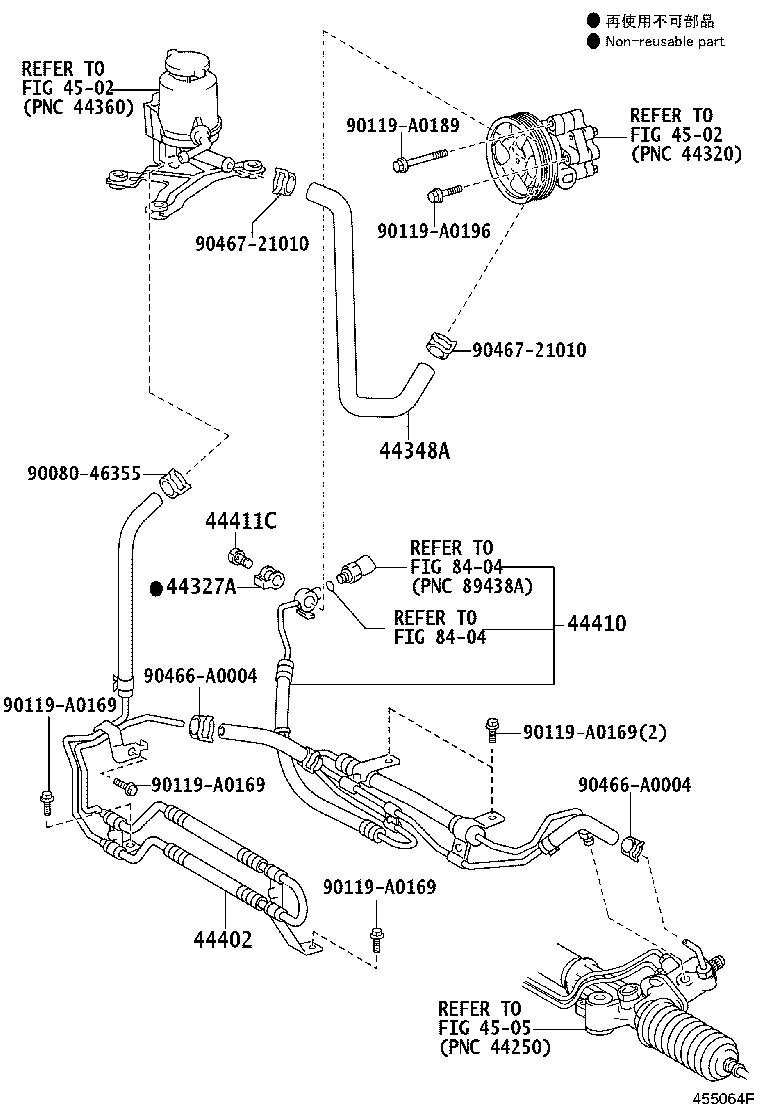

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-30040 |
Gasket, Pressure Port, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44327-30040 |
Gasket, Pressure Port, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44327-30040 |
Gasket, Pressure Port, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44327-30040 |
Gasket, Pressure Port, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44327-30040 |
Gasket, Pressure Port, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 44348A — Hose, Oil Reservoir TO Pump, NO.1 | ||||
| 44348-0C050 |
Hose, Oil Reservoir TO Pump, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44348-0C060 |
Hose, Oil Reservoir TO Pump, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44348-0C060 |
Hose, Oil Reservoir TO Pump, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44348-0C060 |
Hose, Oil Reservoir TO Pump, NO.1
2017-08 → —
|
USK6# | — | |
| 44402 — Cooler Sub-assy, Power Steering Oil, NO.1 | ||||
| 44402-0C010 |
Cooler Sub-assy, Power Steering Oil, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44402-0C010 |
Cooler Sub-assy, Power Steering Oil, NO.1
2007-11 → 2009-09
ended
|
UPK6#,USK6# | — | |
| 44402-0C011 |
Cooler Sub-assy, Power Steering Oil, NO.1
2009-10 → 2012-08
ended
|
UPK6# | — | |
| 44402-0C011 |
Cooler Sub-assy, Power Steering Oil, NO.1
2009-10 → 2016-02
ended
|
USK6# | — | |
| 44402-0C012 |
Cooler Sub-assy, Power Steering Oil, NO.1
2016-03 → 2017-08
ended
|
USK6# | — | |
| 44402-0C012 |
Cooler Sub-assy, Power Steering Oil, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44402-0C012 |
Cooler Sub-assy, Power Steering Oil, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-0C130 |
Tube Assy, Pressure Feed
2007-11 → 2007-12
ended
|
UCK6# | — | |
| 44410-0C131 |
Tube Assy, Pressure Feed
2008-01 → 2009-04
ended
|
UCK6# | — | |
| 44410-0C140 |
Tube Assy, Pressure Feed
2007-11 → 2007-12
ended
|
USK6# | — | |
| 44410-0C141 |
Tube Assy, Pressure Feed
2008-01 → 2008-07
ended
|
USK6# | — | |
| 44410-0C150 |
Tube Assy, Pressure Feed
2008-07 → 2012-08
ended
|
UPK6# | — | |
| 44410-0C150 |
Tube Assy, Pressure Feed
2008-07 → 2017-08
ended
|
USK6# | — | |
| 44410-0C150 |
Tube Assy, Pressure Feed
2017-08 → 2022-04
ended
|
USK6# | — | |
| 44411C — Bolt, Union(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED HOSE)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED HOSE)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED HOSE)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED HOSE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90401-16034 |
Bolt, Union(FOR PRESSURE FEED HOSE)
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
