Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

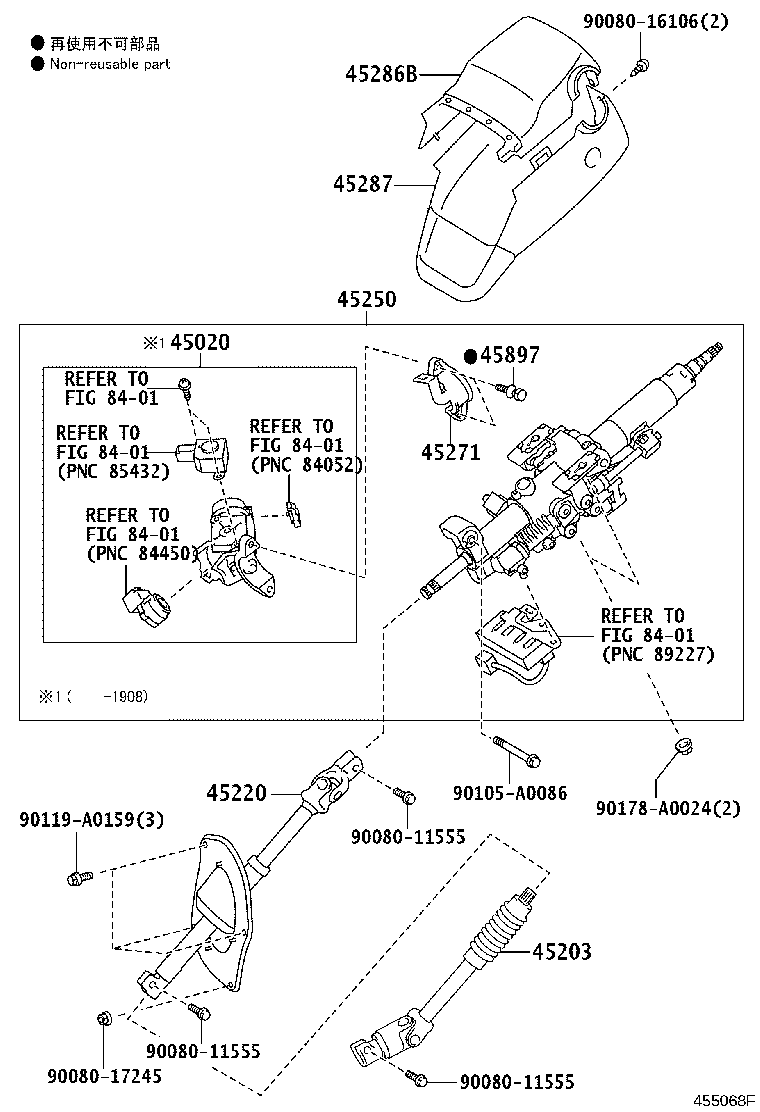

Exploded illustration 455068F 9008016106 — not listed in this catalogue 90119A0159 — not listed in this catalogue 9008017245 — not listed in this catalogue 9008011555 — not listed in this catalogue 9008011555 — not listed in this catalogue 9008011555 — not listed in this catalogue 90105A0086 — not listed in this catalogue 90178A0024 — not listed in this catalogue 45287 — COVER, STEERING COLUMN, LWR (25 parts) 45286B — COVER, STEERING COLUMN, UPR (22 parts) 45203 — SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 (5 parts) 45220 — SHAFT ASSY, STEERING INTERMEDIATE (5 parts) 45250 — COLUMN ASSY, STEERING (19 parts) 45020 — BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH (6 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (10 parts) 45897 — BOLT, STEERING LOCK SET (11 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
455068F · 8 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
103 parts on this figure
Part number Description Fitment Price
45020 — Bracket Assy, Steering Column Upper W/Switch
45020-04010 Bracket Assy, Steering Column Upper W/Switch
2007-11 → 2012-08 ended
UPK6# —
45020-04010 Bracket Assy, Steering Column Upper W/Switch
2007-11 → 2017-08 ended
USK6# —
45020-04010 Bracket Assy, Steering Column Upper W/Switch
2007-11 → 2009-04 ended
UCK6# —
45020-04010 Bracket Assy, Steering Column Upper W/Switch
2017-08 → 2019-07 ended
USK6# PLAT HTWC —
45020-04010 Bracket Assy, Steering Column Upper W/Switch
2017-08 → 2019-08 ended
USK65 HTWCF;USK6# (LIMD,SR5) HTWC —
45020-0C010 Bracket Assy, Steering Column Upper W/Switch
2019-08 → —
USK6# —
45203 — Shaft Sub-assy, Steering Intermediate, NO.2
45203-0C011 Shaft Sub-assy, Steering Intermediate, NO.2
2007-11 → 2009-04 ended
UCK6# —
45203-0C011 Shaft Sub-assy, Steering Intermediate, NO.2
2007-11 → 2012-08 ended
UPK6# —
45203-0C011 Shaft Sub-assy, Steering Intermediate, NO.2
2007-11 → 2017-08 ended
USK6# —
45203-0C011 Shaft Sub-assy, Steering Intermediate, NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
45203-0C011 Shaft Sub-assy, Steering Intermediate, NO.2
2017-08 → —
USK6# HTWC —
45220 — Shaft Assy, Steering Intermediate
45220-0C010 Shaft Assy, Steering Intermediate
2007-11 → 2009-04 ended
UCK6# —
45220-0C010 Shaft Assy, Steering Intermediate
2007-11 → 2017-08 ended
USK6# —
45220-0C010 Shaft Assy, Steering Intermediate
2007-11 → 2012-08 ended
UPK6# —
45220-0C010 Shaft Assy, Steering Intermediate
2017-08 → 2017-09 ended
USK65 HTWCF —
45220-0C010 Shaft Assy, Steering Intermediate
2017-08 → —
USK6# HTWC —
45250 — Column Assy, Steering
45250-0C170 Column Assy, Steering
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD,SR5 —
45250-0C195 Column Assy, Steering
2007-11 → 2009-04 ended
USK6# PLAT —
45250-0C195 note Column Assy, Steering
2007-11 → 2009-04 ended
UCK6#,USK6# LIMD —
45250-0C196 Column Assy, Steering
2009-04 → 2009-06 ended
USK6# PLAT —
45250-0C196 note Column Assy, Steering
2009-04 → 2009-06 ended
UPK6#,USK6# LIMD —
45250-0C197 Column Assy, Steering
2009-07 → 2013-06 ended
USK6# PLAT —
45250-0C197 note Column Assy, Steering
2009-07 → 2013-06 ended
USK6# LIMD —
45250-0C197 note Column Assy, Steering
2009-07 → 2012-08 ended
UPK6# LIMD —
45250-0C220 Column Assy, Steering
2009-04 → 2010-08 ended
UPK6#,USK6# LIMD,SR5 —
45250-0C260 Column Assy, Steering
2010-09 → 2012-08 ended
UPK6# —
45250-0C260 Column Assy, Steering
2010-09 → 2017-08 ended
USK6# LIMD,SR5 —
45250-0C270 Column Assy, Steering
2013-07 → 2017-08 ended
USK6# PLAT —
45250-0C270 note Column Assy, Steering
2013-07 → 2017-08 ended
USK6# LIMD —
45250-0C260 Column Assy, Steering
2017-08 → 2019-08 ended
USK6# LIMD,SR5 —
45250-0C310 Column Assy, Steering
2017-08 → 2019-08 ended
USK6# PLAT —
45250-0C310 note Column Assy, Steering
2017-08 → 2019-08 ended
USK6# LIMD —
45250-0C330 Column Assy, Steering
2019-08 → —
USK6# PLAT —
45250-0C330 note Column Assy, Steering
2019-08 → —
USK6# LIMD —
45250-0C340 Column Assy, Steering
2019-08 → —
USK6# LIMD,SR5 —
45271 — Clamp, Steering Column, Upper
45271-04010 note Clamp, Steering Column, Upper
2007-11 → 2009-04 ended
UCK6# LIMD —
45271-04010 note Clamp, Steering Column, Upper
2007-11 → 2012-08 ended
UPK6# LIMD —
45271-04010 Clamp, Steering Column, Upper
2007-11 → 2017-08 ended
USK6# PLAT —
45271-04010 note Clamp, Steering Column, Upper
2007-11 → 2017-08 ended
USK6# LIMD —
45271-06020 Clamp, Steering Column, Upper
2007-11 → 2009-04 ended
UCK6# —
45271-06020 Clamp, Steering Column, Upper
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
45271-06020 Clamp, Steering Column, Upper
2007-11 → 2012-08 ended
UPK6# —
45271-04010 Clamp, Steering Column, Upper
2017-08 → 2019-08 ended
USK6# PLAT —
45271-04010 note Clamp, Steering Column, Upper
2017-08 → 2019-08 ended
USK6# LIMD —
45271-06020 Clamp, Steering Column, Upper
2017-08 → 2019-08 ended
USK6# LIMD,SR5 —
45286B — Cover, Steering Column, Upr
45286-0C050-C0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
45286-0C050-C0 note Cover, Steering Column, Upr
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
45286-0C050-C0 note Cover, Steering Column, Upr
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
45286-0C050-C0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
UPK6#,USK6# SR5 —
45286-0C050-C0 note Cover, Steering Column, Upr
2007-11 → 2009-04 ended
UCK6# LIMD —
45286-0C050-C0 note Cover, Steering Column, Upr
2007-11 → 2009-04 ended
UCK6# SR5 —
45286-0C050-E0 note Cover, Steering Column, Upr
2007-11 → 2009-04 ended
UCK6# —
45286-0C050-E0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD,SR5 —
45286-0C070-C0 note Cover, Steering Column, Upr
2007-11 → 2009-04 ended
UCK6# LIMD —
45286-0C070-C0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
USK6# PLAT —
45286-0C070-C0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
45286-0C070-C0 note Cover, Steering Column, Upr
2011-06 → 2017-08 ended
USK6# PLAT —
45286-0C070-C0 note Cover, Steering Column, Upr
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
45286-0C070-E0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
USK6# PLAT —
45286-0C070-E0 note Cover, Steering Column, Upr
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
45286-0C070-E0 note Cover, Steering Column, Upr
2007-11 → 2009-04 ended
UCK6# LIMD —
45286-0C050-C0 note Cover, Steering Column, Upr
2017-08 → 2019-12 ended
USK6# LIMD —
45286-0C050-C0 note Cover, Steering Column, Upr
2019-08 → 2019-12 ended
USK6# PLAT —
45286-0C050-C0 note Cover, Steering Column, Upr
2017-08 → 2019-12 ended
USK6# SR5 —
45286-0C070-C0 note Cover, Steering Column, Upr
2017-08 → 2019-08 ended
USK6# LIMD —
45286-0C070-C0 note Cover, Steering Column, Upr
2017-08 → 2019-08 ended
USK6# PLAT —
45286-0C080-C0 note Cover, Steering Column, Upr
2019-12 → —
USK6# —
45287 — Cover, Steering Column, Lwr
45287-0C090-C0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
45287-0C090-C0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
UCK6#,USK6# SR5 —
45287-0C090-E0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD,SR5 —
45287-0C111-C0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
USK6# PLAT —
45287-0C111-C0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
45287-0C111-E0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
USK6# PLAT —
45287-0C111-E0 note Cover, Steering Column, Lwr
2007-11 → 2009-03 ended
UCK6#,USK6# LIMD —
45287-0C120-C0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
UPK6#,USK6# LIMD —
45287-0C120-C0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
UPK6#,USK6# SR5 —
45287-0C120-C0 note Cover, Steering Column, Lwr
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
45287-0C120-C0 note Cover, Steering Column, Lwr
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
45287-0C120-E0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
UPK6#,USK6# LIMD,SR5 —
45287-0C130-C0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
UPK6#,USK6# LIMD —
45287-0C130-C0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
USK6# PLAT —
45287-0C130-C0 note Cover, Steering Column, Lwr
2011-06 → 2017-08 ended
USK6# PLAT —
45287-0C130-C0 note Cover, Steering Column, Lwr
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
45287-0C130-E0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
UPK6#,USK6# LIMD —
45287-0C130-E0 note Cover, Steering Column, Lwr
2009-04 → 2011-06 ended
USK6# PLAT —
45287-0C120-C0 note Cover, Steering Column, Lwr
2017-08 → 2019-08 ended
USK6# SR5 —
45287-0C120-C0 note Cover, Steering Column, Lwr
2017-08 → 2019-08 ended
USK6# LIMD —
45287-0C130-C0 note Cover, Steering Column, Lwr
2017-08 → 2019-08 ended
USK6# PLAT —
45287-0C130-C0 note Cover, Steering Column, Lwr
2017-08 → 2019-08 ended
USK6# LIMD —
45287-0C140-C0 note Cover, Steering Column, Lwr
2019-08 → —
USK6# LIMD,SR5 —
45287-0C150-C0 note Cover, Steering Column, Lwr
2019-08 → —
USK6# LIMD —
45287-0C150-C0 note Cover, Steering Column, Lwr
2019-08 → —
USK6# PLAT —
45897 — Bolt, Steering Lock Set
45897-08010 Bolt, Steering Lock Set
2007-11 → 2009-04 ended
UCK6# —
45897-08010 Bolt, Steering Lock Set
2007-11 → 2012-08 ended
UPK6# —
45897-08010 Bolt, Steering Lock Set
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
45897-12020 note Bolt, Steering Lock Set
2007-11 → 2009-04 ended
UCK6# LIMD —
45897-12020 note Bolt, Steering Lock Set
2007-11 → 2012-08 ended
UPK6# LIMD —
45897-12020 Bolt, Steering Lock Set
2007-11 → 2017-08 ended
USK6# PLAT —
45897-12020 note Bolt, Steering Lock Set
2007-11 → 2017-08 ended
USK6# LIMD —
45897-08010 Bolt, Steering Lock Set
2017-08 → 2019-08 ended
USK6# LIMD,SR5 —
45897-08010 Bolt, Steering Lock Set
2019-08 → —
USK6# —
45897-12020 Bolt, Steering Lock Set
2017-08 → 2019-08 ended
USK6# PLAT —
45897-12020 note Bolt, Steering Lock Set
2017-08 → 2019-08 ended
USK6# LIMD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
