Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

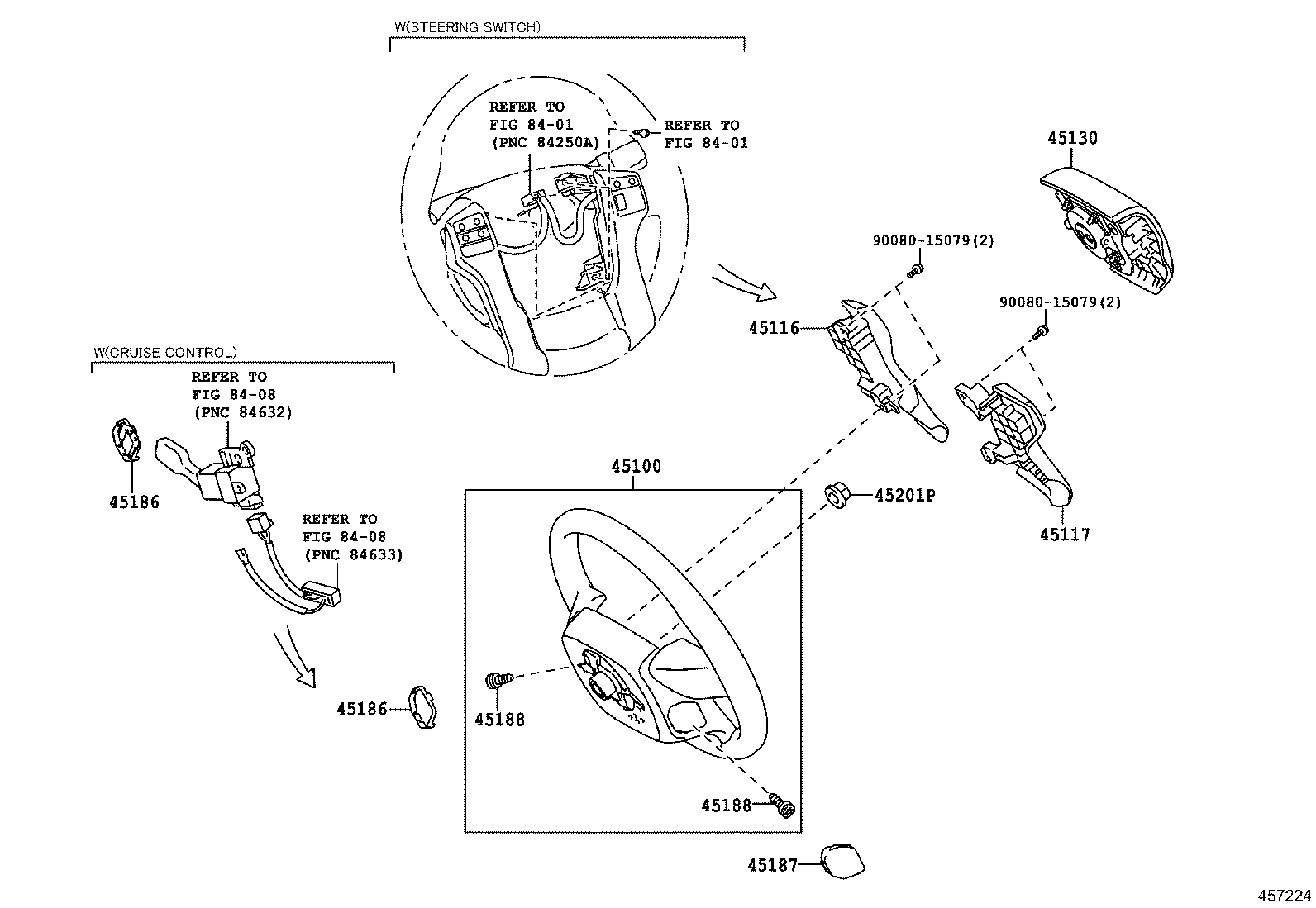

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-04290-C0 note |
Wheel Assy, Steering
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 45100-0C210-C0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C210-C0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C210-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C210-E0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C210-E0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
USK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-C0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-E0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C220-E0 note |
Wheel Assy, Steering
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C220-E0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
USK6# SR5 | — | |
| 45100-0C220-E0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45100-0C220-E0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45100-0C240-C0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 45100-0C240-C0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 45100-0C240-C0 note |
Wheel Assy, Steering
2007-11 → 2008-12
ended
|
USK6# PLAT | — | |
| 45100-0C240-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
UPK6#,USK6# LIMD | — | |
| 45100-0C240-E0 note |
Wheel Assy, Steering
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 45100-0C240-E0 note |
Wheel Assy, Steering
2007-11 → 2008-12
ended
|
USK6# PLAT | — | |
| 45100-0C240-E0 note |
Wheel Assy, Steering
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 45100-0C250-C0 note |
Wheel Assy, Steering
2007-11 → 2009-11
ended
|
UCK6#,UPK6#,USK6# LIMD | — | |
| 45100-0C250-C0 note |
Wheel Assy, Steering
2007-11 → 2008-12
ended
|
USK6# PLAT | — | |
| 45100-0C250-E0 note |
Wheel Assy, Steering
2007-11 → 2009-11
ended
|
UCK6#,UPK6#,USK6# LIMD | — | |
| 45100-0C250-E0 note |
Wheel Assy, Steering
2007-11 → 2008-12
ended
|
USK6# PLAT | — | |
| 45100-0C290-C0 note |
Wheel Assy, Steering
2008-12 → 2010-08
ended
|
USK6# PLAT | — | |
| 45100-0C290-E0 note |
Wheel Assy, Steering
2008-12 → 2010-08
ended
|
USK6# PLAT | — | |
| 45100-0C310-C0 note |
Wheel Assy, Steering
2008-12 → 2010-08
ended
|
USK6# PLAT | — | |
| 45100-0C310-E0 note |
Wheel Assy, Steering
2008-12 → 2010-08
ended
|
USK6# PLAT | — | |
| 45100-0C340-C0 note |
Wheel Assy, Steering
2010-08 → 2011-06
ended
|
USK6# PLAT | — | |
| 45100-0C340-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
USK6# PLAT | — | |
| 45100-0C340-E0 note |
Wheel Assy, Steering
2010-08 → 2011-06
ended
|
USK6# PLAT | — | |
| 45100-0C360-C0 note |
Wheel Assy, Steering
2011-06 → 2012-08
ended
|
USK6# PLAT | — | |
| 45100-0C360-C0 note |
Wheel Assy, Steering
2010-08 → 2011-06
ended
|
USK6# PLAT | — | |
| 45100-0C360-E0 note |
Wheel Assy, Steering
2010-08 → 2011-06
ended
|
USK6# PLAT | — | |
| 45100-0C370-C0 note |
Wheel Assy, Steering
2012-08 → 2013-08
ended
|
USK6# SR5 | — | |
| 45100-0C380-C0 note |
Wheel Assy, Steering
2012-08 → 2013-08
ended
|
USK6# LIMD | — | |
| 45100-0C380-C0 note |
Wheel Assy, Steering
2012-08 → 2013-08
ended
|
USK6# SR5 | — | |
| 45100-0C380-C0 note |
Wheel Assy, Steering
2012-08 → 2013-08
ended
|
USK6# SR5 | — | |
| 45100-0C400-C0 note |
Wheel Assy, Steering
2012-08 → 2013-08
ended
|
USK6# PLAT | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2015-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 45100-0C440-C0 note |
Wheel Assy, Steering
2013-08 → 2015-11
ended
|
USK6# PLAT | — | |
| 45100-0C460-C0 note |
Wheel Assy, Steering
2015-12 → 2017-08
ended
|
USK6# PLAT | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2017-08 → 2017-09
ended
|
USK65 LIMD HTWCF | — | |
| 45100-0C420-C0 note |
Wheel Assy, Steering
2017-08 → —
|
USK65 SR5;USK60 LIMD,SR5;USK65 LIMD +1 | — | |
| 45100-0C450-C0 note |
Wheel Assy, Steering
2017-08 → —
|
USK6# PLAT | — | |
| 45116 — Ornament, Steering Wheel, NO.1 | ||||
| 45116-04010-C1 note |
Ornament, Steering Wheel, NO.1
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 45117 — Ornament, Steering Wheel, NO.2 | ||||
| 45117-04010-C1 note |
Ornament, Steering Wheel, NO.2
2013-08 → 2015-08
ended
|
USK6# SR5 | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-0C070-C0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C070-E0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C080-C0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
USK6# PLAT | — | |
| 45130-0C080-C0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C080-C0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# LIMD | — | |
| 45130-0C080-C0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C080-E0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C080-E0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# SR5 | — | |
| 45130-0C080-E0 note |
Button Assy, Horn
2007-11 → 2009-04
ended
|
UCK6#,USK6# LIMD,PLAT | — | |
| 45130-0C090-C0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C090-C0 note |
Button Assy, Horn
2011-06 → 2013-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C090-E0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2011-06 → 2013-08
ended
|
USK6# PLAT | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2011-06 → 2013-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2011-06 → 2013-08
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2011-06 → 2013-08
ended
|
UPK6#,USK6# LIMD | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 45130-0C100-C0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
USK6# PLAT | — | |
| 45130-0C100-E0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-E0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 45130-0C100-E0 note |
Button Assy, Horn
2009-04 → 2011-06
ended
|
UPK6#,USK6# LIMD,PLAT | — | |
| 45130-0C110-C0 note |
Button Assy, Horn
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 45130-0C110-C0 note |
Button Assy, Horn
2013-08 → 2017-08
ended
|
USK6# PLAT,SR5 | — | |
| 45130-0C110-C0 note |
Button Assy, Horn
2017-08 → 2017-09
ended
|
USK65 LIMD HTWCF | — | |
| 45130-0C110-C0 note |
Button Assy, Horn
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-04030-C0 note |
Cover, Steering Wheel, Lower NO.2
2013-08 → 2017-08
ended
|
USK6# PLAT,SR5 | — | |
| 45186-04030-C0 note |
Cover, Steering Wheel, Lower NO.2
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2011-06 → 2013-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2011-06 → 2013-08
ended
|
UPK6#,USK6# LIMD | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2011-06
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 45186-0C040-C0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45186-0C040-E0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 45186-0C040-E0 note |
Cover, Steering Wheel, Lower NO.2
2007-11 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 45186-04030-C0 note |
Cover, Steering Wheel, Lower NO.2
2017-08 → 2017-09
ended
|
USK65 LIMD HTWCF | — | |
| 45186-04030-C0 note |
Cover, Steering Wheel, Lower NO.2
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-04010-C0 note |
Cover, Steering Wheel, Lower NO.3
2013-08 → 2017-08
ended
|
USK6# PLAT,SR5 | — | |
| 45187-04010-C0 note |
Cover, Steering Wheel, Lower NO.3
2013-08 → 2017-08
ended
|
USK6# LIMD | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2011-06 → 2013-08
ended
|
UPK6#,USK6# LIMD | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2011-06 → 2013-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2011-06
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 45187-0C030-C0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 45187-0C030-E0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 45187-0C030-E0 note |
Cover, Steering Wheel, Lower NO.3
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 45187-04010-C0 note |
Cover, Steering Wheel, Lower NO.3
2017-08 → 2017-09
ended
|
USK65 LIMD HTWCF | — | |
| 45187-04010-C0 note |
Cover, Steering Wheel, Lower NO.3
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 45188 — Screw, Steering Wheel Pad Attaching | ||||
| 45188-07010 note |
Screw, Steering Wheel Pad Attaching
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 45188-07010 note |
Screw, Steering Wheel Pad Attaching
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 45188-07010 note |
Screw, Steering Wheel Pad Attaching
2007-11 → 2017-08
ended
|
USK6# | — | |
| 45188-07010 note |
Screw, Steering Wheel Pad Attaching
2017-08 → —
|
USK6# | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90080-17234 |
Nut, Steering Wheel Set
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90080-17234 |
Nut, Steering Wheel Set
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90080-17234 |
Nut, Steering Wheel Set
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90080-17234 |
Nut, Steering Wheel Set
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
