Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

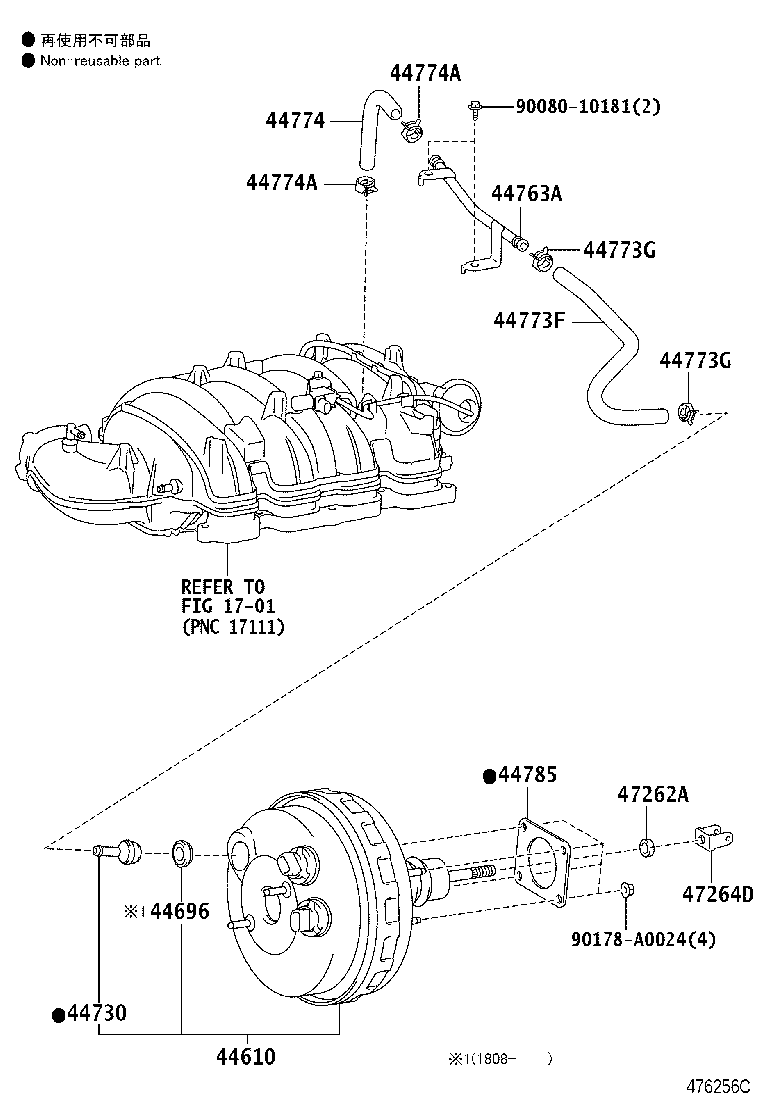

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-0C090 |
Booster Assy, Brake
2007-11 → 2008-11
ended
|
USK6# | — | |
| 44610-0C091 |
Booster Assy, Brake
2008-12 → 2012-08
ended
|
UPK6# | — | |
| 44610-0C091 |
Booster Assy, Brake
2008-12 → 2017-08
ended
|
USK6# | — | |
| 44610-0C100 |
Booster Assy, Brake
2007-11 → 2008-07
ended
|
UCK6# | — | |
| 44610-0C101 |
Booster Assy, Brake
2008-08 → 2009-04
ended
|
UCK6# | — | |
| 44610-0C110 |
Booster Assy, Brake
2017-08 → 2018-08
ended
|
USK6# | — | |
| 44610-0C111 |
Booster Assy, Brake
2018-08 → —
|
USK6# | — | |
| 44696 — Grommet, Check Valve | ||||
| 90080-48071 note |
Grommet, Check Valve
2018-08 → —
|
USK6# | — | |
| 90480-24439 note |
Grommet, Check Valve
2018-08 → —
|
USK6# | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44730-0C010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2017-08 → 2018-07
ended
|
USK6# | — | |
| 44730-60070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2018-08 → —
|
USK6# | — | |
| 44763A — Tube, Hose TO Hose, NO.1 | ||||
| 44763-0C031 |
Tube, Hose TO Hose, NO.1
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44763-0C031 |
Tube, Hose TO Hose, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44763-0C031 |
Tube, Hose TO Hose, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44763-0C031 |
Tube, Hose TO Hose, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-0C090 |
Hose, Union TO Check Valve
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44773-0C090 |
Hose, Union TO Check Valve
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44773-0C090 |
Hose, Union TO Check Valve
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44773-0C090 |
Hose, Union TO Check Valve
2017-08 → —
|
USK6# HTWC | — | |
| 44773G — Clip(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2011-04 → 2017-08
ended
|
USK6# | — | |
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2011-04 → 2012-08
ended
|
UPK6# | — | |
| 96133-41500 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 96133-41500 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2007-11 → 2011-03
ended
|
UPK6#,USK6# | — | |
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2017-08 → —
|
USK6# HTWC | — | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-0C030 |
Hose, Union TO Connector Tube
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44774-0C030 |
Hose, Union TO Connector Tube
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44774-0C030 |
Hose, Union TO Connector Tube
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44774-0C030 |
Hose, Union TO Connector Tube
2017-08 → —
|
USK6# HTWC | — | |
| 44774A — Clip(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2011-04 → 2012-08
ended
|
UPK6# | — | |
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2011-04 → 2017-08
ended
|
USK6# | — | |
| 96133-41500 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 96133-41500 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2007-11 → 2011-03
ended
|
UPK6#,USK6# | — | |
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2017-08 → —
|
USK6# HTWC | — | |
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-04020 |
Gasket, Brake Booster
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44785-04020 |
Gasket, Brake Booster
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44785-04020 |
Gasket, Brake Booster
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44785-04020 |
Gasket, Brake Booster
2017-08 → —
|
USK6# | — | |
| 47262A — Nut, Master Cylinder Push Rod Clevis Lock | ||||
| 94120-41000 |
Nut, Master Cylinder Push Rod Clevis Lock
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 94120-41000 |
Nut, Master Cylinder Push Rod Clevis Lock
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 94120-41000 |
Nut, Master Cylinder Push Rod Clevis Lock
2007-11 → 2017-08
ended
|
USK6# | — | |
| 94120-41000 |
Nut, Master Cylinder Push Rod Clevis Lock
2017-08 → —
|
USK6# | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-63020 |
Clevis, Brake Master Cylinder Push Rod
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 47264-63020 |
Clevis, Brake Master Cylinder Push Rod
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 47264-63020 |
Clevis, Brake Master Cylinder Push Rod
2007-11 → 2017-08
ended
|
USK6# | — | |
| 47264-22040 |
Clevis, Brake Master Cylinder Push Rod
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
