Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

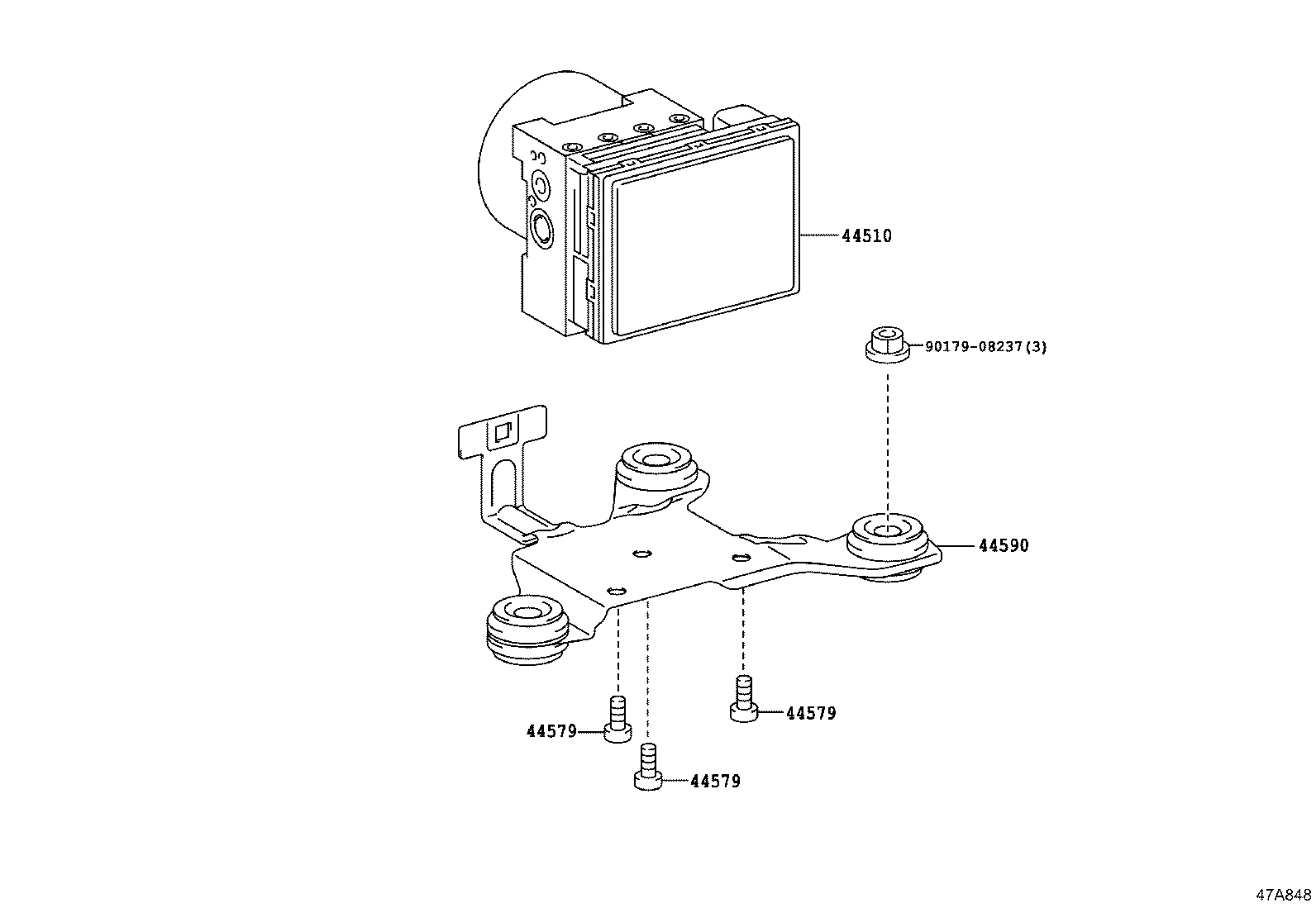

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-0C200 |
Actuator Assy, Brake
2007-11 → 2008-07
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 44050-0C201 |
Actuator Assy, Brake
2008-08 → 2009-03
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 44050-0C202 |
Actuator Assy, Brake
2009-04 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 44050-0C210 |
Actuator Assy, Brake
2007-11 → 2008-07
ended
|
USK6# PLAT | — | |
| 44050-0C210 note |
Actuator Assy, Brake
2007-11 → 2008-07
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 44050-0C211 |
Actuator Assy, Brake
2008-08 → 2009-03
ended
|
USK6# PLAT | — | |
| 44050-0C211 note |
Actuator Assy, Brake
2008-08 → 2009-03
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 44050-0C212 |
Actuator Assy, Brake
2009-04 → 2009-11
ended
|
USK6# PLAT | — | |
| 44050-0C212 note |
Actuator Assy, Brake
2009-04 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 44050-0C300 |
Actuator Assy, Brake
2009-11 → 2011-08
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 44050-0C310 |
Actuator Assy, Brake
2009-11 → 2011-08
ended
|
USK6# PLAT | — | |
| 44050-0C441 |
Actuator Assy, Brake
2011-08 → 2012-06
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 44050-0C442 |
Actuator Assy, Brake
2012-07 → 2012-08
ended
|
UPK6# | — | |
| 44050-0C442 |
Actuator Assy, Brake
2012-07 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 44050-0C451 |
Actuator Assy, Brake
2011-08 → 2012-06
ended
|
USK6# PLAT | — | |
| 44050-0C452 |
Actuator Assy, Brake
2012-07 → 2017-08
ended
|
USK6# PLAT | — | |
| 44050-0C580 |
Actuator Assy, Brake
2017-08 → 2019-10
ended
|
USK6# LIMD,SR5 | — | |
| 44050-0C581 |
Actuator Assy, Brake
2019-11 → 2020-03
ended
|
USK6# LIMD,SR5 | — | |
| 44050-0C582 |
Actuator Assy, Brake
2020-04 → 2020-07
ended
|
USK6# LIMD,SR5 | — | |
| 44050-0C583 |
Actuator Assy, Brake
2020-08 → —
|
USK6# LIMD,SR5 | — | |
| 44050-0C590 |
Actuator Assy, Brake
2017-08 → 2019-10
ended
|
USK6# PLAT | — | |
| 44050-0C591 |
Actuator Assy, Brake
2019-11 → 2020-03
ended
|
USK6# PLAT | — | |
| 44050-0C592 |
Actuator Assy, Brake
2020-04 → 2020-07
ended
|
USK6# PLAT | — | |
| 44050-0C593 |
Actuator Assy, Brake
2020-08 → —
|
USK6# PLAT | — | |
| 44579 — Bolt, Brake Actuator Bracket | ||||
| 44548-0C010 |
Bolt, Brake Actuator Bracket
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44548-0C010 |
Bolt, Brake Actuator Bracket
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44548-0C010 |
Bolt, Brake Actuator Bracket
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44548-0C010 |
Bolt, Brake Actuator Bracket
2017-08 → —
|
USK6# | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-0C050 |
Bracket Assy, Brake Actuator
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 44590-0C050 |
Bracket Assy, Brake Actuator
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 44590-0C050 |
Bracket Assy, Brake Actuator
2007-11 → 2017-08
ended
|
USK6# | — | |
| 44590-0C060 |
Bracket Assy, Brake Actuator
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
