Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

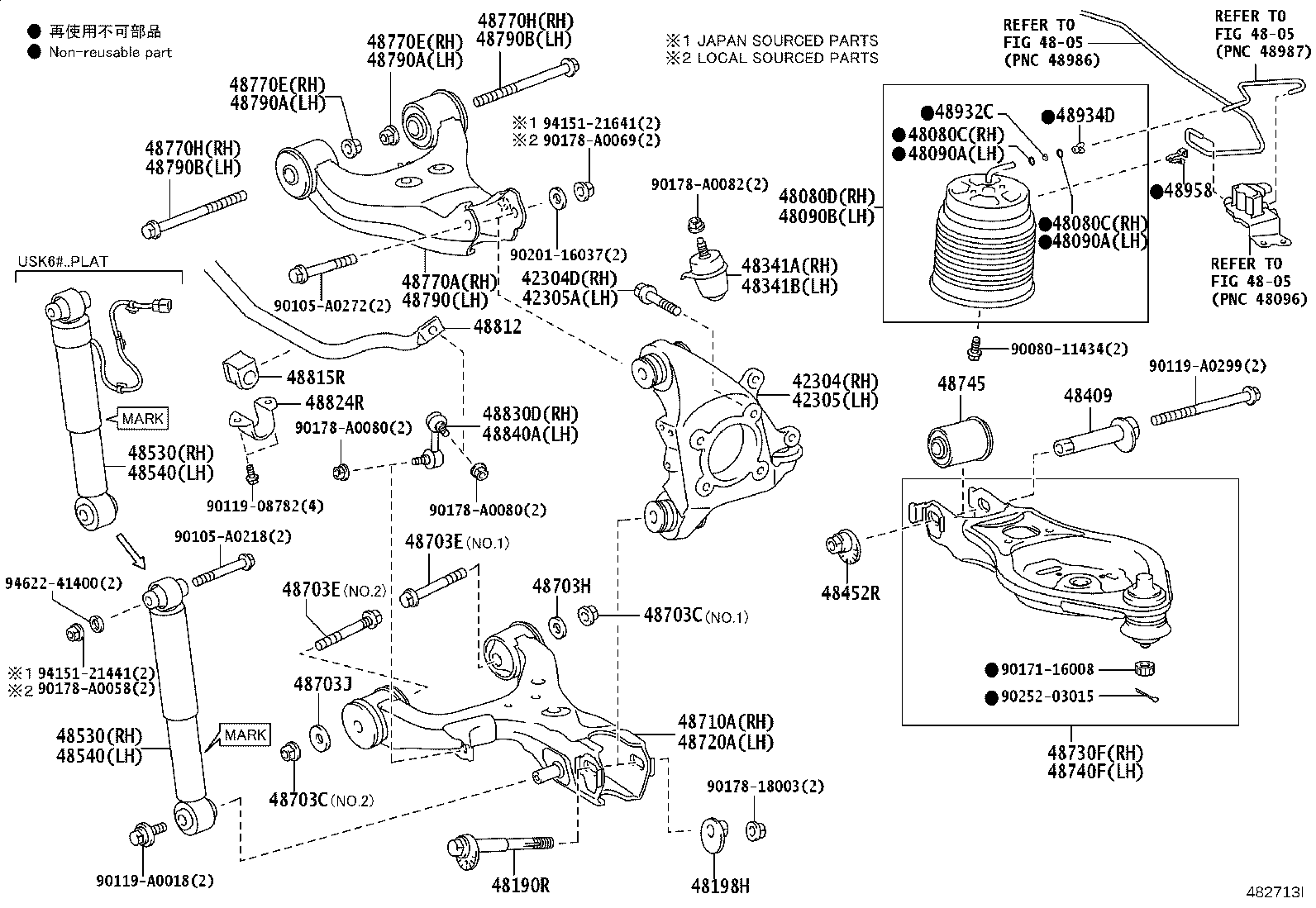

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42304 — Carrier Sub-assy, Rear Axle, RH | ||||
| 42304-0C010 |
Carrier Sub-assy, Rear Axle, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 42304-0C010 |
Carrier Sub-assy, Rear Axle, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 42304-0C010 |
Carrier Sub-assy, Rear Axle, RH
2007-11 → 2015-08
ended
|
USK6# | — | |
| 42304-0C020 |
Carrier Sub-assy, Rear Axle, RH
2015-08 → 2017-08
ended
|
USK6# | — | |
| 42304-0C020 |
Carrier Sub-assy, Rear Axle, RH
2017-08 → —
|
USK6# HTWC | — | |
| 42304-0C020 |
Carrier Sub-assy, Rear Axle, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 42304D — Bolt (FOR REAR AXLE CARRIER RH) | ||||
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER RH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER RH)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER RH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER RH)
2017-08 → —
|
USK6# | — | |
| 42305 — Carrier Sub-assy, Rear Axle, LH | ||||
| 42305-0C010 |
Carrier Sub-assy, Rear Axle, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 42305-0C010 |
Carrier Sub-assy, Rear Axle, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 42305-0C010 |
Carrier Sub-assy, Rear Axle, LH
2007-11 → 2015-08
ended
|
USK6# | — | |
| 42305-0C020 |
Carrier Sub-assy, Rear Axle, LH
2015-08 → 2017-08
ended
|
USK6# | — | |
| 42305-0C020 |
Carrier Sub-assy, Rear Axle, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 42305-0C020 |
Carrier Sub-assy, Rear Axle, LH
2017-08 → —
|
USK6# HTWC | — | |
| 42305A — Bolt (FOR REAR AXLE CARRIER LH) | ||||
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER LH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER LH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER LH)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 91552-K1250 |
Bolt (FOR REAR AXLE CARRIER LH)
2017-08 → —
|
USK6# | — | |
| 48080C — Ring, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 note |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90301-04011 note |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48080D — Cylinder Assy, Pneumatic, Rear RH | ||||
| 48080-34020 note |
Cylinder Assy, Pneumatic, Rear RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48080-34020 note |
Cylinder Assy, Pneumatic, Rear RH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48080-34020 |
Cylinder Assy, Pneumatic, Rear RH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48080-34020 |
Cylinder Assy, Pneumatic, Rear RH
2017-08 → —
|
USK6# PLAT | — | |
| 48090A — Ring, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 note |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90301-04011 note |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48090B — Cylinder Assy, Pneumatic, Rear LH | ||||
| 48090-34010 note |
Cylinder Assy, Pneumatic, Rear LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48090-34010 note |
Cylinder Assy, Pneumatic, Rear LH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48090-34010 |
Cylinder Assy, Pneumatic, Rear LH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48090-34010 |
Cylinder Assy, Pneumatic, Rear LH
2017-08 → —
|
USK6# PLAT | — | |
| 48190R — Cam Assy, Camber Adjust | ||||
| 48190-34020 |
Cam Assy, Camber Adjust
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48190-34020 |
Cam Assy, Camber Adjust
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48190-34020 |
Cam Assy, Camber Adjust
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48190-0C030 |
Cam Assy, Camber Adjust
2018-06 → —
|
USK6# | — | |
| 48190-34020 |
Cam Assy, Camber Adjust
2017-08 → 2018-05
ended
|
USK6# | — | |
| 48198H — Cam, Camber Adjust, NO.2 | ||||
| 48198-34020 |
Cam, Camber Adjust, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48198-34020 |
Cam, Camber Adjust, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48198-34020 |
Cam, Camber Adjust, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48198-0C030 |
Cam, Camber Adjust, NO.2
2018-06 → —
|
USK6# | — | |
| 48198-34020 |
Cam, Camber Adjust, NO.2
2017-08 → 2018-05
ended
|
USK6# | — | |
| 48341A — Bumper, Rear Spring, NO.1 RH | ||||
| 48341-0C030 |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48341-0C040 note |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48341-0C040 note |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 RH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 RH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 RH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 RH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 RH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48341B — Bumper, Rear Spring, NO.1 LH | ||||
| 48341-0C030 |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48341-0C040 note |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48341-0C040 note |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 LH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 LH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 48341-0C030 |
Bumper, Rear Spring, NO.1 LH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 LH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48341-0C040 |
Bumper, Rear Spring, NO.1 LH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48409 — Cam Sub-assy, Rear Suspension Toe Adjust | ||||
| 48409-34051 |
Cam Sub-assy, Rear Suspension Toe Adjust
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48409-34051 |
Cam Sub-assy, Rear Suspension Toe Adjust
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48409-34051 |
Cam Sub-assy, Rear Suspension Toe Adjust
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48409-0C030 |
Cam Sub-assy, Rear Suspension Toe Adjust
2018-06 → —
|
USK6# | — | |
| 48409-34051 |
Cam Sub-assy, Rear Suspension Toe Adjust
2017-08 → 2018-05
ended
|
USK6# | — | |
| 48452R — Plate, Rear Suspension Toe Adjust, NO.2 | ||||
| 48452-34020 |
Plate, Rear Suspension Toe Adjust, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48452-34020 |
Plate, Rear Suspension Toe Adjust, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48452-34020 |
Plate, Rear Suspension Toe Adjust, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48452-0C030 |
Plate, Rear Suspension Toe Adjust, NO.2
2018-06 → —
|
USK6# | — | |
| 48452-34020 |
Plate, Rear Suspension Toe Adjust, NO.2
2017-08 → 2018-05
ended
|
USK6# | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-0C100 note |
Absorber Assy, Shock, Rear RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48530-0C100 note |
Absorber Assy, Shock, Rear RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48530-0C100 note |
Absorber Assy, Shock, Rear RH
2007-11 → 2015-09
ended
|
USK6# LIMD,SR5 | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear RH
2015-10 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48530-34051 note |
Absorber Assy, Shock, Rear RH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear RH
2017-08 → 2019-01
ended
|
USK65 SR5 HTWC | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear RH
2017-08 → 2021-12
ended
|
USK6# SR5 HTWC | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear RH
2017-08 → —
|
USK6# LIMD,SR5 | — | |
| 48530-34051 note |
Absorber Assy, Shock, Rear RH
2017-08 → 2019-12
ended
|
USK6# PLAT | — | |
| 48530-34053 note |
Absorber Assy, Shock, Rear RH
2020-01 → —
|
USK6# PLAT | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-0C100 note |
Absorber Assy, Shock, Rear LH
2007-11 → 2015-09
ended
|
USK6# LIMD,SR5 | — | |
| 48530-0C100 note |
Absorber Assy, Shock, Rear LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48530-0C100 note |
Absorber Assy, Shock, Rear LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear LH
2015-10 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48530-34051 note |
Absorber Assy, Shock, Rear LH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear LH
2017-08 → 2019-01
ended
|
USK65 SR5 HTWC | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear LH
2017-08 → 2021-12
ended
|
USK6# SR5 HTWC | — | |
| 48530-0C101 note |
Absorber Assy, Shock, Rear LH
2017-08 → —
|
USK6# LIMD,SR5 | — | |
| 48530-34051 note |
Absorber Assy, Shock, Rear LH
2017-08 → 2019-12
ended
|
USK6# PLAT | — | |
| 48530-34053 note |
Absorber Assy, Shock, Rear LH
2020-01 → —
|
USK6# PLAT | — | |
| 48703C — Nut(FOR REAR SUSPENSION ARM) | ||||
| 90178-18003 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90178-18003 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90178-18003 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90178-A0069 note |
Nut(FOR REAR SUSPENSION ARM)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2007-11 → 2013-03
ended
|
USK6# | — | |
| 90178-18003 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90178-18003 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 90178-A0069 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90178-A0069 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 94151-21641 note |
Nut(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 48703E — Bolt(FOR REAR SUSPENSION ARM) | ||||
| 90105-A0219 note |
Bolt(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90105-A0219 note |
Bolt(FOR REAR SUSPENSION ARM)
2007-11 → 2011-08
ended
|
UPK6#,USK6# | — | |
| 90119-A0300 note |
Bolt(FOR REAR SUSPENSION ARM)
2007-11 → 2011-07
ended
|
UPK6#,USK6# | — | |
| 90119-A0300 note |
Bolt(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90119-A0307 note |
Bolt(FOR REAR SUSPENSION ARM)
2011-08 → 2012-08
ended
|
UPK6# | — | |
| 90119-A0307 note |
Bolt(FOR REAR SUSPENSION ARM)
2011-08 → 2017-08
ended
|
USK6# | — | |
| 90119-A0428 note |
Bolt(FOR REAR SUSPENSION ARM)
2011-08 → 2012-08
ended
|
UPK6# | — | |
| 90119-A0428 note |
Bolt(FOR REAR SUSPENSION ARM)
2011-08 → 2017-08
ended
|
USK6# | — | |
| 90119-A0307 note |
Bolt(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 90119-A0307 note |
Bolt(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90119-A0428 note |
Bolt(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90119-A0428 note |
Bolt(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 48703H — Washer, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-16037 |
Washer, NO.1(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90201-16037 |
Washer, NO.1(FOR REAR SUSPENSION ARM)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90201-16037 |
Washer, NO.1(FOR REAR SUSPENSION ARM)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90201-16037 |
Washer, NO.1(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90201-16037 |
Washer, NO.1(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 48703J — Washer, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 90201-18023 |
Washer, NO.2(FOR REAR SUSPENSION ARM)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90201-18023 |
Washer, NO.2(FOR REAR SUSPENSION ARM)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90201-18023 |
Washer, NO.2(FOR REAR SUSPENSION ARM)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90201-18023 |
Washer, NO.2(FOR REAR SUSPENSION ARM)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90201-18023 |
Washer, NO.2(FOR REAR SUSPENSION ARM)
2017-08 → —
|
USK6# HTWC | — | |
| 48710A — Arm Assy, Rear Suspension, NO.1 RH | ||||
| 48710-0C010 |
Arm Assy, Rear Suspension, NO.1 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48710-0C010 |
Arm Assy, Rear Suspension, NO.1 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48710-0C010 |
Arm Assy, Rear Suspension, NO.1 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48710-0C010 |
Arm Assy, Rear Suspension, NO.1 RH
2017-08 → —
|
USK6# HTWC | — | |
| 48710-0C010 |
Arm Assy, Rear Suspension, NO.1 RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 48720A — Arm Assy, Rear Suspension, NO.1 LH | ||||
| 48720-0C010 |
Arm Assy, Rear Suspension, NO.1 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48720-0C010 |
Arm Assy, Rear Suspension, NO.1 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48720-0C010 |
Arm Assy, Rear Suspension, NO.1 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48720-0C010 |
Arm Assy, Rear Suspension, NO.1 LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 48720-0C010 |
Arm Assy, Rear Suspension, NO.1 LH
2017-08 → —
|
USK6# HTWC | — | |
| 48730F — Arm Assy, Rear Suspension, NO.2 RH | ||||
| 48730-09010 note |
Arm Assy, Rear Suspension, NO.2 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48730-09010 note |
Arm Assy, Rear Suspension, NO.2 RH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 RH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48730-09020 |
Arm Assy, Rear Suspension, NO.2 RH
2007-11 → 2008-11
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 48730-09030 |
Arm Assy, Rear Suspension, NO.2 RH
2008-11 → 2009-04
ended
|
UCK6# | — | |
| 48730-09030 |
Arm Assy, Rear Suspension, NO.2 RH
2008-11 → 2009-12
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 RH
2009-12 → 2012-08
ended
|
UPK6# | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 RH
2009-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 RH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 RH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 RH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 RH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 48740F — Arm Assy, Rear Suspension, NO.2 LH | ||||
| 48730-09010 note |
Arm Assy, Rear Suspension, NO.2 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48730-09010 note |
Arm Assy, Rear Suspension, NO.2 LH
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 LH
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48730-09020 |
Arm Assy, Rear Suspension, NO.2 LH
2007-11 → 2008-11
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 48730-09030 |
Arm Assy, Rear Suspension, NO.2 LH
2008-11 → 2009-04
ended
|
UCK6# | — | |
| 48730-09030 |
Arm Assy, Rear Suspension, NO.2 LH
2008-11 → 2009-12
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 LH
2009-12 → 2012-08
ended
|
UPK6# | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 LH
2009-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 LH
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48730-09010 |
Arm Assy, Rear Suspension, NO.2 LH
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 LH
2017-08 → —
|
USK6# (LIMD,SR5) HTWC | — | |
| 48730-09040 |
Arm Assy, Rear Suspension, NO.2 LH
2017-08 → 2017-09
ended
|
USK65 (LIMD,SR5) HTWCF | — | |
| 48745 — Bush, Lateral Control Rod | ||||
| 48747-0C010 |
Bush, Lateral Control Rod
2007-11 → 2017-08
ended
|
UCK6#,UPK6#,USK6# | — | |
| 48747-0C010 |
Bush, Lateral Control Rod
2017-08 → —
|
USK6# | — | |
| 48770A — Arm Assy, Upper Control, Rear RH | ||||
| 48770-0C010 |
Arm Assy, Upper Control, Rear RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48770-0C010 |
Arm Assy, Upper Control, Rear RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48770-0C010 |
Arm Assy, Upper Control, Rear RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48770-0C010 |
Arm Assy, Upper Control, Rear RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 48770-0C010 |
Arm Assy, Upper Control, Rear RH
2017-08 → —
|
USK6# HTWC | — | |
| 48770E — Nut, NO.1(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2013-03
ended
|
USK6# | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2017-08 → —
|
USK6# HTWC | — | |
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2017-08 → —
|
USK6# HTWC | — | |
| 48770H — Bolt(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM RH)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM RH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM RH)
2017-08 → —
|
USK6# HTWC | — | |
| 48790 — Arm Assy, Upper Control, Rear LH | ||||
| 48790-0C010 |
Arm Assy, Upper Control, Rear LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48790-0C010 |
Arm Assy, Upper Control, Rear LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48790-0C010 |
Arm Assy, Upper Control, Rear LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48790-0C010 |
Arm Assy, Upper Control, Rear LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 48790-0C010 |
Arm Assy, Upper Control, Rear LH
2017-08 → —
|
USK6# HTWC | — | |
| 48790A — Nut, NO.1(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2013-03
ended
|
USK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2013-03 → 2017-08
ended
|
USK6# | — | |
| 94151-21641 |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90178-A0069 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2017-08 → —
|
USK6# HTWC | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 94151-21641 note |
Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2017-08 → —
|
USK6# HTWC | — | |
| 48790B — Bolt(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM LH)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM LH)
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90119-A0301 |
Bolt(FOR REAR UPPER CONTROL ARM LH)
2017-08 → —
|
USK6# HTWC | — | |
| 48812 — Bar, Stabilizer, Rear | ||||
| 48812-0C020 |
Bar, Stabilizer, Rear
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48812-0C020 |
Bar, Stabilizer, Rear
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48812-0C020 |
Bar, Stabilizer, Rear
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48812-0C020 |
Bar, Stabilizer, Rear
2017-08 → —
|
USK6# | — | |
| 48812-0C020 note |
Bar, Stabilizer, Rear
2017-08 → 2021-12
ended
|
USK6# SR5 HTWC | — | |
| 48815R — Bush, Stabilizer(FOR REAR) | ||||
| 48815-06080 |
Bush, Stabilizer(FOR REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48815-06080 |
Bush, Stabilizer(FOR REAR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48815-06080 |
Bush, Stabilizer(FOR REAR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48815-06080 |
Bush, Stabilizer(FOR REAR)
2017-08 → —
|
USK6# | — | |
| 48824R — Bracket, Stabilizer(FOR REAR) | ||||
| 48824-06020 |
Bracket, Stabilizer(FOR REAR)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48824-06020 |
Bracket, Stabilizer(FOR REAR)
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48824-06020 |
Bracket, Stabilizer(FOR REAR)
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48824-06020 |
Bracket, Stabilizer(FOR REAR)
2017-08 → —
|
USK6# | — | |
| 48830D — Link Assy, Rear Stabilizer, RH | ||||
| 48830-0C020 |
Link Assy, Rear Stabilizer, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48830-0C020 |
Link Assy, Rear Stabilizer, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48830-0C020 |
Link Assy, Rear Stabilizer, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48830-0C020 |
Link Assy, Rear Stabilizer, RH
2017-08 → —
|
USK6# | — | |
| 48840A — Link Assy, Rear Stabilizer, LH | ||||
| 48840-0C010 |
Link Assy, Rear Stabilizer, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48840-0C010 |
Link Assy, Rear Stabilizer, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 48840-0C010 |
Link Assy, Rear Stabilizer, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 48840-0C010 |
Link Assy, Rear Stabilizer, LH
2017-08 → —
|
USK6# | — | |
| 48932C — Plate, Height Control Tube | ||||
| 48932-30010 note |
Plate, Height Control Tube
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48932-30010 note |
Plate, Height Control Tube
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48932-30010 |
Plate, Height Control Tube
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48932-30010 |
Plate, Height Control Tube
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48932-30010 |
Plate, Height Control Tube
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48934D — Connector, Height Control Tube | ||||
| 48934-30010 note |
Connector, Height Control Tube
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48934-30010 note |
Connector, Height Control Tube
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48934-30010 |
Connector, Height Control Tube
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48934-30010 |
Connector, Height Control Tube
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48934-30010 |
Connector, Height Control Tube
2017-08 → —
|
USK6# PLAT HTWC | — | |
| 48958 — Clip, Pneumatic Cylinder | ||||
| 48958-0C010 note |
Clip, Pneumatic Cylinder
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 48958-0C010 note |
Clip, Pneumatic Cylinder
2007-11 → 2009-11
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 48958-0C010 |
Clip, Pneumatic Cylinder
2007-11 → 2017-08
ended
|
USK6# PLAT | — | |
| 48958-0C010 |
Clip, Pneumatic Cylinder
2017-08 → 2017-09
ended
|
USK65 PLAT HTWCF | — | |
| 48958-0C010 |
Clip, Pneumatic Cylinder
2017-08 → —
|
USK6# PLAT HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
