Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

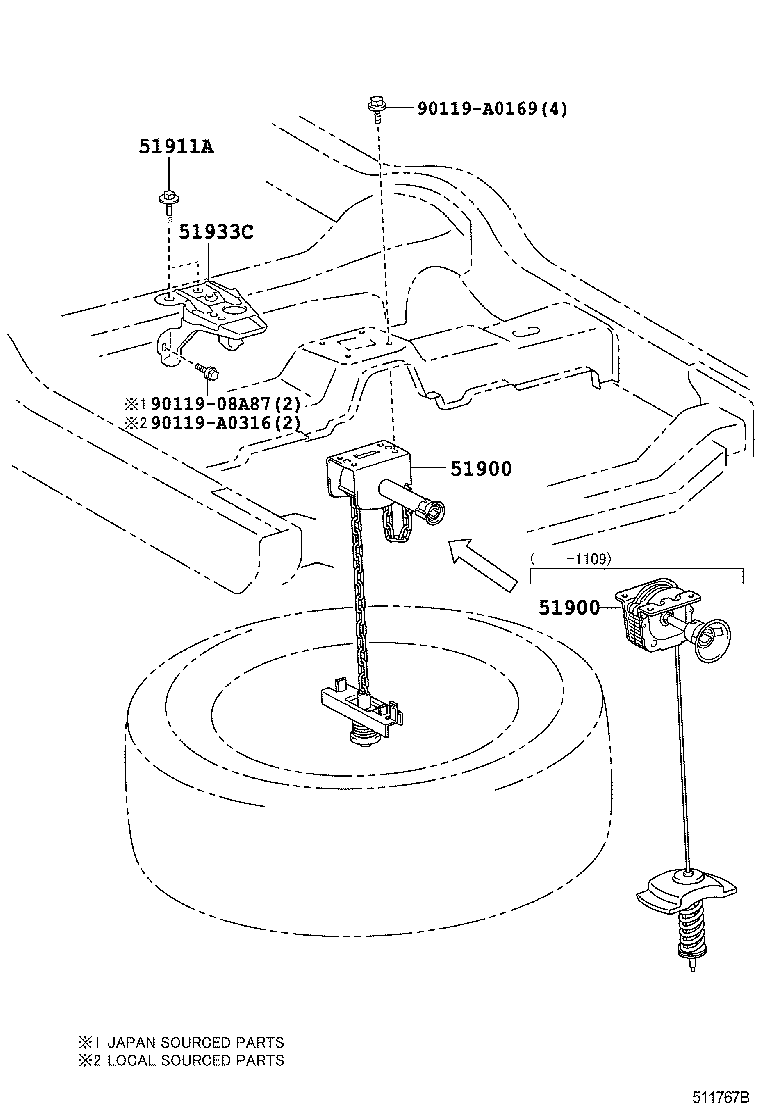

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51900 — Carrier Assy, Spare Wheel | ||||
| 51900-0C040 |
Carrier Assy, Spare Wheel
2007-11 → 2011-03
ended
|
UPK6#,USK6# | — | |
| 51900-0C040 |
Carrier Assy, Spare Wheel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51900-0C041 |
Carrier Assy, Spare Wheel
2011-04 → 2011-09
ended
|
UPK6#,USK6# | — | |
| 51900-34040 |
Carrier Assy, Spare Wheel
2011-09 → 2012-08
ended
|
UPK6# | — | |
| 51900-34040 |
Carrier Assy, Spare Wheel
2011-09 → 2017-08
ended
|
USK6# | — | |
| 51900-34040 |
Carrier Assy, Spare Wheel
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 51900-34040 |
Carrier Assy, Spare Wheel
2017-08 → —
|
USK6# HTWC | — | |
| 51911A — Bolt, Spare Wheel | ||||
| 51911-0C010 |
Bolt, Spare Wheel
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51911-0C010 |
Bolt, Spare Wheel
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51911-0C010 |
Bolt, Spare Wheel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51911-0C010 |
Bolt, Spare Wheel
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 51911-0C010 |
Bolt, Spare Wheel
2017-08 → —
|
USK6# HTWC | — | |
| 51933C — Stopper, Spare Wheel | ||||
| 51903-0C010 |
Stopper, Spare Wheel
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51903-0C010 |
Stopper, Spare Wheel
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51903-0C010 |
Stopper, Spare Wheel
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51903-0C010 |
Stopper, Spare Wheel
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 51903-0C010 |
Stopper, Spare Wheel
2017-08 → —
|
USK6# HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
