Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

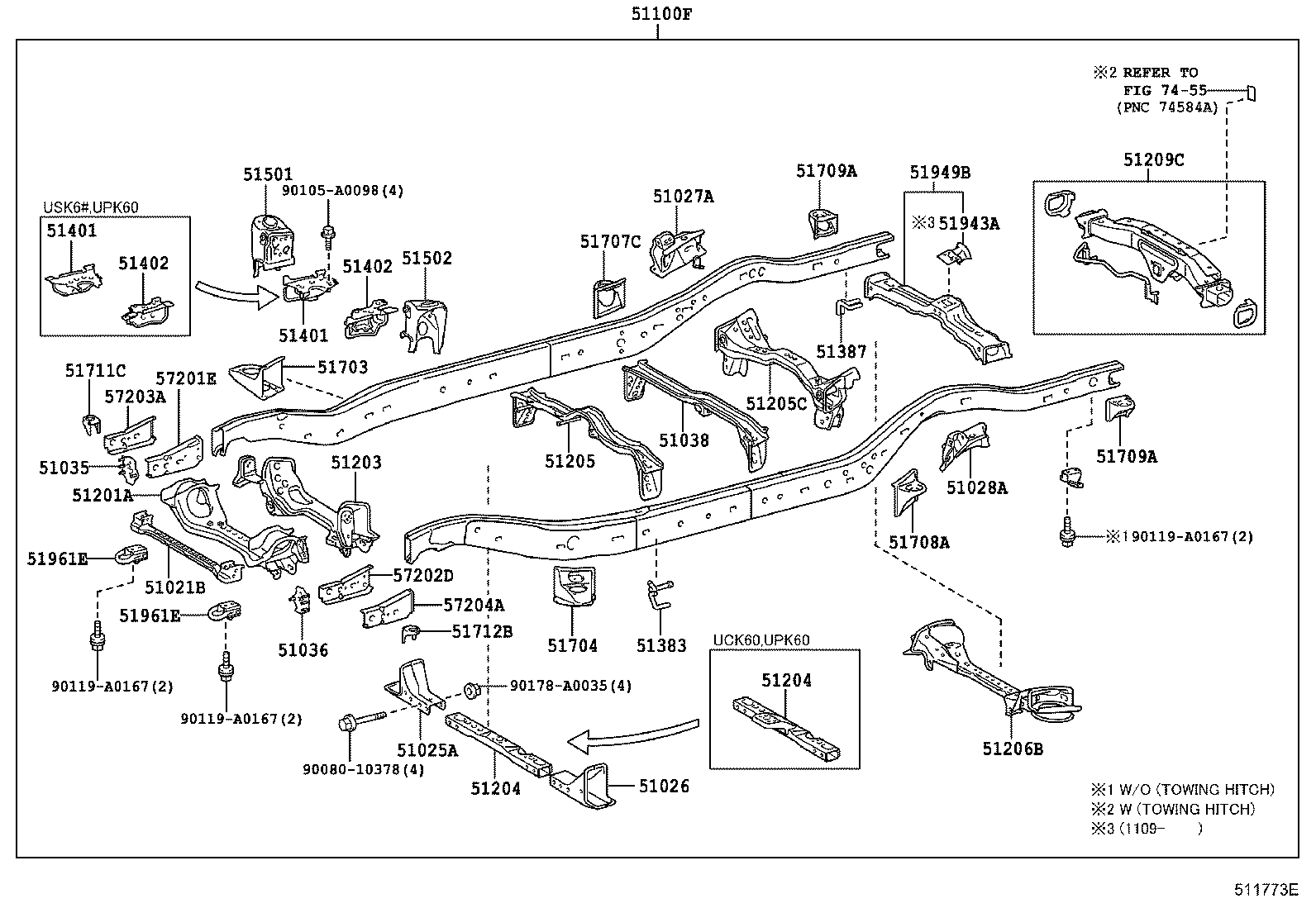

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51021B — Crossmember Sub-assy, Frame Auxiliary | ||||
| 51021-0C030 |
Crossmember Sub-assy, Frame Auxiliary
2007-11 → 2008-11
ended
|
UCK6#,USK6# | — | |
| 51021-0C040 |
Crossmember Sub-assy, Frame Auxiliary
2008-12 → 2009-04
ended
|
UCK6# | — | |
| 51021-0C040 |
Crossmember Sub-assy, Frame Auxiliary
2008-12 → 2017-08
ended
|
USK6# | — | |
| 51021-0C040 |
Crossmember Sub-assy, Frame Auxiliary
2008-12 → 2012-08
ended
|
UPK6# | — | |
| 51021-0C040 |
Crossmember Sub-assy, Frame Auxiliary
2017-08 → —
|
USK6# | — | |
| 51025A — Bracket Sub-assy, Frame NO.3 Crossmember, RH | ||||
| 51025-0C040 |
Bracket Sub-assy, Frame NO.3 Crossmember, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51025-0C040 |
Bracket Sub-assy, Frame NO.3 Crossmember, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51025-0C040 |
Bracket Sub-assy, Frame NO.3 Crossmember, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51025-0C040 |
Bracket Sub-assy, Frame NO.3 Crossmember, RH
2017-08 → —
|
USK6# | — | |
| 51026 — Bracket Sub-assy, Frame NO.3 Crossmember, LH | ||||
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51026-0C020 |
Bracket Sub-assy, Frame NO.3 Crossmember, LH
2017-08 → —
|
USK6# | — | |
| 51027A — Bracket Sub-assy, Frame NO.4 Crossmember, RH | ||||
| 51027-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51027-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51027-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51027-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, RH
2017-08 → —
|
USK6# | — | |
| 51028A — Bracket Sub-assy, Frame NO.4 Crossmember, LH | ||||
| 51028-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51028-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51028-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51028-0C020 |
Bracket Sub-assy, Frame NO.4 Crossmember, LH
2017-08 → —
|
USK6# | — | |
| 51035 — Plate Sub-assy, Frame Side Rail, RH | ||||
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51035-0C040 |
Plate Sub-assy, Frame Side Rail, RH
2017-08 → —
|
USK6# | — | |
| 51036 — Plate Sub-assy, Frame Side Rail, LH | ||||
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51036-0C040 |
Plate Sub-assy, Frame Side Rail, LH
2017-08 → —
|
USK6# | — | |
| 51038 — Member Sub-assy, Fuel Tank Support | ||||
| 51038-0C010 |
Member Sub-assy, Fuel Tank Support
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51038-0C010 |
Member Sub-assy, Fuel Tank Support
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51038-0C010 |
Member Sub-assy, Fuel Tank Support
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51038-0C010 |
Member Sub-assy, Fuel Tank Support
2017-08 → —
|
USK6# | — | |
| 51100F — Frame Sub-assy | ||||
| 51001-0C590 |
Frame Sub-assy
2007-11 → 2008-07
ended
|
UCK60 | — | |
| 51001-0C591 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK60 | — | |
| 51001-0C600 |
Frame Sub-assy
2007-11 → 2008-07
ended
|
UCK65 | — | |
| 51001-0C601 |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK65 | — | |
| 51001-0C610 |
Frame Sub-assy
2007-11 → 2008-07
ended
|
USK6# | — | |
| 51001-0C611 |
Frame Sub-assy
2008-08 → 2009-11
ended
|
UPK65,USK6# | — | |
| 51001-0C612 |
Frame Sub-assy
2009-12 → 2010-02
ended
|
UPK65,USK6# | — | |
| 51001-0C614 |
Frame Sub-assy
2010-02 → 2010-08
ended
|
USK60 | — | |
| 51001-0C614 |
Frame Sub-assy
2010-02 → 2011-09
ended
|
UPK65,USK65 | — | |
| 51001-0C615 |
Frame Sub-assy
2011-09 → 2017-08
ended
|
USK65 | — | |
| 51001-0C615 |
Frame Sub-assy
2011-09 → 2012-08
ended
|
UPK65 | — | |
| 51001-0C620 note |
Frame Sub-assy
2007-11 → 2008-07
ended
|
UCK60 SR5 | — | |
| 51001-0C621 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK60 SR5 | — | |
| 51001-0C630 note |
Frame Sub-assy
2007-11 → 2008-07
ended
|
UCK65 SR5 | — | |
| 51001-0C631 note |
Frame Sub-assy
2008-08 → 2009-04
ended
|
UCK65 SR5 | — | |
| 51001-0C640 note |
Frame Sub-assy
2007-11 → 2008-07
ended
|
USK6# SR5 | — | |
| 51001-0C641 note |
Frame Sub-assy
2008-08 → 2009-11
ended
|
UPK65,USK6# SR5 | — | |
| 51001-0C642 note |
Frame Sub-assy
2009-12 → 2010-02
ended
|
UPK65,USK6# SR5 | — | |
| 51001-0C644 note |
Frame Sub-assy
2010-02 → 2011-09
ended
|
USK65 SR5 | — | |
| 51001-0C644 note |
Frame Sub-assy
2010-02 → 2010-09
ended
|
UPK65 SR5 | — | |
| 51001-0C644 note |
Frame Sub-assy
2010-02 → 2010-08
ended
|
USK60 SR5 | — | |
| 51001-0C645 note |
Frame Sub-assy
2011-09 → 2017-08
ended
|
USK65 SR5 HTWC | — | |
| 51001-0C645 note |
Frame Sub-assy
2011-09 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 51001-0C860 |
Frame Sub-assy
2009-04 → 2009-11
ended
|
UPK60 | — | |
| 51001-0C861 |
Frame Sub-assy
2009-12 → 2010-02
ended
|
UPK60 | — | |
| 51001-0C863 |
Frame Sub-assy
2010-02 → 2011-09
ended
|
UPK60 | — | |
| 51001-0C864 |
Frame Sub-assy
2011-09 → 2012-08
ended
|
UPK60 | — | |
| 51001-0C870 note |
Frame Sub-assy
2009-04 → 2009-11
ended
|
UPK60 SR5 | — | |
| 51001-0C871 note |
Frame Sub-assy
2009-12 → 2010-03
ended
|
UPK60 SR5 | — | |
| 51001-0C873 note |
Frame Sub-assy
2010-03 → 2011-09
ended
|
UPK60 SR5 | — | |
| 51001-0C874 note |
Frame Sub-assy
2011-09 → 2012-08
ended
|
UPK60 SR5 | — | |
| 51001-0CA00 |
Frame Sub-assy
2010-08 → 2011-09
ended
|
USK60 | — | |
| 51001-0CA01 |
Frame Sub-assy
2011-09 → 2017-08
ended
|
USK60 | — | |
| 51001-0CA10 note |
Frame Sub-assy
2010-08 → 2011-09
ended
|
USK60 SR5 | — | |
| 51001-0CA11 note |
Frame Sub-assy
2011-09 → 2017-08
ended
|
USK60 SR5 | — | |
| 51001-0C615 |
Frame Sub-assy
2017-08 → —
|
USK65 | — | |
| 51001-0C645 note |
Frame Sub-assy
2017-08 → 2018-01
ended
|
USK65 SR5 HTWC | — | |
| 51001-0CA01 |
Frame Sub-assy
2017-08 → —
|
USK60 | — | |
| 51001-0CA11 note |
Frame Sub-assy
2017-08 → 2018-01
ended
|
USK60 SR5 | — | |
| 51201A — Crossmember Sub-assy, Frame, Front | ||||
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51201-0C020 |
Crossmember Sub-assy, Frame, Front
2007-11 → 2009-11
ended
|
UPK65,USK6# | — | |
| 51201-0C030 |
Crossmember Sub-assy, Frame, Front
2009-04 → 2012-08
ended
|
UPK60 | — | |
| 51201-0C030 |
Crossmember Sub-assy, Frame, Front
2009-12 → 2012-08
ended
|
UPK65 | — | |
| 51201-0C030 |
Crossmember Sub-assy, Frame, Front
2009-12 → 2017-08
ended
|
USK6# | — | |
| 51201-0C030 |
Crossmember Sub-assy, Frame, Front
2017-08 → —
|
USK6# | — | |
| 51203 — Crossmember Sub-assy, Frame, NO.2 | ||||
| 51202-0C020 |
Crossmember Sub-assy, Frame, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51202-0C020 |
Crossmember Sub-assy, Frame, NO.2
2007-11 → 2009-12
ended
|
UPK6#,USK6# | — | |
| 51202-0C041 |
Crossmember Sub-assy, Frame, NO.2
2009-12 → 2012-08
ended
|
UPK6# | — | |
| 51202-0C041 |
Crossmember Sub-assy, Frame, NO.2
2009-12 → 2017-08
ended
|
USK6# | — | |
| 51202-0C041 |
Crossmember Sub-assy, Frame, NO.2
2017-08 → —
|
USK6# | — | |
| 51204 — Crossmember Sub-assy, Frame, NO.3 | ||||
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2007-11 → 2009-04
ended
|
UCK65 | — | |
| 51203-0C040 |
Crossmember Sub-assy, Frame, NO.3
2007-11 → 2009-12
ended
|
UPK65,USK6# | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2007-11 → 2009-04
ended
|
UCK60 | — | |
| 51203-0C050 |
Crossmember Sub-assy, Frame, NO.3
2007-11 → 2009-12
ended
|
UPK60 | — | |
| 51203-0C080 |
Crossmember Sub-assy, Frame, NO.3
2009-12 → 2012-08
ended
|
UPK65 | — | |
| 51203-0C080 |
Crossmember Sub-assy, Frame, NO.3
2009-12 → 2017-08
ended
|
USK6# | — | |
| 51203-0C090 |
Crossmember Sub-assy, Frame, NO.3
2009-12 → 2012-08
ended
|
UPK60 | — | |
| 51203-0C080 |
Crossmember Sub-assy, Frame, NO.3
2017-08 → —
|
USK6# | — | |
| 51205 — Crossmember Sub-assy, Frame, NO.4 | ||||
| 51204-0C120 |
Crossmember Sub-assy, Frame, NO.4
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51204-0C120 |
Crossmember Sub-assy, Frame, NO.4
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51204-0C120 |
Crossmember Sub-assy, Frame, NO.4
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51204-0C120 |
Crossmember Sub-assy, Frame, NO.4
2017-08 → —
|
USK6# | — | |
| 51205C — Crossmember Sub-assy, Frame, NO.5 | ||||
| 51205-0C070 |
Crossmember Sub-assy, Frame, NO.5
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51205-0C070 |
Crossmember Sub-assy, Frame, NO.5
2007-11 → 2010-01
ended
|
UPK6#,USK6# | — | |
| 51205-0C070 note |
Crossmember Sub-assy, Frame, NO.5
2010-01 → 2010-02
ended
|
UPK60 SR5 | — | |
| 51205-0C071 |
Crossmember Sub-assy, Frame, NO.5
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 51205-0C071 |
Crossmember Sub-assy, Frame, NO.5
2010-02 → 2017-08
ended
|
USK6# | — | |
| 51205-0C071 |
Crossmember Sub-assy, Frame, NO.5
2017-08 → —
|
USK6# | — | |
| 51206B — Crossmember Sub-assy, Frame, NO.6 | ||||
| 51206-0C050 note |
Crossmember Sub-assy, Frame, NO.6
2010-01 → 2010-02
ended
|
UPK60 SR5 | — | |
| 51206-0C050 |
Crossmember Sub-assy, Frame, NO.6
2007-11 → 2010-01
ended
|
UPK6#,USK6# | — | |
| 51206-0C050 |
Crossmember Sub-assy, Frame, NO.6
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51206-0C051 |
Crossmember Sub-assy, Frame, NO.6
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 51206-0C051 |
Crossmember Sub-assy, Frame, NO.6
2010-02 → 2017-08
ended
|
USK6# | — | |
| 51206-0C051 |
Crossmember Sub-assy, Frame, NO.6
2017-08 → —
|
USK6# | — | |
| 51209C — Crossmember Sub-assy, Frame, Rear | ||||
| 51209-0C900 |
Crossmember Sub-assy, Frame, Rear
2007-11 → 2010-02
ended
|
UPK6#,USK6# | — | |
| 51209-0C900 |
Crossmember Sub-assy, Frame, Rear
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51209-0C901 note |
Crossmember Sub-assy, Frame, Rear
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 51209-0C901 note |
Crossmember Sub-assy, Frame, Rear
2007-11 → 2010-02
ended
|
UPK65,USK6# SR5 | — | |
| 51209-0C901 note |
Crossmember Sub-assy, Frame, Rear
2007-11 → 2010-03
ended
|
UPK60 SR5 | — | |
| 51209-0C902 |
Crossmember Sub-assy, Frame, Rear
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 51209-0C902 |
Crossmember Sub-assy, Frame, Rear
2010-02 → 2017-08
ended
|
USK6# | — | |
| 51209-0C903 note |
Crossmember Sub-assy, Frame, Rear
2010-02 → 2010-09
ended
|
UPK65 SR5 | — | |
| 51209-0C903 note |
Crossmember Sub-assy, Frame, Rear
2010-03 → 2012-08
ended
|
UPK60 SR5 | — | |
| 51209-0C903 note |
Crossmember Sub-assy, Frame, Rear
2010-02 → 2013-08
ended
|
USK65 SR5 HTWCF | — | |
| 51209-0C903 note |
Crossmember Sub-assy, Frame, Rear
2010-02 → 2017-08
ended
|
USK6# SR5 HTWC | — | |
| 51209-0C902 |
Crossmember Sub-assy, Frame, Rear
2017-08 → —
|
USK6# | — | |
| 51209-0C903 note |
Crossmember Sub-assy, Frame, Rear
2017-08 → 2018-01
ended
|
USK6# SR5 HTWC | — | |
| 51383 — Rod, NO.3 Crossmember Exhaust Pipe Hanger | ||||
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51383-0C010 |
Rod, NO.3 Crossmember Exhaust Pipe Hanger
2017-08 → —
|
USK6# | — | |
| 51387 — Rod, NO.7 Crossmember Exhaust Pipe Hanger | ||||
| 51387-0C010 |
Rod, NO.7 Crossmember Exhaust Pipe Hanger
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51387-0C010 |
Rod, NO.7 Crossmember Exhaust Pipe Hanger
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51387-0C010 |
Rod, NO.7 Crossmember Exhaust Pipe Hanger
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51387-0C010 |
Rod, NO.7 Crossmember Exhaust Pipe Hanger
2017-08 → —
|
USK6# | — | |
| 51401 — Bracket Sub-assy, Engine Front Mounting, RH | ||||
| 51401-0C070 |
Bracket Sub-assy, Engine Front Mounting, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51401-0C080 |
Bracket Sub-assy, Engine Front Mounting, RH
2017-08 → —
|
USK6# | — | |
| 51402 — Bracket Sub-assy, Engine Front Mounting, LH | ||||
| 51402-0C070 |
Bracket Sub-assy, Engine Front Mounting, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51402-0C080 |
Bracket Sub-assy, Engine Front Mounting, LH
2017-08 → —
|
USK6# | — | |
| 51501 — Support Sub-assy, Suspension Arm, RH | ||||
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51501-0C010 |
Support Sub-assy, Suspension Arm, RH
2017-08 → —
|
USK6# | — | |
| 51502 — Support Sub-assy, Suspension Arm, LH | ||||
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51502-0C010 |
Support Sub-assy, Suspension Arm, LH
2017-08 → —
|
USK6# | — | |
| 51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH | ||||
| 51703-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51703-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51703-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51703-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2017-08 → —
|
USK6# | — | |
| 51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH | ||||
| 51704-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51704-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51704-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51704-0C030 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2017-08 → —
|
USK6# | — | |
| 51707C — Bracket Sub-assy, Cab Mounting, NO.4 RH | ||||
| 51707-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51707-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51707-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51707-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 RH
2017-08 → —
|
USK6# | — | |
| 51708A — Bracket Sub-assy, Cab Mounting, NO.4 LH | ||||
| 51708-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51708-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51708-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51708-0C020 |
Bracket Sub-assy, Cab Mounting, NO.4 LH
2017-08 → —
|
USK6# | — | |
| 51709A — Bracket Sub-assy, Body Rear End Mounting | ||||
| 51709-0C020 |
Bracket Sub-assy, Body Rear End Mounting
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51709-0C020 |
Bracket Sub-assy, Body Rear End Mounting
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51709-0C020 |
Bracket Sub-assy, Body Rear End Mounting
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51709-0C020 |
Bracket Sub-assy, Body Rear End Mounting
2017-08 → —
|
USK6# | — | |
| 51711C — Bracket, Cab Mounting, NO.1 RH | ||||
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 RH
2017-08 → —
|
USK6# | — | |
| 51712B — Bracket, Cab Mounting, NO.1 LH | ||||
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 51711-0C010 |
Bracket, Cab Mounting, NO.1 LH
2017-08 → —
|
USK6# | — | |
| 51943A — Bracket, Spare Wheel Carrier | ||||
| 51091-0C010 |
Bracket, Spare Wheel Carrier
2011-09 → 2012-08
ended
|
UPK6# | — | |
| 51091-0C010 |
Bracket, Spare Wheel Carrier
2011-09 → 2017-08
ended
|
USK6# | — | |
| 51091-0C010 |
Bracket, Spare Wheel Carrier
2017-08 → —
|
USK6# | — | |
| 51949B — Crossmember, Spare Wheel Carrier | ||||
| 51099-0C010 |
Crossmember, Spare Wheel Carrier
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51099-0C010 |
Crossmember, Spare Wheel Carrier
2007-11 → 2011-09
ended
|
UPK6#,USK6# | — | |
| 51099-0C020 |
Crossmember, Spare Wheel Carrier
2011-09 → 2012-08
ended
|
UPK6# | — | |
| 51099-0C020 |
Crossmember, Spare Wheel Carrier
2011-09 → 2017-08
ended
|
USK6# | — | |
| 51099-0C020 |
Crossmember, Spare Wheel Carrier
2017-08 → —
|
USK6# | — | |
| 51961E — Hook, Front | ||||
| 51960-0C030 |
Hook, Front
2007-11 → 2010-08
ended
|
UPK60,USK60 | — | |
| 51960-0C030 |
Hook, Front
2007-11 → 2012-08
ended
|
UPK65 | — | |
| 51960-0C030 |
Hook, Front
2007-11 → 2017-08
ended
|
USK65 | — | |
| 51960-0C030 |
Hook, Front
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 51960-0C040 |
Hook, Front
2010-08 → 2012-08
ended
|
UPK60 | — | |
| 51960-0C040 |
Hook, Front
2010-08 → 2017-08
ended
|
USK60 | — | |
| 51960-0C030 |
Hook, Front
2017-08 → —
|
USK65 | — | |
| 51960-0C040 |
Hook, Front
2017-08 → —
|
USK60 | — | |
| 57201E — Extension Sub-assy, Front Side Member, RH | ||||
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 57201-0C010 |
Extension Sub-assy, Front Side Member, RH
2017-08 → —
|
USK6# | — | |
| 57202D — Extension Sub-assy, Front Side Member, LH | ||||
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 57202-0C010 |
Extension Sub-assy, Front Side Member, LH
2017-08 → —
|
USK6# | — | |
| 57203A — Extension Sub-assy, Front Side Member, NO.2 RH | ||||
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 57203-0C010 |
Extension Sub-assy, Front Side Member, NO.2 RH
2017-08 → —
|
USK6# | — | |
| 57204A — Extension Sub-assy, Front Side Member, NO.2 LH | ||||
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 57204-0C010 |
Extension Sub-assy, Front Side Member, NO.2 LH
2017-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
