Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

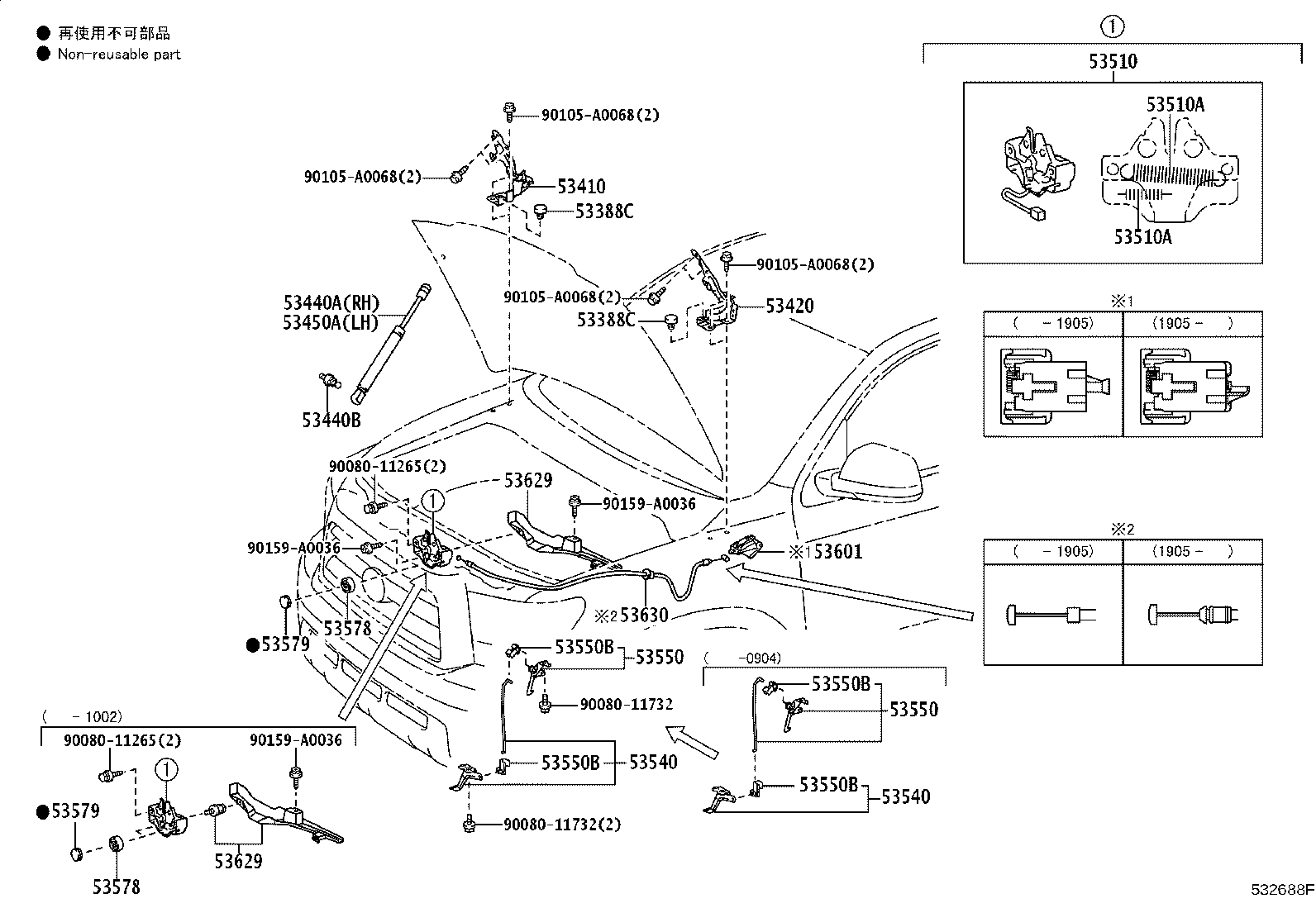

Exploded illustration 532688F 53388C — CUSHION, HOOD, REAR (3 parts) 53388C — CUSHION, HOOD, REAR (3 parts) 53410 — HINGE ASSY, HOOD, RH (5 parts) 53420 — HINGE ASSY, HOOD, LH (5 parts) 53440A — SUPPORT ASSY, HOOD, RH (6 parts) 53440B — BOLT, HOOD SUPPORT, NO.1 (5 parts) 53450A — SUPPORT ASSY, HOOD, LH (6 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (10 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (10 parts) 53510 — LOCK ASSY, HOOD (5 parts) 53578 — NUT, HOOD LOCK (6 parts) 53579 — CAP, HOOD LOCK NUT (6 parts) 53601 — LEVER SUB-ASSY, HOOD LOCK CONTROL (12 parts) 53629 — COVER, HOOD LOCK CONTROL CABLE (6 parts) 53630 — CABLE ASSY, HOOD LOCK CONTROL (5 parts) 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 90105A0068 — not listed in this catalogue 9008011265 — not listed in this catalogue 90159A0036 — not listed in this catalogue 90159A0036 — not listed in this catalogue 53578 — NUT, HOOD LOCK (6 parts) 53579 — CAP, HOOD LOCK NUT (6 parts) 53629 — COVER, HOOD LOCK CONTROL CABLE (6 parts) 9008011265 — not listed in this catalogue 90159A0036 — not listed in this catalogue 53540 — LEVER ASSY, AUXILIARY CATCH RELEASE (5 parts) 53550 — HOOK ASSY, HOOD AUXILIARY CATCH (5 parts) 53550B — SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK (5 parts) 53550B — SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK (5 parts) 9008011732 — not listed in this catalogue 9008011732 — not listed in this catalogue 53540 — LEVER ASSY, AUXILIARY CATCH RELEASE (5 parts) 53550 — HOOK ASSY, HOOD AUXILIARY CATCH (5 parts) 53550B — SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK (5 parts) 53550B — SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK (5 parts)
532688F · 26 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
53388C — Cushion, Hood, Rear
53388-22090 Cushion, Hood, Rear
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
53388-22090 Cushion, Hood, Rear
2017-08 → 2017-09 ended
USK65 HTWCF —
53388-22090 Cushion, Hood, Rear
2017-08 → —
USK6# HTWC —
53410 — Hinge Assy, Hood, RH
53410-0C020 Hinge Assy, Hood, RH
2007-11 → 2009-04 ended
UCK6# —
53410-0C020 Hinge Assy, Hood, RH
2007-11 → 2017-08 ended
USK6# —
53410-0C020 Hinge Assy, Hood, RH
2007-11 → 2012-08 ended
UPK6# —
53410-0C020 Hinge Assy, Hood, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
53410-0C020 Hinge Assy, Hood, RH
2017-08 → —
USK6# HTWC —
53420 — Hinge Assy, Hood, LH
53420-0C020 Hinge Assy, Hood, LH
2007-11 → 2009-04 ended
UCK6# —
53420-0C020 Hinge Assy, Hood, LH
2007-11 → 2012-08 ended
UPK6# —
53420-0C020 Hinge Assy, Hood, LH
2007-11 → 2017-08 ended
USK6# —
53420-0C020 Hinge Assy, Hood, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
53420-0C020 Hinge Assy, Hood, LH
2017-08 → —
USK6# HTWC —
53440A — Support Assy, Hood, RH
53440-0C020 Support Assy, Hood, RH
2007-11 → 2009-04 ended
UCK6# —
53440-0C020 Support Assy, Hood, RH
2007-11 → 2012-02 ended
UPK6#,USK6# —
53440-0C021 Support Assy, Hood, RH
2012-03 → 2012-08 ended
UPK6# —
53440-0C021 Support Assy, Hood, RH
2012-03 → 2017-08 ended
USK6# —
53440-0C060 Support Assy, Hood, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
53440-0C060 Support Assy, Hood, RH
2017-08 → —
USK6# HTWC —
53440B — Bolt, Hood Support, NO.1
68961-0C030 Bolt, Hood Support, NO.1
2007-11 → 2009-04 ended
UCK6# —
68961-0C030 Bolt, Hood Support, NO.1
2007-11 → 2012-08 ended
UPK6# —
68961-0C030 Bolt, Hood Support, NO.1
2007-11 → 2017-08 ended
USK6# —
68961-0C030 Bolt, Hood Support, NO.1
2017-08 → 2017-09 ended
USK65 HTWCF —
68961-0C030 Bolt, Hood Support, NO.1
2017-08 → —
USK6# HTWC —
53450A — Support Assy, Hood, LH
53450-0C020 Support Assy, Hood, LH
2007-11 → 2009-04 ended
UCK6# —
53450-0C020 Support Assy, Hood, LH
2007-11 → 2012-02 ended
UPK6#,USK6# —
53450-0C021 Support Assy, Hood, LH
2012-03 → 2012-08 ended
UPK6# —
53450-0C021 Support Assy, Hood, LH
2012-03 → 2017-08 ended
USK6# —
53450-0C060 Support Assy, Hood, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
53450-0C060 Support Assy, Hood, LH
2017-08 → —
USK6# HTWC —
53510 — Lock Assy, Hood
53510-0C040 Lock Assy, Hood
2010-02 → 2012-08 ended
UPK6# —
53510-0C040 Lock Assy, Hood
2010-02 → 2017-08 ended
USK6# —
53510-0E010 Lock Assy, Hood
2007-11 → 2009-04 ended
UCK6# —
53510-0E010 Lock Assy, Hood
2007-11 → 2010-01 ended
UPK6#,USK6# —
53510-0C040 Lock Assy, Hood
2017-08 → —
USK6# —
53510A — Spring, Tension(FOR HOOD LOCK)
90084-50002 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2009-04 ended
UCK6# —
90084-50002 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2012-08 ended
UPK6# —
90084-50002 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2017-08 ended
USK6# —
90084-50003 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2009-04 ended
UCK6# —
90084-50003 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2017-08 ended
USK6# —
90084-50003 note Spring, Tension(FOR HOOD LOCK)
2007-11 → 2012-08 ended
UPK6# —
90084-50002 note Spring, Tension(FOR HOOD LOCK)
2017-08 → 2017-09 ended
USK65 HTWCF —
90084-50002 note Spring, Tension(FOR HOOD LOCK)
2017-08 → —
USK6# HTWC —
90084-50003 note Spring, Tension(FOR HOOD LOCK)
2017-08 → 2017-09 ended
USK65 HTWCF —
90084-50003 note Spring, Tension(FOR HOOD LOCK)
2017-08 → —
USK6# HTWC —
53540 — Lever Assy, Auxiliary Catch Release
53540-0C030 Lever Assy, Auxiliary Catch Release
2007-11 → 2009-04 ended
UCK6#,USK6# —
53540-0C050 Lever Assy, Auxiliary Catch Release
2009-04 → 2017-08 ended
USK6# —
53540-0C050 Lever Assy, Auxiliary Catch Release
2009-04 → 2012-08 ended
UPK6# —
53540-0C050 Lever Assy, Auxiliary Catch Release
2017-08 → 2017-09 ended
USK65 HTWCF —
53540-0C050 Lever Assy, Auxiliary Catch Release
2017-08 → —
USK6# HTWC —
53550 — Hook Assy, Hood Auxiliary Catch
53550-0C050 Hook Assy, Hood Auxiliary Catch
2007-11 → 2009-04 ended
UCK6#,USK6# —
53550-0C060 Hook Assy, Hood Auxiliary Catch
2009-04 → 2012-08 ended
UPK6# —
53550-0C060 Hook Assy, Hood Auxiliary Catch
2009-04 → 2017-08 ended
USK6# —
53550-0C060 Hook Assy, Hood Auxiliary Catch
2017-08 → 2017-09 ended
USK65 HTWCF —
53550-0C060 Hook Assy, Hood Auxiliary Catch
2017-08 → —
USK6# HTWC —
53550B — Snap, Hood Auxiliary Catch Hook Control Link
69759-0C010 Snap, Hood Auxiliary Catch Hook Control Link
2007-11 → 2009-04 ended
UCK6# —
69759-0C010 Snap, Hood Auxiliary Catch Hook Control Link
2007-11 → 2012-08 ended
UPK6# —
69759-0C010 Snap, Hood Auxiliary Catch Hook Control Link
2007-11 → 2017-08 ended
USK6# —
69759-0C010 Snap, Hood Auxiliary Catch Hook Control Link
2017-08 → 2017-09 ended
USK65 HTWCF —
69759-0C010 Snap, Hood Auxiliary Catch Hook Control Link
2017-08 → —
USK6# HTWC —
53578 — Nut, Hood Lock
53578-0E010 Nut, Hood Lock
2007-11 → 2009-04 ended
UCK6# —
53578-0E010 Nut, Hood Lock
2010-02 → 2017-08 ended
USK6# —
53578-0E010 Nut, Hood Lock
2010-02 → 2012-08 ended
UPK6# —
53578-0E010 Nut, Hood Lock
2007-11 → 2010-02 ended
UPK6#,USK6# —
53578-0E010 Nut, Hood Lock
2017-08 → 2017-09 ended
USK65 HTWCF —
53578-0E010 Nut, Hood Lock
2017-08 → —
USK6# HTWC —
53579 — Cap, Hood Lock Nut
53579-0E010 Cap, Hood Lock Nut
2007-11 → 2009-04 ended
UCK6# —
53579-0E010 Cap, Hood Lock Nut
2007-11 → 2010-02 ended
UPK6#,USK6# —
53579-0E010 Cap, Hood Lock Nut
2010-02 → 2012-08 ended
UPK6# —
53579-0E010 Cap, Hood Lock Nut
2010-02 → 2017-08 ended
USK6# —
53579-0E010 Cap, Hood Lock Nut
2017-08 → —
USK6# HTWC —
53579-0E010 Cap, Hood Lock Nut
2017-08 → 2017-09 ended
USK65 HTWCF —
53601 — Lever Sub-assy, Hood Lock Control
53601-0C010-B0 note Lever Sub-assy, Hood Lock Control
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
53601-0C010-C0 note Lever Sub-assy, Hood Lock Control
2008-12 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
53601-0C010-E0 note Lever Sub-assy, Hood Lock Control
2007-11 → 2017-08 ended
USK6# PLAT —
53601-0C010-E1 note Lever Sub-assy, Hood Lock Control
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
53601-0C010-B0 note Lever Sub-assy, Hood Lock Control
2017-08 → 2019-05 ended
USK6# —
53601-0C010-C0 note Lever Sub-assy, Hood Lock Control
2017-08 → 2019-05 ended
USK6# SR5 —
53601-0C010-E0 note Lever Sub-assy, Hood Lock Control
2017-08 → 2019-05 ended
USK6# PLAT —
53601-0C010-E1 note Lever Sub-assy, Hood Lock Control
2017-08 → 2019-05 ended
USK6# —
53601-0C011-B0 note Lever Sub-assy, Hood Lock Control
2019-05 → —
USK6# —
53601-0C011-C0 note Lever Sub-assy, Hood Lock Control
2019-05 → —
USK6# LIMD,SR5 —
53601-0C011-E0 note Lever Sub-assy, Hood Lock Control
2019-05 → —
USK6# PLAT —
53601-0C011-E1 note Lever Sub-assy, Hood Lock Control
2019-05 → —
USK6# —
53629 — Cover, Hood Lock Control Cable
53629-0C010 Cover, Hood Lock Control Cable
2007-11 → 2009-04 ended
UCK6# —
53629-0C010 Cover, Hood Lock Control Cable
2007-11 → 2010-02 ended
UPK6#,USK6# —
53629-0C011 Cover, Hood Lock Control Cable
2010-02 → 2012-08 ended
UPK6# —
53629-0C011 Cover, Hood Lock Control Cable
2010-02 → 2017-08 ended
USK6# —
53629-0C011 Cover, Hood Lock Control Cable
2017-08 → 2017-09 ended
USK65 HTWCF —
53629-0C011 Cover, Hood Lock Control Cable
2017-08 → —
USK6# HTWC —
53630 — Cable Assy, Hood Lock Control
53630-0C020 Cable Assy, Hood Lock Control
2007-11 → 2009-04 ended
UCK6# —
53630-0C020 Cable Assy, Hood Lock Control
2007-11 → 2012-08 ended
UPK6# —
53630-0C020 Cable Assy, Hood Lock Control
2007-11 → 2017-08 ended
USK6# —
53630-0C020 Cable Assy, Hood Lock Control
2017-08 → 2019-05 ended
USK6# —
53630-0C021 Cable Assy, Hood Lock Control
2019-05 → —
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
