Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

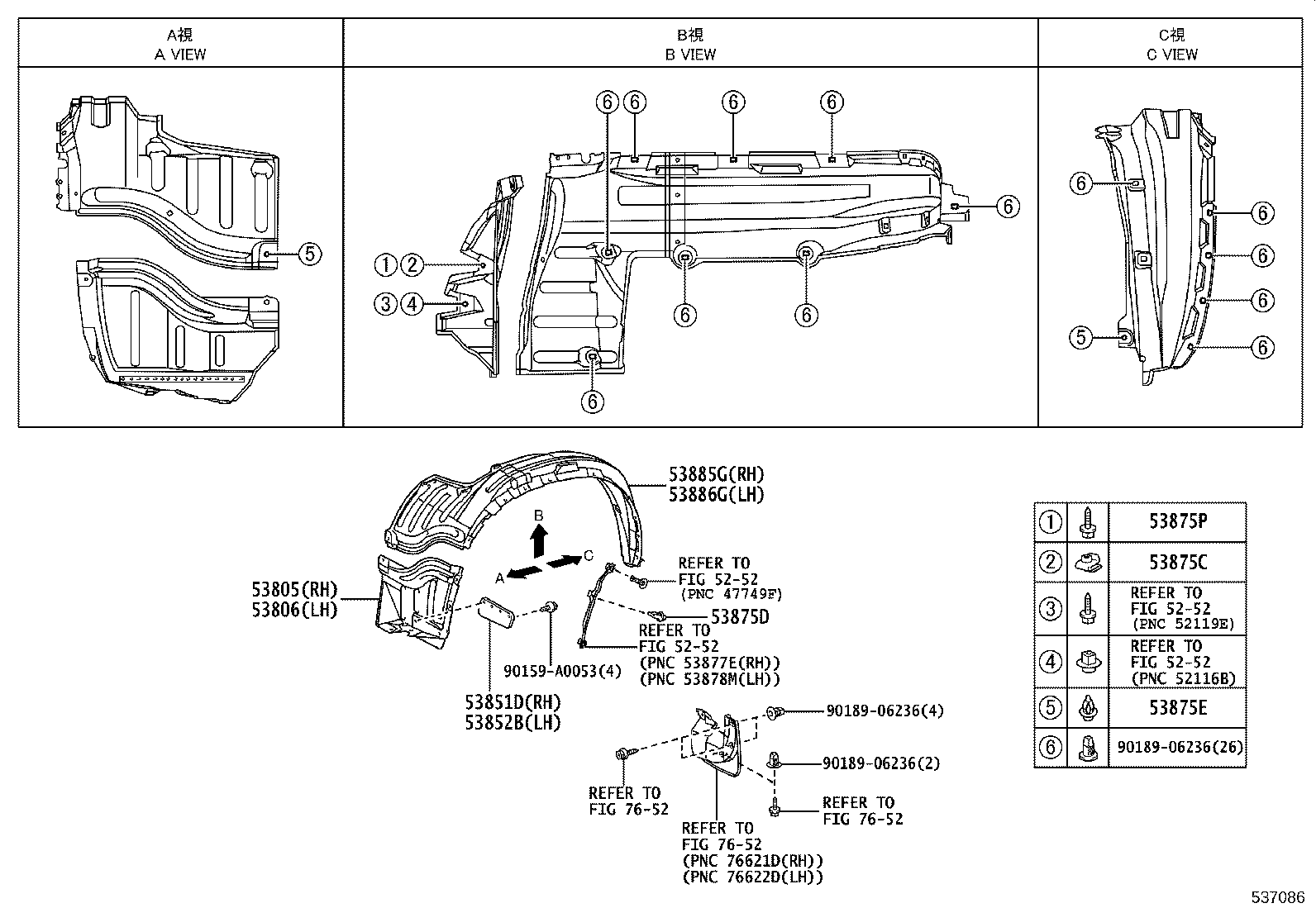

Exploded illustration 537086 9018906236 — not listed in this catalogue 53885G — SEAL SUB-ASSY, FENDER APRON MUDGUARD, RH (9 parts) 53886G — SEAL, FENDER APRON MUDGUARD, LH (5 parts) 53805 — SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH (4 parts) 53806 — SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH (4 parts) 53851D — PAD, FRONT WHEEL OPENING EXTENSION, RH (5 parts) 53852B — PAD, FRONT WHEEL OPENING EXTENSION, LH (5 parts) 7652 — not listed in this catalogue 7652 — not listed in this catalogue 9018906236 — not listed in this catalogue 9018906236 — not listed in this catalogue 53875D — CLIP, FRONT FENDER LINER, NO.2 (3 parts) 90159A0053 — not listed in this catalogue 53875E — CLIP, FRONT FENDER LINER, NO.3 (3 parts) 53875P — SCREW, NO.1 (3 parts) 53875C — CLIP, FRONT FENDER LINER (5 parts) 5252 — not listed in this catalogue 5252 — not listed in this catalogue 7652 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue
537086 · 10 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
53805 — Shield Sub-assy, Front Fender Splash, RH
53805-0C030 Shield Sub-assy, Front Fender Splash, RH
2007-11 → 2012-08 ended
UPK6# —
53805-0C030 Shield Sub-assy, Front Fender Splash, RH
2007-11 → 2009-04 ended
UCK6# —
53805-0C030 Shield Sub-assy, Front Fender Splash, RH
2007-11 → 2017-08 ended
USK6# —
53805-0C030 Shield Sub-assy, Front Fender Splash, RH
2017-08 → —
USK6# —
53806 — Shield Sub-assy, Front Fender Splash, LH
53806-0C030 Shield Sub-assy, Front Fender Splash, LH
2007-11 → 2009-04 ended
UCK6# —
53806-0C030 Shield Sub-assy, Front Fender Splash, LH
2007-11 → 2012-08 ended
UPK6# —
53806-0C030 Shield Sub-assy, Front Fender Splash, LH
2007-11 → 2017-08 ended
USK6# —
53806-0C030 Shield Sub-assy, Front Fender Splash, LH
2017-08 → —
USK6# —
53851D — Pad, Front Wheel Opening Extension, RH
53851-0C050 Pad, Front Wheel Opening Extension, RH
2007-11 → 2009-04 ended
UCK6# —
53851-0C050 Pad, Front Wheel Opening Extension, RH
2007-11 → 2012-08 ended
UPK6# —
53851-0C050 Pad, Front Wheel Opening Extension, RH
2007-11 → 2017-08 ended
USK6# —
53851-0C050 Pad, Front Wheel Opening Extension, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
53851-0C050 Pad, Front Wheel Opening Extension, RH
2017-08 → —
USK6# HTWC —
53852B — Pad, Front Wheel Opening Extension, LH
53852-0C020 Pad, Front Wheel Opening Extension, LH
2007-11 → 2009-04 ended
UCK6# —
53852-0C020 Pad, Front Wheel Opening Extension, LH
2007-11 → 2017-08 ended
USK6# —
53852-0C020 Pad, Front Wheel Opening Extension, LH
2007-11 → 2012-08 ended
UPK6# —
53852-0C020 Pad, Front Wheel Opening Extension, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
53852-0C020 Pad, Front Wheel Opening Extension, LH
2017-08 → —
USK6# HTWC —
53875C — Clip, Front Fender Liner
90467-05138 Clip, Front Fender Liner
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
90467-A0016-C0 note Clip, Front Fender Liner
2007-11 → 2017-06 ended
UCK6#,UPK6#,USK6# —
90467-A0016-C3 note Clip, Front Fender Liner
2017-06 → 2017-08 ended
USK6# —
90467-05138 Clip, Front Fender Liner
2017-08 → —
USK6# —
90467-A0016-C3 note Clip, Front Fender Liner
2017-08 → —
USK6# —
53875D — Clip, Front Fender Liner, NO.2
90467-07201 Clip, Front Fender Liner, NO.2
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
90467-07215 Clip, Front Fender Liner, NO.2
2017-08 → —
USK6# HTWC —
90467-07215 Clip, Front Fender Liner, NO.2
2017-08 → 2017-09 ended
USK65 HTWCF —
53875E — Clip, Front Fender Liner, NO.3
90467-07201 Clip, Front Fender Liner, NO.3
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# —
90467-07215 Clip, Front Fender Liner, NO.3
2017-08 → 2017-09 ended
USK65 HTWCF —
90467-07215 Clip, Front Fender Liner, NO.3
2017-08 → —
USK6# HTWC —
53875P — Screw, NO.1
90080-15094 Screw, NO.1
2011-07 → 2017-08 ended
UPK6#,USK6# —
90159-A0008 Screw, NO.1
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# —
90080-15094 Screw, NO.1
2017-08 → —
USK6# —
53885G — Seal Sub-assy, Fender Apron Mudguard, RH
53807-0C010 Seal Sub-assy, Fender Apron Mudguard, RH
2007-11 → 2009-04 ended
UCK6# —
53807-0C010 Seal Sub-assy, Fender Apron Mudguard, RH
2007-11 → 2009-06 ended
UPK6#,USK6# —
53807-0C011 note Seal Sub-assy, Fender Apron Mudguard, RH
2009-06 → 2012-08 ended
UPK6# —
53807-0C011 note Seal Sub-assy, Fender Apron Mudguard, RH
2009-06 → 2017-08 ended
USK6# —
53807-0C020 Seal Sub-assy, Fender Apron Mudguard, RH
2009-06 → 2012-08 ended
UPK6# —
53807-0C020 Seal Sub-assy, Fender Apron Mudguard, RH
2009-06 → 2017-08 ended
USK6# —
53807-0C011 Seal Sub-assy, Fender Apron Mudguard, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
53807-0C011 Seal Sub-assy, Fender Apron Mudguard, RH
2017-08 → —
USK6# HTWC —
53807-0C020 note Seal Sub-assy, Fender Apron Mudguard, RH
2017-08 → —
USK6# HTWC —
53886G — Seal, Fender Apron Mudguard, LH
53808-0C011 Seal, Fender Apron Mudguard, LH
2007-11 → 2009-04 ended
UCK6# —
53808-0C011 Seal, Fender Apron Mudguard, LH
2007-11 → 2012-08 ended
UPK6# —
53808-0C011 Seal, Fender Apron Mudguard, LH
2007-11 → 2017-08 ended
USK6# —
53808-0C011 Seal, Fender Apron Mudguard, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
53808-0C011 Seal, Fender Apron Mudguard, LH
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
