Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

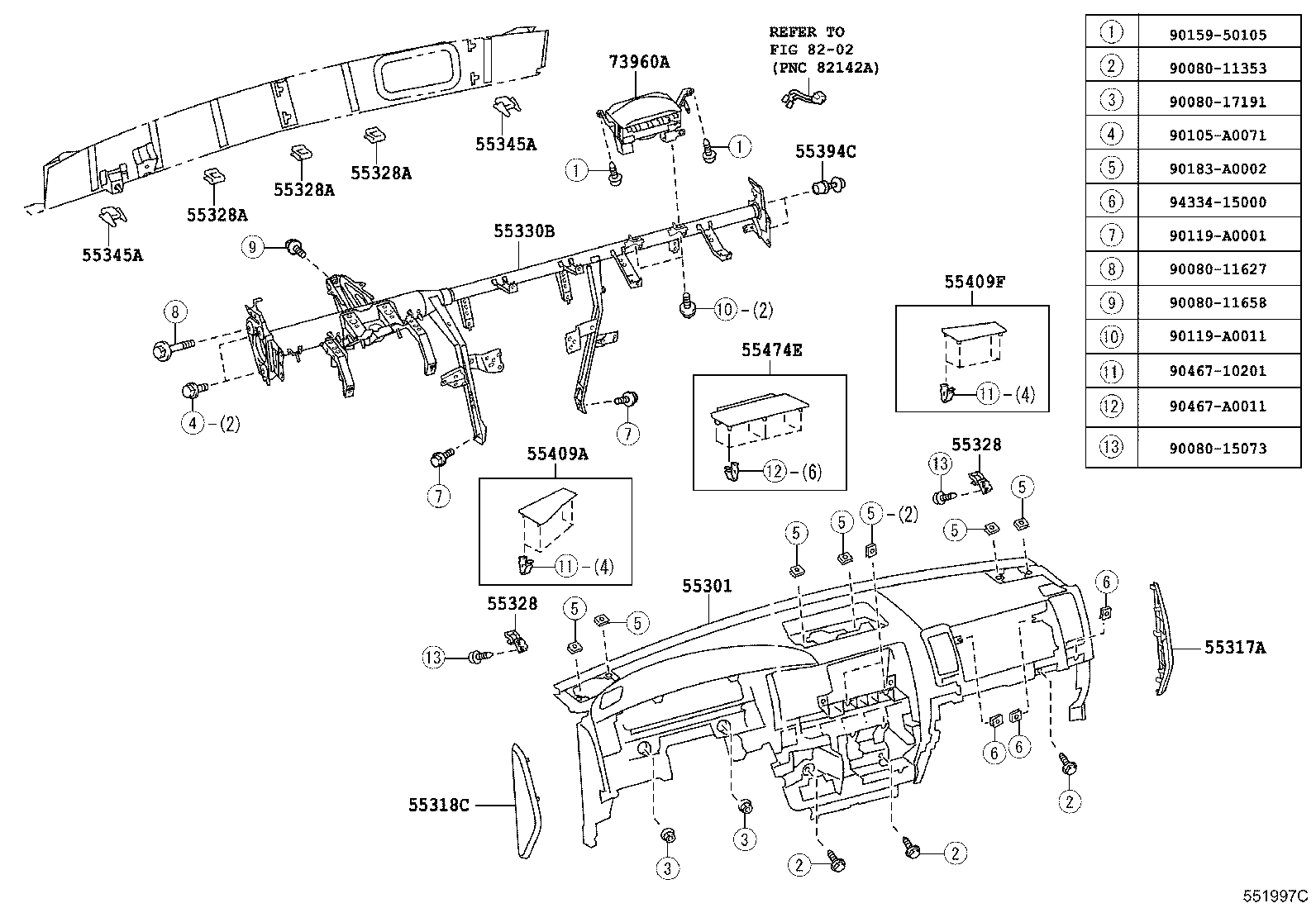

Exploded illustration 551997C 90467A0011 — not listed in this catalogue 9008015073 — not listed in this catalogue 9046710201 — not listed in this catalogue 90119A0011 — not listed in this catalogue 9008011658 — not listed in this catalogue 9008011627 — not listed in this catalogue 90119A0001 — not listed in this catalogue 9433415000 — not listed in this catalogue 90183A0002 — not listed in this catalogue 90105A0071 — not listed in this catalogue 9008017191 — not listed in this catalogue 9008011353 — not listed in this catalogue 9015950105 — not listed in this catalogue 55328 — PIN, INSTRUMENT PANEL, NO.1 (4 parts) 55345A — CLIP, INSTRUMENT PANEL, NO.1 (4 parts) 55345A — CLIP, INSTRUMENT PANEL, NO.1 (4 parts) 55328A — STAY, INSTRUMENT PANEL, NO.3 (4 parts) 55328A — STAY, INSTRUMENT PANEL, NO.3 (4 parts) 55328A — STAY, INSTRUMENT PANEL, NO.3 (4 parts) 55474E — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 (8 parts) 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (8 parts) 55409A — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER (10 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (5 parts) 55394C — BOLT, INSTRUMENT PANEL (5 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (5 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (4 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (10 parts) 55317A — PANEL, INSTRUMENT SIDE, RH (10 parts) 55301 — PANEL SUB-ASSY, INSTRUMENT (12 parts) 8202 — not listed in this catalogue
551997C · 16 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
55301 — Panel Sub-assy, Instrument
55301-0C030-C0 note Panel Sub-assy, Instrument
2007-11 → 2011-08 ended
UCK6#,UPK6#,USK6# PLAT,SR5 —
55301-0C030-C0 note Panel Sub-assy, Instrument
2007-11 → 2011-08 ended
UCK6#,UPK6#,USK6# LIMD —
55301-0C030-C0 note Panel Sub-assy, Instrument
2011-08 → 2012-03 ended
UPK6#,USK6# PLAT,SR5 —
55301-0C030-C0 note Panel Sub-assy, Instrument
2011-08 → 2012-03 ended
UPK6#,USK6# LIMD —
55301-0C030-E0 note Panel Sub-assy, Instrument
2007-11 → 2011-08 ended
UCK6#,UPK6#,USK6# —
55301-0C031-C0 note Panel Sub-assy, Instrument
2012-03 → 2012-04 ended
UPK6#,USK6# LIMD —
55301-0C031-C0 note Panel Sub-assy, Instrument
2012-03 → 2012-04 ended
UPK6#,USK6# PLAT,SR5 —
55301-0C032-C0 note Panel Sub-assy, Instrument
2012-04 → 2017-08 ended
USK6# LIMD —
55301-0C032-C0 note Panel Sub-assy, Instrument
2012-04 → 2017-08 ended
USK6# PLAT,SR5 —
55301-0C032-C0 note Panel Sub-assy, Instrument
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
55301-0C032-C0 note Panel Sub-assy, Instrument
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
55301-0C032-C0 note Panel Sub-assy, Instrument
2019-08 → —
USK65 SR5 —
55317A — Panel, Instrument Side, RH
55317-0C020-C0 note Panel, Instrument Side, RH
2007-11 → 2009-04 ended
UCK6# SR5 —
55317-0C020-C0 note Panel, Instrument Side, RH
2007-11 → 2009-04 ended
UCK6# LIMD —
55317-0C020-C0 note Panel, Instrument Side, RH
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
55317-0C020-C0 note Panel, Instrument Side, RH
2007-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
55317-0C020-C0 note Panel, Instrument Side, RH
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
55317-0C020-C0 note Panel, Instrument Side, RH
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
55317-0C020-E0 note Panel, Instrument Side, RH
2007-11 → 2009-04 ended
UCK6# —
55317-0C020-E0 note Panel, Instrument Side, RH
2007-11 → 2011-06 ended
UPK6#,USK6# —
55317-0C020-C0 note Panel, Instrument Side, RH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
55317-0C020-C0 note Panel, Instrument Side, RH
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
55318C — Panel, Instrument Side, LH
55318-0C020-C0 note Panel, Instrument Side, LH
2007-11 → 2009-04 ended
UCK6# SR5 —
55318-0C020-C0 note Panel, Instrument Side, LH
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
55318-0C020-C0 note Panel, Instrument Side, LH
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
55318-0C020-C0 note Panel, Instrument Side, LH
2007-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
55318-0C020-C0 note Panel, Instrument Side, LH
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
55318-0C020-C0 note Panel, Instrument Side, LH
2007-11 → 2009-04 ended
UCK6# LIMD —
55318-0C020-E0 note Panel, Instrument Side, LH
2007-11 → 2011-06 ended
UPK6#,USK6# —
55318-0C020-E0 note Panel, Instrument Side, LH
2007-11 → 2009-04 ended
UCK6# —
55318-0C020-C0 note Panel, Instrument Side, LH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
55318-0C020-C0 note Panel, Instrument Side, LH
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
55328 — Pin, Instrument Panel, NO.1
55328-30140 Pin, Instrument Panel, NO.1
2007-11 → 2009-04 ended
UCK6# —
55328-30140 Pin, Instrument Panel, NO.1
2007-11 → 2012-08 ended
UPK6# —
55328-30140 Pin, Instrument Panel, NO.1
2007-11 → 2017-08 ended
USK6# —
55328-30140 Pin, Instrument Panel, NO.1
2017-08 → —
USK6# —
55328A — Stay, Instrument Panel, NO.3
55328-22060 Stay, Instrument Panel, NO.3
2007-11 → 2009-04 ended
UCK6# —
55328-22060 Stay, Instrument Panel, NO.3
2007-11 → 2012-08 ended
UPK6# —
55328-22060 Stay, Instrument Panel, NO.3
2007-11 → 2017-08 ended
USK6# —
55328-22060 Stay, Instrument Panel, NO.3
2017-08 → —
USK6# —
55330B — Reinforcement Assy, Instrument Panel
55330-0C030 Reinforcement Assy, Instrument Panel
2007-11 → 2009-04 ended
UCK6#,USK6# —
55330-0C051 Reinforcement Assy, Instrument Panel
2009-04 → 2017-08 ended
USK6# —
55330-0C051 Reinforcement Assy, Instrument Panel
2009-04 → 2012-08 ended
UPK6# —
55330-0C080 Reinforcement Assy, Instrument Panel
2017-08 → 2017-09 ended
USK65 HTWCF —
55330-0C080 Reinforcement Assy, Instrument Panel
2017-08 → —
USK6# HTWC —
55345A — Clip, Instrument Panel, NO.1
55345-0C020 Clip, Instrument Panel, NO.1
2007-11 → 2009-04 ended
UCK6# —
55345-0C020 Clip, Instrument Panel, NO.1
2007-11 → 2012-08 ended
UPK6# —
55345-0C020 Clip, Instrument Panel, NO.1
2007-11 → 2017-08 ended
USK6# —
55345-0C020 Clip, Instrument Panel, NO.1
2017-08 → —
USK6# —
55394C — Bolt, Instrument Panel
55394-51011 Bolt, Instrument Panel
2007-11 → 2009-04 ended
UCK6# —
55394-51011 Bolt, Instrument Panel
2007-11 → 2012-08 ended
UPK6# —
55394-51011 Bolt, Instrument Panel
2007-11 → 2017-08 ended
USK6# —
55394-51011 Bolt, Instrument Panel
2017-08 → —
USK6# HTWC —
55394-51011 Bolt, Instrument Panel
2017-08 → 2017-09 ended
USK65 HTWCF —
55409A — Panel Sub-assy, Instrument Panel Speaker
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2009-04 ended
UCK6# SR5 —
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2009-04 ended
UCK6# LIMD —
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
55472-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
55472-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2009-04 ended
UCK6# —
55472-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker
2007-11 → 2011-06 ended
UPK6#,USK6# —
55409-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
55409-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2009-04 ended
UCK6# SR5 —
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2009-04 ended
UCK6# LIMD —
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
55473-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
55473-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2009-04 ended
UCK6# —
55473-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2007-11 → 2011-06 ended
UPK6#,USK6# —
55474E — Panel Sub-assy, Instrument Panel Speaker, NO.3
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2009-04 ended
UCK6# SR5 —
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2009-04 ended
UCK6# LIMD —
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2011-06 ended
UPK6#,USK6# LIMD —
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
55474-0C010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
55474-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2009-04 ended
UCK6# —
55474-0C010-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.3
2007-11 → 2011-06 ended
UPK6#,USK6# —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-0C010 Airbag Assy, Instrument Panel Passenger W/O Door
2007-11 → 2009-04 ended
UCK6#,USK6# —
73960-0C030 Airbag Assy, Instrument Panel Passenger W/O Door
2009-04 → 2012-08 ended
UPK6# —
73960-0C030 Airbag Assy, Instrument Panel Passenger W/O Door
2009-04 → 2017-08 ended
USK6# —
73960-0C030 Airbag Assy, Instrument Panel Passenger W/O Door
2017-08 → 2017-09 ended
USK65 HTWCF —
73960-0C030 Airbag Assy, Instrument Panel Passenger W/O Door
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
