Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

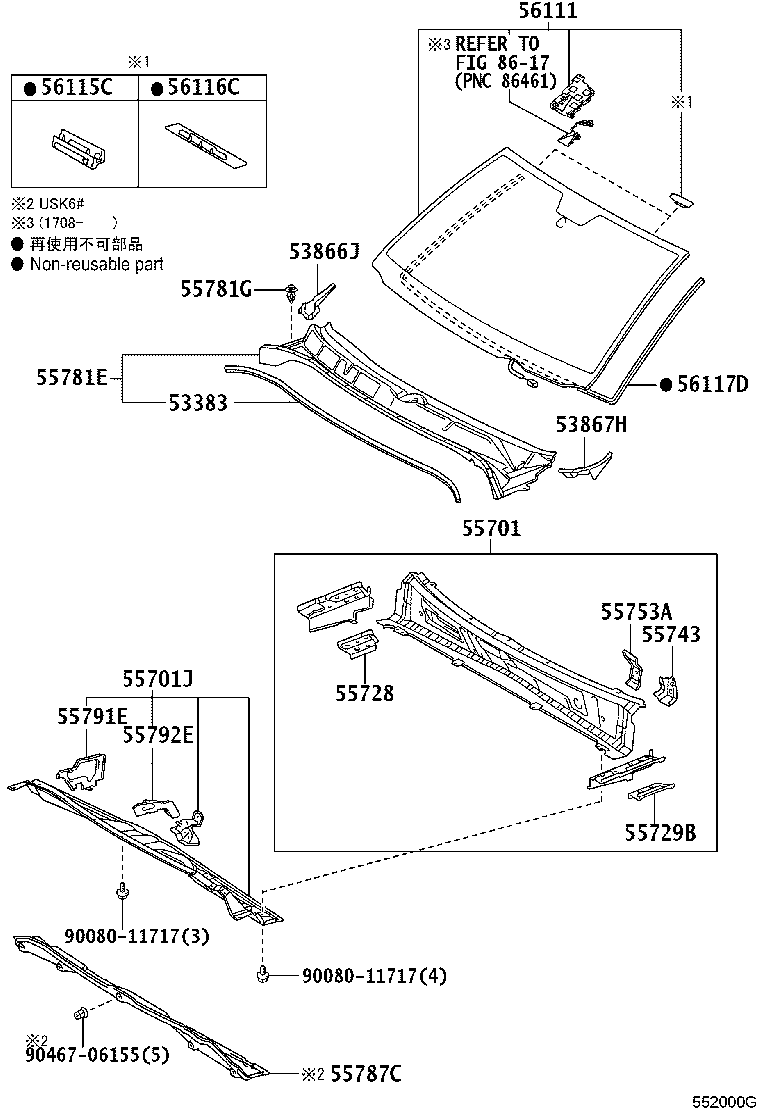

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383 — Seal, Hood TO Cowl Top | ||||
| 53383-0C020 |
Seal, Hood TO Cowl Top
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 53383-0C020 |
Seal, Hood TO Cowl Top
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 53383-0C020 |
Seal, Hood TO Cowl Top
2007-11 → 2017-08
ended
|
USK6# | — | |
| 53383-0C020 |
Seal, Hood TO Cowl Top
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 53383-0C020 |
Seal, Hood TO Cowl Top
2017-08 → —
|
USK6# HTWC | — | |
| 53866J — Seal, Front Fender TO Cowl Side, RH | ||||
| 53866-0C030 |
Seal, Front Fender TO Cowl Side, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 53866-0C030 |
Seal, Front Fender TO Cowl Side, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 53866-0C030 |
Seal, Front Fender TO Cowl Side, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 53866-0C030 |
Seal, Front Fender TO Cowl Side, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 53866-0C030 |
Seal, Front Fender TO Cowl Side, RH
2017-08 → —
|
USK6# HTWC | — | |
| 53867H — Seal, Front Fender TO Cowl Side, LH | ||||
| 53867-0C030 |
Seal, Front Fender TO Cowl Side, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 53867-0C030 |
Seal, Front Fender TO Cowl Side, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 53867-0C030 |
Seal, Front Fender TO Cowl Side, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 53867-0C030 |
Seal, Front Fender TO Cowl Side, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 53867-0C030 |
Seal, Front Fender TO Cowl Side, LH
2017-08 → —
|
USK6# HTWC | — | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55700-0C030 |
Panel Sub-assy, Cowl
2007-11 → 2008-11
ended
|
UCK6#,USK6# | — | |
| 55700-0C031 |
Panel Sub-assy, Cowl
2008-12 → 2012-08
ended
|
UPK6# | — | |
| 55700-0C031 |
Panel Sub-assy, Cowl
2008-12 → 2017-08
ended
|
USK6# | — | |
| 55700-0C031 |
Panel Sub-assy, Cowl
2008-12 → 2009-04
ended
|
UCK6# | — | |
| 55700-0C031 |
Panel Sub-assy, Cowl
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55700-0C031 |
Panel Sub-assy, Cowl
2017-08 → —
|
USK6# HTWC | — | |
| 55701J — Panel Sub-assy, Cowl Top, Outer | ||||
| 55701-0C020 |
Panel Sub-assy, Cowl Top, Outer
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55701-0C020 |
Panel Sub-assy, Cowl Top, Outer
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55701-0C020 |
Panel Sub-assy, Cowl Top, Outer
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55701-0C020 |
Panel Sub-assy, Cowl Top, Outer
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55701-0C020 |
Panel Sub-assy, Cowl Top, Outer
2017-08 → —
|
USK6# HTWC | — | |
| 55728 — Reinforcement, Hood Stopper, RH | ||||
| 55728-0C010 |
Reinforcement, Hood Stopper, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55728-0C010 |
Reinforcement, Hood Stopper, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55728-0C010 |
Reinforcement, Hood Stopper, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55728-0C010 |
Reinforcement, Hood Stopper, RH
2017-08 → —
|
USK6# HTWC | — | |
| 55728-0C010 |
Reinforcement, Hood Stopper, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55729B — Reinforcement, Hood Stopper, LH | ||||
| 55729-0C010 |
Reinforcement, Hood Stopper, LH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55729-0C010 |
Reinforcement, Hood Stopper, LH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55729-0C010 |
Reinforcement, Hood Stopper, LH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55729-0C010 |
Reinforcement, Hood Stopper, LH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55729-0C010 |
Reinforcement, Hood Stopper, LH
2017-08 → —
|
USK6# HTWC | — | |
| 55743 — Panel, Cowl Top Outside Corner, RH | ||||
| 55743-0C020 |
Panel, Cowl Top Outside Corner, RH
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55743-0C020 |
Panel, Cowl Top Outside Corner, RH
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55743-0C020 |
Panel, Cowl Top Outside Corner, RH
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55743-0C020 |
Panel, Cowl Top Outside Corner, RH
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55743-0C020 |
Panel, Cowl Top Outside Corner, RH
2017-08 → —
|
USK6# HTWC | — | |
| 55753A — Bracket, Instrument Panel TO Cowl | ||||
| 55753-0C010 |
Bracket, Instrument Panel TO Cowl
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55753-0C010 |
Bracket, Instrument Panel TO Cowl
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55753-0C010 |
Bracket, Instrument Panel TO Cowl
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55753-0C010 |
Bracket, Instrument Panel TO Cowl
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55753-0C010 |
Bracket, Instrument Panel TO Cowl
2017-08 → —
|
USK6# HTWC | — | |
| 55781E — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-0C050 |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55708-0C050 |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55708-0C050 |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55708-0C060 note |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55708-0C060 note |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55708-0C060 note |
Louver Sub-assy, Cowl Top Ventilator
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55708-0C050 note |
Louver Sub-assy, Cowl Top Ventilator
2017-08 → —
|
USK6# HTWC | — | |
| 55708-0C060 |
Louver Sub-assy, Cowl Top Ventilator
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55708-0C060 |
Louver Sub-assy, Cowl Top Ventilator
2017-08 → —
|
USK6# HTWC | — | |
| 55781G — Clip, Cowl Top Ventilator Louver | ||||
| 90467-10206 |
Clip, Cowl Top Ventilator Louver
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-10206 |
Clip, Cowl Top Ventilator Louver
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90467-10206 |
Clip, Cowl Top Ventilator Louver
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90467-10206 |
Clip, Cowl Top Ventilator Louver
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 90467-10206 |
Clip, Cowl Top Ventilator Louver
2017-08 → —
|
USK6# HTWC | — | |
| 55787C — Insulator, Cowl Top Panel, NO.1 | ||||
| 55787-0C020 |
Insulator, Cowl Top Panel, NO.1
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55787-0C020 |
Insulator, Cowl Top Panel, NO.1
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55787-0C020 |
Insulator, Cowl Top Panel, NO.1
2017-08 → —
|
USK6# HTWC | — | |
| 55791E — Cover, Heater Duct Hole | ||||
| 55791-0C010 |
Cover, Heater Duct Hole
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55791-0C010 |
Cover, Heater Duct Hole
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55791-0C010 |
Cover, Heater Duct Hole
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55791-0C010 |
Cover, Heater Duct Hole
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55791-0C010 |
Cover, Heater Duct Hole
2017-08 → —
|
USK6# HTWC | — | |
| 55792E — Cover, Heater Air Duct Hole, NO.2 | ||||
| 55792-0C010 |
Cover, Heater Air Duct Hole, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55792-0C010 |
Cover, Heater Air Duct Hole, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 55792-0C010 |
Cover, Heater Air Duct Hole, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 55792-0C010 |
Cover, Heater Air Duct Hole, NO.2
2017-08 → 2017-09
ended
|
USK65 HTWCF | — | |
| 55792-0C010 |
Cover, Heater Air Duct Hole, NO.2
2017-08 → —
|
USK6# HTWC | — | |
| 56111 — Glass, Windshield | ||||
| 56101-0C070 note |
Glass, Windshield
2007-11 → 2009-03
ended
|
UCK6#,USK6# SR5 | — | |
| 56101-0C071 note |
Glass, Windshield
2009-04 → 2009-11
ended
|
UPK6#,USK6# SR5 | — | |
| 56101-0C080 note |
Glass, Windshield
2007-11 → 2009-03
ended
|
UCK6#,USK6# LIMD,PLAT | — | |
| 56101-0C081 note |
Glass, Windshield
2009-04 → 2012-08
ended
|
UPK6# LIMD | — | |
| 56101-0C081 note |
Glass, Windshield
2009-04 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 56101-0C090 note |
Glass, Windshield
2007-11 → 2009-03
ended
|
UCK6#,USK6# LIMD,PLAT | — | |
| 56101-0C091 note |
Glass, Windshield
2009-04 → 2012-08
ended
|
UPK6# LIMD | — | |
| 56101-0C091 note |
Glass, Windshield
2009-04 → 2017-08
ended
|
USK6# LIMD,PLAT | — | |
| 56101-0C100 note |
Glass, Windshield
2007-11 → 2009-03
ended
|
UCK6#,USK6# SR5 | — | |
| 56101-0C101 note |
Glass, Windshield
2009-04 → 2009-11
ended
|
UPK6#,USK6# SR5 | — | |
| 56101-0C110 note |
Glass, Windshield
2009-11 → 2010-07
ended
|
UPK6#,USK6# SR5 | — | |
| 56101-0C111 note |
Glass, Windshield
2010-08 → 2012-08
ended
|
UPK6# SR5 | — | |
| 56101-0C111 note |
Glass, Windshield
2010-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 56101-0C120 note |
Glass, Windshield
2009-11 → 2010-07
ended
|
UPK6#,USK6# SR5 | — | |
| 56101-0C121 note |
Glass, Windshield
2010-08 → 2017-08
ended
|
USK6# SR5 | — | |
| 56101-0C121 note |
Glass, Windshield
2010-08 → 2012-08
ended
|
UPK6# SR5 | — | |
| 56101-0C111 note |
Glass, Windshield
2017-08 → —
|
USK60 | — | |
| 56101-0C111 note |
Glass, Windshield
2017-08 → —
|
USK65 (LIMD,PLAT) HTWC | — | |
| 56101-0C121 note |
Glass, Windshield
2017-08 → —
|
USK65 (LIMD,PLAT) HTWC | — | |
| 56101-0C130 note |
Glass, Windshield
2017-08 → —
|
USK60;USK65 (LIMD,PLAT) HTWC | — | |
| 56101-0C130 note |
Glass, Windshield
2017-08 → —
|
USK65 SR5 HTWC | — | |
| 56101-0C130 note |
Glass, Windshield
2019-08 → —
|
USK60;USK65 LIMD,PLAT | — | |
| 56101-0C150 |
Glass, Windshield
2017-08 → —
|
USK6# | — | |
| 56115C — Stopper, Windshield Glass | ||||
| 56115-30120 |
Stopper, Windshield Glass
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 56115-30120 |
Stopper, Windshield Glass
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 56115-30120 |
Stopper, Windshield Glass
2007-11 → 2017-08
ended
|
USK6# | — | |
| 56115-30120 |
Stopper, Windshield Glass
2017-08 → —
|
USK6# | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2017-08 → —
|
USK6# | — | |
| 56117D — Dam, Windshield Glass Adhesive | ||||
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK6# | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK60;USK65 (LIMD,PLAT) HTWC | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK60 | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK65 (LIMD,PLAT) HTWC | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK65 (LIMD,PLAT) HTWC | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2017-08 → —
|
USK65 SR5 HTWC | — | |
| 90998-91004 note |
Dam, Windshield Glass Adhesive
2019-08 → —
|
USK60;USK65 LIMD,PLAT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
