Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

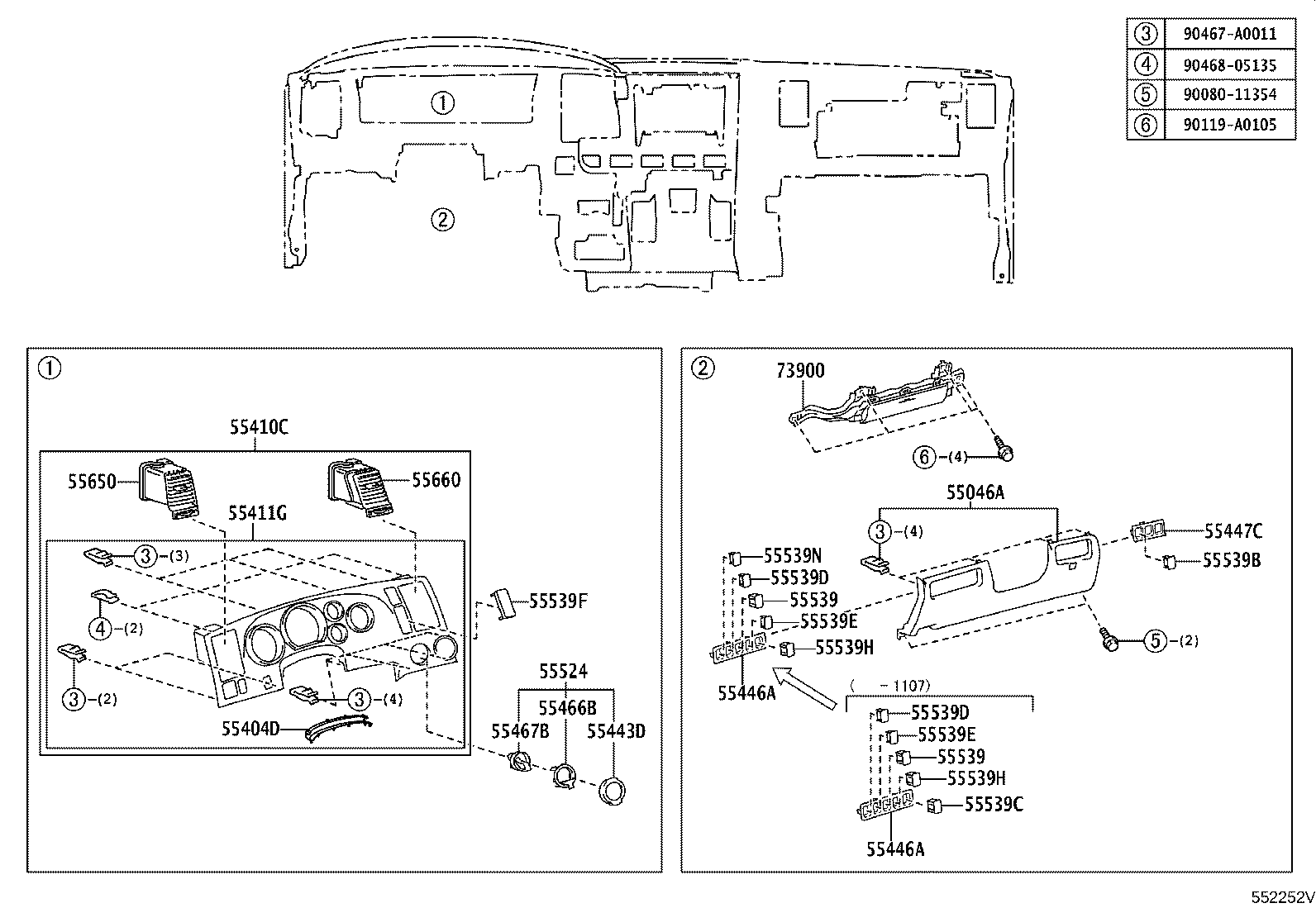

Exploded illustration 552252V 55046A — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH (12 parts) 55539B — COVER, SPARE SWITCH HOLE, NO.2 (5 parts) 55447C — BASE, SWITCH HOLE, NO.2 (4 parts) 90467A0011 — not listed in this catalogue 9046805135 — not listed in this catalogue 9008011354 — not listed in this catalogue 90119A0105 — not listed in this catalogue 55539F — COVER, SPARE SWITCH HOLE (3 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (6 parts) 55466B — RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.1 (3 parts) 55524 — COVER, SWITCH BACE HOLE (3 parts) 55443D — KNOB, INSTRUMENT PANEL BOX DOOR (3 parts) 55467B — RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2 (3 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (7 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (7 parts) 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (4 parts) 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (4 parts) 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (16 parts) 55446A — BASE, SWITCH HOLE, NO.1 (6 parts) 55446A — BASE, SWITCH HOLE, NO.1 (6 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55539C — COVER, SPARE SWITCH HOLE (4 parts) 55539D — COVER, SPARE SWITCH HOLE (6 parts) 55539E — COVER, SPARE SWITCH HOLE (6 parts) 55539H — COVER, SPARE SWITCH HOLE (3 parts) 55539 — COVER, SPARE SWITCH HOLE (4 parts) 55539H — COVER, SPARE SWITCH HOLE (3 parts) 55539N — COVER, SPARE SWITCH HOLE (4 parts) 55539D — COVER, SPARE SWITCH HOLE (6 parts) 55539E — COVER, SPARE SWITCH HOLE (6 parts)
552252V · 26 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
55046A — Panel Sub-assy, Instrument Panel Finish, Lower LH
55046-0C070-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2007-11 → 2009-04 ended
UCK6#,USK6# —
55046-0C070-C0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2008-12 → 2009-04 ended
UCK6#,USK6# SR5 —
55046-0C070-E0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2007-11 → 2009-04 ended
USK6# PLAT —
55046-0C070-E1 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2007-11 → 2009-04 ended
UCK6#,USK6# —
55046-0C080-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2009-04 → 2017-08 ended
UPK6#,USK6# —
55046-0C080-C0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
55046-0C080-E0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2009-04 → 2017-08 ended
USK6# PLAT —
55046-0C080-E1 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2009-04 → 2017-08 ended
UPK6#,USK6# —
55046-0C080-B0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2017-08 → —
USK6# —
55046-0C080-C0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2017-08 → —
USK65 SR5;USK60 LIMD,SR5;USK65 LIMD +1 —
55046-0C080-E0 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2017-08 → —
USK6# PLAT —
55046-0C080-E1 note Panel Sub-assy, Instrument Panel Finish, Lower LH
2017-08 → —
USK6# —
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-0C020 Panel Sub-assy, Instrument Cluster Finish
2007-11 → 2009-04 ended
UCK6# —
55404-0C020 Panel Sub-assy, Instrument Cluster Finish
2007-11 → 2012-08 ended
UPK6# —
55404-0C020 Panel Sub-assy, Instrument Cluster Finish
2007-11 → 2017-08 ended
USK6# —
55404-0C020 Panel Sub-assy, Instrument Cluster Finish
2017-08 → —
USK6# —
55410C — Panel Assy, Instrument Cluster Finish
55410-0C040 Panel Assy, Instrument Cluster Finish
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
55410-0C050 Panel Assy, Instrument Cluster Finish
2007-11 → 2009-04 ended
UCK6#,USK6# LIMD,PLAT —
55410-0C110 Panel Assy, Instrument Cluster Finish
2009-04 → 2012-08 ended
UPK6# SR5 —
55410-0C110 Panel Assy, Instrument Cluster Finish
2009-04 → 2017-08 ended
USK6# SR5 —
55410-0C120 Panel Assy, Instrument Cluster Finish
2009-04 → 2012-08 ended
UPK6# LIMD —
55410-0C120 Panel Assy, Instrument Cluster Finish
2009-04 → 2017-08 ended
USK6# LIMD,PLAT —
55411G — Panel, Instrument Cluster Finish, NO.1
55403-0C080 Panel, Instrument Cluster Finish, NO.1
2009-04 → 2012-08 ended
UPK6# SR5 —
55403-0C080 Panel, Instrument Cluster Finish, NO.1
2009-04 → 2017-08 ended
USK6# SR5 —
55403-0C090 Panel, Instrument Cluster Finish, NO.1
2009-04 → 2012-08 ended
UPK6# LIMD —
55403-0C090 Panel, Instrument Cluster Finish, NO.1
2009-04 → 2017-08 ended
USK6# LIMD,PLAT —
55443D — Knob, Instrument Panel Box Door
55443-0C010 Knob, Instrument Panel Box Door
2007-11 → 2009-04 ended
UCK60 —
55443-0C010 Knob, Instrument Panel Box Door
2007-11 → 2012-08 ended
UPK60 —
55443-0C010 Knob, Instrument Panel Box Door
2007-11 → 2017-08 ended
USK60 —
55446A — Base, Switch Hole, NO.1
55446-0C030 Base, Switch Hole, NO.1
2007-11 → 2011-06 ended
UPK6#,USK6# —
55446-0C030 Base, Switch Hole, NO.1
2007-11 → 2009-04 ended
UCK6# —
55446-0C050 Base, Switch Hole, NO.1
2011-06 → 2012-08 ended
UPK6# —
55446-0C050 Base, Switch Hole, NO.1
2011-06 → 2017-08 ended
USK6# —
55446-0C080-C0 note Base, Switch Hole, NO.1
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
55446-0C080-C0 note Base, Switch Hole, NO.1
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
55447C — Base, Switch Hole, NO.2
55447-0C011 Base, Switch Hole, NO.2
2007-11 → 2009-04 ended
UCK6# —
55447-0C011 Base, Switch Hole, NO.2
2007-11 → 2012-08 ended
UPK6# —
55447-0C011 Base, Switch Hole, NO.2
2007-11 → 2017-08 ended
USK6# —
55447-0C011 Base, Switch Hole, NO.2
2017-08 → —
USK6# —
55466B — Retainer, Instrument Panel Safety Pad, NO.1
55466-0C020 Retainer, Instrument Panel Safety Pad, NO.1
2007-11 → 2009-04 ended
UCK60 —
55466-0C020 Retainer, Instrument Panel Safety Pad, NO.1
2007-11 → 2012-08 ended
UPK60 —
55466-0C020 Retainer, Instrument Panel Safety Pad, NO.1
2007-11 → 2017-08 ended
USK60 —
55467B — Retainer, Instrument Panel Safety Pad, NO.2
55467-0C020 Retainer, Instrument Panel Safety Pad, NO.2
2007-11 → 2012-08 ended
UPK60 —
55467-0C020 Retainer, Instrument Panel Safety Pad, NO.2
2007-11 → 2017-08 ended
USK60 —
55467-0C020 Retainer, Instrument Panel Safety Pad, NO.2
2007-11 → 2009-04 ended
UCK60 —
55524 — Cover, Switch Bace Hole
55524-0C020 Cover, Switch Bace Hole
2007-11 → 2009-04 ended
UCK60 —
55524-0C020 Cover, Switch Bace Hole
2007-11 → 2012-08 ended
UPK60 —
55524-0C020 Cover, Switch Bace Hole
2007-11 → 2017-08 ended
USK60 —
55539 — Cover, Spare Switch Hole
55539-0C090 Cover, Spare Switch Hole
2007-11 → 2009-04 ended
UCK6# —
55539-0C090 Cover, Spare Switch Hole
2007-11 → 2012-08 ended
UPK6# —
55539-0C090 Cover, Spare Switch Hole
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
55539-06090-C0 note Cover, Spare Switch Hole
2019-08 → —
USK6# —
55539B — Cover, Spare Switch Hole, NO.2
55539-0C100 Cover, Spare Switch Hole, NO.2
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# —
55539-52060-C0 note Cover, Spare Switch Hole, NO.2
2009-11 → 2017-01 ended
USK6# PLAT HTWC —
55539-52060-C0 note Cover, Spare Switch Hole, NO.2
2009-11 → 2017-01 ended
USK6# (LIMD,SR5) HTWC —
55539-52060-C0 note Cover, Spare Switch Hole, NO.2
2009-11 → 2017-01 ended
UPK6#;USK65 HTWCF —
55539-52060-C4 note Cover, Spare Switch Hole, NO.2
2017-01 → 2017-08 ended
USK6# —
55539C — Cover, Spare Switch Hole
55539-0C090 Cover, Spare Switch Hole
2007-11 → 2009-10 ended
UPK6#,USK6# LIMD,SR5 —
55539-0C090 Cover, Spare Switch Hole
2007-11 → 2009-04 ended
UCK6# —
55539-52060-C0 note Cover, Spare Switch Hole
2009-11 → 2011-07 ended
USK6# (LIMD,SR5) HTWC —
55539-52060-C0 note Cover, Spare Switch Hole
2009-11 → 2011-07 ended
UPK6#;USK65 HTWCF;USK6# PLAT HTWC —
55539D — Cover, Spare Switch Hole
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2009-04 ended
UCK6# —
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2012-08 ended
UPK6# —
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
55539-0C100 Cover, Spare Switch Hole
2017-08 → 2017-09 ended
USK65 SR5 HTWCF —
55539-0C100 Cover, Spare Switch Hole
2017-08 → 2018-01 ended
USK6# SR5 HTWC —
55539-0C100 note Cover, Spare Switch Hole
2018-01 → —
USK6# SR5 HTWC —
55539E — Cover, Spare Switch Hole
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2009-04 ended
UCK6# —
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2012-08 ended
UPK6# —
55539-0C100 Cover, Spare Switch Hole
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
55539-0C081 note Cover, Spare Switch Hole
2017-08 → —
USK6# (LIMD,PLAT) HTWC —
55539-0C081 Cover, Spare Switch Hole
2017-08 → —
USK6# SR5 HTWC —
55539-0C081 Cover, Spare Switch Hole
2017-08 → 2017-09 ended
USK65 SR5 HTWCF —
55539F — Cover, Spare Switch Hole
55539-0C040 Cover, Spare Switch Hole
2007-11 → 2009-04 ended
UCK6# SR5 —
55539-0C040 Cover, Spare Switch Hole
2007-11 → 2012-08 ended
UPK6# SR5 —
55539-0C040 Cover, Spare Switch Hole
2007-11 → 2017-08 ended
USK6# SR5 —
55539H — Cover, Spare Switch Hole
55539-0C050 Cover, Spare Switch Hole
2009-11 → 2014-08 ended
UPK60,USK60 —
55539-52060-C0 note Cover, Spare Switch Hole
2014-08 → 2017-01 ended
USK6# —
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2017-08 ended
USK6# —
55539N — Cover, Spare Switch Hole
55539-0C170 Cover, Spare Switch Hole
2011-07 → 2012-08 ended
UPK6# —
55539-0C170 note Cover, Spare Switch Hole
2011-07 → 2012-08 ended
USK65 PLAT HTWC —
55539-0C170 Cover, Spare Switch Hole
2011-07 → 2017-08 ended
USK6# LIMD,SR5 —
55539-0C170 note Cover, Spare Switch Hole
2012-08 → 2017-08 ended
USK65 PLAT HTWC —
55650 — Register Assy, Instrument Panel, NO.1
55650-0C020 Register Assy, Instrument Panel, NO.1
2007-11 → 2009-04 ended
UCK6#;USK6# LIMD,PLAT —
55650-0C020 Register Assy, Instrument Panel, NO.1
2007-11 → 2012-08 ended
UPK6# SR5 —
55650-0C020 Register Assy, Instrument Panel, NO.1
2007-11 → 2017-08 ended
USK6# SR5 —
55650-0C050 Register Assy, Instrument Panel, NO.1
2009-04 → 2012-08 ended
UPK6# LIMD —
55650-0C050 Register Assy, Instrument Panel, NO.1
2009-04 → 2017-08 ended
USK6# LIMD,PLAT —
55650-0C020 Register Assy, Instrument Panel, NO.1
2017-08 → —
USK6# SR5 —
55650-0C050 Register Assy, Instrument Panel, NO.1
2017-08 → —
USK6# LIMD,PLAT —
55660 — Register Assy, Instrument Panel, NO.2
55660-0C020 Register Assy, Instrument Panel, NO.2
2007-11 → 2009-04 ended
UCK6#;USK6# LIMD,PLAT —
55660-0C020 Register Assy, Instrument Panel, NO.2
2007-11 → 2012-08 ended
UPK6# SR5 —
55660-0C020 Register Assy, Instrument Panel, NO.2
2007-11 → 2017-08 ended
USK6# SR5 —
55660-0C030 Register Assy, Instrument Panel, NO.2
2009-04 → 2012-08 ended
UPK6# LIMD —
55660-0C030 Register Assy, Instrument Panel, NO.2
2009-04 → 2017-08 ended
USK6# LIMD,PLAT —
55660-0C020 Register Assy, Instrument Panel, NO.2
2017-08 → —
USK6# SR5 —
55660-0C030 Register Assy, Instrument Panel, NO.2
2017-08 → —
USK6# LIMD,PLAT —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-0C020-B0 note Airbag Assy, Instrument Panel, Lower NO.1
2009-04 → 2017-08 ended
UPK6#,USK6# —
73900-0C020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
73900-0C020-E0 note Airbag Assy, Instrument Panel, Lower NO.1
2009-04 → 2017-08 ended
USK6# PLAT —
73900-0C020-E1 note Airbag Assy, Instrument Panel, Lower NO.1
2009-04 → 2017-08 ended
UPK6#,USK6# —
73900-0C020-B0 note Airbag Assy, Instrument Panel, Lower NO.1
2017-08 → 2019-05 ended
USK6# —
73900-0C020-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2017-08 → 2019-05 ended
USK6# SR5 —
73900-0C020-E0 note Airbag Assy, Instrument Panel, Lower NO.1
2017-08 → 2019-05 ended
USK6# PLAT —
73900-0C020-E1 note Airbag Assy, Instrument Panel, Lower NO.1
2017-08 → 2019-05 ended
USK6# —
73900-0C040-B0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-08 → —
USK6# —
73900-0C040-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-08 → —
USK6# LIMD,SR5 —
73900-0C040-E0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-08 → —
USK6# PLAT —
73900-0C040-E1 note Airbag Assy, Instrument Panel, Lower NO.1
2019-08 → —
USK6# —
73900-0C100-B0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-05 → 2019-08 ended
USK6# —
73900-0C100-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-05 → 2019-08 ended
USK6# SR5 —
73900-0C100-E0 note Airbag Assy, Instrument Panel, Lower NO.1
2019-05 → 2019-08 ended
USK6# PLAT —
73900-0C100-E1 note Airbag Assy, Instrument Panel, Lower NO.1
2019-05 → 2019-08 ended
USK6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
