Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

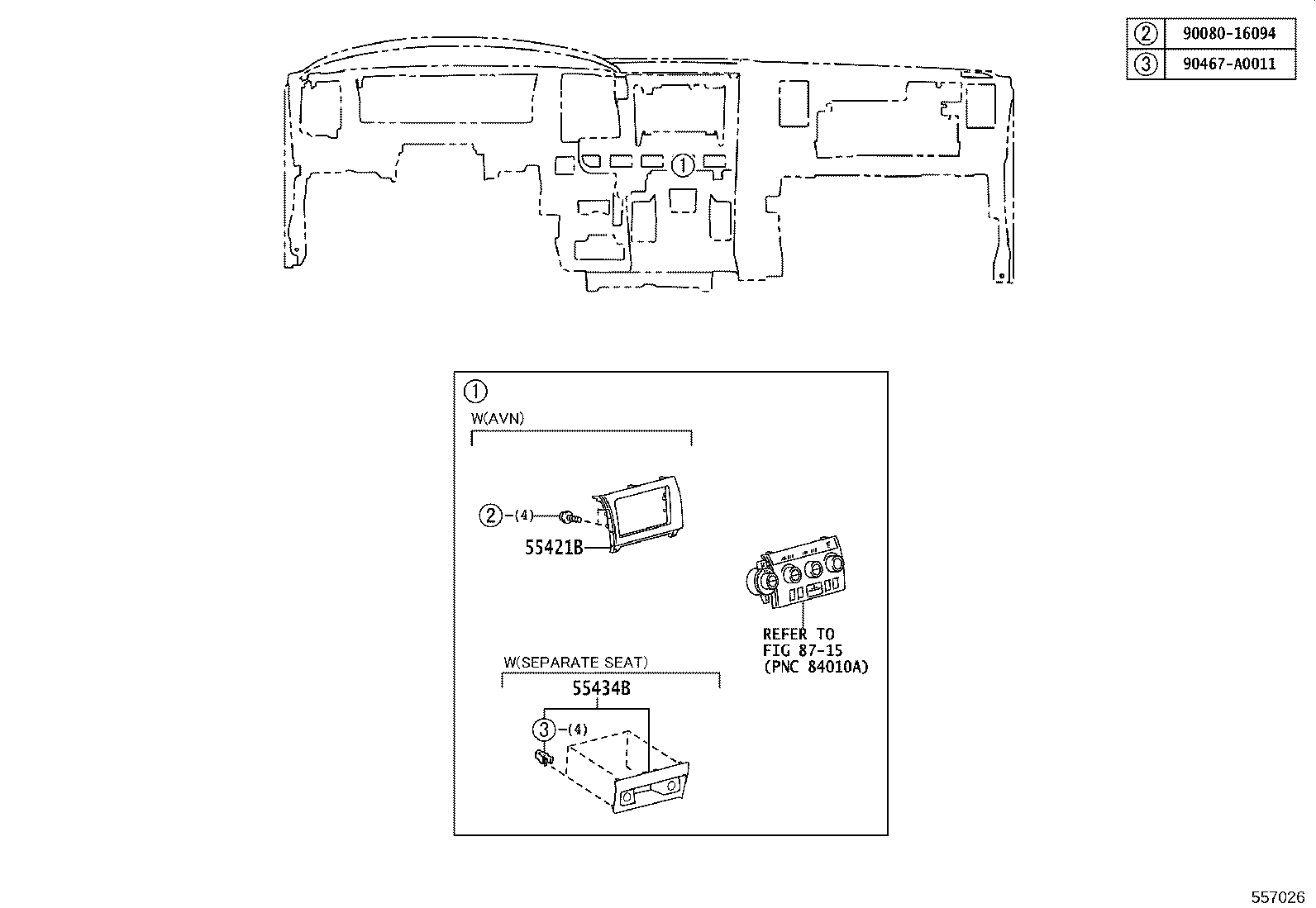

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55421B — Panel, Instrument Cluster Finish, Upper | ||||
| 55421-0C050 note |
Panel, Instrument Cluster Finish, Upper
2010-08 → 2011-07
ended
|
UPK6#,USK6# SR5 | — | |
| 55421-0C050 note |
Panel, Instrument Cluster Finish, Upper
2011-07 → 2012-08
ended
|
UPK6# SR5 | — | |
| 55421-0C050 note |
Panel, Instrument Cluster Finish, Upper
2011-07 → 2013-08
ended
|
USK6# SR5 | — | |
| 55421-0C070 |
Panel, Instrument Cluster Finish, Upper
2013-08 → 2017-08
ended
|
USK6# | — | |
| 55421-0C070 |
Panel, Instrument Cluster Finish, Upper
2017-08 → 2019-08
ended
|
USK6# | — | |
| 55434B — Panel, Instrument Panel Finish, Lower Center | ||||
| 55434-0C010-C0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 55434-0C010-C0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 55434-0C010-C0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2011-04
ended
|
UPK6#,USK6# LIMD | — | |
| 55434-0C010-C0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2011-04
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 55434-0C010-E0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 55434-0C010-E0 note |
Panel, Instrument Panel Finish, Lower Center
2007-11 → 2011-04
ended
|
UPK6#,USK6# | — | |
| 55434-0C020-C0 note |
Panel, Instrument Panel Finish, Lower Center
2011-05 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 55434-0C020-C0 note |
Panel, Instrument Panel Finish, Lower Center
2011-05 → 2017-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 55434-0C020-C0 note |
Panel, Instrument Panel Finish, Lower Center
2017-08 → 2019-08
ended
|
USK6# LIMD | — | |
| 55434-0C020-C0 note |
Panel, Instrument Panel Finish, Lower Center
2017-08 → 2019-08
ended
|
USK6# PLAT,SR5 | — | |
| 55434-0C130-C0 note |
Panel, Instrument Panel Finish, Lower Center
2019-08 → —
|
USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
