Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

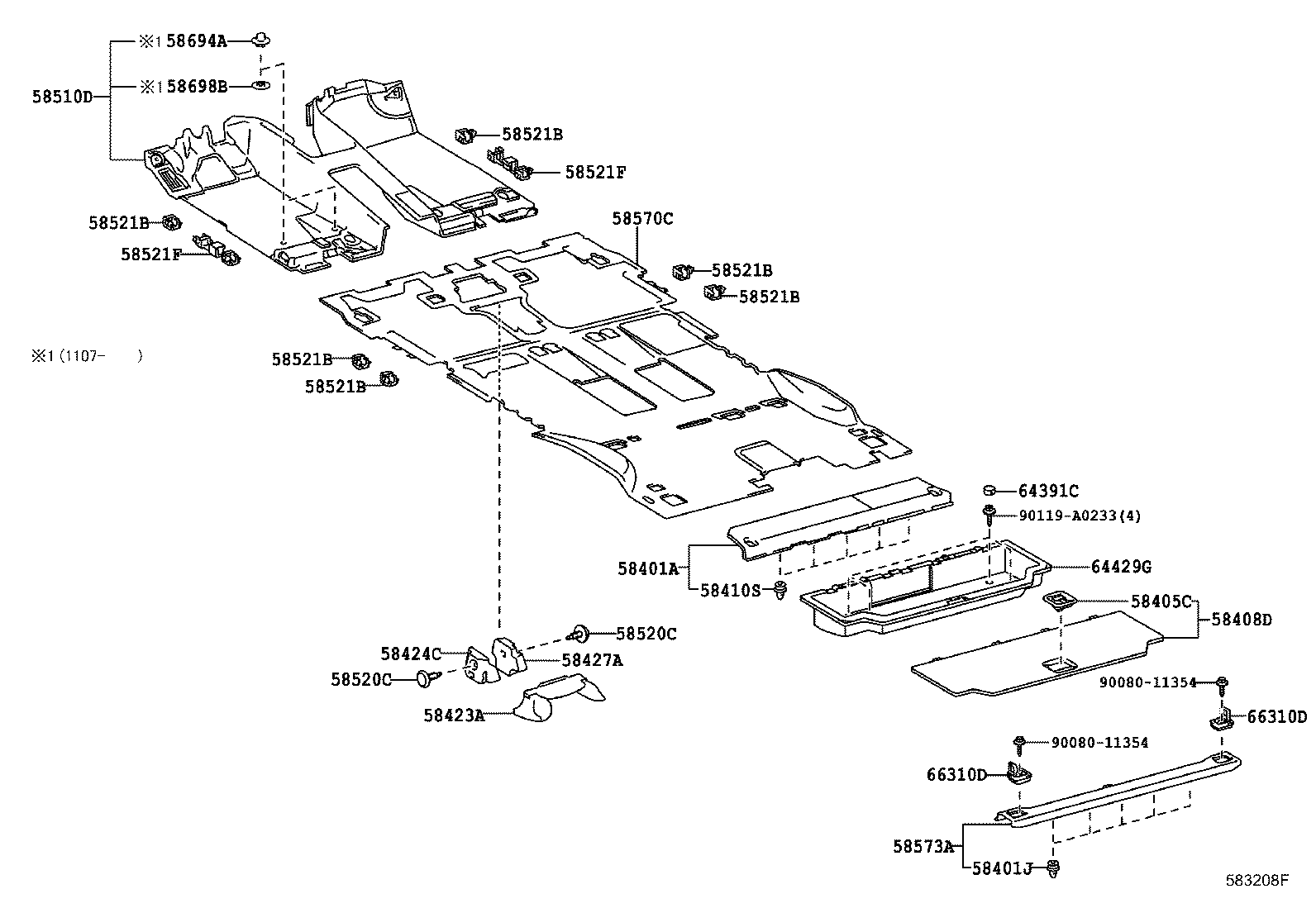

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58401A — Board Sub-assy, Deck, NO.1 | ||||
| 58401-0C010-B1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2008-12
ended
|
USK6# LIMD,SR5 | — | |
| 58401-0C010-B1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58401-0C010-B1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2017-08
ended
|
UPK6#;USK6# PLAT | — | |
| 58401-0C010-B1 note |
Board Sub-assy, Deck, NO.1
2008-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 58401-0C010-C1 note |
Board Sub-assy, Deck, NO.1
2008-12 → 2009-04
ended
|
UCK6# SR5 | — | |
| 58401-0C010-C1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2017-08
ended
|
UPK6# SR5;USK6# PLAT | — | |
| 58401-0C010-C1 note |
Board Sub-assy, Deck, NO.1
2008-12 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58401-0C010-C1 note |
Board Sub-assy, Deck, NO.1
2008-12 → 2017-08
ended
|
USK6# SR5 | — | |
| 58401-0C010-E1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2008-12
ended
|
USK6# LIMD,SR5 | — | |
| 58401-0C010-E1 note |
Board Sub-assy, Deck, NO.1
2008-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 58401-0C010-E1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58401-0C010-E1 note |
Board Sub-assy, Deck, NO.1
2007-11 → 2017-08
ended
|
UPK6#;USK6# PLAT | — | |
| 58401-0C010-B1 note |
Board Sub-assy, Deck, NO.1
2017-08 → —
|
USK6# | — | |
| 58401-0C010-C1 note |
Board Sub-assy, Deck, NO.1
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 58401-0C010-E1 note |
Board Sub-assy, Deck, NO.1
2017-08 → —
|
USK6# | — | |
| 58401J — Clip(FOR DECK BOAD) | ||||
| 90467-A0005 |
Clip(FOR DECK BOAD)
2010-02 → 2012-08
ended
|
UPK6# | — | |
| 90467-A0005 |
Clip(FOR DECK BOAD)
2010-02 → 2017-08
ended
|
USK6# | — | |
| 90467-A0006 |
Clip(FOR DECK BOAD)
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-A0006 |
Clip(FOR DECK BOAD)
2007-11 → 2010-01
ended
|
UPK6#,USK6# | — | |
| 90467-A0005 |
Clip(FOR DECK BOAD)
2017-08 → —
|
USK6# | — | |
| 58405C — Lock Sub-assy, Deck Board | ||||
| 58405-0C010-B1 note |
Lock Sub-assy, Deck Board
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58405-0C010-B1 note |
Lock Sub-assy, Deck Board
2007-11 → 2017-08
ended
|
UPK6#,USK6# | — | |
| 58405-0C010-C1 note |
Lock Sub-assy, Deck Board
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 58405-0C010-C1 note |
Lock Sub-assy, Deck Board
2007-11 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58405-0C010-C1 note |
Lock Sub-assy, Deck Board
2007-11 → 2017-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58405-0C010-E1 note |
Lock Sub-assy, Deck Board
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58405-0C010-E1 note |
Lock Sub-assy, Deck Board
2007-11 → 2017-08
ended
|
UPK6#,USK6# | — | |
| 58405-0C010-B1 note |
Lock Sub-assy, Deck Board
2017-08 → —
|
USK6# | — | |
| 58405-0C010-C1 note |
Lock Sub-assy, Deck Board
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 58405-0C010-E1 note |
Lock Sub-assy, Deck Board
2017-08 → —
|
USK6# | — | |
| 58408D — Board Sub-assy, Deck, NO.2 | ||||
| 58408-0C010-B1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2008-12
ended
|
USK6# LIMD,SR5 | — | |
| 58408-0C010-B1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58408-0C010-B1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2017-08
ended
|
UPK6#;USK6# PLAT | — | |
| 58408-0C010-B1 note |
Board Sub-assy, Deck, NO.2
2008-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 58408-0C010-C1 note |
Board Sub-assy, Deck, NO.2
2008-12 → 2009-04
ended
|
UCK6# SR5 | — | |
| 58408-0C010-C1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2017-08
ended
|
UPK6# SR5;USK6# PLAT | — | |
| 58408-0C010-C1 note |
Board Sub-assy, Deck, NO.2
2008-12 → 2017-08
ended
|
USK6# SR5 | — | |
| 58408-0C010-C1 note |
Board Sub-assy, Deck, NO.2
2008-12 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58408-0C010-E1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2008-12
ended
|
USK6# LIMD,SR5 | — | |
| 58408-0C010-E1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58408-0C010-E1 note |
Board Sub-assy, Deck, NO.2
2007-11 → 2017-08
ended
|
UPK6#;USK6# PLAT | — | |
| 58408-0C010-E1 note |
Board Sub-assy, Deck, NO.2
2008-12 → 2017-08
ended
|
USK6# LIMD,SR5 | — | |
| 58408-0C010-B1 note |
Board Sub-assy, Deck, NO.2
2017-08 → —
|
USK6# | — | |
| 58408-0C010-C1 note |
Board Sub-assy, Deck, NO.2
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 58408-0C010-E1 note |
Board Sub-assy, Deck, NO.2
2017-08 → —
|
USK6# | — | |
| 58410S — Clip, Deck Board | ||||
| 90467-A0006 |
Clip, Deck Board
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 90467-A0006 |
Clip, Deck Board
2007-11 → 2017-08
ended
|
USK6# | — | |
| 90467-A0006 |
Clip, Deck Board
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 90467-A0006 |
Clip, Deck Board
2017-08 → —
|
USK6# | — | |
| 58423A — Spacer, Rear Floor Board, NO.2 | ||||
| 58423-0C010 |
Spacer, Rear Floor Board, NO.2
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58423-0C010 |
Spacer, Rear Floor Board, NO.2
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 58423-0C010 |
Spacer, Rear Floor Board, NO.2
2007-11 → 2017-08
ended
|
USK6# | — | |
| 58423-0C010 |
Spacer, Rear Floor Board, NO.2
2017-08 → —
|
USK6# | — | |
| 58424C — Spacer, Rear Floor Board, NO.3 | ||||
| 58424-0C010 |
Spacer, Rear Floor Board, NO.3
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58424-0C010 |
Spacer, Rear Floor Board, NO.3
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 58424-0C010 |
Spacer, Rear Floor Board, NO.3
2007-11 → 2017-08
ended
|
USK6# | — | |
| 58424-0C010 |
Spacer, Rear Floor Board, NO.3
2017-08 → —
|
USK6# | — | |
| 58427A — Spacer, Rear Floor Board | ||||
| 58427-0C010 |
Spacer, Rear Floor Board
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58427-0C010 |
Spacer, Rear Floor Board
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 58427-0C010 |
Spacer, Rear Floor Board
2007-11 → 2017-08
ended
|
USK6# | — | |
| 58427-0C010 |
Spacer, Rear Floor Board
2017-08 → —
|
USK6# | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-0C450-B0 note |
Carpet Assy, Floor, Front
2007-11 → 2009-04
ended
|
UCK6#,USK6# HTWC | — | |
| 58510-0C450-B0 note |
Carpet Assy, Floor, Front
2008-08 → 2009-04
ended
|
USK65 HTWCF | — | |
| 58510-0C450-C0 note |
Carpet Assy, Floor, Front
2007-11 → 2009-04
ended
|
UCK6#,USK6# LIMD HTWC | — | |
| 58510-0C450-C0 note |
Carpet Assy, Floor, Front
2007-11 → 2009-04
ended
|
UCK6#,USK6# (PLAT,SR5) HTWC | — | |
| 58510-0C450-C0 note |
Carpet Assy, Floor, Front
2008-08 → 2009-04
ended
|
USK65 (PLAT,SR5) HTWCF | — | |
| 58510-0C450-E0 note |
Carpet Assy, Floor, Front
2007-11 → 2009-04
ended
|
UCK6#,USK6# | — | |
| 58510-0C580-B0 note |
Carpet Assy, Floor, Front
2009-04 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 58510-0C580-C0 note |
Carpet Assy, Floor, Front
2009-04 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 58510-0C580-C0 note |
Carpet Assy, Floor, Front
2009-04 → 2011-06
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58510-0C580-C0 note |
Carpet Assy, Floor, Front
2011-06 → 2011-07
ended
|
UPK6#,USK6# LIMD | — | |
| 58510-0C580-C0 note |
Carpet Assy, Floor, Front
2011-06 → 2011-07
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58510-0C580-E0 note |
Carpet Assy, Floor, Front
2009-04 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 58510-0C600-C0 note |
Carpet Assy, Floor, Front
2011-07 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58510-0C600-C0 note |
Carpet Assy, Floor, Front
2011-07 → 2017-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58510-0C600-C0 note |
Carpet Assy, Floor, Front
2017-08 → 2017-09
ended
|
USK65 LIMD HTWCF | — | |
| 58510-0C600-C0 note |
Carpet Assy, Floor, Front
2017-08 → —
|
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC | — | |
| 58520C — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2016-10 → 2017-08
ended
|
USK6# | — | |
| 90467-07049-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2007-11 → 2016-10
ended
|
UCK6#,UPK6#,USK6# | — | |
| 90467-07049-23 note |
Clip(FOR FRONT FLOOR CARPET)
2017-08 → —
|
USK6# | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-0C030 |
Hook, Floor Carpet
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58521-0C030 |
Hook, Floor Carpet
2007-11 → 2017-08
ended
|
USK6# | — | |
| 58521-0C030 |
Hook, Floor Carpet
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 58521-0C030 |
Hook, Floor Carpet
2017-08 → —
|
USK6# | — | |
| 58521F — Hook, Floor Carpet | ||||
| 58521-0C040 |
Hook, Floor Carpet
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58521-0C040 |
Hook, Floor Carpet
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 58521-0C040 |
Hook, Floor Carpet
2007-11 → 2017-08
ended
|
USK6# | — | |
| 58521-0C040 |
Hook, Floor Carpet
2017-08 → —
|
USK6# | — | |
| 58570C — Carpet Assy, Rear Floor | ||||
| 58570-0C030-B0 note |
Carpet Assy, Rear Floor
2007-11 → 2011-06
ended
|
UCK6#,UPK6#,USK6# LIMD,SR5 | — | |
| 58570-0C030-C0 note |
Carpet Assy, Rear Floor
2011-06 → 2017-08
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 58570-0C030-E0 note |
Carpet Assy, Rear Floor
2007-11 → 2011-06
ended
|
UCK6#,UPK6#,USK6# LIMD,SR5 | — | |
| 58570-0C040-B0 note |
Carpet Assy, Rear Floor
2007-11 → 2008-12
ended
|
UCK6#,USK6# LIMD,SR5 | — | |
| 58570-0C040-B0 note |
Carpet Assy, Rear Floor
2008-12 → 2011-06
ended
|
UCK6#,UPK6#,USK6# LIMD,SR5 | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2011-06 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2008-12 → 2011-06
ended
|
UPK6#,USK6# SR5 | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2008-12 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2011-06 → 2017-08
ended
|
UPK6#,USK6# SR5 | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2008-12 → 2009-04
ended
|
UCK6# LIMD | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2008-12 → 2009-04
ended
|
UCK6# SR5 | — | |
| 58570-0C040-E0 note |
Carpet Assy, Rear Floor
2008-12 → 2011-06
ended
|
UPK6#,USK6# LIMD,SR5 | — | |
| 58570-0C040-E0 note |
Carpet Assy, Rear Floor
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58570-0C040-E0 note |
Carpet Assy, Rear Floor
2007-11 → 2008-12
ended
|
USK6# LIMD,SR5 | — | |
| 58570-0C050-B0 note |
Carpet Assy, Rear Floor
2007-11 → 2011-06
ended
|
USK6# PLAT | — | |
| 58570-0C050-C0 note |
Carpet Assy, Rear Floor
2011-06 → 2017-08
ended
|
USK6# PLAT | — | |
| 58570-0C050-C0 note |
Carpet Assy, Rear Floor
2007-11 → 2011-06
ended
|
USK6# PLAT | — | |
| 58570-0C050-E0 note |
Carpet Assy, Rear Floor
2007-11 → 2011-06
ended
|
USK6# PLAT | — | |
| 58570-0C030-C0 note |
Carpet Assy, Rear Floor
2017-08 → 2019-08
ended
|
USK6# LIMD,SR5 | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2017-08 → 2019-08
ended
|
USK6# SR5 | — | |
| 58570-0C040-C0 note |
Carpet Assy, Rear Floor
2017-08 → 2019-08
ended
|
USK6# LIMD | — | |
| 58570-0C050-C0 note |
Carpet Assy, Rear Floor
2017-08 → 2019-08
ended
|
USK6# PLAT | — | |
| 58570-0C110-C0 note |
Carpet Assy, Rear Floor
2019-08 → —
|
USK6# PLAT | — | |
| 58570-0C120-C0 note |
Carpet Assy, Rear Floor
2019-08 → —
|
USK6# SR5 | — | |
| 58570-0C120-C0 note |
Carpet Assy, Rear Floor
2019-08 → —
|
USK6# LIMD | — | |
| 58570-0C130-C0 note |
Carpet Assy, Rear Floor
2019-08 → —
|
USK6# LIMD,SR5 | — | |
| 58573A — Plate, Rear Floor Mat Support | ||||
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2011-06 → 2017-08
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2011-06 → 2017-08
ended
|
UPK6#,USK6# LIMD | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2007-11 → 2011-06
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 58573-0C020-E0 note |
Plate, Rear Floor Mat Support
2007-11 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 58573-0C020-E0 note |
Plate, Rear Floor Mat Support
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2017-08 → —
|
USK65 PLAT;USK60 LIMD,PLAT;USK65 LIMD +1 | — | |
| 58573-0C020-C0 note |
Plate, Rear Floor Mat Support
2017-08 → —
|
USK6# SR5 HTWC;USK65 (LIMD,SR5) +1 | — | |
| 58694A — Plate, Mat Set, Upper | ||||
| 58694-76010 |
Plate, Mat Set, Upper
2011-07 → 2012-08
ended
|
UPK6# | — | |
| 58694-76010 |
Plate, Mat Set, Upper
2011-07 → 2017-08
ended
|
USK6# | — | |
| 58694-76010 |
Plate, Mat Set, Upper
2017-08 → —
|
USK6# | — | |
| 58698B — Plate, Mat Set, Lower | ||||
| 58698-76010 |
Plate, Mat Set, Lower
2011-07 → 2012-08
ended
|
UPK6# | — | |
| 58698-76010 |
Plate, Mat Set, Lower
2011-07 → 2017-08
ended
|
USK6# | — | |
| 58698-76010 |
Plate, Mat Set, Lower
2017-08 → —
|
USK6# | — | |
| 64391C — Cap | ||||
| 65896-0C010 |
Cap
2007-11 → 2017-08
ended
|
USK6# | — | |
| 65896-0C010 |
Cap
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 65896-0C010 |
Cap
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 65896-0C010 |
Cap
2017-08 → —
|
USK6# | — | |
| 64429G — Box, Luggage Compartment Trim | ||||
| 64070-0C010 |
Box, Luggage Compartment Trim
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 64070-0C010 |
Box, Luggage Compartment Trim
2007-11 → 2012-08
ended
|
UPK6# | — | |
| 64070-0C010 |
Box, Luggage Compartment Trim
2007-11 → 2017-08
ended
|
USK6# | — | |
| 64070-0C010 |
Box, Luggage Compartment Trim
2017-08 → —
|
USK6# | — | |
| 66310D — Hook Assy, Rope | ||||
| 66310-30011-C0 note |
Hook Assy, Rope
2007-11 → 2009-04
ended
|
UCK6# SR5 | — | |
| 66310-30011-C0 note |
Hook Assy, Rope
2007-11 → 2009-04
ended
|
UCK6# LIMD | — | |
| 66310-30011-C0 note |
Hook Assy, Rope
2007-11 → 2011-06
ended
|
UPK6#,USK6# LIMD | — | |
| 66310-30011-C0 note |
Hook Assy, Rope
2007-11 → 2011-06
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 66310-30011-C0 note |
Hook Assy, Rope
2011-06 → 2017-01
ended
|
UPK6#,USK6# LIMD | — | |
| 66310-30011-C0 note |
Hook Assy, Rope
2011-06 → 2017-01
ended
|
UPK6#,USK6# PLAT,SR5 | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2017-01 → 2017-08
ended
|
USK6# PLAT,SR5 | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2017-01 → 2017-08
ended
|
USK6# LIMD | — | |
| 66310-30011-E1 note |
Hook Assy, Rope
2007-11 → 2009-04
ended
|
UCK6# | — | |
| 66310-30011-E1 note |
Hook Assy, Rope
2007-11 → 2011-06
ended
|
UPK6#,USK6# | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2017-08 → —
|
USK65 PLAT;USK60 LIMD,PLAT;USK65 LIMD +1 | — | |
| 66310-30011-C1 note |
Hook Assy, Rope
2017-08 → —
|
USK6# SR5 HTWC;USK65 (LIMD,SR5) +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
