Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

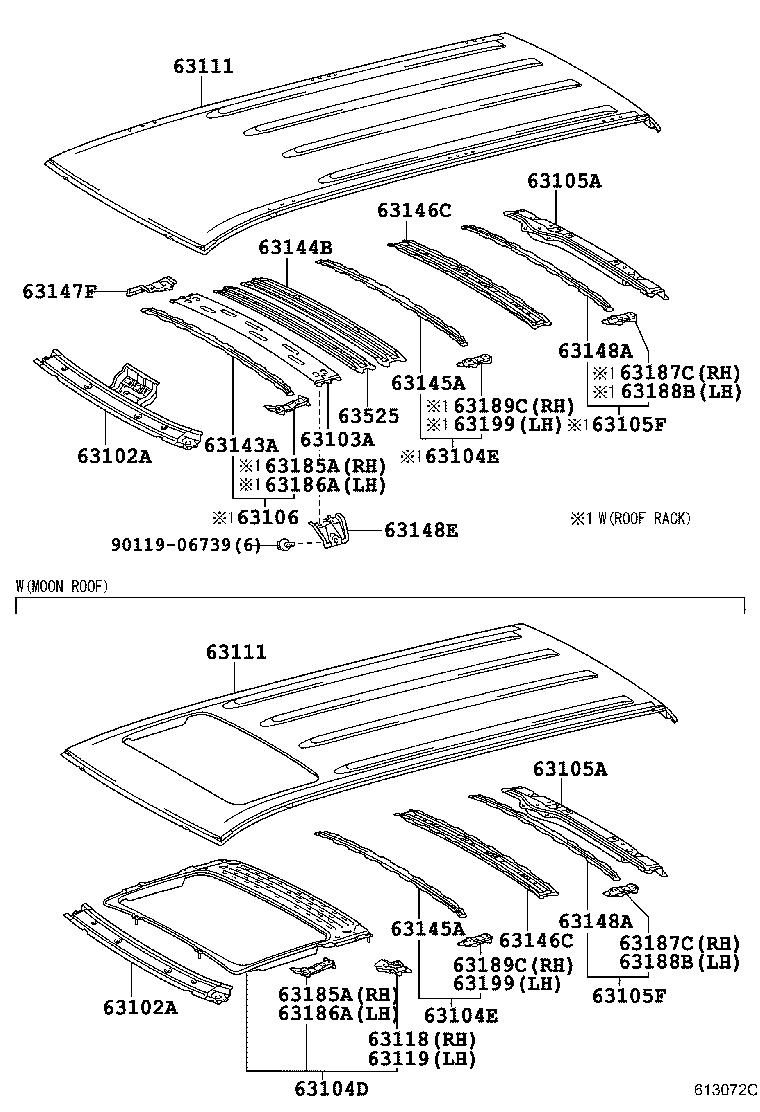

Exploded illustration 613072C 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (48 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (48 parts) 63103A — REINFORCEMENT SUB-ASSY, ROOF PANEL (3 parts) 63104D — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 (28 parts) 63104E — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (4 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (4 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (4 parts) 63105F — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 (4 parts) 63105F — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 (4 parts) 63106 — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 (3 parts) 63111 — PANEL, ROOF (45 parts) 63111 — PANEL, ROOF (45 parts) 63118 — SUPPORT, ROOF PANEL, RH (28 parts) 63119 — SUPPORT, ROOF PANEL, LH (28 parts) 63143A — REINFORCEMENT, ROOF PANEL (3 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (3 parts) 63145A — REINFORCEMENT, ROOF PANEL, NO.5 (4 parts) 63146C — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 (4 parts) 63146C — REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 (4 parts) 63147F — BRACKET, ROOF PANEL REINFORCEMENT, RH (3 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (4 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (4 parts) 63148E — BRACKET, ROOF PANEL REINFORCEMENT, LH (3 parts) 63185A — BRACKET, ROOF RACK, FRONT RH (4 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (4 parts) 63185A — BRACKET, ROOF RACK, FRONT RH (4 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (4 parts) 63188B — BRACKET, ROOF RACK, NO.1 REAR LH (4 parts) 63104E — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (4 parts) 63145A — REINFORCEMENT, ROOF PANEL, NO.5 (4 parts) 63187C — BRACKET, ROOF RACK, NO.1 REAR RH (4 parts) 63188B — BRACKET, ROOF RACK, NO.1 REAR LH (4 parts) 63187C — BRACKET, ROOF RACK, NO.1 REAR RH (4 parts) 63189C — BRACKET, ROOF RACK, CENTER RH (4 parts) 63199 — BRACKET, ROOF RACK, CENTER LH (4 parts) 63189C — BRACKET, ROOF RACK, CENTER RH (4 parts) 63199 — BRACKET, ROOF RACK, CENTER LH (4 parts) 63525 — BRACKET, TELEVISION RACK, NO.1 (3 parts) 9011906739 — not listed in this catalogue
613072C · 38 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
246 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-0C907 Panel Sub-assy, Windshield Header
2007-11 → 2009-04 ended
UCK6#;USK6# LIMD —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK60 LIMD —
63102-0C907 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK60 SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63102-0C907 Panel Sub-assy, Windshield Header
2007-11 → 2015-08 ended
USK6# SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2013-08 ended
USK60 SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK60 SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK6# SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK60 SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK60 LIMD —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK6# LIMD —
63102-0C907 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63102-0C907 Panel Sub-assy, Windshield Header
2007-11 → 2012-08 ended
UPK6# SR5 —
63102-0C907 note Panel Sub-assy, Windshield Header
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63102-0C908 Panel Sub-assy, Windshield Header
2007-11 → 2009-04 ended
USK6# PLAT —
63102-0C908 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK60 SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK6# PLAT HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK60 PLAT —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2017-08 ended
USK60 LIMD —
63102-0C908 note Panel Sub-assy, Windshield Header
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2013-08 → 2017-08 ended
USK65 PLAT HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK60 SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2007-11 → 2009-04 ended
UCK6#;USK6# LIMD —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2007-11 → 2012-08 ended
UPK6# SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK6# LIMD —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK6# SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK60 LIMD —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2012-08 ended
UPK60 SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2009-04 → 2013-08 ended
USK60 SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2012-08 → 2013-08 ended
USK65 PLAT HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63102-0C908 note Panel Sub-assy, Windshield Header
2007-11 → 2015-08 ended
USK6# SR5 —
63102-0C908 note Panel Sub-assy, Windshield Header
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63102-0C908 Panel Sub-assy, Windshield Header
2017-08 → —
USK6# —
63103A — Reinforcement Sub-assy, Roof Panel
63103-0C050 Reinforcement Sub-assy, Roof Panel
2007-11 → 2009-04 ended
UCK6# —
63103-0C050 Reinforcement Sub-assy, Roof Panel
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63103-0C050 Reinforcement Sub-assy, Roof Panel
2007-11 → 2012-08 ended
UPK6# —
63104D — Reinforcement Sub-assy, Roof Panel, NO.2
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2012-08 ended
UPK60 SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2015-08 → 2017-08 ended
USK60 SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2017-08 ended
USK60 LIMD —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63104-0C020 Reinforcement Sub-assy, Roof Panel, NO.2
2007-11 → 2017-08 ended
USK6# PLAT —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2013-08 → 2015-08 ended
USK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2013-08 → 2015-08 ended
USK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2013-08 → 2015-08 ended
USK60 SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2013-08 ended
USK60 SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2007-11 → 2012-08 ended
UPK6# —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2012-08 ended
UPK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2012-08 ended
UPK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2012-08 ended
UPK60 LIMD —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2007-11 → 2009-04 ended
UCK6# —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2013-08 ended
USK6# SR5 —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63104-0C020 note Reinforcement Sub-assy, Roof Panel, NO.2
2009-04 → 2012-08 ended
UPK6# LIMD —
63104-0C020 Reinforcement Sub-assy, Roof Panel, NO.2
2017-08 → —
USK6# —
63104E — Reinforcement Sub-assy, Roof Panel, Rear
63107-0C010 Reinforcement Sub-assy, Roof Panel, Rear
2007-11 → 2009-04 ended
UCK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, Rear
2007-11 → 2012-08 ended
UPK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, Rear
2007-11 → 2017-08 ended
USK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, Rear
2017-08 → —
USK6# —
63105A — Frame Sub-assy, Back Door Opening
63105-0C903 Frame Sub-assy, Back Door Opening
2007-11 → 2009-04 ended
UCK6#,USK6# —
63105-0C904 Frame Sub-assy, Back Door Opening
2009-04 → 2012-08 ended
UPK6# —
63105-0C904 Frame Sub-assy, Back Door Opening
2009-04 → 2017-08 ended
USK6# —
63105-0C904 Frame Sub-assy, Back Door Opening
2017-08 → —
USK6# —
63105F — Reinforcement Sub-assy, Roof Panel, NO.3
63107-0C010 Reinforcement Sub-assy, Roof Panel, NO.3
2007-11 → 2009-04 ended
UCK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, NO.3
2007-11 → 2012-08 ended
UPK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, NO.3
2007-11 → 2017-08 ended
USK6# —
63107-0C010 Reinforcement Sub-assy, Roof Panel, NO.3
2017-08 → —
USK6# —
63106 — Reinforcement Sub-assy, Roof Panel, NO.4
63106-0C010 Reinforcement Sub-assy, Roof Panel, NO.4
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63106-0C010 Reinforcement Sub-assy, Roof Panel, NO.4
2007-11 → 2012-08 ended
UPK6# —
63106-0C010 Reinforcement Sub-assy, Roof Panel, NO.4
2007-11 → 2009-04 ended
UCK6# —
63111 — Panel, Roof
63111-0C160 Panel, Roof
2007-11 → 2009-04 ended
UCK6# —
63111-0C160 note Panel, Roof
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63111-0C160 note Panel, Roof
2013-08 → 2015-08 ended
USK60 SR5 —
63111-0C160 note Panel, Roof
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63111-0C160 note Panel, Roof
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63111-0C160 note Panel, Roof
2009-04 → 2013-08 ended
USK60 SR5 —
63111-0C160 note Panel, Roof
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63111-0C160 Panel, Roof
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63111-0C160 note Panel, Roof
2009-04 → 2012-08 ended
UPK60 SR5 —
63111-0C160 note Panel, Roof
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63111-0C160 note Panel, Roof
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63111-0C160 Panel, Roof
2007-11 → 2012-08 ended
UPK6# —
63111-0C160 note Panel, Roof
2009-04 → 2012-08 ended
UPK6# SR5 —
63111-0C901 note Panel, Roof
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63111-0C901 note Panel, Roof
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63111-0C901 note Panel, Roof
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63111-0C901 note Panel, Roof
2015-08 → 2017-08 ended
USK60 SR5 —
63111-0C901 note Panel, Roof
2013-08 → 2015-08 ended
USK60 SR5 —
63111-0C901 note Panel, Roof
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63111-0C901 note Panel, Roof
2013-08 → 2015-08 ended
USK6# SR5 —
63111-0C901 note Panel, Roof
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63111-0C901 note Panel, Roof
2013-08 → 2015-08 ended
USK6# SR5 —
63111-0C901 Panel, Roof
2007-11 → 2017-08 ended
USK6# PLAT —
63111-0C901 note Panel, Roof
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63111-0C901 note Panel, Roof
2009-04 → 2017-08 ended
USK60 LIMD —
63111-0C901 note Panel, Roof
2009-04 → 2013-08 ended
USK60 SR5 —
63111-0C901 note Panel, Roof
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63111-0C901 note Panel, Roof
2007-11 → 2009-04 ended
UCK6# —
63111-0C901 note Panel, Roof
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63111-0C901 note Panel, Roof
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63111-0C901 note Panel, Roof
2007-11 → 2012-08 ended
UPK6# —
63111-0C901 note Panel, Roof
2009-04 → 2012-08 ended
UPK6# SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2012-08 ended
UPK6# LIMD —
63111-0C901 note Panel, Roof
2009-04 → 2012-08 ended
UPK6# SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2012-08 ended
UPK60 LIMD —
63111-0C901 note Panel, Roof
2009-04 → 2012-08 ended
UPK60 SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2013-08 ended
USK6# SR5 —
63111-0C901 note Panel, Roof
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63111-0C290 Panel, Roof
2019-08 → —
USK6# —
63111-0C300 note Panel, Roof
2019-08 → —
USK6# —
63111-0C300 note Panel, Roof
2019-08 → —
USK65 LIMD,PLAT —
63111-0C300 note Panel, Roof
2019-08 → —
USK60 —
63111-0C901 Panel, Roof
2017-08 → 2019-08 ended
USK6# —
63118 — Support, Roof Panel, RH
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2015-08 → 2017-08 ended
USK60 SR5 —
63118-0C030 note Support, Roof Panel, RH
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2017-08 ended
USK60 LIMD —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63118-0C030 note Support, Roof Panel, RH
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63118-0C030 Support, Roof Panel, RH
2007-11 → 2017-08 ended
USK6# PLAT —
63118-0C030 note Support, Roof Panel, RH
2013-08 → 2015-08 ended
USK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2013-08 → 2015-08 ended
USK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2013-08 → 2015-08 ended
USK60 SR5 —
63118-0C030 note Support, Roof Panel, RH
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2013-08 ended
USK60 SR5 —
63118-0C030 note Support, Roof Panel, RH
2007-11 → 2009-04 ended
UCK6# —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2013-08 ended
USK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2012-08 ended
UPK60 SR5 —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2012-08 ended
UPK60 LIMD —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2012-08 ended
UPK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2012-08 ended
UPK6# LIMD —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2012-08 ended
UPK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2007-11 → 2012-08 ended
UPK6# —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63118-0C030 note Support, Roof Panel, RH
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 —
63118-0C030 note Support, Roof Panel, RH
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63118-0C030 Support, Roof Panel, RH
2017-08 → —
USK6# —
63119 — Support, Roof Panel, LH
63119-0C030 note Support, Roof Panel, LH
2015-08 → 2017-08 ended
USK65 SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2015-08 → 2017-08 ended
USK60 SR5 —
63119-0C030 note Support, Roof Panel, LH
2015-08 → 2017-08 ended
USK6# SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2012-08 → 2017-08 ended
USK65 LIMD HTWC —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2017-08 ended
USK60 LIMD —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2017-08 ended
USK6# LIMD HTWC —
63119-0C030 note Support, Roof Panel, LH
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63119-0C030 Support, Roof Panel, LH
2007-11 → 2017-08 ended
USK6# PLAT —
63119-0C030 note Support, Roof Panel, LH
2013-08 → 2015-08 ended
USK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2013-08 → 2015-08 ended
USK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2013-08 → 2015-08 ended
USK65 SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2013-08 → 2015-08 ended
USK60 SR5 —
63119-0C030 note Support, Roof Panel, LH
2013-08 → 2015-08 ended
USK6# SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2013-08 ended
USK60 SR5 —
63119-0C030 note Support, Roof Panel, LH
2012-08 → 2013-08 ended
USK65 SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2007-11 → 2009-04 ended
UCK6# —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2011-07 ended
UPK6#,USK6# SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2011-07 ended
UPK60,USK60 SR5 —
63119-0C030 note Support, Roof Panel, LH
2007-11 → 2012-08 ended
UPK6# —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2012-08 ended
UPK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2012-08 ended
UPK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2012-08 ended
UPK60 LIMD —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2012-08 ended
UPK60 SR5 —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2013-08 ended
USK6# SR5 —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2013-08 ended
USK6# SR5 HTWC —
63119-0C030 note Support, Roof Panel, LH
2009-04 → 2012-08 ended
UPK6# LIMD —
63119-0C030 Support, Roof Panel, LH
2017-08 → —
USK6# —
63143A — Reinforcement, Roof Panel
63143-0C030 Reinforcement, Roof Panel
2007-11 → 2009-04 ended
UCK6# —
63143-0C030 Reinforcement, Roof Panel
2007-11 → 2012-08 ended
UPK6# —
63143-0C030 Reinforcement, Roof Panel
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63144B — Reinforcement, Roof Panel, NO.4
63144-0C030 Reinforcement, Roof Panel, NO.4
2007-11 → 2009-04 ended
UCK6# —
63144-0C030 Reinforcement, Roof Panel, NO.4
2007-11 → 2012-08 ended
UPK6# —
63144-0C030 Reinforcement, Roof Panel, NO.4
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63145A — Reinforcement, Roof Panel, NO.5
63149-0C020 Reinforcement, Roof Panel, NO.5
2007-11 → 2009-04 ended
UCK6# —
63149-0C020 Reinforcement, Roof Panel, NO.5
2007-11 → 2017-08 ended
USK6# —
63149-0C020 Reinforcement, Roof Panel, NO.5
2007-11 → 2012-08 ended
UPK6# —
63149-0C020 Reinforcement, Roof Panel, NO.5
2017-08 → —
USK6# —
63146C — Reinforcement Sub-assy, Roof Panel, NO.6
63148-0C010 Reinforcement Sub-assy, Roof Panel, NO.6
2007-11 → 2009-04 ended
UCK6# —
63148-0C010 Reinforcement Sub-assy, Roof Panel, NO.6
2007-11 → 2012-08 ended
UPK6# —
63148-0C010 Reinforcement Sub-assy, Roof Panel, NO.6
2007-11 → 2017-08 ended
USK6# —
63148-0C010 Reinforcement Sub-assy, Roof Panel, NO.6
2017-08 → —
USK6# —
63147F — Bracket, Roof Panel Reinforcement, RH
63147-0C040 Bracket, Roof Panel Reinforcement, RH
2007-11 → 2009-04 ended
UCK6# —
63147-0C040 Bracket, Roof Panel Reinforcement, RH
2007-11 → 2012-08 ended
UPK6# —
63147-0C040 Bracket, Roof Panel Reinforcement, RH
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63148A — Reinforcement, Roof Panel, NO.7
63149-0C020 Reinforcement, Roof Panel, NO.7
2007-11 → 2017-08 ended
USK6# —
63149-0C020 Reinforcement, Roof Panel, NO.7
2007-11 → 2012-08 ended
UPK6# —
63149-0C020 Reinforcement, Roof Panel, NO.7
2007-11 → 2009-04 ended
UCK6# —
63149-0C020 Reinforcement, Roof Panel, NO.7
2017-08 → —
USK6# —
63148E — Bracket, Roof Panel Reinforcement, LH
63147-0C040 Bracket, Roof Panel Reinforcement, LH
2007-11 → 2009-04 ended
UCK6# —
63147-0C040 Bracket, Roof Panel Reinforcement, LH
2007-11 → 2012-08 ended
UPK6# —
63147-0C040 Bracket, Roof Panel Reinforcement, LH
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
63185A — Bracket, Roof Rack, Front RH
63185-0C020 Bracket, Roof Rack, Front RH
2007-11 → 2009-04 ended
UCK6# —
63185-0C020 Bracket, Roof Rack, Front RH
2007-11 → 2012-08 ended
UPK6# —
63185-0C020 Bracket, Roof Rack, Front RH
2007-11 → 2017-08 ended
USK6# —
63185-0C020 Bracket, Roof Rack, Front RH
2017-08 → —
USK6# —
63186A — Bracket, Roof Rack, Front LH
63186-0C010 Bracket, Roof Rack, Front LH
2007-11 → 2009-04 ended
UCK6# —
63186-0C010 Bracket, Roof Rack, Front LH
2007-11 → 2012-08 ended
UPK6# —
63186-0C010 Bracket, Roof Rack, Front LH
2007-11 → 2017-08 ended
USK6# —
63186-0C010 Bracket, Roof Rack, Front LH
2017-08 → —
USK6# —
63187C — Bracket, Roof Rack, NO.1 Rear RH
63189-0C020 Bracket, Roof Rack, NO.1 Rear RH
2007-11 → 2009-04 ended
UCK6# —
63189-0C020 Bracket, Roof Rack, NO.1 Rear RH
2007-11 → 2012-08 ended
UPK6# —
63189-0C020 Bracket, Roof Rack, NO.1 Rear RH
2007-11 → 2017-08 ended
USK6# —
63189-0C020 Bracket, Roof Rack, NO.1 Rear RH
2017-08 → —
USK6# —
63188B — Bracket, Roof Rack, NO.1 Rear LH
63199-0C010 Bracket, Roof Rack, NO.1 Rear LH
2007-11 → 2009-04 ended
UCK6# —
63199-0C010 Bracket, Roof Rack, NO.1 Rear LH
2007-11 → 2012-08 ended
UPK6# —
63199-0C010 Bracket, Roof Rack, NO.1 Rear LH
2007-11 → 2017-08 ended
USK6# —
63199-0C010 Bracket, Roof Rack, NO.1 Rear LH
2017-08 → —
USK6# —
63189C — Bracket, Roof Rack, Center RH
63189-0C020 Bracket, Roof Rack, Center RH
2007-11 → 2009-04 ended
UCK6# —
63189-0C020 Bracket, Roof Rack, Center RH
2007-11 → 2012-08 ended
UPK6# —
63189-0C020 Bracket, Roof Rack, Center RH
2007-11 → 2017-08 ended
USK6# —
63189-0C020 Bracket, Roof Rack, Center RH
2017-08 → —
USK6# —
63199 — Bracket, Roof Rack, Center LH
63199-0C010 Bracket, Roof Rack, Center LH
2007-11 → 2009-04 ended
UCK6# —
63199-0C010 Bracket, Roof Rack, Center LH
2007-11 → 2012-08 ended
UPK6# —
63199-0C010 Bracket, Roof Rack, Center LH
2007-11 → 2017-08 ended
USK6# —
63199-0C010 Bracket, Roof Rack, Center LH
2017-08 → —
USK6# —
63525 — Bracket, Television Rack, NO.1
63525-0C020 Bracket, Television Rack, NO.1
2007-11 → 2009-04 ended
UCK6# —
63525-0C020 Bracket, Television Rack, NO.1
2007-11 → 2012-08 ended
UPK6# —
63525-0C020 Bracket, Television Rack, NO.1
2007-11 → 2017-08 ended
USK6# LIMD,SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
