Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

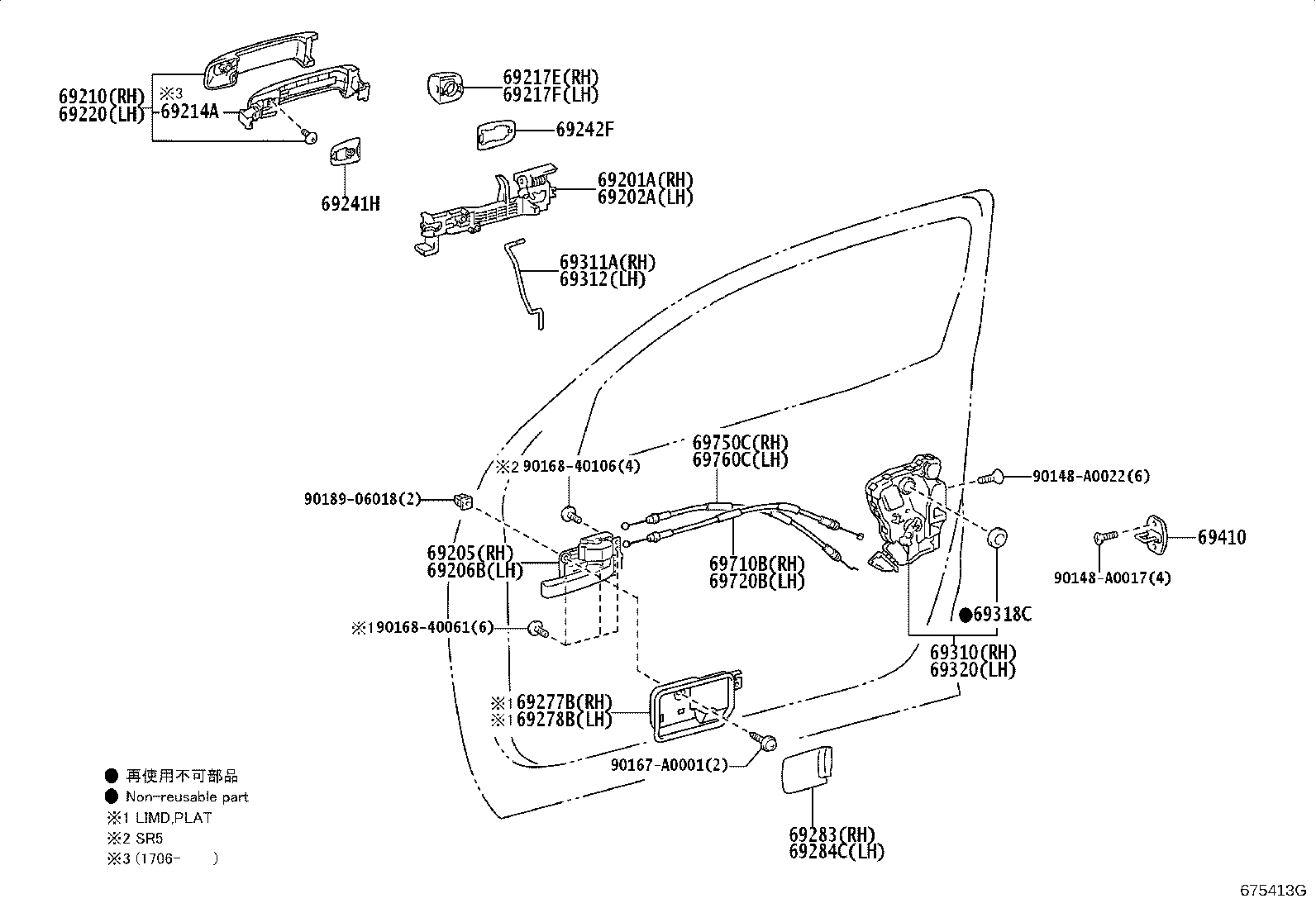

Exploded illustration 675413G 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (5 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (5 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (40 parts) 69217E — COVER, FRONT DOOR OUTSIDE HANDLE, RH (27 parts) 69217F — COVER, FRONT DOOR OUTSIDE HANDLE, LH (33 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (40 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (4 parts) 69214A — HANDLE, DOOR OUTSIDE, NO.2 (3 parts) 69242F — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (4 parts) 69283 — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (5 parts) 69284C — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (5 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (5 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (5 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (5 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (6 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (6 parts) 90148A0017 — not listed in this catalogue 90148A0022 — not listed in this catalogue 90167A0001 — not listed in this catalogue 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (10 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (10 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (5 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (12 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (5 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (5 parts) 9016840106 — not listed in this catalogue 9016840061 — not listed in this catalogue 9018906018 — not listed in this catalogue 69310 — LOCK ASSY, FRONT DOOR, RH (6 parts) 69318C — SEAL, DOOR LOCK WIRING HARNESS (5 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (6 parts)
675413G · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
262 parts on this figure
Part number Description Fitment Price
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-0C010 Frame Sub-assy, Front Door Outside Handle, RH
2007-11 → 2012-08 ended
UPK6# —
69201-0C010 Frame Sub-assy, Front Door Outside Handle, RH
2007-11 → 2009-04 ended
UCK6# —
69201-0C010 Frame Sub-assy, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
USK6# —
69201-0C010 Frame Sub-assy, Front Door Outside Handle, RH
2017-08 → 2019-08 ended
USK6# —
69201-0C011 Frame Sub-assy, Front Door Outside Handle, RH
2019-08 → —
USK6# —
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-0C010 Frame Sub-assy, Front Door Outside Handle, LH
2007-11 → 2009-04 ended
UCK6# —
69202-0C010 Frame Sub-assy, Front Door Outside Handle, LH
2007-11 → 2012-08 ended
UPK6# —
69202-0C010 Frame Sub-assy, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
USK6# —
69202-0C010 Frame Sub-assy, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# —
69202-0C011 Frame Sub-assy, Front Door Outside Handle, LH
2019-08 → —
USK6# —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-0C040 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2009-04 ended
UCK6# SR5 —
69205-0C040 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2017-08 ended
USK6# SR5 —
69205-0C040 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2012-08 ended
UPK6# SR5 —
69205-0C050 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2012-08 ended
UPK6# LIMD —
69205-0C050 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2009-04 ended
UCK6# LIMD —
69205-0C050 Handle Sub-assy, Front Door Inside, RH
2007-11 → 2017-08 ended
USK6# LIMD,PLAT —
69205-0C040 Handle Sub-assy, Front Door Inside, RH
2017-08 → 2017-09 ended
USK65 SR5 HTWCF —
69205-0C040 Handle Sub-assy, Front Door Inside, RH
2017-08 → —
USK6# SR5 HTWC —
69205-0C050 Handle Sub-assy, Front Door Inside, RH
2017-08 → —
USK6# (LIMD,PLAT) HTWC —
69205-0C050 Handle Sub-assy, Front Door Inside, RH
2017-08 → 2017-09 ended
USK65 (LIMD,PLAT) HTWCF —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-0C040 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2009-04 ended
UCK6# SR5 —
69206-0C040 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2012-08 ended
UPK6# SR5 —
69206-0C040 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2017-08 ended
USK6# SR5 —
69206-0C050 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2009-04 ended
UCK6# LIMD —
69206-0C050 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2012-08 ended
UPK6# LIMD —
69206-0C050 Handle Sub-assy, Front Door Inside, LH
2007-11 → 2017-08 ended
USK6# LIMD,PLAT —
69206-0C040 Handle Sub-assy, Front Door Inside, LH
2017-08 → —
USK6# SR5 HTWC —
69206-0C040 Handle Sub-assy, Front Door Inside, LH
2017-08 → 2017-09 ended
USK65 SR5 HTWCF —
69206-0C050 Handle Sub-assy, Front Door Inside, LH
2017-08 → 2017-09 ended
USK65 (LIMD,PLAT) HTWCF —
69206-0C050 Handle Sub-assy, Front Door Inside, LH
2017-08 → —
USK6# (LIMD,PLAT) HTWC —
69210 — Handle Assy, Front Door, Outside RH
69210-0C020 note Handle Assy, Front Door, Outside RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
69210-0C030-A0 note Handle Assy, Front Door, Outside RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B0 note Handle Assy, Front Door, Outside RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B1 note Handle Assy, Front Door, Outside RH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B2 note Handle Assy, Front Door, Outside RH
2010-08 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-C0 note Handle Assy, Front Door, Outside RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-D0 note Handle Assy, Front Door, Outside RH
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-D2 note Handle Assy, Front Door, Outside RH
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-E0 note Handle Assy, Front Door, Outside RH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69210-0C030-E1 note Handle Assy, Front Door, Outside RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-E2 note Handle Assy, Front Door, Outside RH
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-G0 note Handle Assy, Front Door, Outside RH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69210-0C030-G1 note Handle Assy, Front Door, Outside RH
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
69210-0C030-J0 note Handle Assy, Front Door, Outside RH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C020 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
69210-0C030-A0 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-B0 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-B2 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-C1 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-D2 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-E3 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-J1 note Handle Assy, Front Door, Outside RH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C040-A0 note Handle Assy, Front Door, Outside RH
2019-08 → 2021-08 ended
USK6# LIMD —
69210-0C040-A1 note Handle Assy, Front Door, Outside RH
2019-08 → 2021-08 ended
USK6# LIMD,PLAT —
69210-0C040-A2 note Handle Assy, Front Door, Outside RH
2021-08 → —
USK6# LIMD,PLAT —
69210-0C040-B1 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-B3 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-C0 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-D1 note Handle Assy, Front Door, Outside RH
2019-08 → 2020-09 ended
USK6# LIMD,PLAT —
69210-0C040-J2 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C060-A0 note Handle Assy, Front Door, Outside RH
2019-08 → 2021-08 ended
USK6# SR5 —
69210-0C060-A1 note Handle Assy, Front Door, Outside RH
2021-08 → —
USK6# SR5 —
69210-0C060-B0 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# SR5 —
69210-0C060-B1 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# SR5 —
69210-0C060-C0 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# SR5 —
69210-0C060-C0 note Handle Assy, Front Door, Outside RH
2020-09 → —
USK6# LIMD —
69210-0C060-D0 note Handle Assy, Front Door, Outside RH
2019-08 → 2020-09 ended
USK6# SR5 —
69210-0C060-G0 note Handle Assy, Front Door, Outside RH
2019-08 → 2020-09 ended
USK65 SR5 —
69210-0C060-G1 note Handle Assy, Front Door, Outside RH
2020-09 → —
USK65 SR5 —
69210-0C060-J0 note Handle Assy, Front Door, Outside RH
2019-08 → —
USK6# SR5 —
69214A — Handle, Door Outside, NO.2
69214-0C010 Handle, Door Outside, NO.2
2017-06 → 2017-08 ended
USK6# —
69214-0C010 Handle, Door Outside, NO.2
2017-08 → 2019-08 ended
USK6# —
69214-0C020 Handle, Door Outside, NO.2
2019-08 → —
USK6# —
69217E — Cover, Front Door Outside Handle, RH
69217-0C040 note Cover, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
69217-0C060-A0 note Cover, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-B0 note Cover, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-B1 note Cover, Front Door Outside Handle, RH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-B2 note Cover, Front Door Outside Handle, RH
2010-08 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C060-C0 note Cover, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-D0 note Cover, Front Door Outside Handle, RH
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-D2 note Cover, Front Door Outside Handle, RH
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C060-E0 note Cover, Front Door Outside Handle, RH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69217-0C060-E1 note Cover, Front Door Outside Handle, RH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C060-E2 note Cover, Front Door Outside Handle, RH
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C060-G0 note Cover, Front Door Outside Handle, RH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69217-0C060-G1 note Cover, Front Door Outside Handle, RH
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
69217-0C060-J0 note Cover, Front Door Outside Handle, RH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C040 note Cover, Front Door Outside Handle, RH
2017-08 → —
USK6# LIMD,PLAT —
69217-0C060-A0 note Cover, Front Door Outside Handle, RH
2017-08 → 2021-08 ended
USK6# SR5 —
69217-0C060-A3 note Cover, Front Door Outside Handle, RH
2021-08 → —
USK6# SR5 —
69217-0C060-B0 note Cover, Front Door Outside Handle, RH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C060-B2 note Cover, Front Door Outside Handle, RH
2017-08 → —
USK6# SR5 —
69217-0C060-B3 note Cover, Front Door Outside Handle, RH
2019-08 → —
USK6# SR5 —
69217-0C060-C1 note Cover, Front Door Outside Handle, RH
2020-09 → —
USK6# LIMD —
69217-0C060-C1 note Cover, Front Door Outside Handle, RH
2017-08 → —
USK6# SR5 —
69217-0C060-D2 note Cover, Front Door Outside Handle, RH
2017-08 → 2020-09 ended
USK6# SR5 —
69217-0C060-E3 note Cover, Front Door Outside Handle, RH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C060-G2 note Cover, Front Door Outside Handle, RH
2019-08 → 2020-09 ended
USK65 SR5 —
69217-0C060-G3 note Cover, Front Door Outside Handle, RH
2020-09 → —
USK65 SR5 —
69217-0C060-J1 note Cover, Front Door Outside Handle, RH
2017-08 → —
USK6# SR5 —
69217F — Cover, Front Door Outside Handle, LH
69217-0C020 note Cover, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
69217-0C050-A0 note Cover, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-B0 note Cover, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-B1 note Cover, Front Door Outside Handle, LH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-B2 note Cover, Front Door Outside Handle, LH
2010-08 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C050-C0 note Cover, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-D0 note Cover, Front Door Outside Handle, LH
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-D2 note Cover, Front Door Outside Handle, LH
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C050-E0 note Cover, Front Door Outside Handle, LH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69217-0C050-E1 note Cover, Front Door Outside Handle, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C050-E2 note Cover, Front Door Outside Handle, LH
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
69217-0C050-G0 note Cover, Front Door Outside Handle, LH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69217-0C050-G1 note Cover, Front Door Outside Handle, LH
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
69217-0C050-J0 note Cover, Front Door Outside Handle, LH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69217-0C020 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
69217-0C050-A0 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-B0 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-B2 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-C1 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-D2 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-E3 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C050-J1 note Cover, Front Door Outside Handle, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69217-0C070 note Cover, Front Door Outside Handle, LH
2019-08 → —
USK6# LIMD,PLAT —
69217-0C080-A0 note Cover, Front Door Outside Handle, LH
2019-08 → 2021-08 ended
USK6# SR5 —
69217-0C080-A1 note Cover, Front Door Outside Handle, LH
2021-08 → —
USK6# SR5 —
69217-0C080-B0 note Cover, Front Door Outside Handle, LH
2019-08 → —
USK6# SR5 —
69217-0C080-B1 note Cover, Front Door Outside Handle, LH
2019-08 → —
USK6# SR5 —
69217-0C080-C0 note Cover, Front Door Outside Handle, LH
2019-08 → —
USK6# SR5 —
69217-0C080-C0 note Cover, Front Door Outside Handle, LH
2020-09 → —
USK6# LIMD —
69217-0C080-D0 note Cover, Front Door Outside Handle, LH
2019-08 → 2020-09 ended
USK6# SR5 —
69217-0C080-G0 note Cover, Front Door Outside Handle, LH
2019-08 → 2020-09 ended
USK65 SR5 —
69217-0C080-G1 note Cover, Front Door Outside Handle, LH
2020-09 → —
USK65 SR5 —
69217-0C080-J0 note Cover, Front Door Outside Handle, LH
2019-08 → —
USK6# SR5 —
69220 — Handle Assy, Front Door Outside, LH
69210-0C020 note Handle Assy, Front Door Outside, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# LIMD,PLAT —
69210-0C030-A0 note Handle Assy, Front Door Outside, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B0 note Handle Assy, Front Door Outside, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B1 note Handle Assy, Front Door Outside, LH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-B2 note Handle Assy, Front Door Outside, LH
2010-08 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-C0 note Handle Assy, Front Door Outside, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-D0 note Handle Assy, Front Door Outside, LH
2007-11 → 2011-06 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-D2 note Handle Assy, Front Door Outside, LH
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-E0 note Handle Assy, Front Door Outside, LH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69210-0C030-E1 note Handle Assy, Front Door Outside, LH
2007-11 → 2017-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C030-E2 note Handle Assy, Front Door Outside, LH
2009-04 → 2017-08 ended
UPK6#,USK6# SR5 —
69210-0C030-G0 note Handle Assy, Front Door Outside, LH
2007-11 → 2009-04 ended
UCK6#,USK6# SR5 —
69210-0C030-G1 note Handle Assy, Front Door Outside, LH
2009-04 → 2010-08 ended
UPK6#,USK6# SR5 —
69210-0C030-J0 note Handle Assy, Front Door Outside, LH
2007-11 → 2010-08 ended
UCK6#,UPK6#,USK6# SR5 —
69210-0C020 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# LIMD,PLAT —
69210-0C030-A0 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-B0 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-B2 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-C1 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-D2 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-E3 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C030-J1 note Handle Assy, Front Door Outside, LH
2017-08 → 2019-08 ended
USK6# SR5 —
69210-0C040-A0 note Handle Assy, Front Door Outside, LH
2019-08 → 2021-08 ended
USK6# LIMD —
69210-0C040-A1 note Handle Assy, Front Door Outside, LH
2019-08 → 2021-08 ended
USK6# LIMD,PLAT —
69210-0C040-A2 note Handle Assy, Front Door Outside, LH
2021-08 → —
USK6# LIMD,PLAT —
69210-0C040-B1 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-B3 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-C0 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C040-D1 note Handle Assy, Front Door Outside, LH
2019-08 → 2020-09 ended
USK6# LIMD,PLAT —
69210-0C040-J2 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# LIMD,PLAT —
69210-0C060-A0 note Handle Assy, Front Door Outside, LH
2019-08 → 2021-08 ended
USK6# SR5 —
69210-0C060-A1 note Handle Assy, Front Door Outside, LH
2021-08 → —
USK6# SR5 —
69210-0C060-B0 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# SR5 —
69210-0C060-B1 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# SR5 —
69210-0C060-C0 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# SR5 —
69210-0C060-C0 note Handle Assy, Front Door Outside, LH
2020-09 → —
USK6# LIMD —
69210-0C060-D0 note Handle Assy, Front Door Outside, LH
2019-08 → 2020-09 ended
USK6# SR5 —
69210-0C060-G0 note Handle Assy, Front Door Outside, LH
2019-08 → 2020-09 ended
USK65 SR5 —
69210-0C060-G1 note Handle Assy, Front Door Outside, LH
2020-09 → —
USK65 SR5 —
69210-0C060-J0 note Handle Assy, Front Door Outside, LH
2019-08 → —
USK6# SR5 —
69241H — Pad, Front Door Outside Handle, Front
69241-0C010 Pad, Front Door Outside Handle, Front
2007-11 → 2009-04 ended
UCK6# —
69241-0C010 Pad, Front Door Outside Handle, Front
2007-11 → 2012-08 ended
UPK6# —
69241-0C010 Pad, Front Door Outside Handle, Front
2007-11 → 2017-08 ended
USK6# —
69241-0C010 Pad, Front Door Outside Handle, Front
2017-08 → —
USK6# —
69242F — Pad, Front Door Outside Handle, Rear
69242-0C010 Pad, Front Door Outside Handle, Rear
2007-11 → 2009-04 ended
UCK6# —
69242-0C010 Pad, Front Door Outside Handle, Rear
2007-11 → 2012-08 ended
UPK6# —
69242-0C010 Pad, Front Door Outside Handle, Rear
2007-11 → 2017-08 ended
USK6# —
69242-0C010 Pad, Front Door Outside Handle, Rear
2017-08 → —
USK6# —
69277B — Bezel, Front Door Inside Handle, RH
69277-0C020-C0 note Bezel, Front Door Inside Handle, RH
2007-11 → 2017-08 ended
UCK6#,USK6# LIMD HTWC —
69277-0C020-C0 note Bezel, Front Door Inside Handle, RH
2008-08 → 2017-08 ended
UPK6# LIMD;USK65 (LIMD,PLAT) HTWCF —
69277-0C020-C0 note Bezel, Front Door Inside Handle, RH
2007-11 → 2017-08 ended
USK6# PLAT HTWC —
69277-0C020-C0 note Bezel, Front Door Inside Handle, RH
2017-08 → 2017-09 ended
USK65 (LIMD,PLAT) HTWCF —
69277-0C020-C0 note Bezel, Front Door Inside Handle, RH
2017-08 → —
USK6# (LIMD,PLAT) HTWC —
69278B — Bezel, Front Door Inside Handle, LH
69278-0C020-C0 note Bezel, Front Door Inside Handle, LH
2007-11 → 2017-08 ended
UCK6#,USK6# LIMD HTWC —
69278-0C020-C0 note Bezel, Front Door Inside Handle, LH
2008-08 → 2017-08 ended
UPK6# LIMD;USK65 LIMD HTWCF —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2007-11 → 2017-08 ended
USK6# PLAT HTWC —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2007-11 → 2017-08 ended
UCK6#,USK6# LIMD HTWC —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2008-08 → 2017-08 ended
USK65 PLAT HTWCF —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2008-08 → 2017-08 ended
UPK6# LIMD;USK65 LIMD HTWCF —
69278-0C020-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → —
USK6# LIMD HTWC —
69278-0C020-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → —
USK6# PLAT HTWC —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → —
USK6# LIMD HTWC —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → 2017-09 ended
USK65 PLAT HTWCF —
69278-0C040-C0 note Bezel, Front Door Inside Handle, LH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
69283 — Plug, Front Door Inside Handle Bezel, RH
69283-0C010-C0 note Plug, Front Door Inside Handle Bezel, RH
2007-11 → 2017-08 ended
USK6# PLAT HTWC —
69283-0C010-C0 note Plug, Front Door Inside Handle Bezel, RH
2008-08 → 2017-08 ended
UPK6#;USK65 HTWCF —
69283-0C010-C0 note Plug, Front Door Inside Handle Bezel, RH
2007-11 → 2017-08 ended
UCK6#,USK6# (LIMD,SR5) HTWC —
69283-0C010-C0 note Plug, Front Door Inside Handle Bezel, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69283-0C010-C0 note Plug, Front Door Inside Handle Bezel, RH
2017-08 → —
USK6# HTWC —
69284C — Plug, Front Door Inside Handle Bezel, LH
69284-0C010-C0 note Plug, Front Door Inside Handle Bezel, LH
2007-11 → 2017-08 ended
UCK6#,USK6# (LIMD,SR5) HTWC —
69284-0C010-C0 note Plug, Front Door Inside Handle Bezel, LH
2007-11 → 2017-08 ended
USK6# PLAT HTWC —
69284-0C010-C0 note Plug, Front Door Inside Handle Bezel, LH
2008-08 → 2017-08 ended
UPK6#;USK65 HTWCF —
69284-0C010-C0 note Plug, Front Door Inside Handle Bezel, LH
2017-08 → —
USK6# HTWC —
69284-0C010-C0 note Plug, Front Door Inside Handle Bezel, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69310 — Lock Assy, Front Door, RH
69030-06200 Lock Assy, Front Door, RH
2007-11 → 2009-04 ended
UCK6# —
69030-06200 Lock Assy, Front Door, RH
2007-11 → 2011-09 ended
UPK6#,USK6# —
69030-0C050 Lock Assy, Front Door, RH
2011-09 → 2012-08 ended
UPK6# —
69030-0C050 Lock Assy, Front Door, RH
2011-09 → 2017-08 ended
USK6# —
69030-0C050 Lock Assy, Front Door, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69030-0C050 Lock Assy, Front Door, RH
2017-08 → —
USK6# HTWC —
69311A — Rod, Front Door Lock Open, RH
69311-0C030 Rod, Front Door Lock Open, RH
2007-11 → 2009-04 ended
UCK6# —
69311-0C030 Rod, Front Door Lock Open, RH
2007-11 → 2017-08 ended
USK6# —
69311-0C030 Rod, Front Door Lock Open, RH
2007-11 → 2012-08 ended
UPK6# —
69311-0C030 Rod, Front Door Lock Open, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69311-0C030 Rod, Front Door Lock Open, RH
2017-08 → —
USK6# HTWC —
69312 — Rod, Front Door Lock Open, LH
69312-0C030 Rod, Front Door Lock Open, LH
2007-11 → 2009-04 ended
UCK6# —
69312-0C030 Rod, Front Door Lock Open, LH
2007-11 → 2012-08 ended
UPK6# —
69312-0C030 Rod, Front Door Lock Open, LH
2007-11 → 2017-08 ended
USK6# —
69312-0C030 Rod, Front Door Lock Open, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69312-0C030 Rod, Front Door Lock Open, LH
2017-08 → —
USK6# HTWC —
69318C — Seal, Door Lock Wiring Harness
69318-AA010 Seal, Door Lock Wiring Harness
2007-11 → 2009-04 ended
UCK6# —
69318-AA010 Seal, Door Lock Wiring Harness
2007-11 → 2012-08 ended
UPK6# —
69318-AA010 Seal, Door Lock Wiring Harness
2007-11 → 2017-08 ended
USK6# —
69318-AA010 Seal, Door Lock Wiring Harness
2017-08 → 2017-09 ended
USK65 HTWCF —
69318-AA010 Seal, Door Lock Wiring Harness
2017-08 → —
USK6# HTWC —
69320 — Lock Assy, Front Door, LH
69040-06180 Lock Assy, Front Door, LH
2007-11 → 2009-04 ended
UCK6# —
69040-06180 Lock Assy, Front Door, LH
2007-11 → 2011-09 ended
UPK6#,USK6# —
69040-0C050 Lock Assy, Front Door, LH
2011-09 → 2012-08 ended
UPK6# —
69040-0C050 Lock Assy, Front Door, LH
2011-09 → 2017-08 ended
USK6# —
69040-0C050 Lock Assy, Front Door, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69040-0C050 Lock Assy, Front Door, LH
2017-08 → —
USK6# HTWC —
69410 — Plate Assy, Front Door Lock Striker
69410-AA030 Plate Assy, Front Door Lock Striker
2007-11 → 2009-04 ended
UCK6# —
69410-AA030 Plate Assy, Front Door Lock Striker
2007-11 → 2012-08 ended
UPK6# —
69410-AA030 Plate Assy, Front Door Lock Striker
2007-11 → 2017-08 ended
USK6# —
69410-AA030 Plate Assy, Front Door Lock Striker
2017-08 → —
USK6# HTWC —
69410-AA030 Plate Assy, Front Door Lock Striker
2017-08 → 2017-09 ended
USK65 HTWCF —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-0C030 Cable Assy, Front Door Lock Remote Control, RH
2007-11 → 2009-04 ended
UCK6# —
69710-0C030 Cable Assy, Front Door Lock Remote Control, RH
2007-11 → 2012-08 ended
UPK6# —
69710-0C030 Cable Assy, Front Door Lock Remote Control, RH
2007-11 → 2014-08 ended
USK6# —
69710-0C050 Cable Assy, Front Door Lock Remote Control, RH
2014-08 → 2017-08 ended
USK6# —
69710-0C050 Cable Assy, Front Door Lock Remote Control, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69710-0C050 Cable Assy, Front Door Lock Remote Control, RH
2017-08 → —
USK6# HTWC —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-0C030 Cable Assy, Front Door Lock Remote Control, LH
2007-11 → 2009-04 ended
UCK6# —
69710-0C030 Cable Assy, Front Door Lock Remote Control, LH
2007-11 → 2014-08 ended
USK6# —
69710-0C030 Cable Assy, Front Door Lock Remote Control, LH
2007-11 → 2012-08 ended
UPK6# —
69710-0C050 Cable Assy, Front Door Lock Remote Control, LH
2014-08 → 2017-08 ended
USK6# —
69710-0C050 Cable Assy, Front Door Lock Remote Control, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69710-0C050 Cable Assy, Front Door Lock Remote Control, LH
2017-08 → —
USK6# HTWC —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-0C030 Cable Assy, Front Door Inside Locking, RH
2007-11 → 2009-04 ended
UCK6# —
69750-0C030 Cable Assy, Front Door Inside Locking, RH
2007-11 → 2012-08 ended
UPK6# —
69750-0C030 Cable Assy, Front Door Inside Locking, RH
2007-11 → 2017-08 ended
USK6# —
69750-0C030 Cable Assy, Front Door Inside Locking, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69750-0C030 Cable Assy, Front Door Inside Locking, RH
2017-08 → —
USK6# HTWC —
69760C — Cable Assy, Front Door Inside Locking LH
69750-0C030 Cable Assy, Front Door Inside Locking LH
2007-11 → 2009-04 ended
UCK6# —
69750-0C030 Cable Assy, Front Door Inside Locking LH
2007-11 → 2012-08 ended
UPK6# —
69750-0C030 Cable Assy, Front Door Inside Locking LH
2007-11 → 2017-08 ended
USK6# —
69750-0C030 Cable Assy, Front Door Inside Locking LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69750-0C030 Cable Assy, Front Door Inside Locking LH
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
