Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

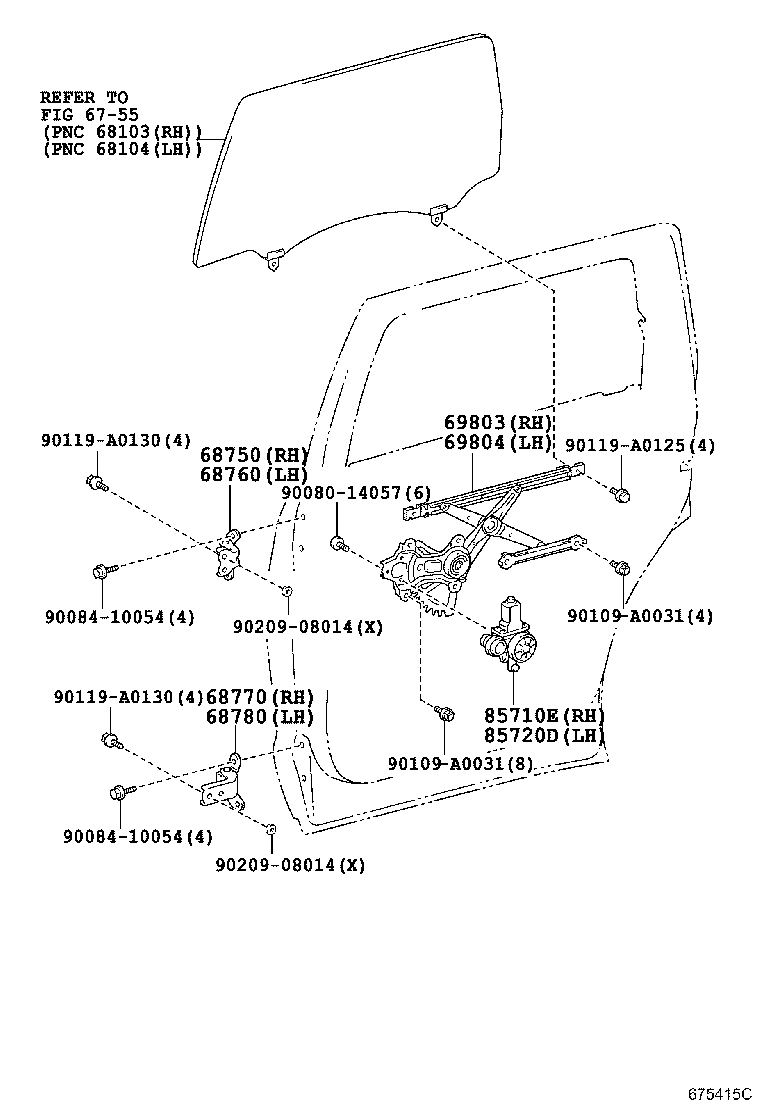

Exploded illustration 675415C 68750 — HINGE ASSY, REAR DOOR, UPPER RH (5 parts) 68760 — HINGE ASSY, REAR DOOR, UPPER LH (5 parts) 68770 — HINGE ASSY, REAR DOOR, LOWER RH (5 parts) 68780 — HINGE ASSY, REAR DOOR, LOWER LH (5 parts) 69803 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH (5 parts) 69804 — REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH (5 parts) 9008410054 — not listed in this catalogue 9008410054 — not listed in this catalogue 90119A0130 — not listed in this catalogue 90119A0130 — not listed in this catalogue 85710E — MOTOR ASSY, POWER WINDOW REGULATOR, RH (5 parts) 85720D — MOTOR ASSY, POWER WINDOW REGULATOR, LH (5 parts) 9008014057 — not listed in this catalogue 90119A0125 — not listed in this catalogue 90109A0031 — not listed in this catalogue 90109A0031 — not listed in this catalogue 6755 — not listed in this catalogue 9020908014 — not listed in this catalogue 9020908014 — not listed in this catalogue
675415C · 8 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
68750 — Hinge Assy, Rear Door, Upper RH
68750-0C020 Hinge Assy, Rear Door, Upper RH
2007-11 → 2012-08 ended
UPK6# —
68750-0C020 Hinge Assy, Rear Door, Upper RH
2007-11 → 2017-08 ended
USK6# —
68750-0C020 Hinge Assy, Rear Door, Upper RH
2007-11 → 2009-04 ended
UCK6# —
68750-0C020 Hinge Assy, Rear Door, Upper RH
2017-08 → 2017-09 ended
USK65 HTWCF —
68750-0C020 Hinge Assy, Rear Door, Upper RH
2017-08 → —
USK6# HTWC —
68760 — Hinge Assy, Rear Door, Upper LH
68760-0C020 Hinge Assy, Rear Door, Upper LH
2007-11 → 2009-04 ended
UCK6# —
68760-0C020 Hinge Assy, Rear Door, Upper LH
2007-11 → 2012-08 ended
UPK6# —
68760-0C020 Hinge Assy, Rear Door, Upper LH
2007-11 → 2017-08 ended
USK6# —
68760-0C020 Hinge Assy, Rear Door, Upper LH
2017-08 → 2017-09 ended
USK65 HTWCF —
68760-0C020 Hinge Assy, Rear Door, Upper LH
2017-08 → —
USK6# HTWC —
68770 — Hinge Assy, Rear Door, Lower RH
68770-04010 Hinge Assy, Rear Door, Lower RH
2007-11 → 2012-08 ended
UPK6# —
68770-04010 Hinge Assy, Rear Door, Lower RH
2007-11 → 2017-08 ended
USK6# —
68770-04010 Hinge Assy, Rear Door, Lower RH
2007-11 → 2009-04 ended
UCK6# —
68770-04010 Hinge Assy, Rear Door, Lower RH
2017-08 → 2017-09 ended
USK65 HTWCF —
68770-04010 Hinge Assy, Rear Door, Lower RH
2017-08 → —
USK6# HTWC —
68780 — Hinge Assy, Rear Door, Lower LH
68780-04010 Hinge Assy, Rear Door, Lower LH
2007-11 → 2009-04 ended
UCK6# —
68780-04010 Hinge Assy, Rear Door, Lower LH
2007-11 → 2012-08 ended
UPK6# —
68780-04010 Hinge Assy, Rear Door, Lower LH
2007-11 → 2017-08 ended
USK6# —
68780-04010 Hinge Assy, Rear Door, Lower LH
2017-08 → 2017-09 ended
USK65 HTWCF —
68780-04010 Hinge Assy, Rear Door, Lower LH
2017-08 → —
USK6# HTWC —
69803 — Regulator Sub-assy, Rear Door Window, RH
69803-0C040 Regulator Sub-assy, Rear Door Window, RH
2007-11 → 2009-04 ended
UCK6# —
69803-0C040 Regulator Sub-assy, Rear Door Window, RH
2007-11 → 2017-08 ended
USK6# —
69803-0C040 Regulator Sub-assy, Rear Door Window, RH
2007-11 → 2012-08 ended
UPK6# —
69803-0C040 Regulator Sub-assy, Rear Door Window, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
69803-0C040 Regulator Sub-assy, Rear Door Window, RH
2017-08 → —
USK6# HTWC —
69804 — Regulator Sub-assy, Rear Door Window, LH
69804-0C040 Regulator Sub-assy, Rear Door Window, LH
2007-11 → 2009-04 ended
UCK6# —
69804-0C040 Regulator Sub-assy, Rear Door Window, LH
2007-11 → 2012-08 ended
UPK6# —
69804-0C040 Regulator Sub-assy, Rear Door Window, LH
2007-11 → 2017-08 ended
USK6# —
69804-0C040 Regulator Sub-assy, Rear Door Window, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
69804-0C040 Regulator Sub-assy, Rear Door Window, LH
2017-08 → —
USK6# HTWC —
85710E — Motor Assy, Power Window Regulator, RH
85710-AE010 Motor Assy, Power Window Regulator, RH
2007-11 → 2012-08 ended
UPK6# —
85710-AE010 Motor Assy, Power Window Regulator, RH
2007-11 → 2017-08 ended
USK6# —
85710-AE010 Motor Assy, Power Window Regulator, RH
2007-11 → 2009-04 ended
UCK6# —
85710-AE010 Motor Assy, Power Window Regulator, RH
2017-08 → 2017-09 ended
USK65 HTWCF —
85710-AE010 Motor Assy, Power Window Regulator, RH
2017-08 → —
USK6# HTWC —
85720D — Motor Assy, Power Window Regulator, LH
85720-AE010 Motor Assy, Power Window Regulator, LH
2007-11 → 2009-04 ended
UCK6# —
85720-AE010 Motor Assy, Power Window Regulator, LH
2007-11 → 2012-08 ended
UPK6# —
85720-AE010 Motor Assy, Power Window Regulator, LH
2007-11 → 2017-08 ended
USK6# —
85720-AE010 Motor Assy, Power Window Regulator, LH
2017-08 → 2017-09 ended
USK65 HTWCF —
85720-AE010 Motor Assy, Power Window Regulator, LH
2017-08 → —
USK6# HTWC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
