Toyota Sequoia

2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

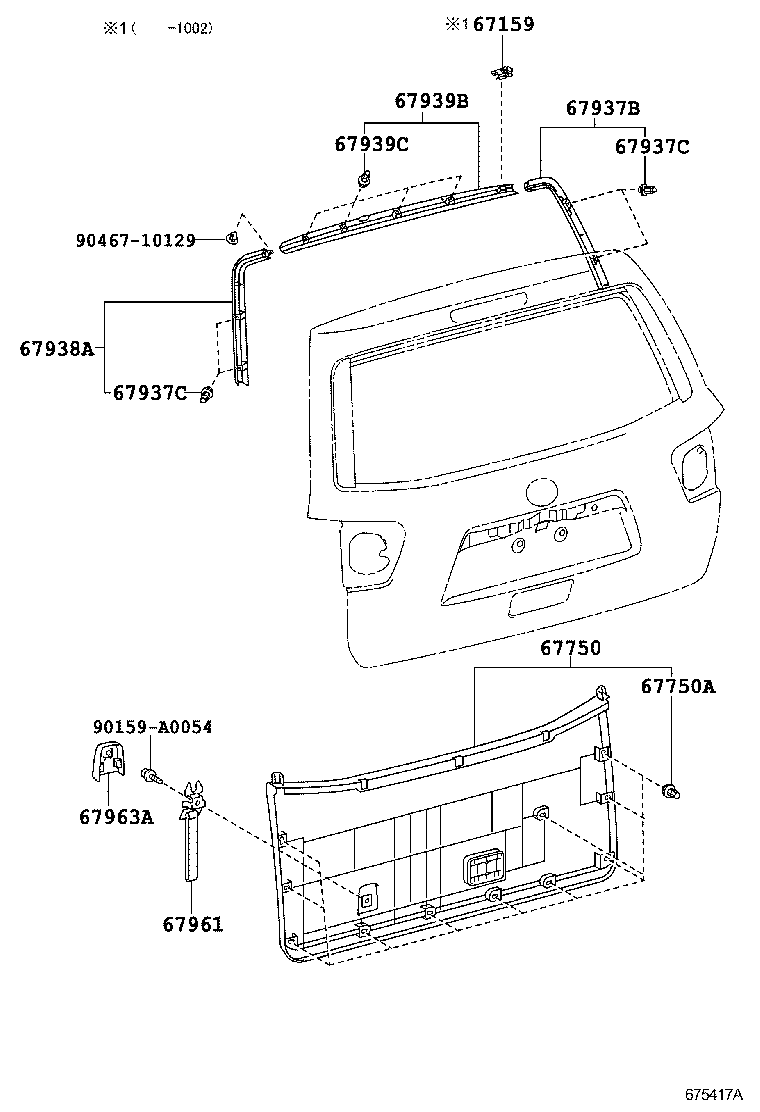

Exploded illustration 675417A 67159 — RETAINER, BACK DOOR TRIM (2 parts) 67750 — BOARD ASSY, BACK DOOR TRIM (14 parts) 67750A — CLIP(FOR BACK DOOR TRIM) (4 parts) 67937B — GARNISH, BACK DOOR SIDE, RH (11 parts) 67937C — CLIP(FOR BACK DOOR SIDE GARNISH) (4 parts) 67937C — CLIP(FOR BACK DOOR SIDE GARNISH) (4 parts) 67938A — GARNISH, BACK DOOR SIDE, LH (22 parts) 67939B — GARNISH, BACK DOOR, CENTER (11 parts) 67939C — CLIP(FOR BACK DOOR CENTER GARNISH) (4 parts) 67961 — STRAP, BACK DOOR PULL (9 parts) 67963A — COVER, BACK DOOR STRAP (11 parts) 90159A0054 — not listed in this catalogue 9046710129 — not listed in this catalogue
675417A · 11 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
67159 — Retainer, Back Door Trim
67159-0C010 Retainer, Back Door Trim
2007-11 → 2010-02 ended
UPK6#,USK6# —
67159-0C010 Retainer, Back Door Trim
2007-11 → 2009-04 ended
UCK6# —
67750 — Board Assy, Back Door Trim
67750-0C020-C0 note Board Assy, Back Door Trim
2007-11 → 2008-11 ended
UCK6#,USK6# PLAT,SR5 —
67750-0C020-C0 note Board Assy, Back Door Trim
2007-11 → 2008-11 ended
UCK6#,USK6# LIMD —
67750-0C020-E0 note Board Assy, Back Door Trim
2007-11 → 2008-11 ended
UCK6#,USK6# —
67750-0C021-C0 note Board Assy, Back Door Trim
2008-12 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67750-0C021-C0 note Board Assy, Back Door Trim
2008-12 → 2009-11 ended
UCK6#,UPK6#,USK6# PLAT,SR5 —
67750-0C021-C0 note Board Assy, Back Door Trim
2009-11 → 2010-09 ended
UPK6#,USK6# LIMD —
67750-0C021-C0 note Board Assy, Back Door Trim
2009-11 → 2010-09 ended
UPK6#,USK6# PLAT,SR5 —
67750-0C021-E0 note Board Assy, Back Door Trim
2008-12 → 2009-11 ended
UCK6#,UPK6#,USK6# —
67750-0C021-E0 note Board Assy, Back Door Trim
2009-11 → 2010-09 ended
UPK6#,USK6# —
67750-0C022-C0 note Board Assy, Back Door Trim
2010-10 → 2017-08 ended
UPK6#,USK6# LIMD —
67750-0C022-C0 note Board Assy, Back Door Trim
2010-10 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
67750-0C022-C0 note Board Assy, Back Door Trim
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
67750-0C022-C0 note Board Assy, Back Door Trim
2019-08 → —
USK65 SR5 —
67750-0C022-C0 note Board Assy, Back Door Trim
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
67750A — Clip(FOR BACK DOOR TRIM)
90467-09206 Clip(FOR BACK DOOR TRIM)
2007-11 → 2009-04 ended
UCK6# —
90467-09206 Clip(FOR BACK DOOR TRIM)
2007-11 → 2012-08 ended
UPK6# —
90467-09206 Clip(FOR BACK DOOR TRIM)
2007-11 → 2017-08 ended
USK6# —
90467-09206 Clip(FOR BACK DOOR TRIM)
2017-08 → —
USK6# —
67937B — Garnish, Back Door Side, RH
67937-0C020-C0 note Garnish, Back Door Side, RH
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
67937-0C020-C0 note Garnish, Back Door Side, RH
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
67937-0C020-C0 note Garnish, Back Door Side, RH
2009-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
67937-0C020-C0 note Garnish, Back Door Side, RH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# PLAT,SR5 —
67937-0C020-C0 note Garnish, Back Door Side, RH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67937-0C020-C0 note Garnish, Back Door Side, RH
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67937-0C020-E0 note Garnish, Back Door Side, RH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# —
67937-0C020-E0 note Garnish, Back Door Side, RH
2009-11 → 2011-06 ended
UPK6#,USK6# —
67937-0C020-C0 note Garnish, Back Door Side, RH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
67937-0C020-C0 note Garnish, Back Door Side, RH
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
67937-0C020-C0 note Garnish, Back Door Side, RH
2019-08 → —
USK65 SR5 —
67937C — Clip(FOR BACK DOOR SIDE GARNISH)
90467-09206 Clip(FOR BACK DOOR SIDE GARNISH)
2007-11 → 2009-04 ended
UCK6# —
90467-09206 Clip(FOR BACK DOOR SIDE GARNISH)
2007-11 → 2012-08 ended
UPK6# —
90467-09206 Clip(FOR BACK DOOR SIDE GARNISH)
2007-11 → 2017-08 ended
USK6# —
90467-09206 Clip(FOR BACK DOOR SIDE GARNISH)
2017-08 → —
USK6# —
67938A — Garnish, Back Door Side, LH
67938-0C020-C0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67938-0C020-C0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# SR5 —
67938-0C020-C0 note Garnish, Back Door Side, LH
2011-06 → 2017-08 ended
UPK6#,USK6# SR5 —
67938-0C020-C0 note Garnish, Back Door Side, LH
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
67938-0C020-C0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67938-0C020-C0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
UPK6#,USK6# SR5 —
67938-0C020-E0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD,SR5 —
67938-0C020-E0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD,SR5 —
67938-0C030-C0 note Garnish, Back Door Side, LH
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
67938-0C030-C0 note Garnish, Back Door Side, LH
2011-06 → 2017-08 ended
USK6# PLAT —
67938-0C030-C0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67938-0C030-C0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
USK6# PLAT —
67938-0C030-C0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
USK6# PLAT —
67938-0C030-C0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67938-0C030-E0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
USK6# PLAT —
67938-0C030-E0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67938-0C030-E0 note Garnish, Back Door Side, LH
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67938-0C030-E0 note Garnish, Back Door Side, LH
2007-11 → 2009-11 ended
USK6# PLAT —
67938-0C020-C0 note Garnish, Back Door Side, LH
2017-08 → —
USK6# SR5 —
67938-0C030-C0 note Garnish, Back Door Side, LH
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
67938-0C030-C0 note Garnish, Back Door Side, LH
2017-08 → —
USK65 PLAT;USK60 LIMD,PLAT;USK65 LIMD +1 —
67938-0C030-C0 note Garnish, Back Door Side, LH
2019-08 → —
USK65 SR5 —
67939B — Garnish, Back Door, Center
67939-0C020-C0 note Garnish, Back Door, Center
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67939-0C020-C0 note Garnish, Back Door, Center
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
67939-0C020-C0 note Garnish, Back Door, Center
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
67939-0C020-C0 note Garnish, Back Door, Center
2009-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
67939-0C020-C0 note Garnish, Back Door, Center
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# PLAT,SR5 —
67939-0C020-C0 note Garnish, Back Door, Center
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67939-0C020-E0 note Garnish, Back Door, Center
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# —
67939-0C020-E0 note Garnish, Back Door, Center
2009-11 → 2011-06 ended
UPK6#,USK6# —
67939-0C020-C0 note Garnish, Back Door, Center
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
67939-0C020-C0 note Garnish, Back Door, Center
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
67939-0C020-C0 note Garnish, Back Door, Center
2019-08 → —
USK65 SR5 —
67939C — Clip(FOR BACK DOOR CENTER GARNISH)
90467-09206 Clip(FOR BACK DOOR CENTER GARNISH)
2007-11 → 2017-08 ended
USK6# —
90467-09206 Clip(FOR BACK DOOR CENTER GARNISH)
2007-11 → 2012-08 ended
UPK6# —
90467-09206 Clip(FOR BACK DOOR CENTER GARNISH)
2007-11 → 2009-04 ended
UCK6# —
90467-09206 Clip(FOR BACK DOOR CENTER GARNISH)
2017-08 → —
USK6# —
67961 — Strap, Back Door Pull
67908-0C010-C0 note Strap, Back Door Pull
2007-11 → 2009-04 ended
UCK6# SR5 —
67908-0C010-C0 note Strap, Back Door Pull
2007-11 → 2009-04 ended
UCK6# LIMD —
67908-0C010-C0 note Strap, Back Door Pull
2007-11 → 2009-11 ended
UPK6#,USK6# LIMD —
67908-0C010-C0 note Strap, Back Door Pull
2007-11 → 2009-11 ended
UPK6#,USK6# PLAT,SR5 —
67908-0C010-E0 note Strap, Back Door Pull
2007-11 → 2009-04 ended
UCK6# —
67908-0C010-E0 note Strap, Back Door Pull
2007-11 → 2009-11 ended
UPK6#,USK6# —
67908-0C020 Strap, Back Door Pull
2009-11 → 2012-08 ended
UPK6# —
67908-0C020 Strap, Back Door Pull
2009-11 → 2017-08 ended
USK6# —
67908-0C020 Strap, Back Door Pull
2017-08 → —
USK6# —
67963A — Cover, Back Door Strap
67963-08010-C0 note Cover, Back Door Strap
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# LIMD —
67963-08010-C0 note Cover, Back Door Strap
2011-06 → 2017-08 ended
UPK6#,USK6# PLAT,SR5 —
67963-08010-C0 note Cover, Back Door Strap
2011-06 → 2017-08 ended
UPK6#,USK6# LIMD —
67963-08010-C0 note Cover, Back Door Strap
2009-11 → 2011-06 ended
UPK6#,USK6# PLAT,SR5 —
67963-08010-C0 note Cover, Back Door Strap
2009-11 → 2011-06 ended
UPK6#,USK6# LIMD —
67963-08010-C0 note Cover, Back Door Strap
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# PLAT,SR5 —
67963-08010-E2 note Cover, Back Door Strap
2009-11 → 2011-06 ended
UPK6#,USK6# —
67963-08010-E2 note Cover, Back Door Strap
2007-11 → 2009-11 ended
UCK6#,UPK6#,USK6# —
67963-08010-C0 note Cover, Back Door Strap
2017-08 → 2017-09 ended
USK65 LIMD HTWCF —
67963-08010-C0 note Cover, Back Door Strap
2017-08 → —
USK60;USK65 PLAT,SR5;USK65 LIMD HTWC —
67963-08010-C0 note Cover, Back Door Strap
2019-08 → —
USK65 SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
